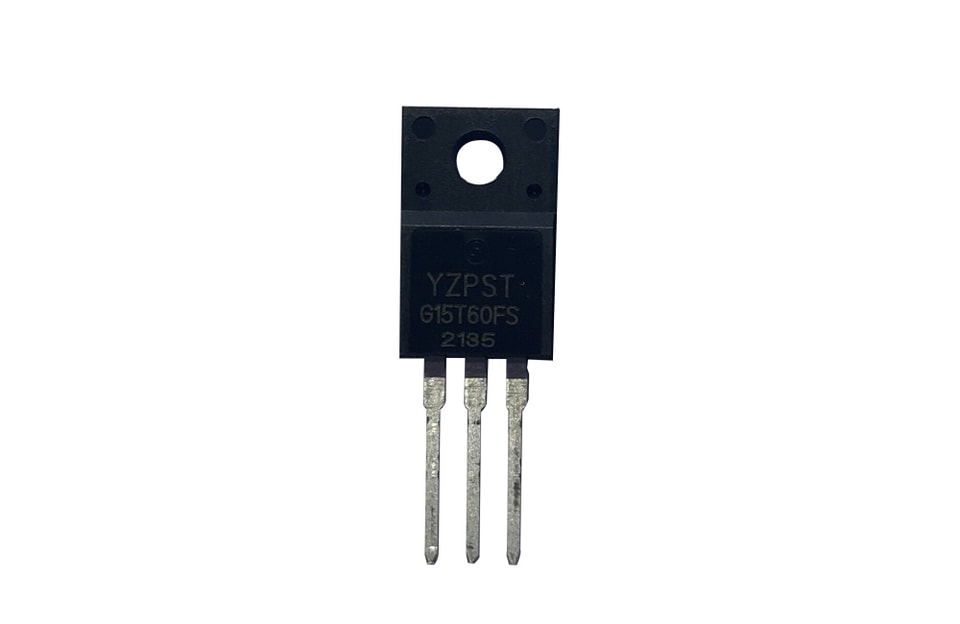

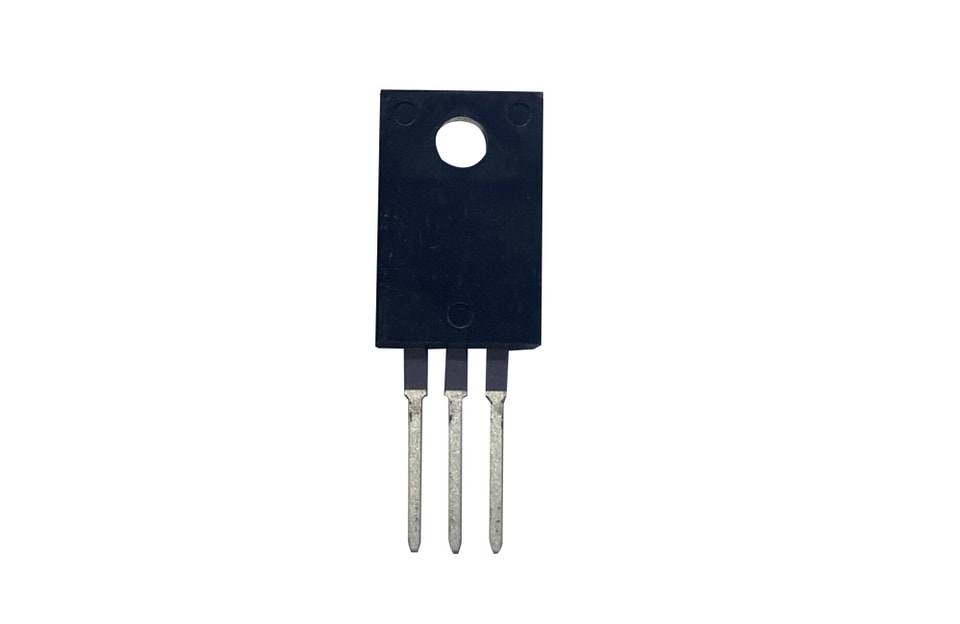

YZPST-G15T60FS
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
Features
600V,15A
VCE(sat)(typ.)=1.8V@VGE=15V,IC=15A
High speed switching
Higher system efficiency
Soft current turn-off waveforms
Square RBSOA
General Description
YZPST trench IGBTs offer lower losses and higher energy efficiency for application such as IH (induction heating),UPS, general inverter and other soft switching applications.
Absolute Maximum Ratings
Symbol | Parameter | Value | Units |
VCES | Collector-Emitter Voltage | 600 | V |
VGES | Gate-Emitter Voltage | + 20 | V |
IC | Continuous Collector Current ( TC=25 ℃) | 14 | A |
Continuous Collector Current ( TC=100℃) | 8 | A | |
ICM | Pulsed Collector Current (Note 1) | 45 | A |
IF | Diode Continuous Forward Current ( TC=100 ℃) | 8 | A |
IFM | Diode Maximum Forward Current (Note 1) | 45 | A |
tsc | Short Circuit Withstand Time | 10 | us |
PD | Maximum Power Dissipation ( TC=25 ℃) | 28 | W |
Maximum Power Dissipation ( TC=100℃) | 11 | W | |
TJ | Operating Junction Temperature Range | -55 to +150 | ℃ |
TSTG | Storage Temperature Range | -55 to +150 | ℃ |
Thermal Characteristics
Symbol | Parameter | Max. | Units |
Rth j-c | Thermal Resistance, Junction to case for IGBT | 4.4 | ℃/ W |
Rth j-c | Thermal Resistance, Junction to case for Diode | 5.2 | ℃/ W |
Rth j-a | Thermal Resistance, Junction to Ambient | 65 | ℃/ W |
For more information about YZPST-G15T60FS please download the PDF file above named " YZPST-G15T60FS "
