Trench Field-Stop Technology IGBT

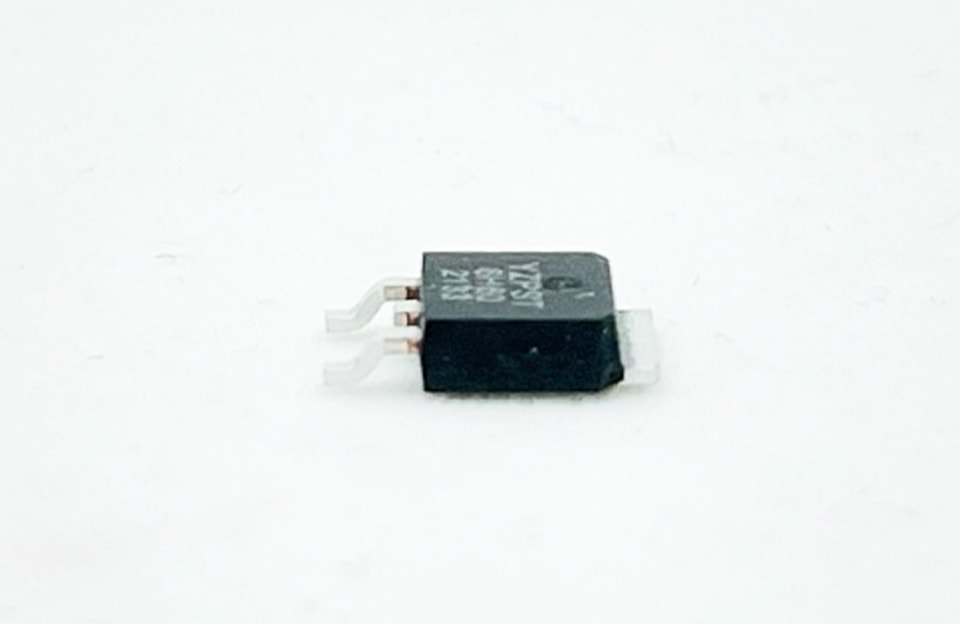

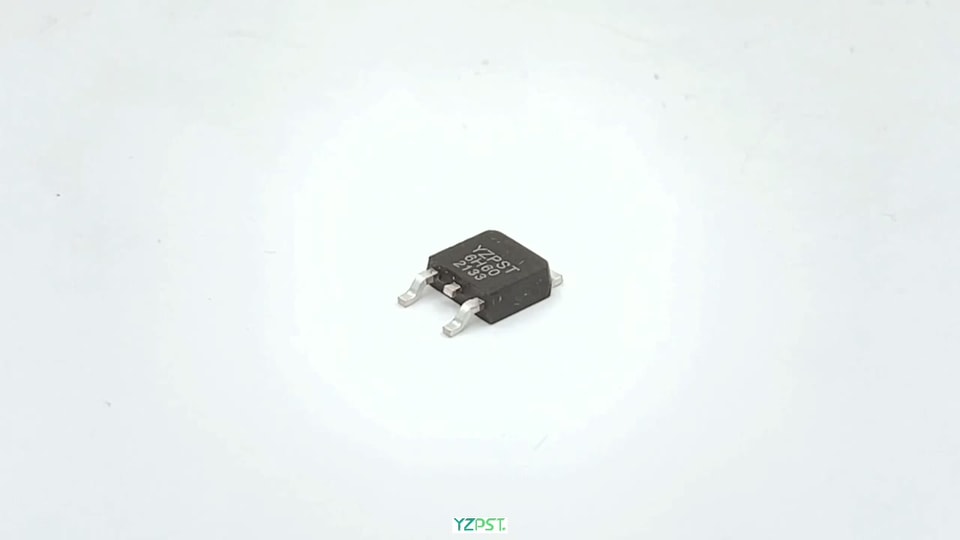

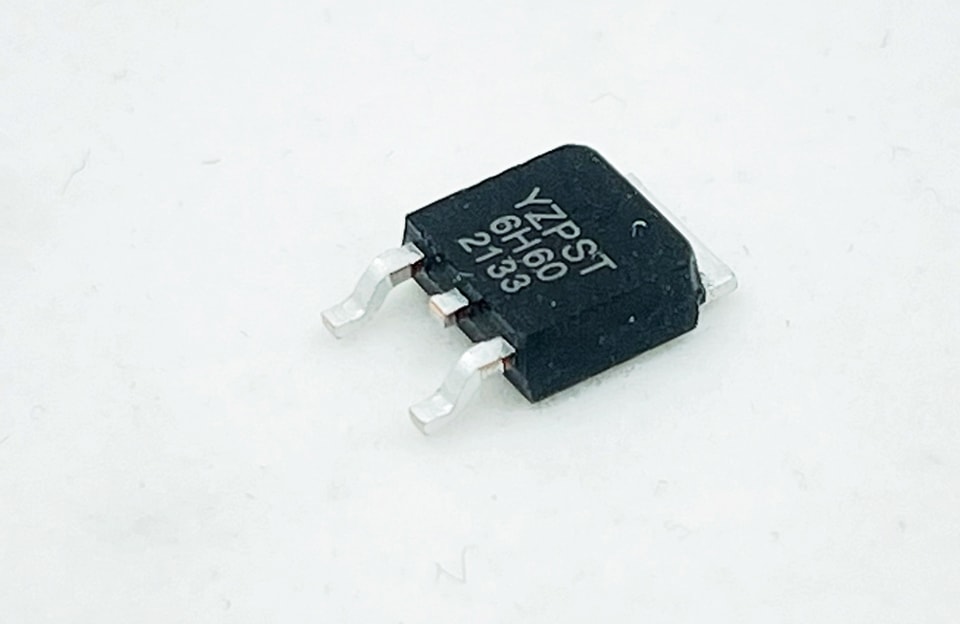

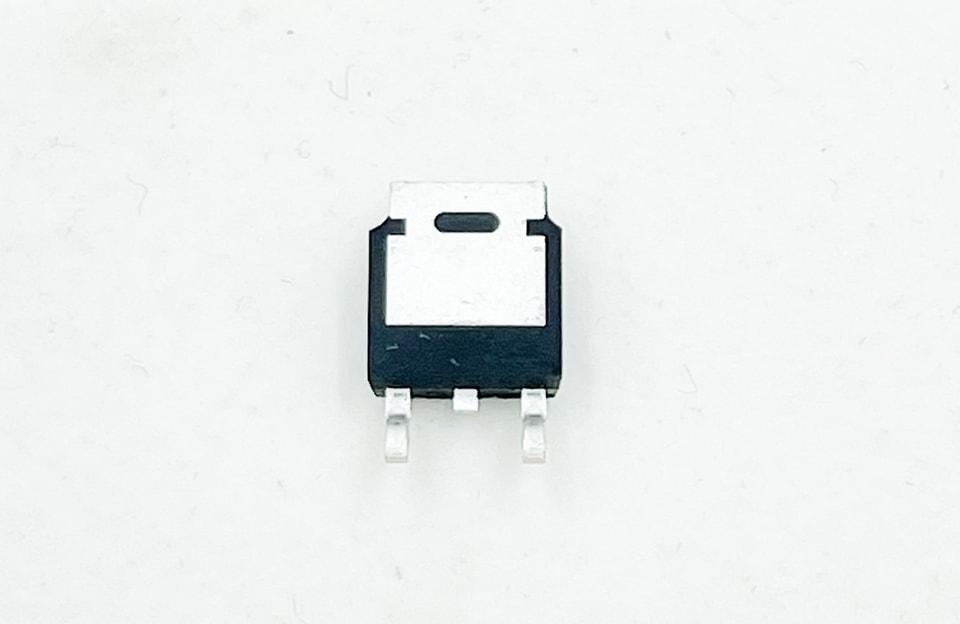

YZPST-6H60CX1G3
Features
600V, 6A
VCE(sat)(typ.) =1.75V@VGE=15V, IC=6A
Low Qg
Maximum Junction Temperature 175℃
Pb-free Lead Plating; RoHS Compliant
Applications
Solar Converters
Uninterrupted Power Supply
Welding Converters
Mid to High Range Switching Frequency Converters
Key Performance and Package Parameters
Order codes | VCE | IC | VCEsat, Tvj=25℃ | Tvjmax | Marking | Package |
60H060CX1R3 | 650V | 6A | 1.75V | 175℃ | 6H60CX1R3 | TO263-2L |
60H060CX1G3 | 650V | 6A | 1.75V | 175℃ | 6H60CX1G3 | TO252-2L |
Absolute Maximum Ratings
Symbol | Parameter | Value | Unit |
VCES | Collector-Emitter Voltage | 600 | V |
VGES | Gate-Emitter Voltage | ±20 | V |
IC | Continuous Collector Current (TC=25℃) | 12 | A |
Continuous Collector Current (TC=100℃) | 6 | A | |
ICM | Pulsed Collector Current (Note 1) | 18 | A |
PD | Maximum Power Dissipation (TC=25℃) | 89 | W |
Maximum Power Dissipation (TC=100℃) | 44 | W | |
TJ | Operating Junction Temperature Range | -40 to 175 | ℃ |
TSTG | Storage Temperature Range | -55 to 150 | ℃ |
