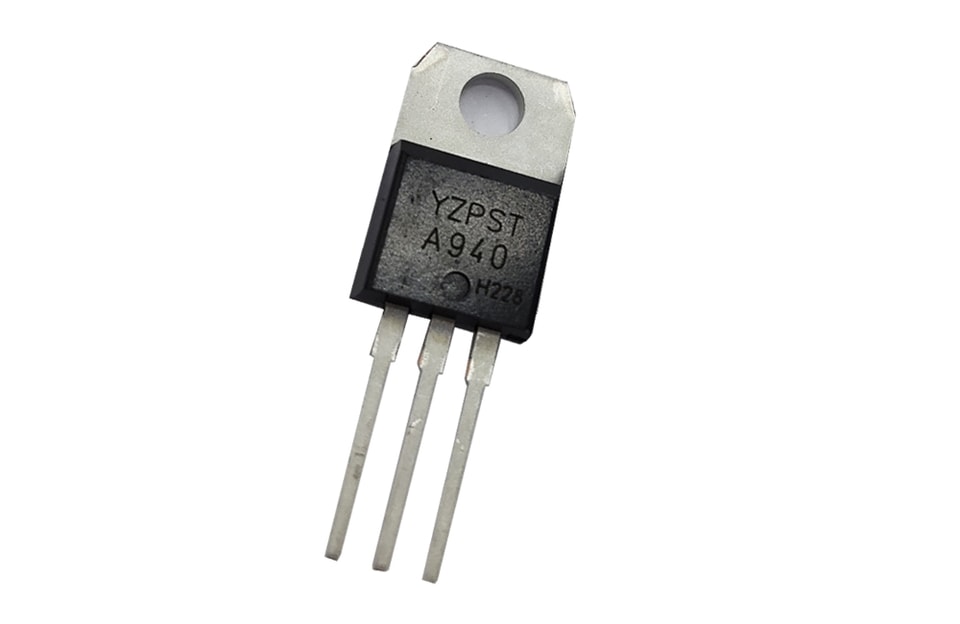

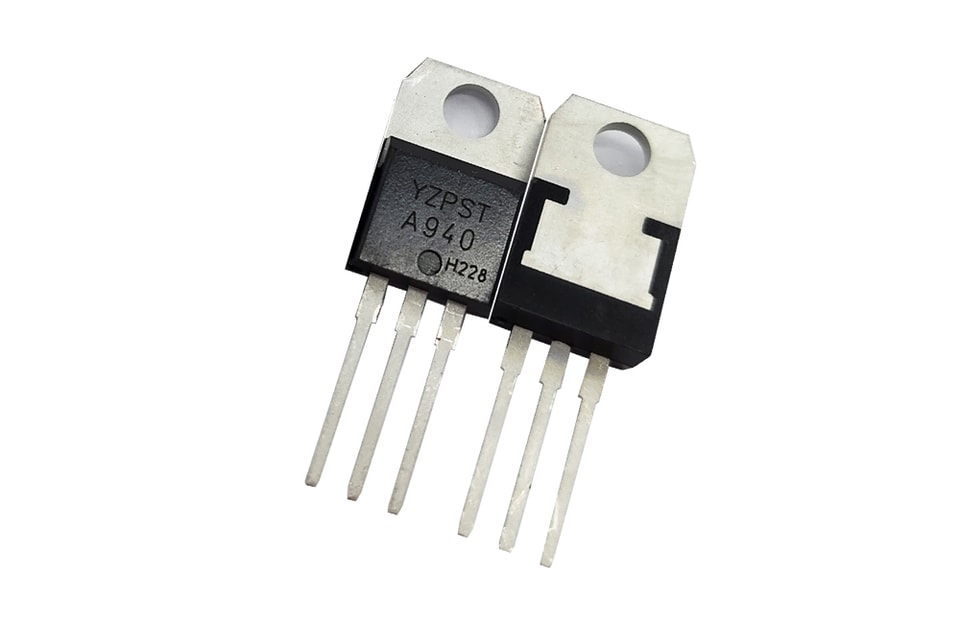

PNP Type Transistor 2SA940

DESRCRIPTION:
The 2SA940 is a PNP type transistor, used as a power switch tube for electronic ballasts and electronic energy-saving lamps. It has the characteristics of low switching loss, high reliability, good high temperature characteristics, suitable switching speed, high breakdown voltage, low reverse leakage, etc.
YZPST-2SA940-1

ABSOLUTE MAX I MUM RATINGS

Symbol	Parameter	Value	Unit
VCBO	Collector-Base Voltage	-150	V
VCEO	Collector-Emitter Voltage	-150	V
VEBO	Emitter-Base Voltage	-5	V
IC	Continuous Collector Current	-1.5	A
PTOT	Total dissipation at Tcase=25 ℃	25	W
T_j	Junction Temperature	150	℃
T_stg	Stora-1.5ge Temperature Range	-55〜150	℃

ELECTRICAL CHARACTERISTICS (TC = 25°C, unless otherwise specified)

Symbol	Parameter	Test Condition	Value			Unit
Symbol	Parameter	Test Condition	Min	Type	Max	Unit
V(BR)CBO	Collector-Base Breakdown Voltage	I_C=-1mA	-150			V
V(BR)CEO	Collector-Emitter Breakdown Voltage	I_C=-1mA	-150			V
V(BR)EBO	Emitter-Base Breakdown Voltage	I_E=-1mA	- 5			V
ICBO	Collector Cutoff Current	V_CB=-150V, I_E=0			-5	μA
ICEO	Collector Cutoff Current	V_CE=-150V, I_C=0			-5	μA
IEBO	Emitter Cutoff Current	V_EB=-5V, I_C=0			-5	μA
hFE	DC Current Gain	V_CE=-10V, I_C=-0.5A	40		140
VCE(sat)	Collector-Base Breakdown Voltage	I_C=-0.5A, I_B=-50mA			-0.85	V
VBE(sat)	Base-Emitter Saturation Voltage	I_C=-0.5A, I_B=-50mA			-1.5	V
a: tp≤300μs,δ≤2%
