YZPST INSIGHT2020-04-27

Induction Furnace Spare Parts

One-Stop Solution

For Iron & Steel Smelting, Casting, Medium Frequency Furnace, Inductive Heating Accessories
YZPST takes power semiconductor components as the main line. Combined with steel smelting, casting, induction heating accessories characteristics, elaborate power semiconductor components, semiconductor fuse, medium frequency water cooled tank shape power capacitor, varistor and other products, to provide customers with one-stop solution. Our products are exported to Europe, America, South America, Middle East and Asia.

Power Semiconductor Key List
Thyristor
Diode
Module
IGBT
Medium Frequency Water Cooled Tank Shape Power Capacitor
DC Capacitor
Semiconductor Fuse
Power Resistor
Temperature Sensors
Varistor
Induction Furnace Controller Board
Induction Furnace Epoxy Resin Board & Rod

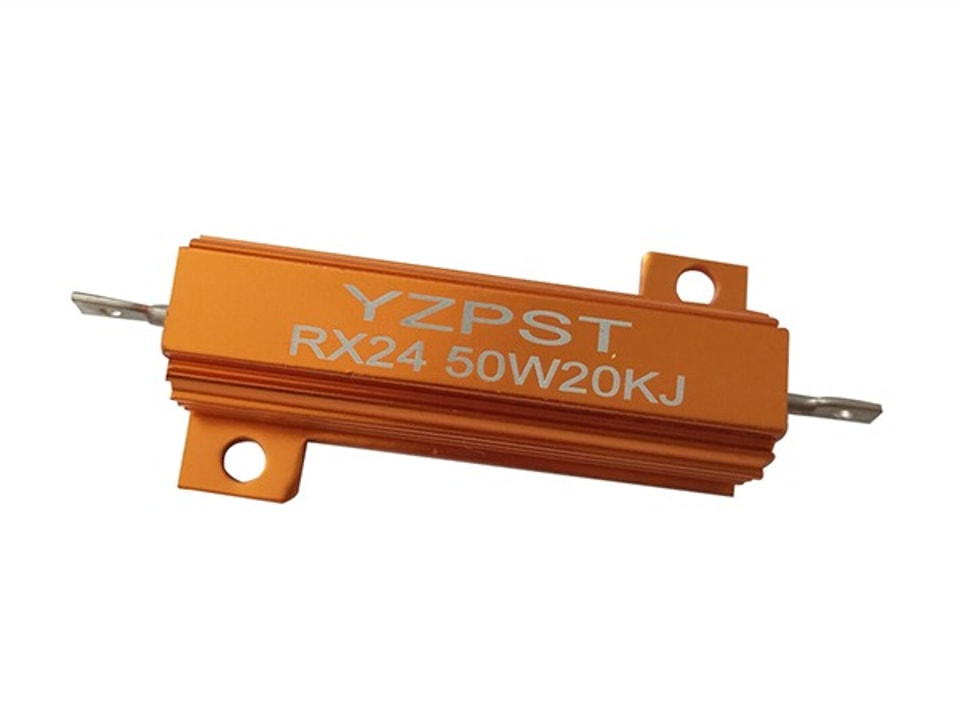

gold resistor
MOV
power capacitor
semiconductor module

To whom it may concern,

We are thankful for your continuous support since 2003 that has made us capable to provide you all type of quality spares of induction furnace at highly competitive price.

Pleased to inform you that now we are ready with good stock of semiconductor devices like Inverter Thyristor, Convertor Thyristor, Fast switching diodes, standard diode of following features as well as Semiconductor fuses and Capacitors.

* ALL DIFFUSED STRUCTURE* CENTRE AMPLIFYING GATE CONFIGURATION.* GURANTEED TURN OFF TIME.* HIGH DV / DT CAPABILITY.* HIGH DI / DT CAPABILITY.* HIGH SURGE RATINGS.* HIGH RELIABILITY.* SELECTED DEVICE FOR INDUCTION EQUIPMENT.* MOST COMPETITIVE PRICE IN THE WORLD.

Detail specification sheet with reference prices will be sent after getting your inquiry, Price advantage and quality of product holds true for all the other spare supplied by us. Please write us with your requirement and give us a chance to serve you by our excellent service.

We are confident that our ex-stock and cost effective spares will be able to save a lot in terms of breakdown time and cost of spares.

We can supply semiconductor devices and other most of parts for INDUCTOTHERM, ELECTROTHERM, MEGATHERM, PILLAR, SUPERHEAT, ABP and other manufacturers of Induction Furnace.

You can call us for any particular requirement of Induction Furnace parts, apart from above mentioned items.

This is to remind you that we have more than 33 years’ experience in the field.

Thanking you and assuring you our best services at all the time.

DC Filter Capacitor list which used for Induction furnace etc.

TYPE	Rated Voltage	Rated Capacity	Rated frequency	Rated capacitance	Current	Number of groups	Case size			Single weight
TYPE	KV	Kvar	KHZ	Uf	A	Number of groups	Long	Width	High	Kg
DZMJ0.86-1600S	0.86			1600	1000	1	320	135	475	26
DZMJ0.86-1850S	0.86			1850	1200	1	320	135	530	29
DZMJ0.86-3000S	0.86			3000	1500	1	440	135	490	36
DZMJ0.9-4000S	0.9			4000	1600	1	440	190	380	39
DZMJ0.9-5000S	0.9			5000	2000	1	440	190	545	55
DZMJ1.2-1850S	1.2			1850	1200	1	340	190	500	38
DZMJ1.2-2600S	1.2			2600	1200	1	440	140	595	44
DZMJ1.2-3000S	1.2			3000	1200	1	390	190	650	59
DZMJ1.2-4000S	1.2			4000	1600	1	440	190	575	58
DZMJ1.2-5OOOS	1.2			5000	2000	1	440	190	685	68
DZMJ1.5-1950S	1.5			1950	1000	1	440	140	775	57
DZMJ1.8-1850S	1.8			1850	1000	1	343	238	780	71

YZPST can provide Following List of Induction Heating Capacitor Which are Equivalent as GE

Type	Voltage (Kv)	Cap. (Kvar)	Frequency (Khz)	Cap.Value	L(mm)	W(mm)	H(mm)
RAM0.55-1089-3.2S	0.55	1089	3.2	179.1	342.9	136.7	342.9
RAM0.625-883-1.2SS	0.625	883	1.2	299.9	342.9	136.7	330.2
RAM1.0-3000-0.3S	1	3000	0.3	1592.3	558.8	203.2	711.2
RAM1.2-200-0.06S	1.2	200	3.2	6.9	342.9	111.3	393.7
RAM1.25-3000-10S	1.25	3000	10	30.5	330.2	127	342.9
RAM1.5-2333-3S	1.5	2333	3	55.1	342.9	111.3	330.2
RAM1.8-2442-1.2S	1.8	2442	1.2	100.1	558.8	114.3	342.9
RAM2.2-4000-0.3S	2.2	4000	0.3	438.6	558.8	203.2	711.2
RAM2.4-62-0.3S	2.4	62	0.3	5.7	203.2	101.6	282.7
RAM2.25-49-0.15S	2.25	49	0.15	10.2	203.2	101.6	282.7
RAM2.8-4000-0.3S	2.8	4000	0.3	270.8	558.8	203.2	711.2
RAM2.8-4800-0.4S	2.8	4800	0.4	243.7	558.8	184.1	711.2
RAM3.0-118-0.7S	3	118	0.7	2.9	203.2	101.6	282.7
RAM3.0-5450-0.7S	3	5450	0.7	137.8	330	215	640
RAM3.0-8400-0.7S	3	8400	0.7	212.3	558.8	203.2	711.2
RAM3.0-13400-1.2S	3	13400	1.2	197.5	558.8	203.2	711.2
RAM3.6-6000-0.5S	3.6	6000	0.5	147.4	330	290	850
RAM4.0-7500-0.4S	4	7500	0.4	74.6	330	340	895
RAM5.0-8000-0.4S	5	8000	0.4	127.4	330	390	825
RAM6.0-6000-0.3S	6	6000	0.3	88.5	330	390	720
DCMJ0.9-1640S	0.9			1640	342.9	124	450.8
DCMJ0.9-5000S	0.9			5000	558.8	149.4	673.1

YZPST can provide Following Equivalent List of Converter Thyristor.

CONVERTER THYRISTOR
TYPE	Equivalent	IAV	PIV	DIA/HT
C431L	9116/DCR604S/16	600A	1600V	25/15
C440L	DCR804SG21	910A	2100V	34/27
N1075	N370	1240A	1800V	34/27
N0910	F0910	910A	2600V	34/27
C451L	2185/3118/C701I/DCR1004SD21	1547A	2100V	47/27
N1467	N490	1467A	2600V	47/27
C7021	NU59/DCR1278	U59A	4200V	47/27
N1718	3118	1718A	2000V	47/27
N1661	N630	1663A	4200V	63/36
C7811	3182/N980	2500A	2100V	73/36
N2543	3161	2543A	3000V	73/36
N3839	N1663CH35	3839A	3500V	75/27
N3029	F3029	3029A	2800V	73/36

YZPST can provide Following Equivalent List of Fast/Inverter Diodes.

FAST/INVERTER DIODES
TYPE	Equivalent	IAV	PIV	DIA/HT
A696L	9110/SM18CXC724/M1022LC180	1000A	1800V	34/27
3178	SM18CXC924/M149NC180	1496A	1800V	47/27
M1494	SW25CXC924	1494A	2500V	47/27
ZWDQ8	L5646/ZWDQ 815645 fast recovery stud diode

YZPST can provide Following Equivalent List of Discharge Diodes.

DISCHARGE DIODES
TYPE	Equivalent	IAV	PIV	DIA/HT
A740L	2181/W2416NC200	2400A	2000V	47/27
D860	2505/2506	860A	1800V	Square base

YZPST can provide Following Equivalent List of Snubber Diodes.

SNUBBER DIODES
TYPE	Equivaieni	IAV	PIV	DIA/HT
PHN 100	2179	100A	1600V	Stud Type
PHE 100	2180	100A	1600V	Stud Type

YZPST can provide Following List of Capsule Thyristors Which are Equivalent as INFINEON/EUPEC

CAPSULE THYRISTORS(INFINEON/EUPEC TYPE)
TYPE	Equivaieni	IAV	PIV	DIA/HT
T459N26	T459N	459A	2200V	36/26
T1220N28	T1220N	1220A	2200V	50/27

YZPST can provide Following List of Capsule Thyristors Which are Equivalent as DYNEX

CAPSULE THYRISTORS(DYNEX TYPE)
TYPE	IAV	PIV	DIA/HT
DCR 1560F26	1560A	2600V	47/27
DCR 2150C42	2150A	4200V	63/27
DCR 1260F42	1255A	4200V	47/27
DCR 3400V18	3400A	1800V	73/27

YZPST can provide Following List of Capsule Thyristors Which are Equivalent as PROTON

CAPSULE THYRISTORS(PROTON TYPE)
TYPE	IAV	PIV	DIA/HT	TYPE OF THYRISTOR
T553-800	800A	4400V	50/27	CONVERTER
T353-1000	1000A	2800V	50/27	CONVERTER
T373-2000	2000A	2800V	75/36	CONVERTER
T173-1600	1600A	3600V	75/27	CONVERTER
TFI 253-1000	1000A	2200V	50/27	INVERTER
TFI 253-1250	1250A	2200V	50/27	INVERTER
TFI 373-2000	2000A	2500V	75/36	INVERTER
TFI 773-2000	2000A	2500V	75/27	INVERTER

YZPST can provide Following List of AC Drive Thyristors Which are Equivalent as ABB

AC DRIVE THYRISTORS(ABB TYPE)
TYPE	IAV	PIV	DIA/HT
5STP 16F2400	1554A	2400V	47/26
5STP 33H1800	3300A	1800V	63/26
5STP 27H2801	2670A	2800V	63/26
5STP 12F4200	U50A	4200V	47/26
5STP 16F2801	1512A	2800V	47/26
5STP 28L3600	3170A	3600V	78/26
5STP 28L4200	3170A	4200V	78/26
5STP 33L2800	3740A	2800V	78/26
5STP 45Q2800	5490A	2800V	100/26

YZPST can provide Following Equivalent List of Phase Control Thyristors (Capsule Types)

Type	IT(AV)	VDRM/VRR M	ITSM @TVJM &10ms	IDRM/IR RM (max)	VTM(max)		Tvj	Rthjc	F±10%
	IT(AV)	VDRM/VRR M	ITSM @TVJM &10ms	Tj=125°C	ITM	VTM	Tvj	Rthjc	F±10%
	A	V	KA	mA	A	V	°C	K/W	KN
C380	250	400-1600	3.5	20	1500	2.8	125	0.11	5
C430	680	400-1600	8	20	3000	2.4	125	0.06	10
C431	600	1200-1800	5.9	30	3000	2.6	125	0.06	10
C440	900	400-1600	12	35	3000	1.65	125	0.04	15
C441	750	1400-2200	10	35	3000	2	125	0.04	15
C450	1640	400-1600	26	45	3000	1.4	125	0.02	25
C451	1500	1400-2200	20.8	45	3000	1.7	125	0.02	25
C701	1250	1200-2100	16.6	65	3000	1.7	125	0.02	25
C702	100	2400-3200	20.5	150	3000	1.85	125	0.02	25
SDT122	950	3500-4000	14.7	75	1000	1.6	125	0.02	25
C781	2500	1200-2100	41.5	150	2000	1.2	125	0.01	36
C782	2300	2200-2600	32	150	2000	1.35	125	0.01	36
C784	1650	3600-4500	24	200	2000	1.85	125	0.01	36
C789	1200	5500-6000	20	200	2000	2.3	115	0.01	36

YZPST can provide Following Equivalent List of Inverter Thyristors (Capsule Types)

Type	IT(AV)	VDRM/ VRRM	ITSM @TVJM &10ms	IDRM/IR RM (max) Tj=125°C	VTM(max)		Tvj	Rthjc	F±1 0%
	IT(AV)	VDRM/ VRRM	ITSM @TVJM &10ms	IDRM/IR RM (max) Tj=125°C	ITM	VTM	Tvj	Rthjc	F±1 0%
	A	V	KA	mA	A	V	°C	K/W	KN
C476	200	600-1400	5.5	35	1200	2.5	125	0.06	10
C448	700	600-1400	9.1	35	2000	2.9	125	0.04	15
C612	700	1600-2000	9	60	2000	2.21	125	0.04	15
C458	1200	600-1400	14.6	65	2000	2.35	125	0.02	25
C712	1125	1600-2000	20	60	1000	1.45	125	0.02	25
C770	2100	1800	35	100	2000	1.55	125	0.01	36

YZPST can provide Following Equivalent List of Reverse Conducting Thyristors (Capsule Types)

Type	IF(AV)	VRR M	IFSM @TVJM &10ms	IRRM (max) &Tj= TVJM	VTM(max)		trr(max)	Tvj	Rthjc	F±10%
	A	V	KA	IFM(A)	V	µs	V	°C	K/W	KN
SHR400R22(21) (CSR328)	240	1300	5600	40	500	2.3	3	125	0.08	16
FR600AW (AX)	150	2500	3500	50	1200	4	3	125	0.03	26
FR1000BX(BW)	400	2500	6000	100	1200	4	4	125	0.022	40
TP909FC	400	2500	6000	100	1000	2.6	4	125	0.02	33
TP978FC	400	2400	6000	100	1000	2.6	4	125	0.021	33

YZPST can provide Following Equivalent List of Fast Recovery Diodes (Capsule Types)

Type	IF(AV )	VRRM	IFSM @TVJ M &1 0ms	IRRM (max) Tj=125 °C	VFM(max)		Trr (max)	Tvj	Rthjc	F±10 %
	IF(AV )	VRRM	IFSM @TVJ M &1 0ms	IRRM (max) Tj=125 °C	IFM (A)	V	µs	°C	K/W	KN
	A	V	KA	mA	IFM (A)	V	µs	°C	K/W	KN
A337	650	500-1500	10	40	2000	1.9	4.0	125	0.045	3.6
A596	750	700-1600	13	50	3500	2.3	4.0	150	0.06	9.8
A696	1000	2000-2600	14	100	100	1.9	5.0	150	0.04	15
A796	925	1500-2500	13.8	75	1000	1.75	3.5	125	0.02	25

YZPST can provide Following Equivalent List of Phase Control Thyristors (Stud Type)

Type	IT(AV)	VTM/ITM		VDRM VRRM	IDRM IRRM	IGT	VGT	dv/dt	Tjm	F
Type	A	V/A		V	mA	mA	V	V/gs	°C	F
KP5	5	2.2	15	300-1600		100	2.0		125
KP20	20	2.2	60	300-1600	10	100	2.0		125	10Nm
KP50	50	2.2	150	300-1600	15	100	2.0	500	125	16Nm
KPI 00	100	2.8	300	100-2200	20	200	2.5	500	125	33Nm
KP200	200	2.8	600	100-2200	25	200	2.5	500	125	4KN
KP300	300	2.8	900	100-2200	30	200	2.5	500	125	7KN
KP500	500	3.0	1500	100-2200	45	300	3.0	500	125	10KN

YZPST can provide Following Equivalent List of Rectifier Diodes (Stud Type)

Type	IF(AV)	VFM/IFM	VRRM	IRRM	TJM	F
Type	A	V/A	V	mA	°C	F
ZP5	5	1.6 15	100-2000	5	150	2Nm
ZP20	20	1.6 60	100-2000	10	150	l0Nm
ZP50	50	1.8 150	100-2000	15	150	16Nm
ZP100	100	2.4 300	100-2200	20	150	33Nm
ZP200	200	2.4 600	100-2200	25	150	4KN
ZP300	300	2.4 900	100-2200	30	150	7KN
ZP500	500	2.4 1500	100-2200	45	150	10KN

YZPST can provide Following Equivalent List of Fast Recovery Rectifiers (Stud Type)

Type	IF(AV)	VTM/ITM	VRRM	IRRM	trr	Tjm	F
Type	A	V/A	V	mA	µs	°C	F
ZK5	5	2.0 15	100-2200	5	1	150	2Nm
ZK20	20	2.0 60	100-2200	10	1	150	l0Nm
ZK50	50	2.0 150	100-2200	15	1.5	150	16Nm
ZK100	100	2.2 300	100-2400	20	3	150	33Nm
ZK200	200	2.2 600	100-2400	25	3	150	4KN
ZK300	300	2.2 900	100-2400	30	3	150	7KN
ZK500	500	2.2 1500	100-2400	45	3	150	10KN

YZPST can provide Following List of SOT227 package devices Which are Equivalent as IXYS

Package	YZPST Type	Ixys Type
SOT-227	YZPST-MO74-16	MMO74-16io6
SOT-227	YZPST-CO100-16	MCO100-16io1
SOT-227	YZPST-F2X61-06A	DSEI2X61-06A
SOT-227	YZPST-F2X60-06A	DSEI2X60-06A
SOT-227	YZPST-F2X61-12A	DSEI2X61-12A
SOT-227	YZPST-F2X60-12A	DSEI2X60-12A
SOT-227	YZPST-F2x101-06A	DSEI2X101-06A
SOT-227	YZPST-F2X100-06A	DSEI2X100-06A
SOT-227	YZPST-F2X100-12A	DSEI2X100-12A
SOT-227	YZPST-F2X101-121A	DESI2X101-12A
SOT-227	YZPST-MS200N20	IXFN200N20P
SOT-227	YZPST-MS45N90	IXFN45N90P
SOT-227	YZPST-MS38N100	IXFN38N100P
SOT-227	YZPST-MS64N50	IXFN64N50P
SOT-227	YZPST-MS76N60	IXFN76N60

YZPST can provide Following List of Schottky regulator, fast recovery diode

Type	PD（W）	IO（A）	VR（V）	VF（V）
MBR10100	2	10	100	0.85
MBR10150	2	10	150	0.9
MBR10200	2	10	200	0.9
MBR20100	2	20	100	0.83
MBR20200PT	2	20	200	0.9
MBR30100PT	2	30	100	0.85
MBR40100PT	2	40	100	0.85
MBR2045	2	20	45	0.7
MBR2045	2	20	45	0.7
MBR3045	2	30	45	0.7
MBR30100CT	2	30	100	0.85
MUR1060		10	600	1.2
MUR2060		20	600	1.2
MUR3060		30	600	1.2
MUR6060		60	600	1.2

YZPST can provide Following List of Schottky Diodes

Schottky TO-277 high power TO-220F plastic packaging		SS110F 28mil	28
SB1045L 88 / 98MILvoltage drop is about 0.5V	88/98	SS24F 40mil	40
SB1045L 102MIL voltagedrop is about 0.43V	102	SS210F 40mil	40
SB1045L 112MIL	112	SS34F 45mil	45
10U45 Taiwan groove chip65MIL low positive	65	SS32F/SS34F50mil	50
10U45 70MIL domestic	70	SS54F 55MIL	55
SB1060 TO277	88	SS510F 60mil	60
SB10100 TO277	88	SS12	28
SB1545L TO277 118MIL	118	SS14	28
TVS series products, SMD parts		SS16	28
P4KEseries（Such asP4KE100A) within 240V	52	SS18-SS110	28
P6KEseries（Such asP6KE200A) within 240V	52	SS24Flat 35MIL	35
1.5KE OJ pickling DO27 within 240V	90	SS34Flat40/45MIL	40/45
1.5KE GPP frame DO27 within 240V	145	SS25-SS26 40MIL	40
SMAJ5.0A(CA)-SMAJ240A(CA) SMA	60	SS28-SS210	40
SMBJ5.0A(CA)-SMBJ240A(CA) SMB	60/72	SS35-SS36 40MIL	40
SMCJ5.0A(CA)-SMCJ240A(CA) SMC	90/110	SS35-SS36 45MIL	45
3KP/5KP series OJ	140	SS38-SS31050MIL	50
SOD-123FL SMD (rectifier, fast, highfrequency, ultra fast,Schottky)		S315-SS32050MIL	50
		S315-SS32050MIL	50
A1-A7	42/46	SMA frame patch (rectifier,fast, high frequency, ultrafast, Schottky)
F7	42/46	SS54 55MIL
F1-F6		SS56 55MIL
S1M 46MIL	46	SS510 55MIL	55
F1M 46MIL		SS515-SS52055MIL
E1A-E1J	42	SS54-SS56 60MIL
U1A-U1M	42	SS510 60MIL	60
1N5819W/K14	28	SS515-SS52060MIL
K2/K6	28/28	MINI Rectifier Bridge StackSchottky Bridge Stack
K110	28	DB107	50
（K24）40MIL	40	DB107S disk	50
（K26）40MIL	40	DB157	50
（K210）40MIL	40	DB157S	50
（K220）40MIL	50	MB6S 42
（K34）50MIL	50	MB8S 42	42
（K36）50MIL	50	MB10S 42
（K310）50MIL	50	MB6S 46
K54 55MIL	55	MB8S 46	46
SAMF patch (rectification, fast, highfrequency, ultra fast, Schottky)		MB10S 46
M7F 42/46MIL	42/46	MB6F 42MIL	42
RS1AF-RS1MF	40/46	MB10F 42MIL	42
US1AF-US1MF	40/46	MB6F 46MIL	46
ES1AF-ES1JF	40/46	MB10F 46MIL	46
S2MF	50/60	MB6S-MB10S50MIL
RS2AF-RS2MF	50/60	MB6F-MB10F50MIL
US2AF-US2MF	50/60	TB10S 50MIL	50
ES2AF-ES2JF	50/60	ABS6-ABS10 50MIL
S3MF	80	ABS22-ABS210 60MIL	60
SS14F 28mil	28	MB6M 46mil	46
SS16F 28mil	28	MB10M 46mil	46

YZPST can provide Following List of Thyristor

INDUCTOR FURNACE SPECIAL DEVICE FAMILY
C430PB	C440L	C451L	C701L	C781L	C448PD
C458PD	C712L	C770L	A696L	A740L	D860
R0910LS260	N280CH14	N490CH20	R0878LS21E	R216CH16	R1275NS20
R2619ZC21	R2714ZC20J	SM18CXC924	SW40CXC820	SW14PHN(R)380	R600CH21
SM16PHN(R)100	R395CH21	C648PB	R200CH20	C702-42	CXC924
PHASE CONTROL THYRISTOR FAMILY
N200CHX	N330CH	N350CH	N370CH	N320CH	N360CH
N490CHX	N540CH	N560CH	N600CH	N640CH	N760CH
N880CHX	N980CH	N880CH	N0910NC	N0882	N630CH
5STP04D5200	5STP25L5200	5STP33L2800	5STP08G6500	5STP12K6500
AT603	AT604	AT804	AT803	AT807	AT480
AT1003	AT1004	AT1005	AT607	AT620	AT636
AT671	AT726	AT708	AT738	AT866	AT870
AT880	AT708LT	AT720LT	AT866LT	AT720HT	AT866HT
DCR504	DCR604	DCR804	DCR1004	DCR1278	DCR1476
DCR1474	DCR803	DCR1003	DCR840	C390	T720
T7SO	T820	T9G0	TA20	TB20	TD20
H505CH	H507CH	H1450CH	H1590CH	H2000CH	H3200CH
SHXXC450	SHXXC540	SHXXC760	SHXXC1850	SHXXC2230	SHXXC2770
BHtT72	BHtT78	BHtU66	BHt U67	BHtU77	BHtV72
SKT441	SKT551	SKT760	SKT1000	SKT1200	SKT1800
T233	T243	T253	N500CH	N1661NC	N1718NS
N1132NC	N0734YS	N0032	N1718	N1114	N1467
N500CH	T458N	T708N	T1218N	T1869N	T2709N
ST230	ST280	ST380	ST780	ST1280	T4301N
TV989	BHTP45	T345	T625	TC233	TC143
INVERTER THYRISTOR FAMILY
R185CHX	R216CHX	R180CHX	R190CHX	R200CHX	R219CHX
R220CHX	R270CHX	R305CHX	R325CHX	R350CHX	R395CHX
R600CHX	R800CHX	R1200CHX	R200CH	R600CH	R325CH
R0577YS	R0633YS	R0577YS	R0878LS	R0929LS	R0990LS
R1178NS	R1275NS	R1279NS	R1280NS	R1446NS	R1448NS
R2475ZD	R2619ZC	R2620ZC	R2714ZD	R3047TC
k ATF585	ATF587	ATF860	ATF857	ATF401	ATF413
ATF414	ATF827	ATF427	ATF828	ATF820	ATF420
ATF514	ATF527	ATF1040	ATF530	ATF543	ATF614
ATF615	ATF633	ATF743	DCR1259	T318F	T340F
T72H	T7S7	T7SH	T82F	T82F	T9GH
R0633	R0830	R0946	R1007LS	R400CH
T408F	T599F	T1052S	TB333	TB553	TB273
DIODE FAMILY
AR371	AR912	AR1101	AR1104	AR1107	AR480
AR509LT	AR2004LT	AR2004	AR609LT	AR3001	AR3004
AR670	AR680	AR649	AR690	AR709	AR770
AR771	AR772	AR747LT	AR609	AR507LT	R0577
R722	R7S2	R9G2	SM18CXC924	R7SS/R7SF	R82S/R82F
R9GS/R9GF	R9GS	R9GF	RA2F	R822	R1446
BHdK28	BHdP60	BHdP62	BHdR60	BHdR62	BHdT60
XSDD303	A880/SDD217	A801/SDD211	A800/SDD208A	A782/SDD119	A780/SDD108
A750/SDD113	A740/SDD105	A643/SDD64	A641/SDD51	W2624	W1748
M0859LC	M1022LC	M1494NC	D233	D243	D253
R7S0	R820	R9G0	RA20	RB20	W2052
SD823	SD1053	SD1553	DS502	DS804	DS1104
DS1107	ARF422	DSF912	ARF526	AUS605
MODULE FAMILY
SKKT92	SKKT162	SKKT250	SKKT310	SKKT500	SKKT800
IRKT91	IRKT161	IRKT251	IRKT310	IRKT500	IRKT1000
MCC95	MCC130	MCC250	MCC310	MCC500	MCC800
HTT/HTD 90N	HTT/HTD 132N	HTT/HTD 162	HTT/HTD 250N	HTT500	HTT800
HDD 55N	HDD 90N	HDD 105N	HDD 132N	HDD 170N	HDD 250N
SKKD91	SKKD161	SKKD250	SKKD320	SKKD500	SKKT91
MTD91	MTD250	MTD500	MTD1000	ADD700	MEK300
MDD91	MDD250	MDD310	MDD800	SKKE600	SKET380
SXHN55	SXHBN200	SXHN 250	SXHFN400	SXHN550	SXHN860
MDS30	MDS75	MDS150	MDS300	DS250	DS400
DS500	SKBPC35	SKBPC25	KBPC25	KBPC35	SKET740
SKET400	DSA450	MEK300
STUD DEVICE FAMILY
C150	C180	C110	C147	P200	P214
ST110	ST180	ST330	ST303	ST173	P0311
SD150	SD300	25F	R5C	P0431	P270
SKN150	SKN240	SKN300	SKN400	T607	T707
40HF	70HF	85HF	45L16	45LR16	300U(R)120
300U(R)40	300U(R)60	25R1A	70R1A	110R1A	300R1A
D40	D70	D130	D240	D410	D860
R600	R601	R700	R701	A197	T210N 4
T70	T85	T100	T125	T250	T500
T700	T160N	T221N	T130N	T86N	R72S/R72F
R502/R503	R602/R603	R622	R702/R703	R50S/R50R	R60S/R60
H65TB	H125TB	H250TB	H300TB	H400 TB	H500 TB
BHdL38	BHdN12	BHtM45	BHtN46	BHtP46	BHtR68H
SKR45	SKR71	SKR100	SKR130	SKR240	SKR320
SKN45	SKN71	SKN100	SKN240	SKN320	SKT40
SKT55	SKT100	SKT130	SKT160	SKT250	SKT300
