POWER COMPONENT
YZPST-6KV27
✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry
EmailTechnical sales
PhoneContact team
Tip: include the part number, target voltage/current and application environment.
DOCUMENT CENTER
Downloads & technical files

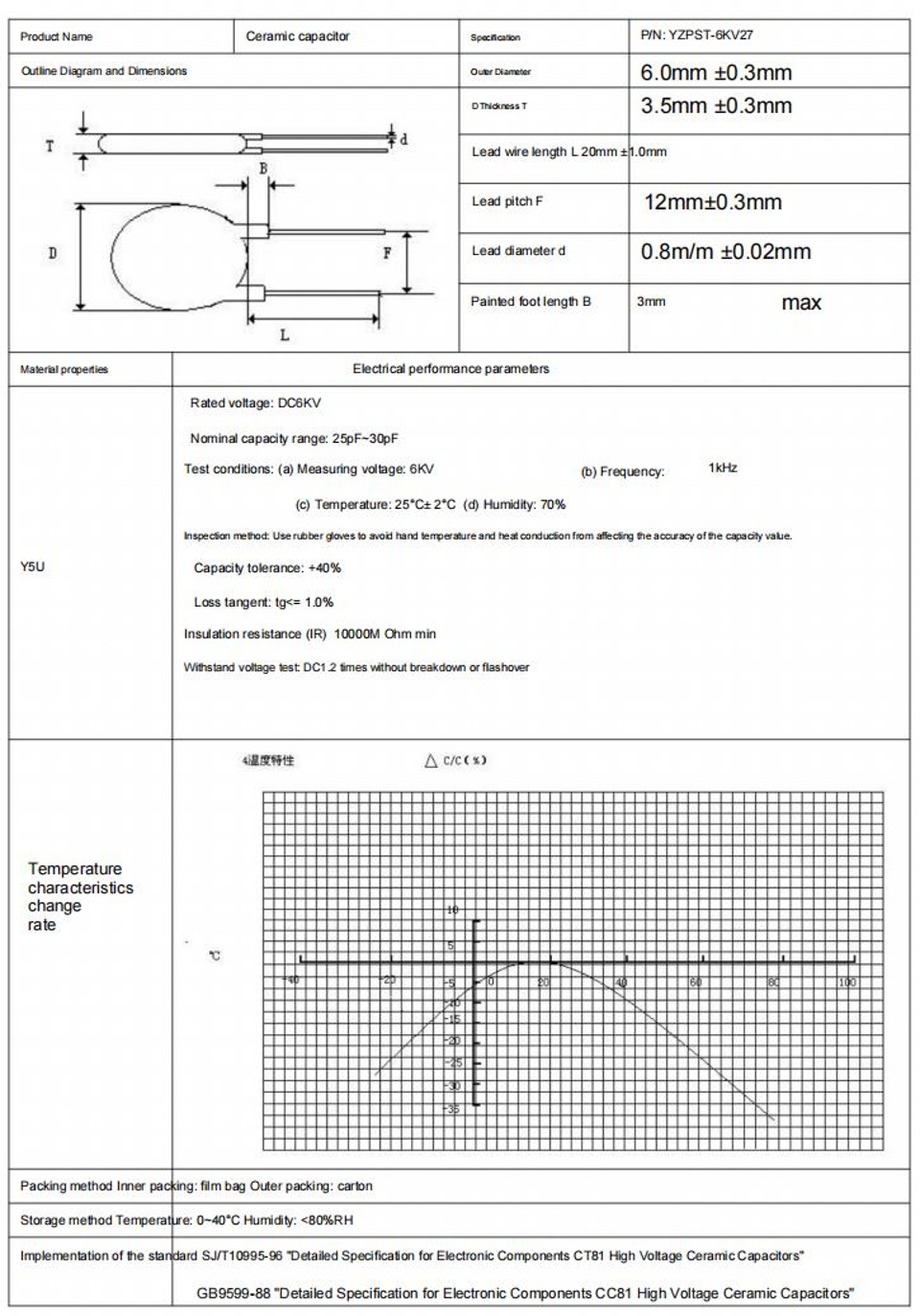

High voltage ceramic capacitor
P/N: YZPST-6KV27
Rated voltage: DC6KV
Nominal capacity range: 25pF~30pF
Test conditions: (a) Measuring voltage: 6KV (b) Frequency:1kHz (c) Temperature: 25°C± 2°C (d) Humidity: 70%
Inspection method: Use rubber gloves to avoid hand temperature and heat conduction from affecting the accuracy of the capacity value.
Capacity tolerance: +40%
Loss tangent: tg<= 1.0%
Insulation resistance (IR) 10000M Ohm min
Withstand voltage test: DC1.2 times without breakdown or flashover
No additional product content is available.
