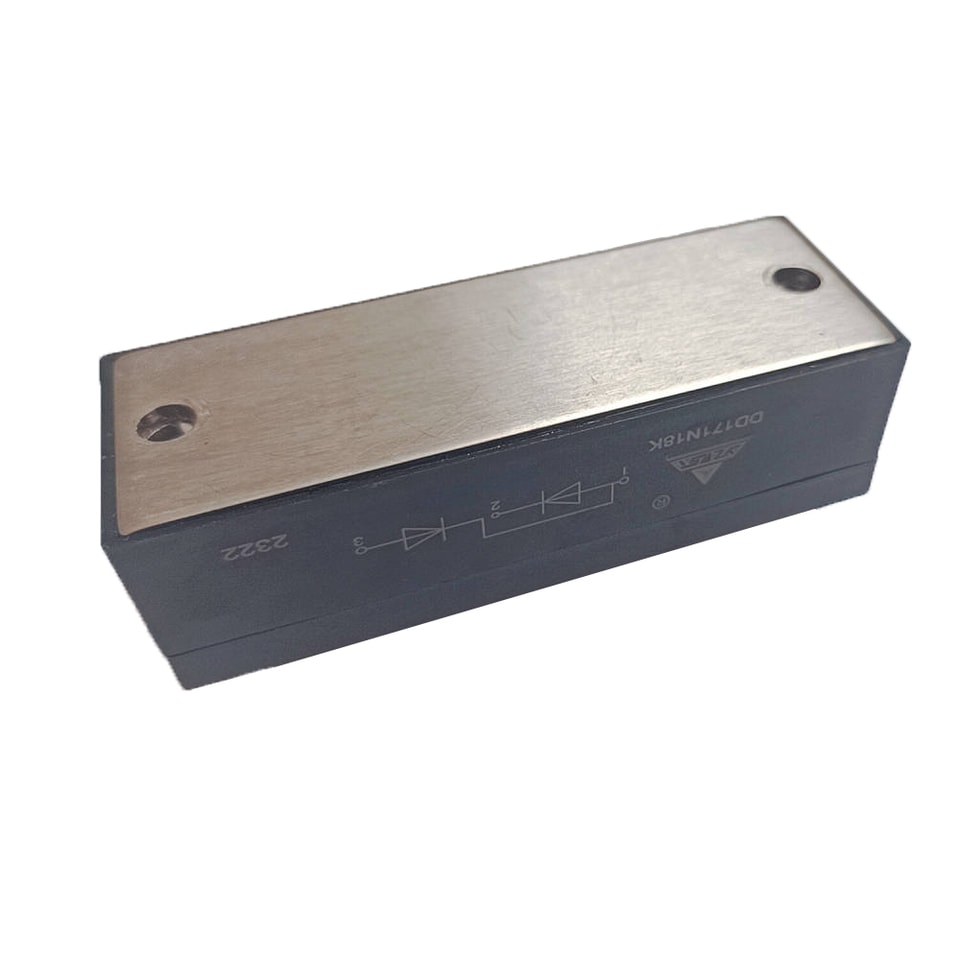

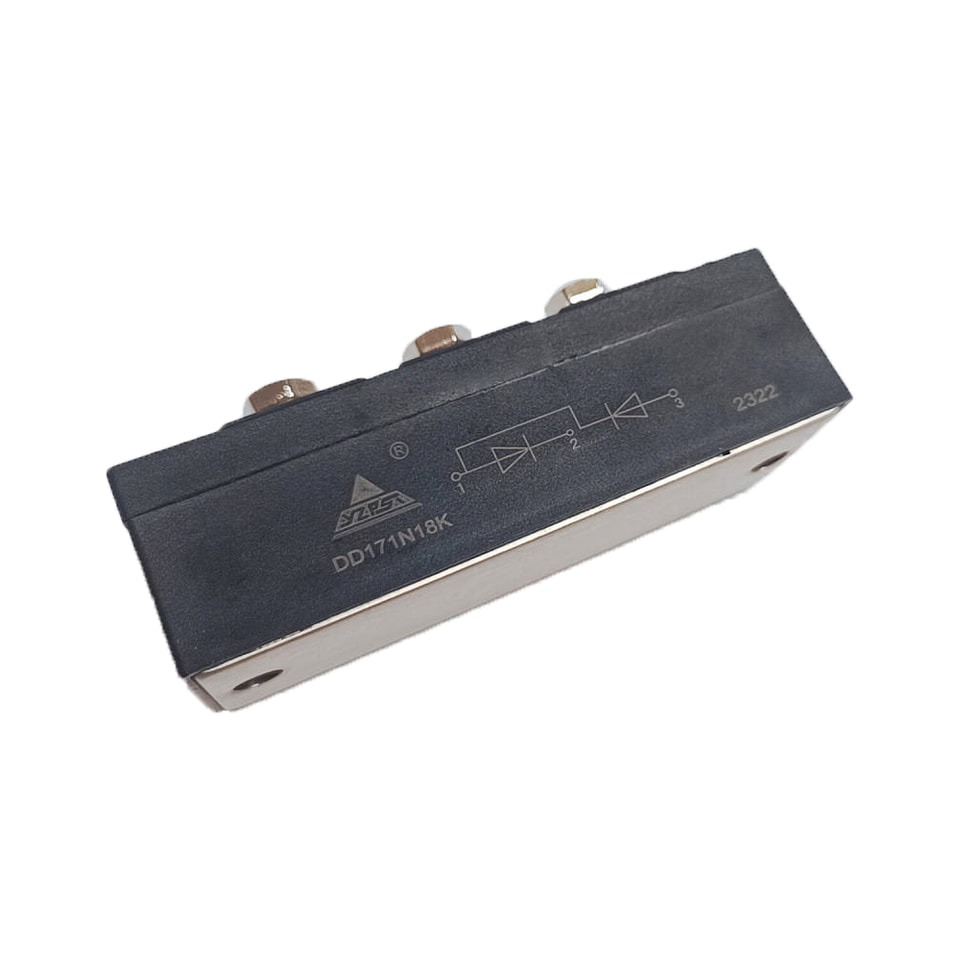

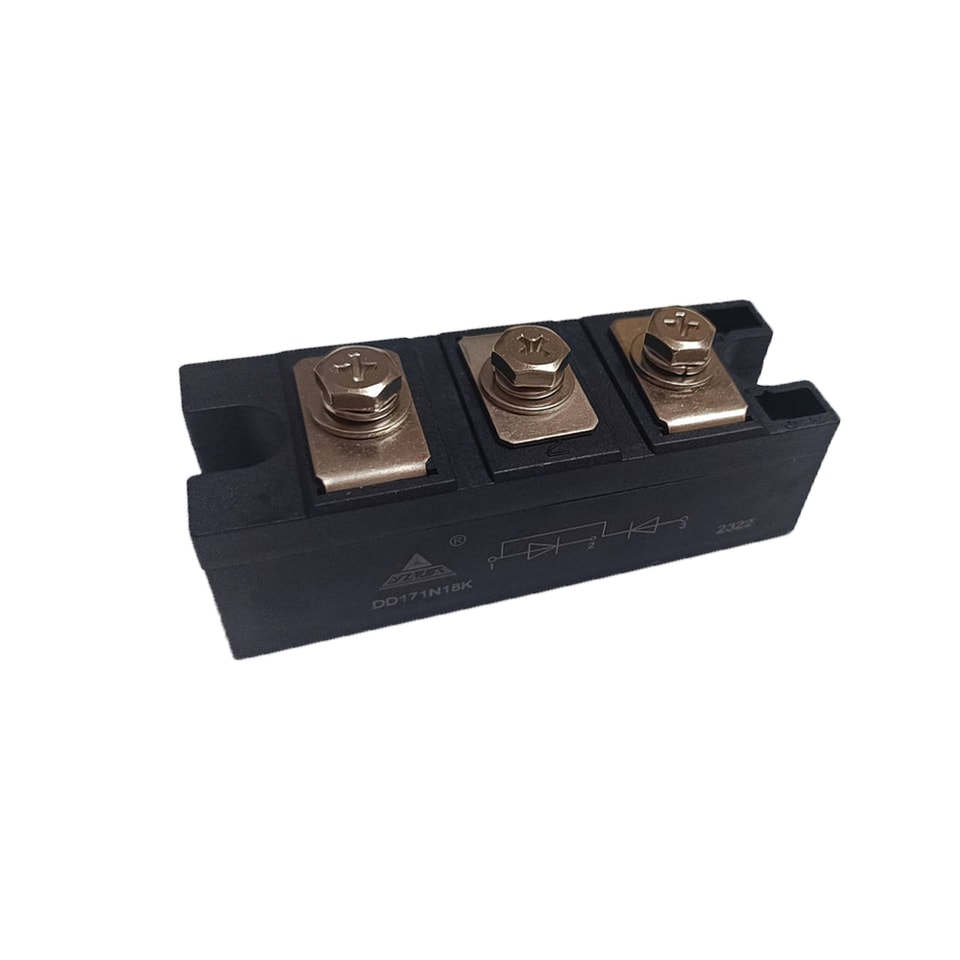

YZPST-DD171N18K
Product summary and primary technical information will be loaded from the product database.
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
Rectifier Diode Modules
YZPST-DD171N18K
Features
· Heat Transfer Through Aluminium Oxide Ceramic Isolated Metal Baseplate
· Hard Soldered Joints For High Reliability
Typical Applications
· Rectifier for drives applications
· Rectifiers for UBS
· Battery chargers
BLOCKING
Symbol | Condition | Ratings | Unit |
VRRM VRSM | Tj= Tj Max. | 1800 1900 | V |
IRRM | AtVRRM ,Single phase ,half wave ,Tj= Tj Max. | 20 | mA |
VINS | 50Hz, 1S/1min | 3000/2500 | V |
CONDUCTING
Symbol | Condition | Ratings | Unit |
IF(AV)M | TC=100°C; 180° sine | 171 | A |
IF(RMS)M | TC=100°C; 180° sine | 270 | A |
IFSM | Tj= Tj Max.; t = 10 ms (50 Hz); sine | 5600 | A |
I2t | Tj= Tj Max.; t = 10 ms (50 Hz); sine | 157 | kA2S |
VF(TO) | (I > π x IF(AV)),Tj= Tj Max. | 0.75 | V |
rF | (I > π x IF(AV)),Tj= Tj Max. | 0.8 | mΩ |
VFM | On-State Current 500A ,Tj= Tj Max. | 1.26 | V |
Electrical Characteristics
| Symbol | Condition | Ratings | Unit |
| Rth(j-c) | Per Module | 0.13 | °C /W |
| Rth(c-h) | Per Module | 0.03 | °C /W |
| Tj | -40 ~ + 150 | °C | |
| Tstg | -40 ~ + 150 | °C | |
| M | mounting torque | 6 | Nm |
| terminal torque | 6 | Nm | |
| W | 310 | g |

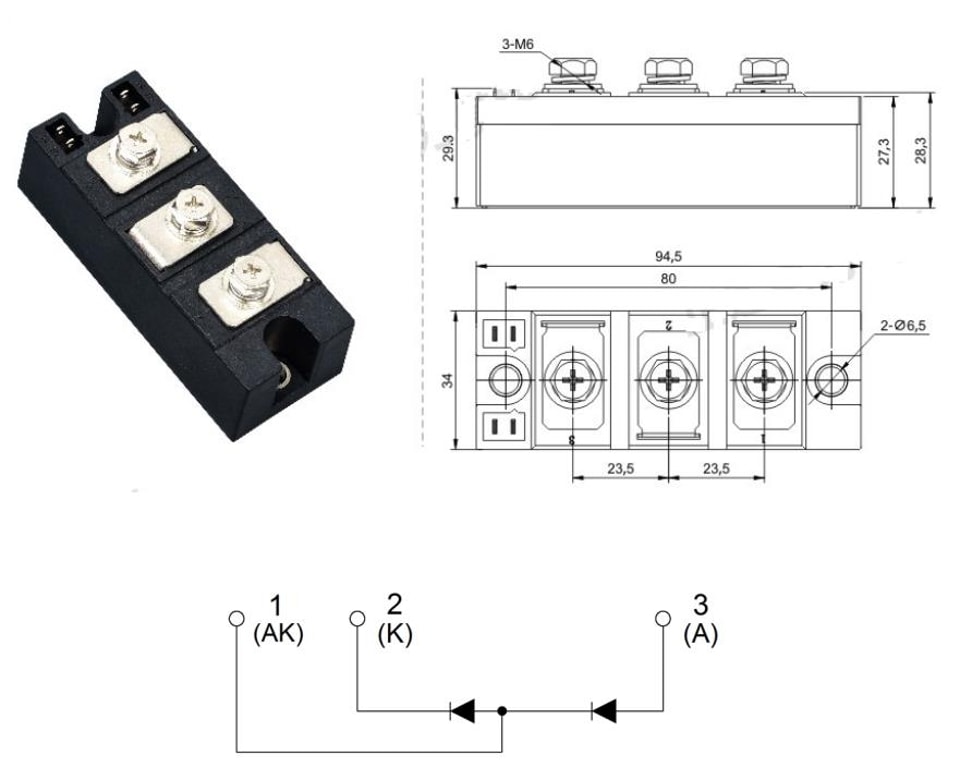

Outline Drawing

From a part number to a complete power requirement.
Send us the part number, electrical target and application context.
