Plastic Fast Recover High Voltage Diode

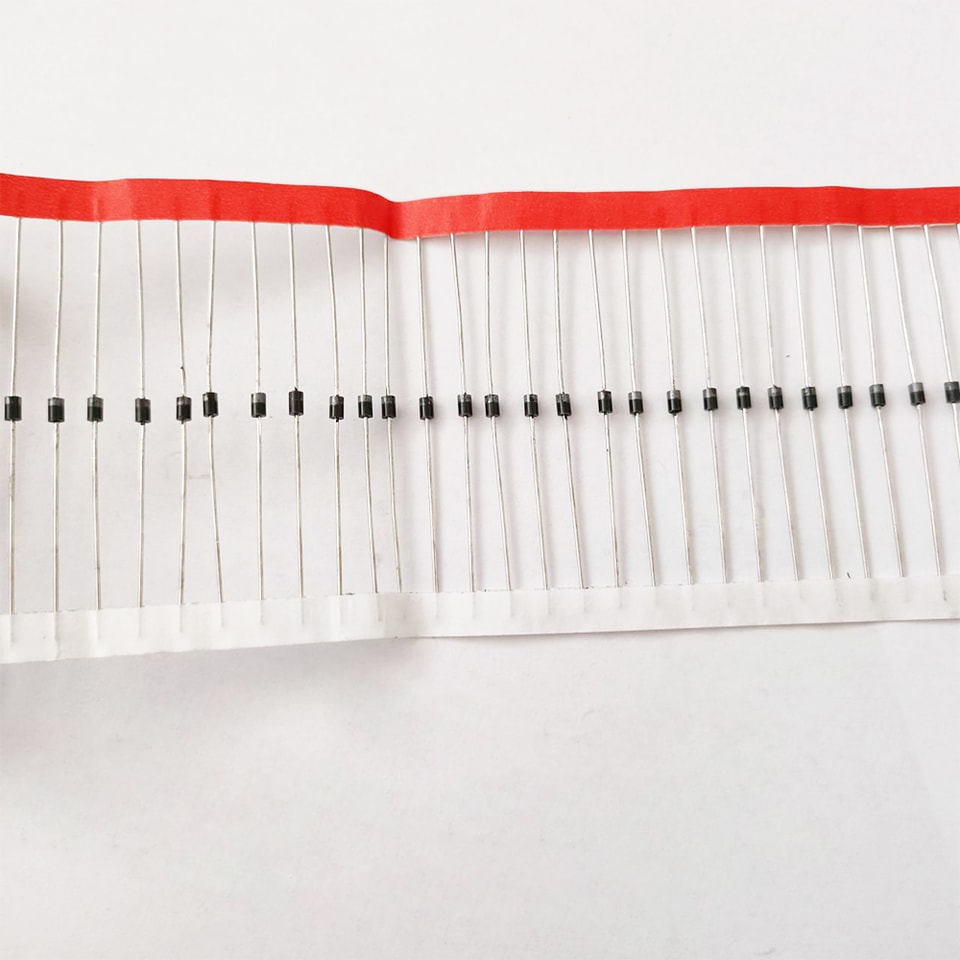

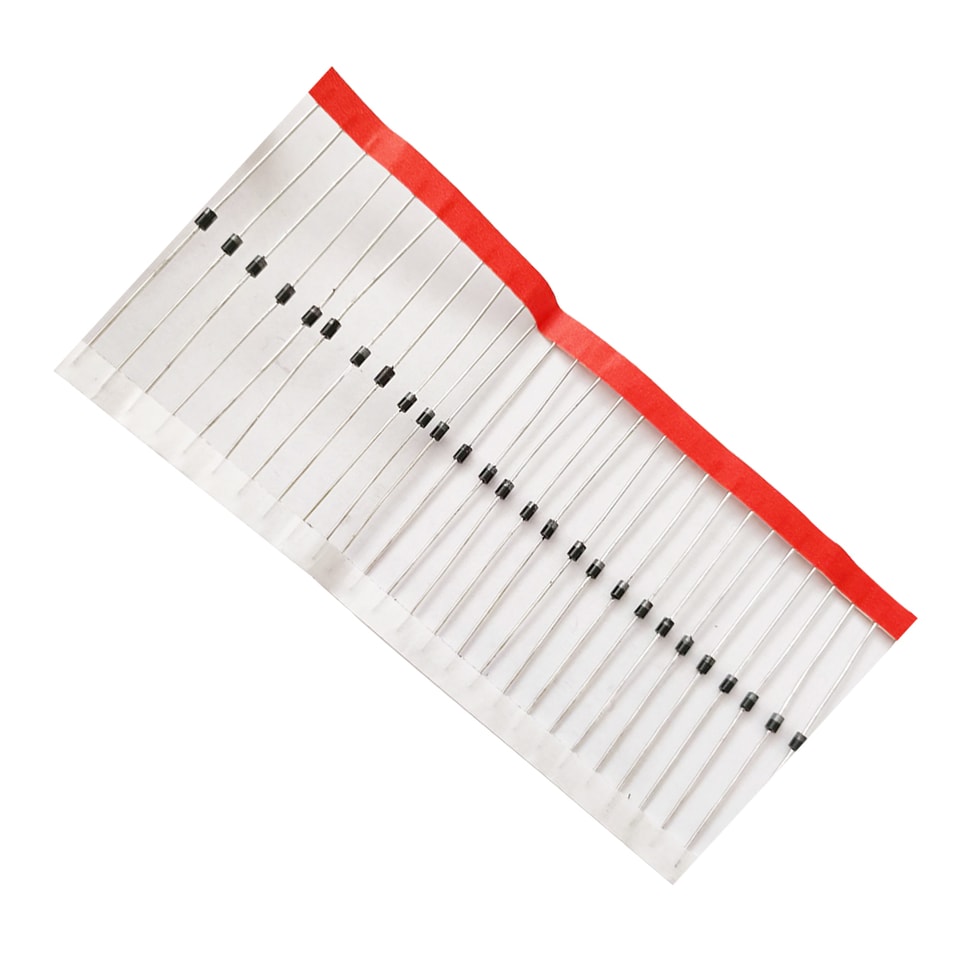

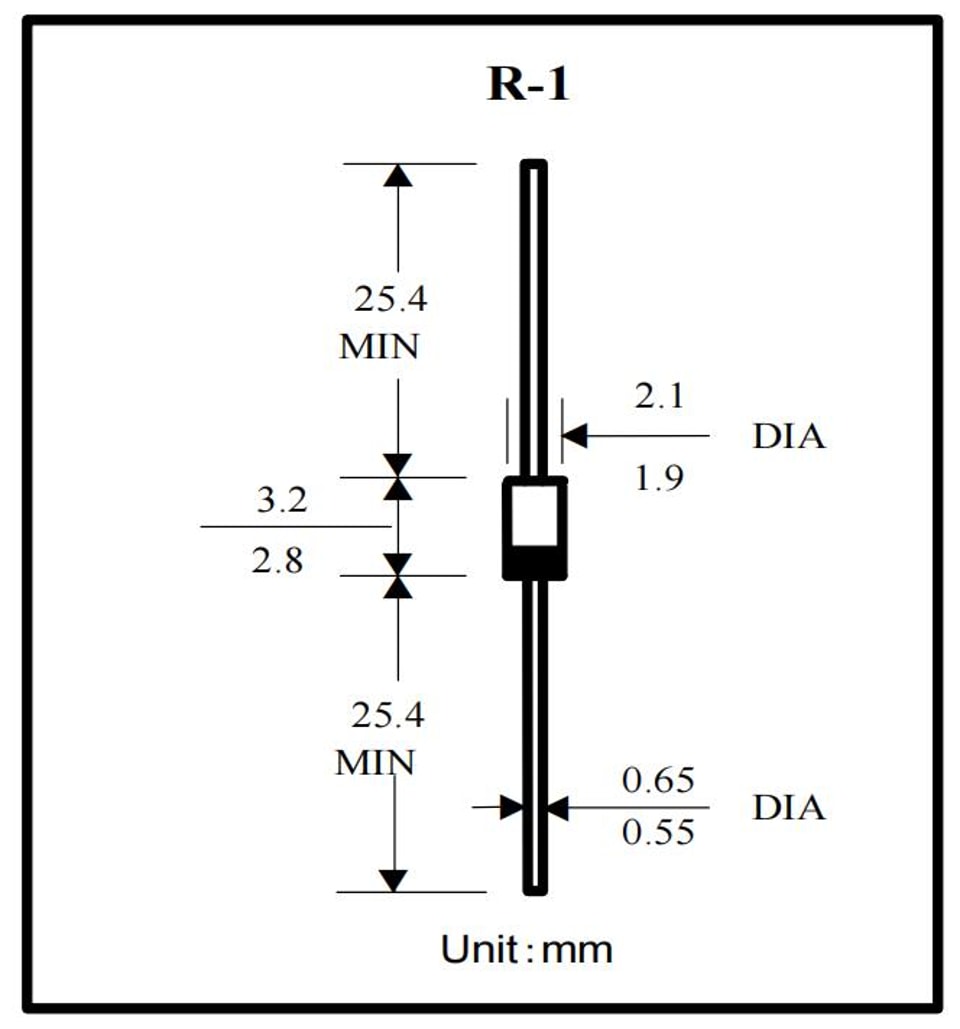

3KV 2CL03S Plastic Fast Recover High Voltage Diode 2CL0305
Reverse Voltage3kV
Forward Current 500mA
Features
For high resolution displays or TV receivers and Working automation equipment
Excellent high temperation output characteristics (Small leakage current at high temperature and excellent reverse characterics)
Maximum Ratings & Thermal Characteristics Ratings at 25℃ ambient temperature unless otherwise specified.
| Symbols | 2CL03S | Unit | ||
| ltem | ||||
| Repetitive Peak Reverse Voltage | VRRM | 3 | KV | |
| Average Forward Current | IF(AV) | 500 | (50HZ，Ta =25℃) | mA |
| (50HZ half-sine wave,Resistance load Ta=25℃) | ||||
| Non-Repetitive Forward Surge Current | IFSM | 0.5 (50HZ， 1/2，Ta = 25℃) (50HZ half-sine wave,1/2 cycle, Ta=25℃) | A | |
| Ambient temperature | Tamb | -40-+100 | ℃ | |
| Virtual Junction Temperature | TJ | 120 | ℃ | |
| Storage temperature | Tstg | -40-+120 | ℃ | |
Electrical Characteristics Ratings at 25℃ ambient temperature unless otherwise specified.
| Symbols | 2CL03S | Unit | |||
| ltem | |||||
| Forward voltage Drop | IF = 500mA | VF | 7 | V | |
| Normal Temperature Reverse Current | VR=VRRM | IRm1 | 2 | μA | |
| TA=100℃ High Temperature Reverse Current | VR=VRRM | IRm2 | 5 | μA | |
| IF=2mA , Irp=4mA 1mA recovery | trr | 100 | nS | ||
| Reverse Recovery Time | |||||
