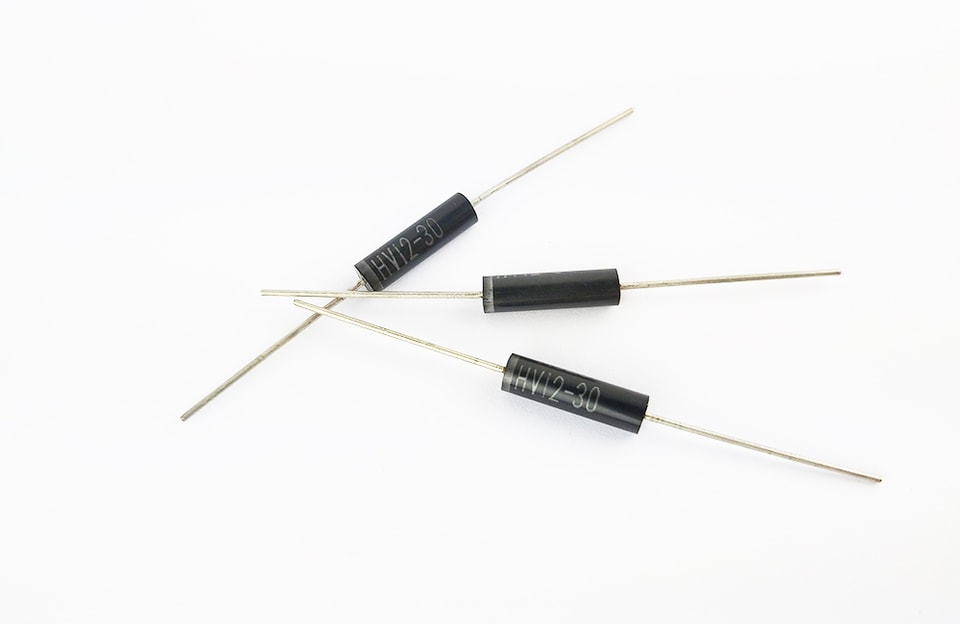

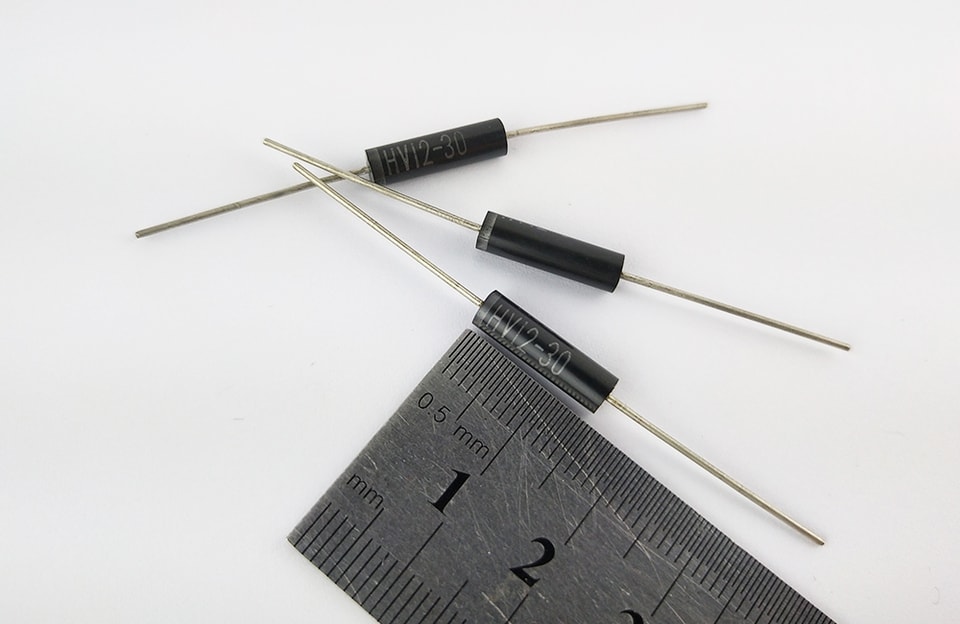

YZPST-HV12-30
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
Characteristics
1. High reliability
2. Surge characteristics unique
3. Fast recovery time to 80nS (Trr)
4.Low forward voltage drop (Vf)
5. Rectified current to 5~10mA, withstand voltage to 12KV
6. Junction temperature to -40~+130℃
Application
Copying machine、Air cleaner、Laser、Cathode ray monitor
1.Main Specification
No. |
Item |
Symbol |
Unit |
Rating |
Conditions |
1 1 |
Repetitive Peak Reverse Voltage |
VRRM |
KV |
12 |
|
2 |
Average Forward Current |
IF (AV) |
mA |
10 | Tamb=60 oC 50HZ Sine-half Wave Rectification Average Value |
3 |
Forward Surge Current |
IFSM |
A |
0.5 | Tamb=25 oC 50HZ Sine-half Wave,One Shot |
4 |
Reverse Surge Current |
IRSM |
μA |
2 |
Pulse width 1ms triangle wave single pulse |
5 |
Maximum Junction Temperature
|
Tjmax |
oC |
130 |
|
6 |
Storage Temperature |
Tstg |
oC |
-40~+130 |
2. Electric Specification
NO. |
Item |
Symbol | Unit |
Rating |
Test conditions |
1 |
Forward Voltage Drop |
VFM |
V |
18max |
IF(AV)=10mA |
2 |
Normal Temperature Reverse Current |
IRM1 |
μA |
2max |
VRM=12KV |
3 |
High Temperature Reverse Current |
IRM2 |
μA |
2max | Tamb=100oC VRM=12KV |
4 |
Reverse Breakdown Voltage |
VZ |
KV |
12 |
IR=10mA |
5 |
Reverse Recovery Time |
trr |
nS |
80 |
IF=2mA, IRM=4mA 90% |
(Tamb=25 oC, unless otherwise specified)
3. Application
For high voltage rectification;
YZPST can provide Following Equivalent List of high voltage diodes.
High voltage diodes
2CLG 100mA 10KV
2CLG 100mA 20KV
2CLG 100mA 15KV
2CL 500mA 12KV
2CL104 (350mA 12KV)
2CL106 (500mA 12KV)
HV600S10 (600mA 10KV)
HV600S12 (500mA 12KV)
High Frequency High Voltage Diode
2CL G 20mA 20KV 80ns
04D, 04Z (10mA 4000V, 80ns)
08D,08X, 08Z (10mA 8000V, 80ns)
PST-12 (10mA 12000V, 80ns)
PST-14 (10mA 12000V, 80ns)
PST-16 (10mA 12000V, 80ns)
HV37-08 (200mA 8KV 80ns)
HV37-08F (200mA 8KV 70ns)
HV37-10 (200mA 10KV 80ns)
HV37-20 (200mA 20KV 80ns)
HV37-20F (200mA 20KV 70ns)
CL03-10F (300mA 10KV 80ns)
FOB (450mA 8KV 40ns)
FOB-12 (450mA 12KV 40ns)
High Voltage Silicon Stack
(20mA-10A, 30KV-500KV)
For more information about High Voltage Diode please download the PDF file above named " YZPST HIGH VOLTAGE DIODE IN PLASTIC PACKAGE Rev.02 "
