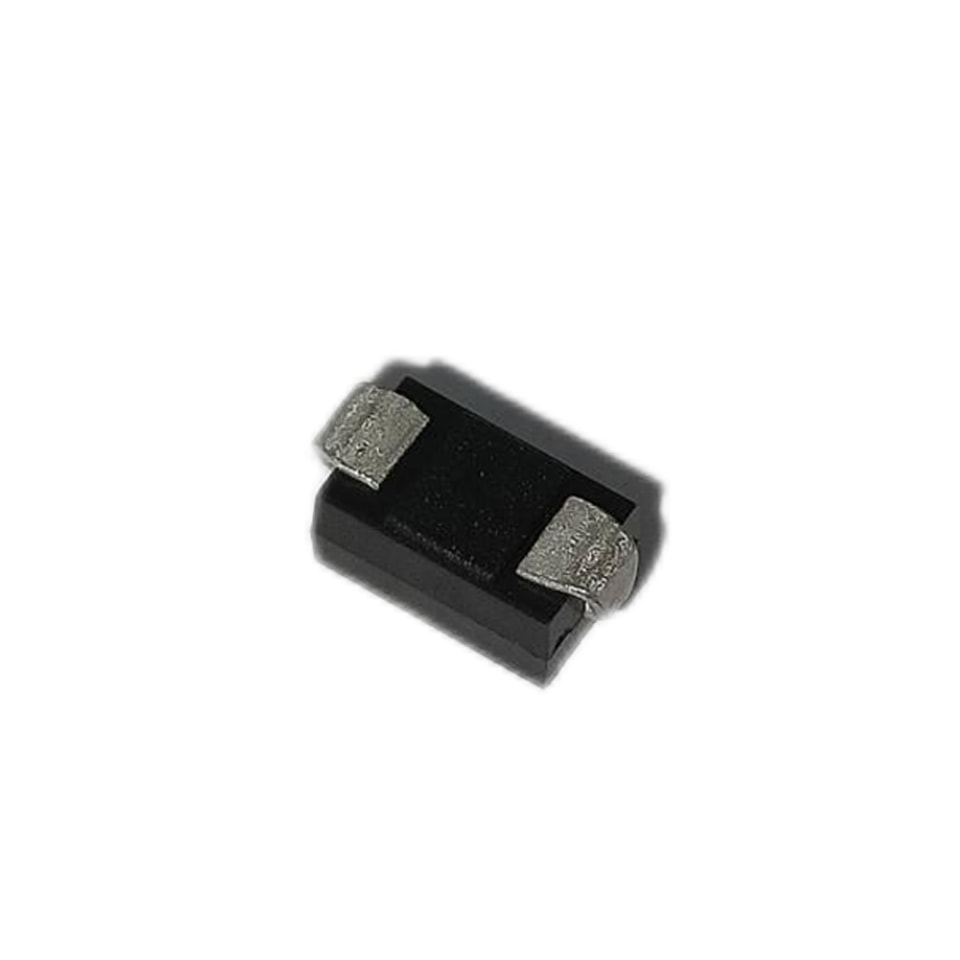

YZPST-2CL71S

Fast  Recovery  High voltage  diodes

Features

l IF（AV）                   5mA

l VRRM               8KV

l High reliability

Applications

High  voltage  power  supply

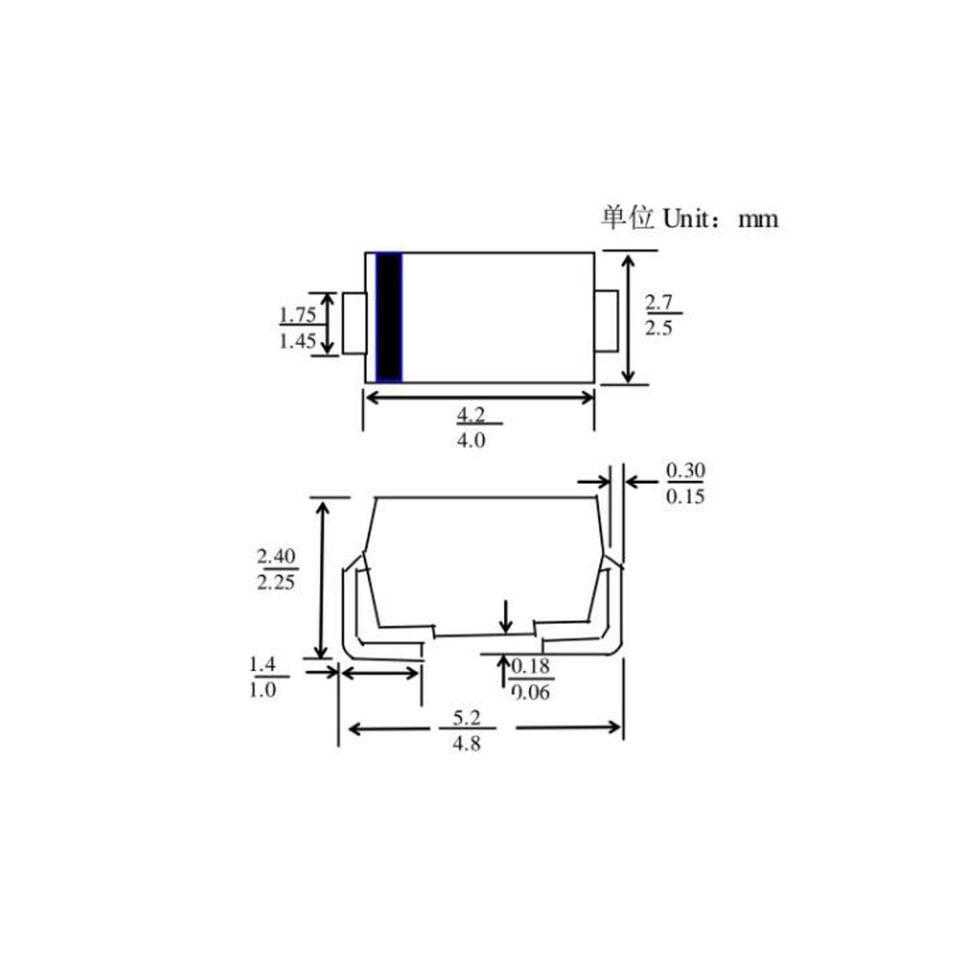

Mechanical data

 l Epoxy meets  UL 94V-0 flammability rating

l Terminals:  P u r e  t i n  p l a t e d  l e a d s

l Marking: Type number

l Polarity:As Marked on Body

l Lead Free: For RoHS /Lead Free Version

Maximum rating (Ta=25oC unless otherwise noted)

Parameter

Symbol

71S

Unit

Repetitive peak reverse voltage

VRRM

8

kV

Non-Repetitive peak reverse voltage

VRSM

8.8

kV

Average forward current

AT  Ta=25℃

IF(AV)

5

mA

Forward surge current

50HZ  half- sine wave ， 1/2 cycle, Ta=25℃

IFSM

0.5

A

Peak forward voltage

IFM=10mA

V FM

20

V

Peak reverse current

VRM=VRRM   Ta=25℃

IRRM1

2

µA

Peak reverse current

VRM=VRRM    Ta= 100℃

IRRM1

5

µA

Reverse Recovery Time

IF=2mA:IRM=4mA,Ta=25℃

trr

80

nS

Virtual junction temperature

T(vj)

125

°C

Storage temperature

Tstg

-40 ~ +125

°C
