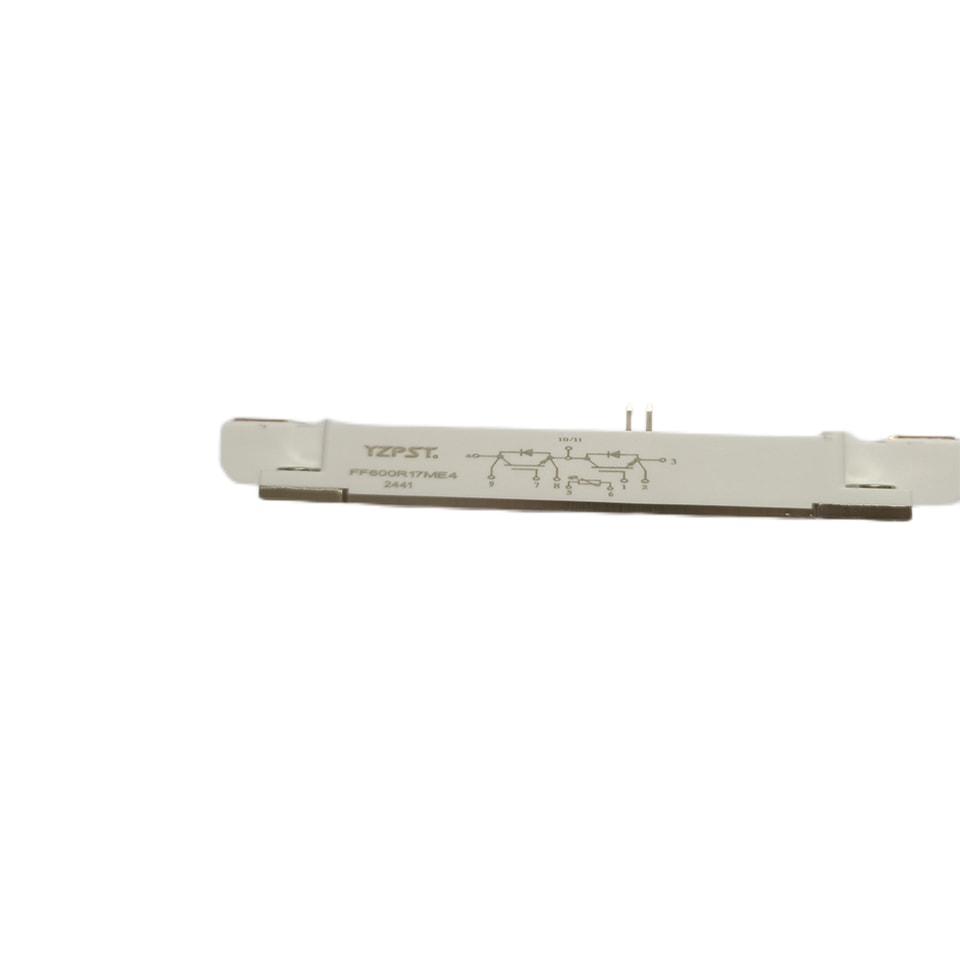

YZPST-FF600R17ME4 (600B170E53)
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files

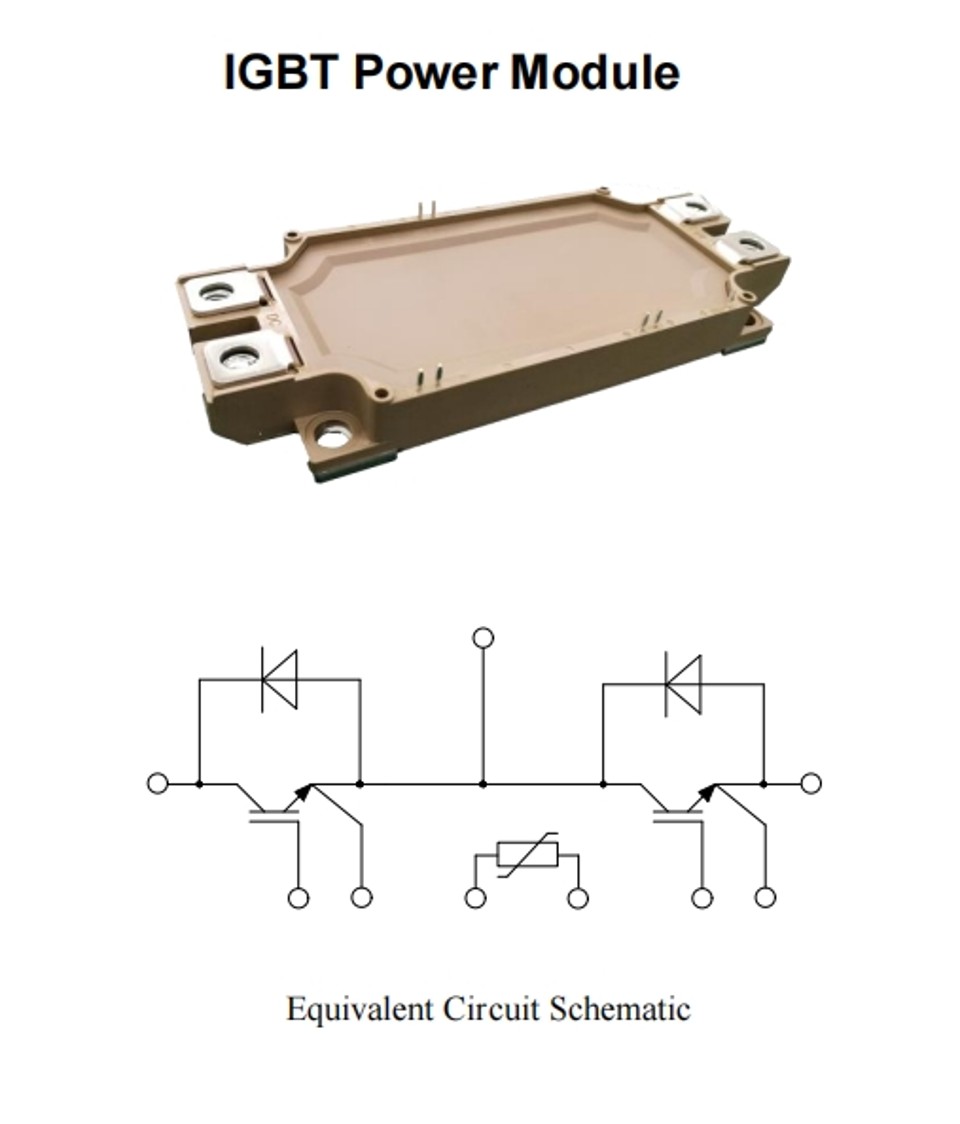

P/N:YZPST-600B170E53 (YZPST-FF600R17ME4)
Applications
Inverter for motor drive
AC and DC servo drive amplifier
UPS (Uninterruptible Power Supplies)
Features
Low Vce(sat) with SPT+ IGBT technology
Vce(sat) with positive temperature coefficient
Including fast & soft recovery anti-parallel FWD
High short circuit capability(10us)
Low inductance module structure
Maximum junction temperature 175℃
Absolute Maximum Ratings
Parameter |
Symbol |
Conditions |
Value |
Unit |
Collector-Emitter Voltage | VCES | VGE=0V, IC =1mA, Tvj=25℃ | 1700 | V |
Continuous Collector Current | IC | Tc=100℃ | 600 | A |
Peak Collector Current | ICRM | ICRM =2IC | 1200 | A |
Gate-Emitter Voltage | VGES | Tvj=25℃ | ±20 | V |
Total Power Dissipation (IGBT-inverter) | Ptot | Tc=25℃ Tvjmax=175℃ | 4286 | W |
IGBT Characteristics
| Parameter | Value | Unit | ||||
| Symbol | Conditions | Min. | Typ. | Max. | ||
| Gate-emitter Threshold Voltage | VGE(th) | VGE=VCE, IC =24mA,Tvj=25℃ | 5.4 | 6.2 | 7.4 | V |
| Collector-Emitter Cut-off Current | ICES | VCE=1700V,VGE=0V, Tvj=25℃ | 1 | mA | ||
| Ic=600A,VGE=15V, Tvj=25℃ | 2.4 | 2.75 | V | |||
| Ic=600A,VGE=15V, Tvj=125℃ | 2.8 | V | ||||
| Collector-Emitter Saturation Voltage | VCE(sat) | Ic=600A,VGE=15V, Tvj=150℃ | 2.9 | V | ||
| Input Capacitance | Cies | 40 | nF | |||
| Output Capacitance | Coes | 2.09 | nF | |||
| Reverse Transfer Capacitance | Cres | VCE=25V,VGE =0V, f=1MHz, Tvj=25℃ | 1.44 | nF | ||
| Turn-on Delay Time | td(on) | 180 | ns | |||
| Rise Time | tr | 100 | ns | |||
| Turn-off Delay Time | td(off) | 300 | ns | |||
| Fall Time | tf | IC =600 A | 100 | ns | ||
| Energy Dissipation During Turn-on Time | Eon | VCE = 900 V VGE = ±15V RG = 1.0Ω Tvj=25℃ | 150 | mJ | ||
| Energy Dissipation During Turn-off Time | Eoff | 100 | mJ | |||
| Turn-on Delay Time | td(on) | 190 | ns | |||
| Rise Time | tr | 110 | ns | |||
| Turn-off Delay Time | td(off) | 350 | ns | |||
| Fall Time | tf | IC =600 A | 150 | ns | ||
| Energy Dissipation During Turn-on Time | Eon | VCE = 900 V VGE = ±15V RG = 1.0Ω Tvj=125℃ | 225 | mJ | ||
| Energy Dissipation During Turn-off Time | Eoff | 160 | mJ | |||

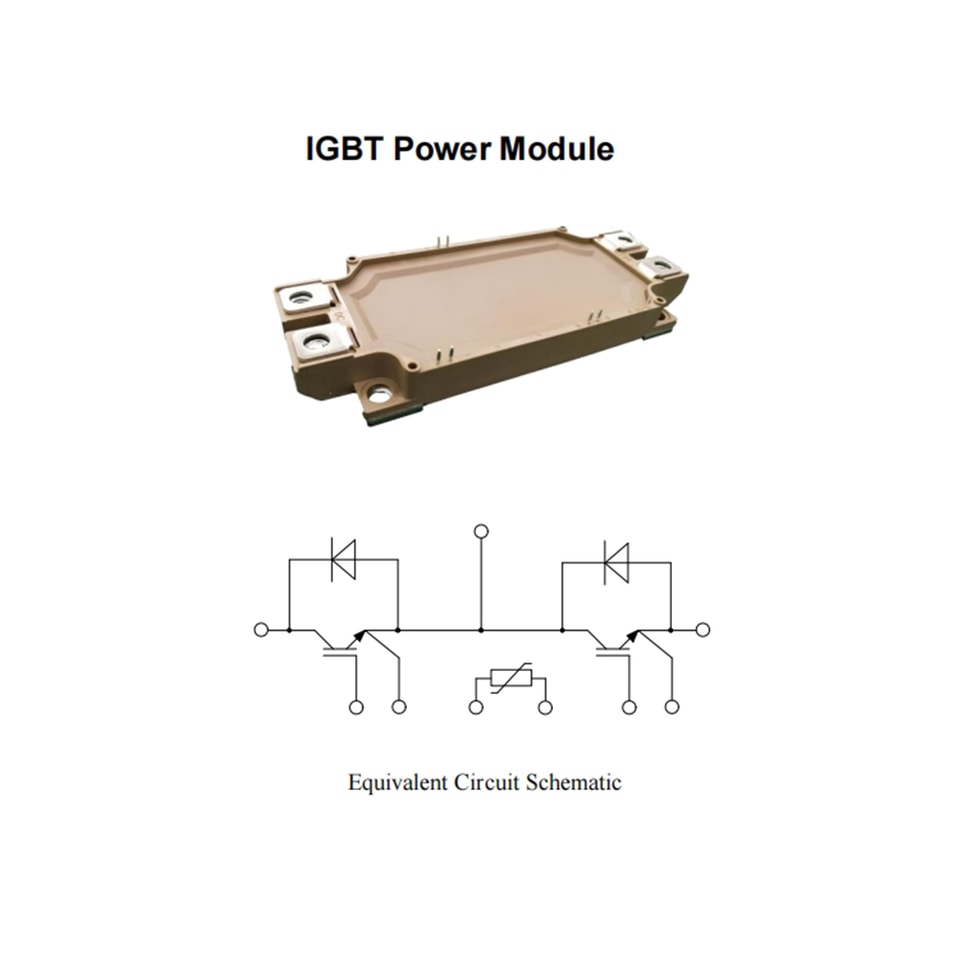

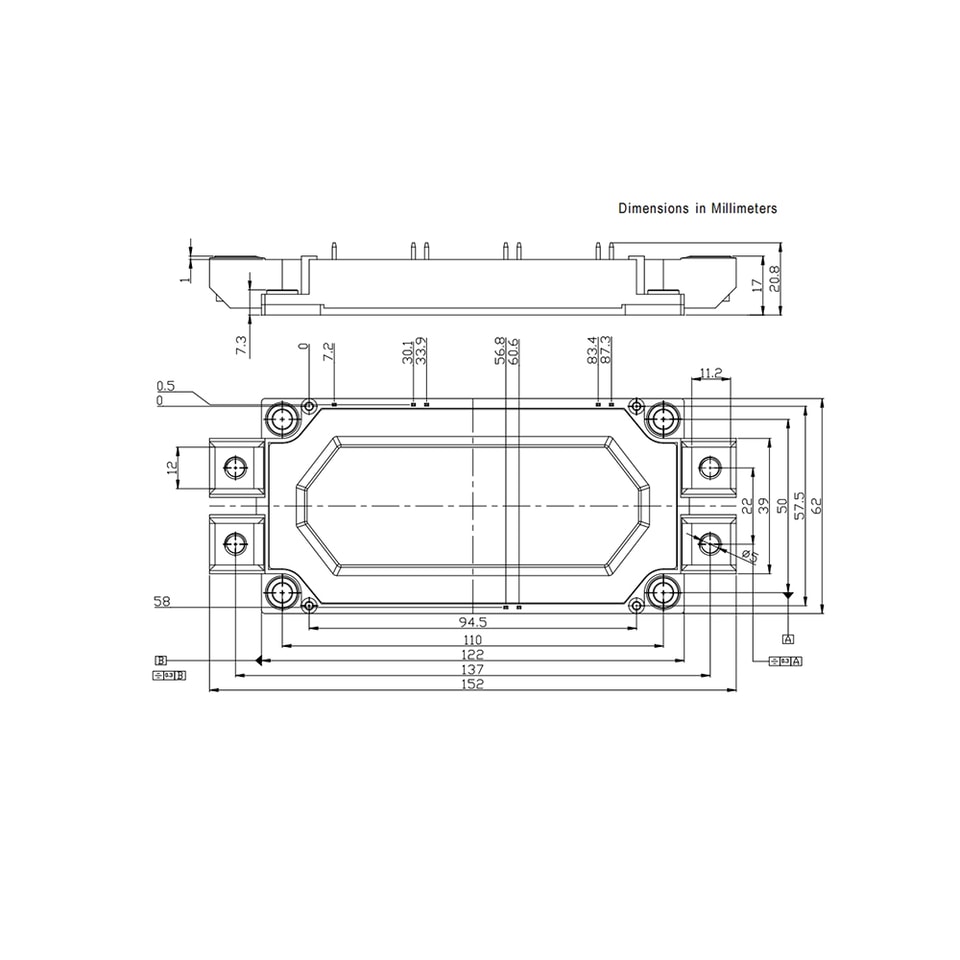

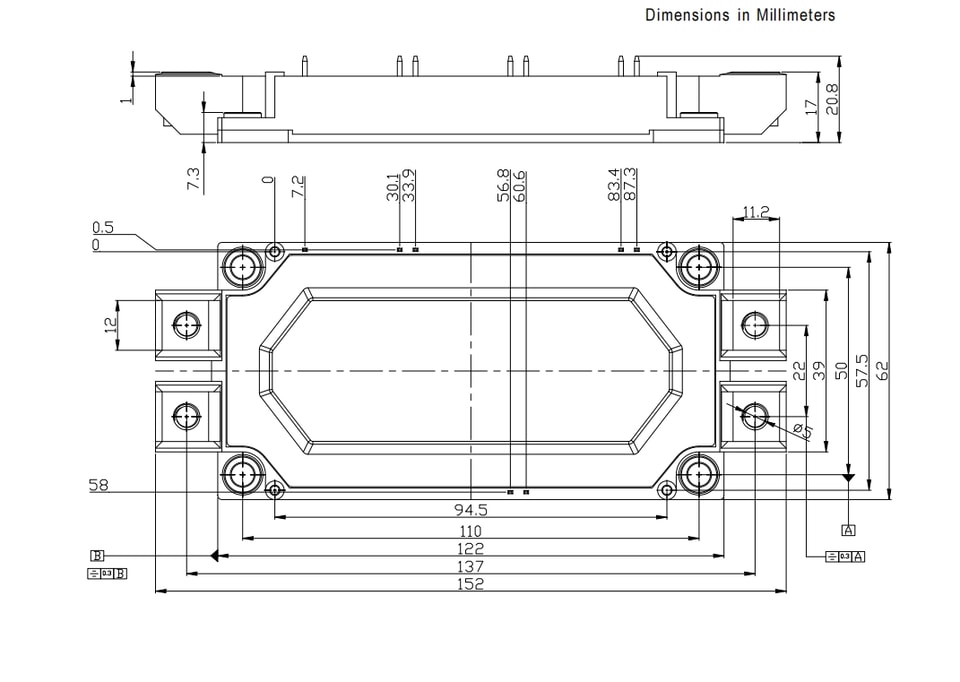

Package Dimensions
.jpg)
