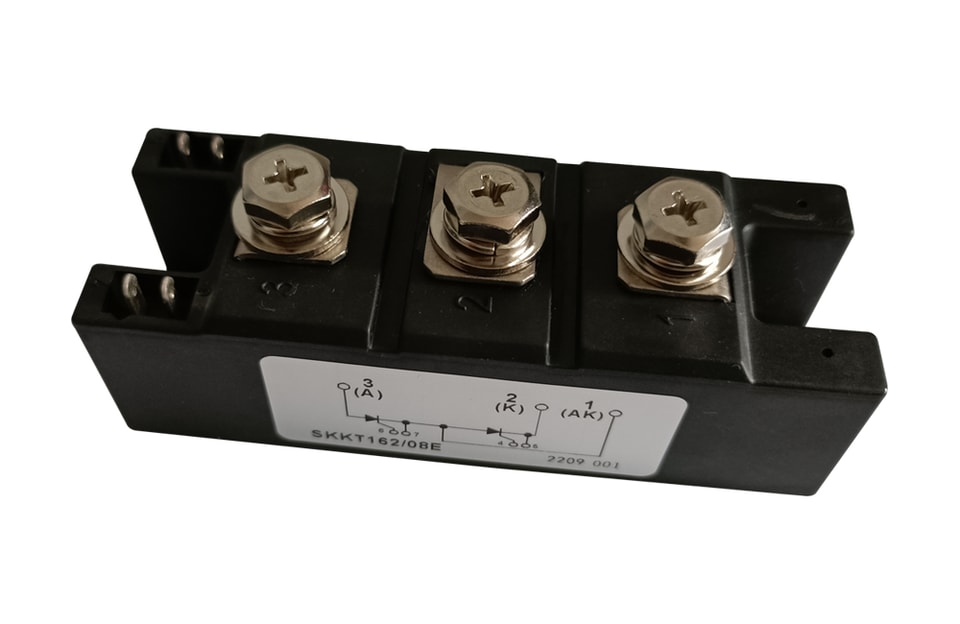

YZPST-SKKT162-08E

Dual Thyristor Modules

TYPE:YZPST-SKKT162/08E

Features

Heat transfer through aluminium nitride ceramic isolated metal baseplate
Precious metal pressure contacts for high reliability
Thyristor with amplifying gate

Typical Applications

· DC motor control

· AC motor soft starters

· Temperature control

· Professional light dimming

Maximum Ratings

Symbol	Condition	Ratings	Unit
IT(AV)	Single phase，half wave，85° conduction TC=77℃	162	A
ITRMS	Single phase，half wave，85° conduction	250	A
ITSM	TC=125℃	4800	A
I2t	TC=125℃	115	kA2S
VDRM/VRRM	TC=125℃	800/800	V
di/dt	non-repetitive	200	A/us
Viso	A.C.1m/1S	4000/4500	V
Tj		-40  ~  + 125	℃
Tstg		-40  ~  + 125	℃
W		-	g

Electrical Characteristics

Symbol	Condition	Ratings	Unit
IDRM /IRRM	AtVDRM，Single phase，half wave，TC=125℃	60	mA
VTM	On-State Current 500A，Tj=25℃	1.85	V
VT(TO)	Tj=125℃	1.35	V
tgd	Tj=25℃	1	us
tq	Tj=125℃		us
IGT/VGT	Tj=25℃	150 / 2	mA/V
VGD	VD=67%VDRM , Tj=125℃	0.25	V
DV/DT	VD=67%VDRM	1000	V/us
IH	Tj=25℃	400	mA
IL	Tj=25℃	1000	mA
Rth(j-c)	Per Module	0.08	K/W

Outline Drawing

For more information about YZPST-SKKT162-08E please download the PDF file above named " YZPST-SKKT162-08E"
