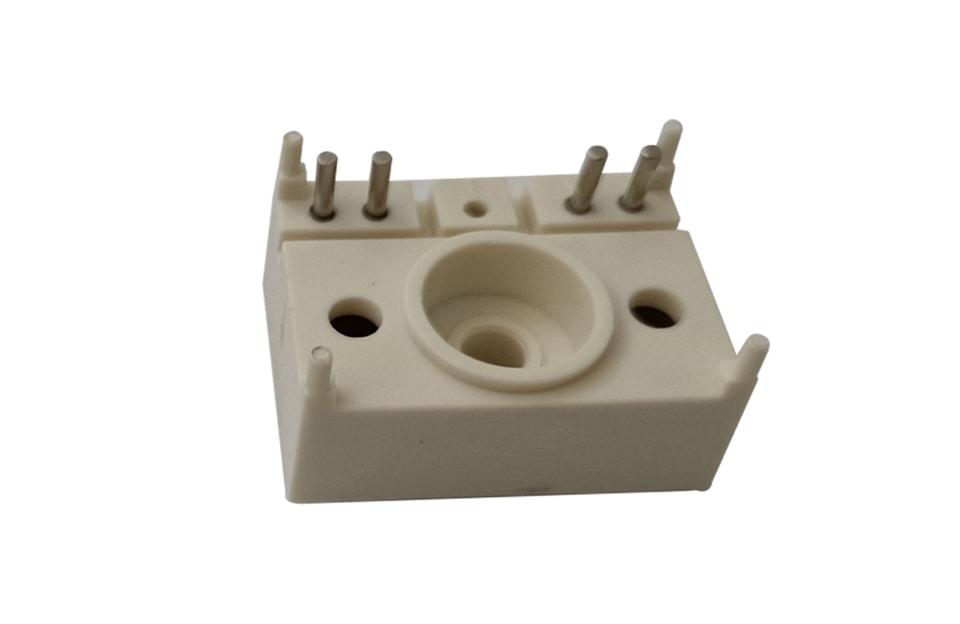

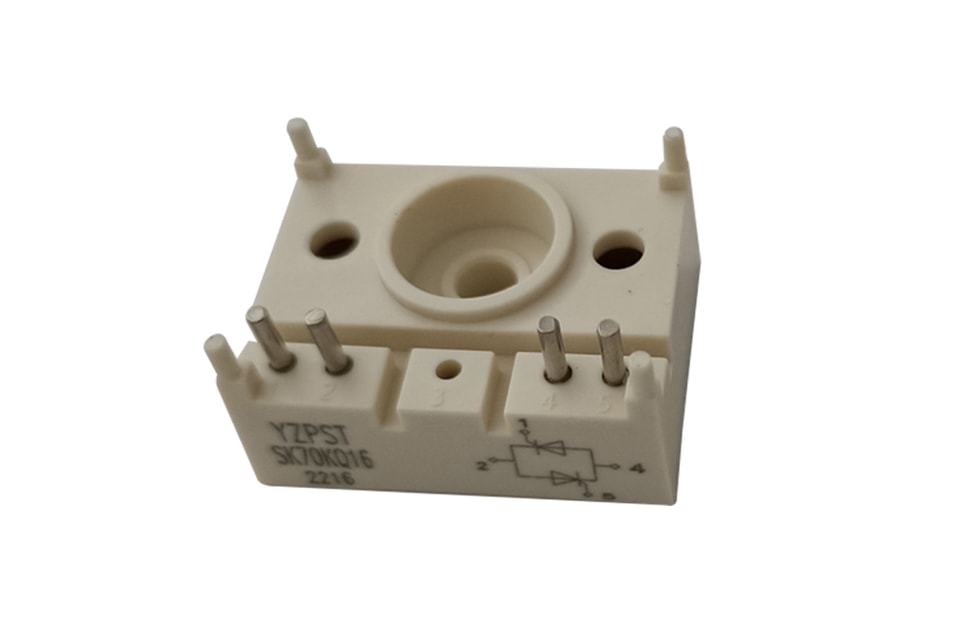

YZPST-SK70KQ08

70A 800V Thyristor Module

RoHS Compliant

PRODUCT FEATURES

Compact Design

One screw mounting

Heat transfer and isolation through DBC

Glass passivation thyristor chips

Low Leakage Current

APPLICATIONS

Soft starters

Temperature control

Light control

ABSOLUTE MAXIMUM RATINGS(T C =25°C unless otherwise specified)

Symbol	Parameter	Test Conditions	Values	Unit
VRRM	Maximum Repetitive Reverse Voltage	Tvj=125℃	800	V
VDRM	Maximum repetitive peak off-state voltage	Tvj=125℃	800	V
VRSM	Non-Repetitive Reverse Voltage	Tvj=125℃		V
VDSM	Non-repetitive peak off-state voltage	Tvj=125℃	900	V
IRRM	Maximum Repetitive Reverse Current	Tvj=125℃	5	mA
IDRM	Maximum repetitive peak off-state Current	Tvj=125℃	5	mA
IT(AV)	Mean On-state Current	TC=85℃	55
IT(RMS)	RMS Current	TC=85℃, sin180°	80	A
ITSM	Non Repetitive Surge Peak On-state Current	10ms, Tj=25℃	1100
I2t	For Fusing	10ms, Tj=25℃	6050	A2S
VTM	Peak on-state voltage	ITM=150A	1.7	V
dv/dt	critical rate of rise of off-state voltage	VD =2/3VDRM Gate Open Tj=125℃	1000	V/us
IGT	gate trigger current max.		80	mA
VGT	gate trigger voltage max.		1.5	V
IH	gate trigger current		200	mA
IL	latching current		500	mA
Viso	AC 50Hz RMS 1min		2500	V
TJ	Junction Temperature		-40 to +125	℃
TSTG	Storage Temperature Range		-40 to +125	℃
RthJC	Junction to Case Thermal Resistance(Per thyristor chip )		0.7	℃ /W
Torque	mounting force, Module to Sink		2.5	Nm
Tsolder	Teminals,10s		260	℃
