Single Thyristor Modules

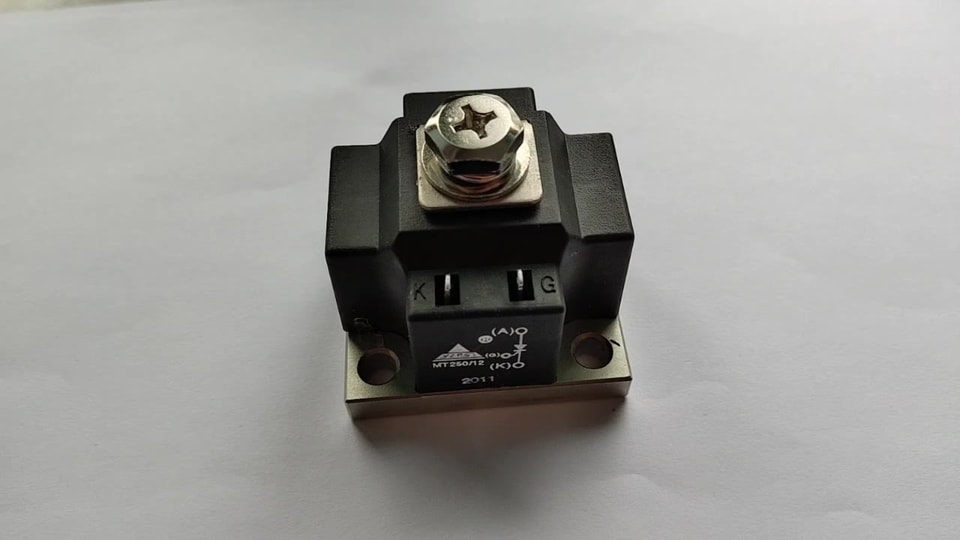

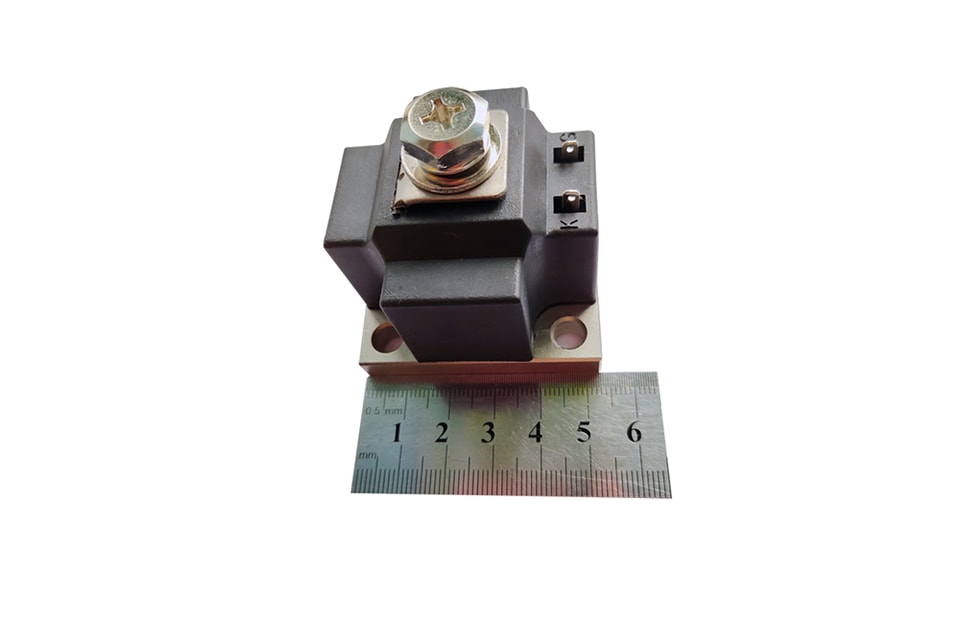

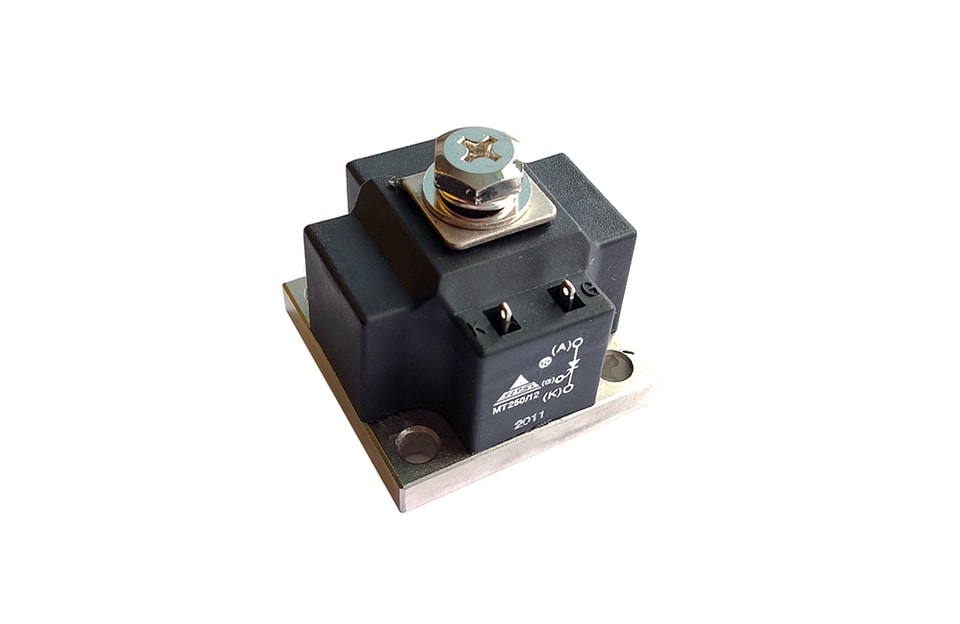

YZPST-MT(R)250A1200V
Features
· Industrial standard package
· Electrically insulated base plate
· Heat transfer through aluminium oxide ceramic insulated metal base plate
· Chip soldered on direct copper bonded AL2O3 ceramic
· Thyristor chip with center gate
Typical Applications
· DC motor control
· AC motor soft starters
· Temperature control
· Professional light dimming
VDRM/VRRM |
| 1200/1200 | V |
VRSM |
| 1300 | V |
Maximum Ratings
Symbol | Condition | Ratings | Unit |
IT(AV) | sin. 180; Tc =85°C, | 250 | A |
ITSM | Tvj =25°C; 10 ms | 9500 | A |
I2t | Tvj =25°C; 8,3…10 ms | 450 | kA2S |
(di/dt)cr |
| 130 | A/us |
Viso | A.C. 1s / 1min. |
| V |
Tj |
| -40 ~ + 125 | °C |
Tstg |
| -40 ~ + 125 | °C |
W |
| - | g |
Electrical Characteristics
Symbol | Condition | Ratings | Unit |
IDRM /IRRM | AtVDRM, Tj=125°C | 85 | mA |
VT | On-State Current 750A, Tj=25°C | 1.43 | V |
VT(TO) | Tj=125°C | 0.81 | V |
tgd | Tj=25°C | 1 | us |
tq | Tj=125°C | 150 | us |
IGT/VGT | Tj=25°C | 145 / 2 | mA/V |
VGD | Tj=125°C | 0.25 | V |
(dv/dt)cr | Tj=125°C | 1000 | V/us |
IH | Tj=25°C, typ. / max. | 140/450 | mA |
IL | Tj=25°C, typ. / max. | 200/1800 | mA |
Rth(j-c) | Per Module | 0.0455 | K/W |
Outline Drawing
For more information about YZPST-MT(R)250A1200V please download the PDF file above named " YZPST-MT(R)250-12-I903x "
