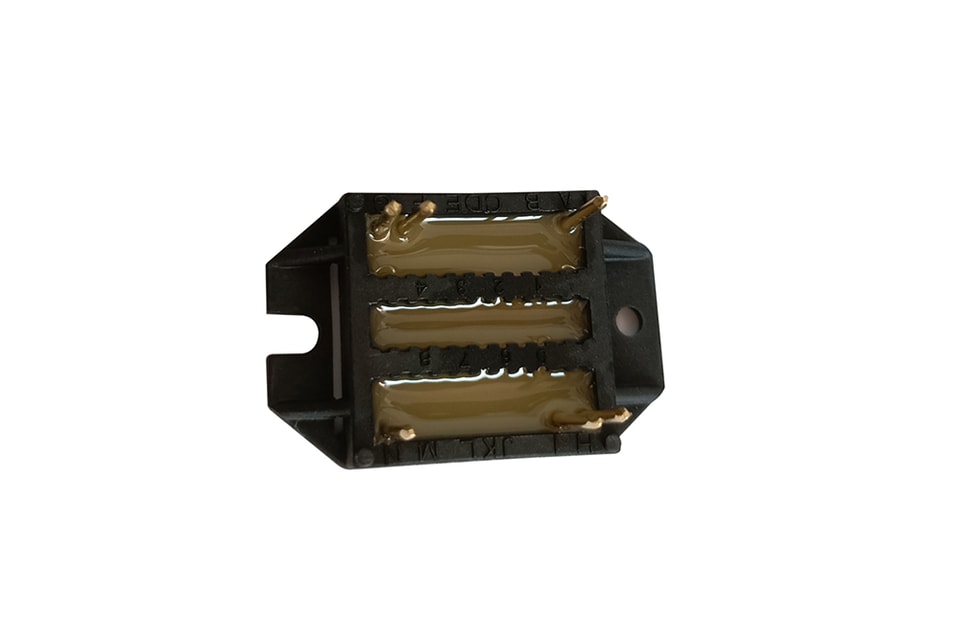

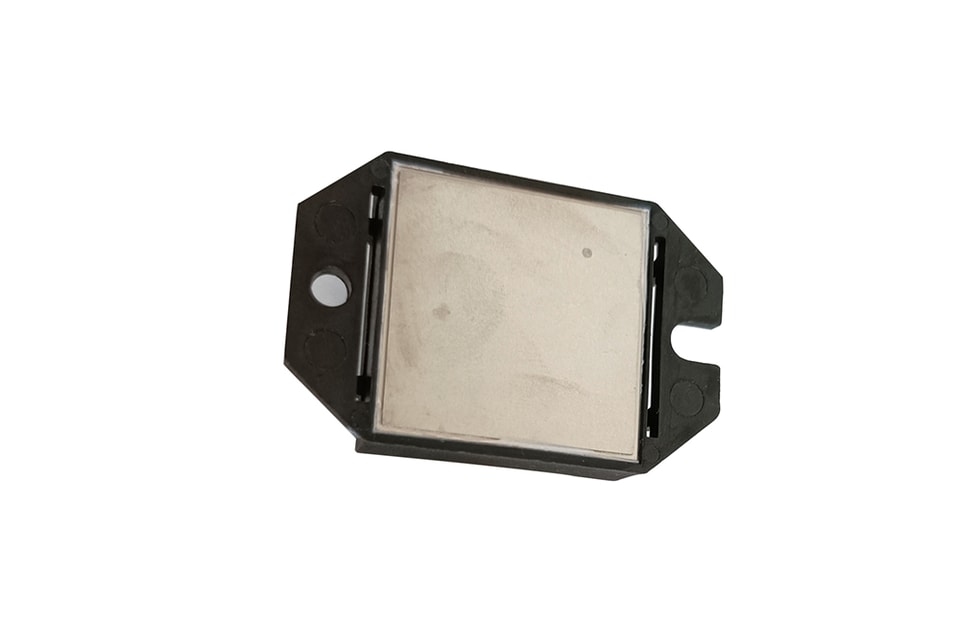

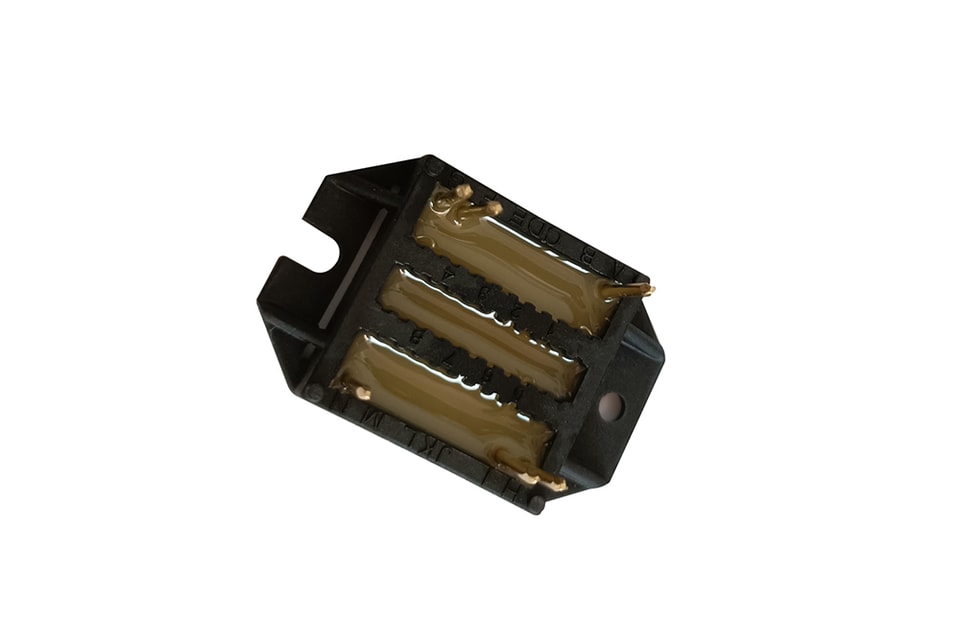

YZPST-MMO175-16W1C

YZPST-MMO175-16W1C 175A 1600V

Thyristor  Module

RoHS  Compliant

Lighting and temperature control

ABSOLUTE MAXIMUM RATINGS(T C =25°C unless otherwise specified)

Symbol	Parameter	Test Conditions	Values	Unit
VRRM	Maximum Repetitive Reverse Voltage	Tvj=125℃	1600	V
VDRM	Maximum repetitive peak off-state voltage
VRSM	Non-Repetitive Reverse Voltage	Tvj=125℃	1700	V
VDSM	Non-repetitive peak off-state voltage
IRRM	Maximum Repetitive Reverse Current	Tvj=125℃	5	A
IDRM	Maximum repetitive peak off-state Current
IT(AV)	Mean On-state Current	TC=85℃	80
IT(RMS)	RMS Current	TC=85℃, sin180°	125
IRMS	Module	TC=85℃	175	A
ITSM	Non Repetitive Surge Peak On-state Current	10ms, Tj=25℃	1500
I2t	For Fusing	10ms, Tj=25℃	11000	A2S
VTM	Peak on-state voltage	ITM=240A	1.67	V
dv/dt	critical rate of rise of off-state voltage	VD =2/3VDRM Gate Open Tj=125℃	1000	V/us
IGT	gate trigger current max.		100	A
VGT	gate trigger voltage max.		1.3	V
IH	gate trigger current		200	A
IL	latching current		350	A
Viso	AC 50Hz RMS 1min		2500	V
TJ	Junction Temperature		-40 to +150	℃
TSTG	Storage Temperature Range		-40 to +150
RthJC	Junction to Case Thermal Resistance(Per thyristor chip )		0.45	℃ /W

Outlines
