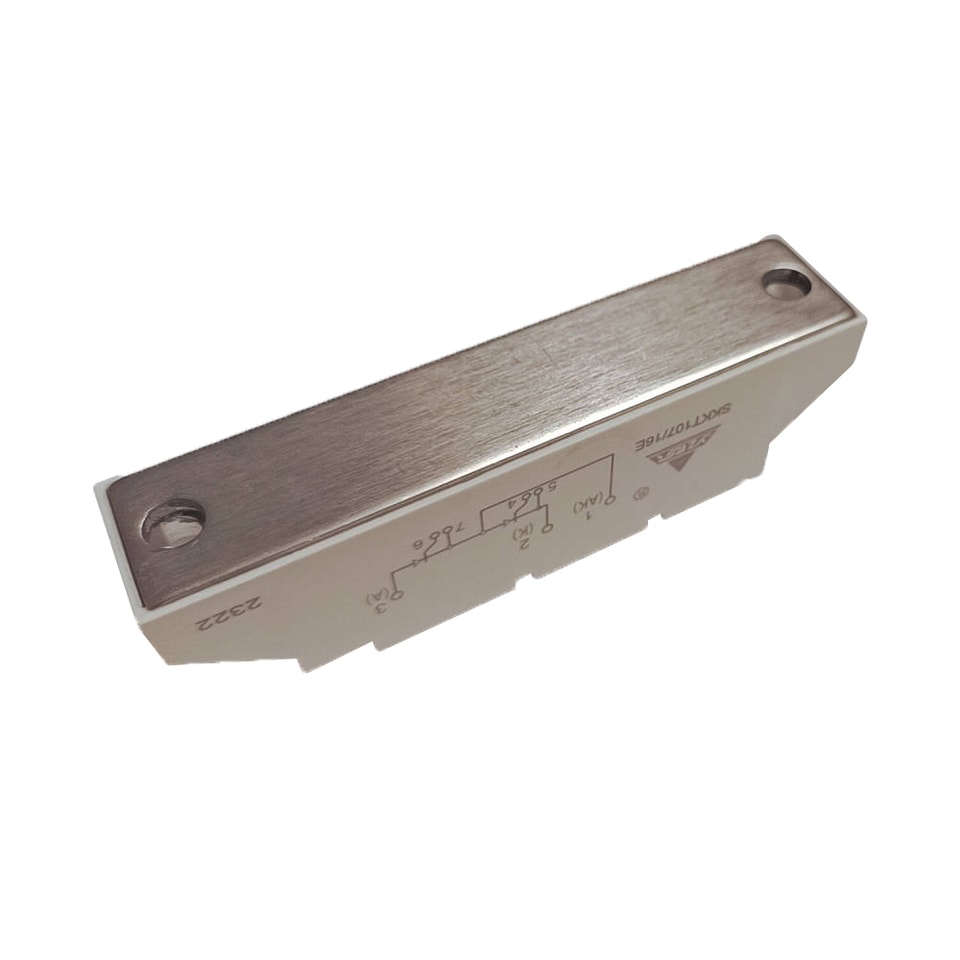

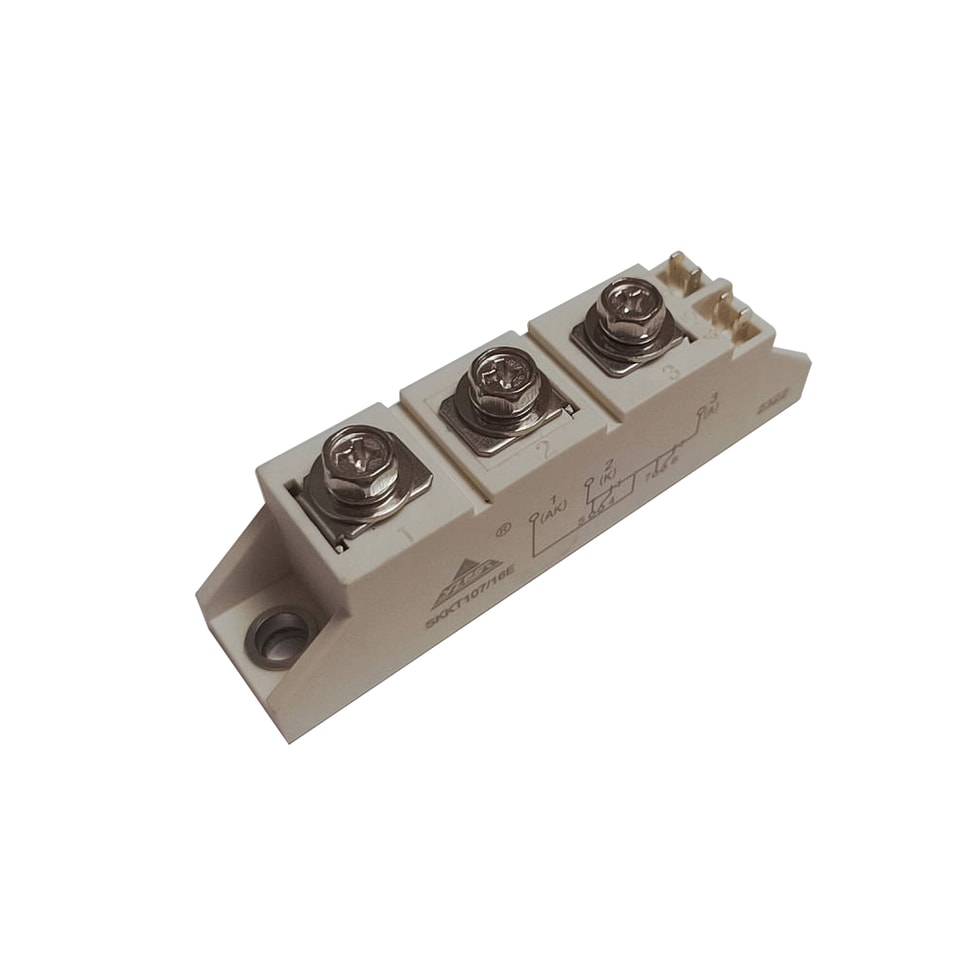

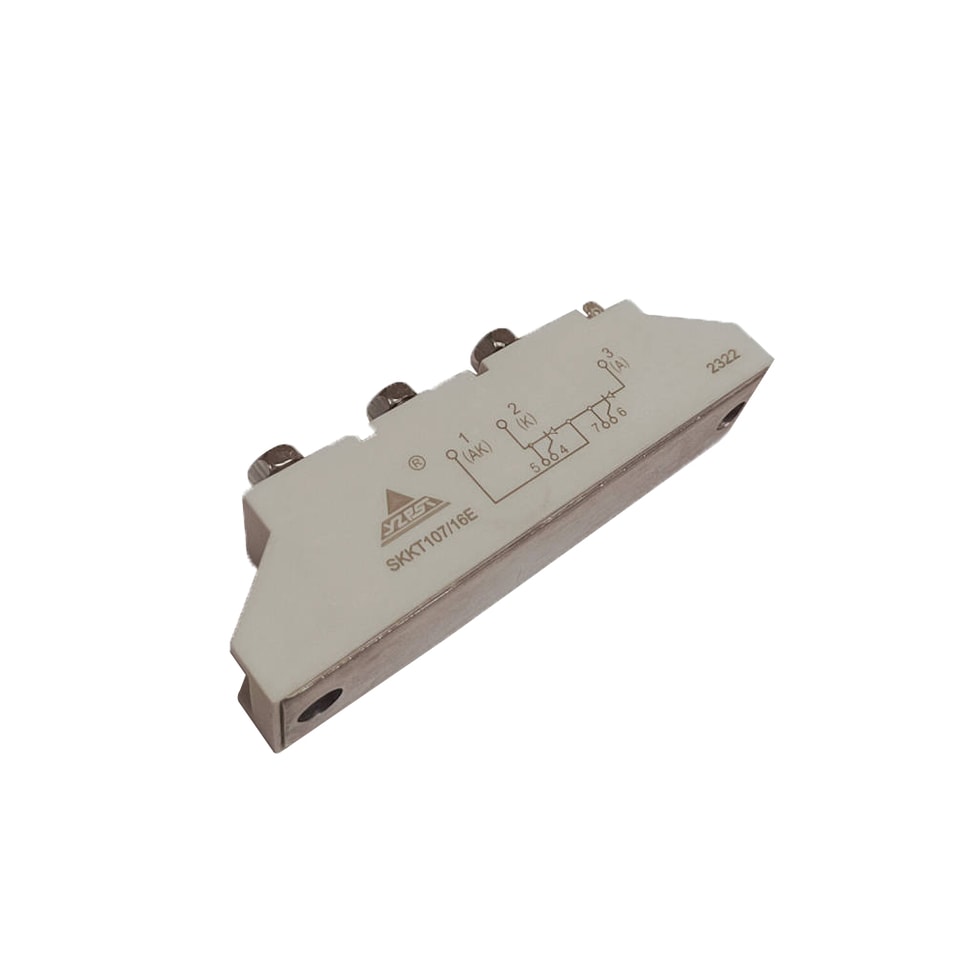

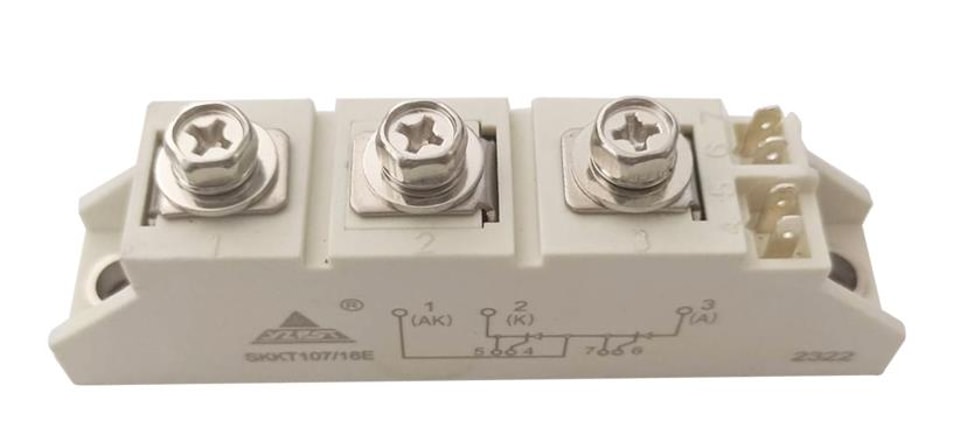

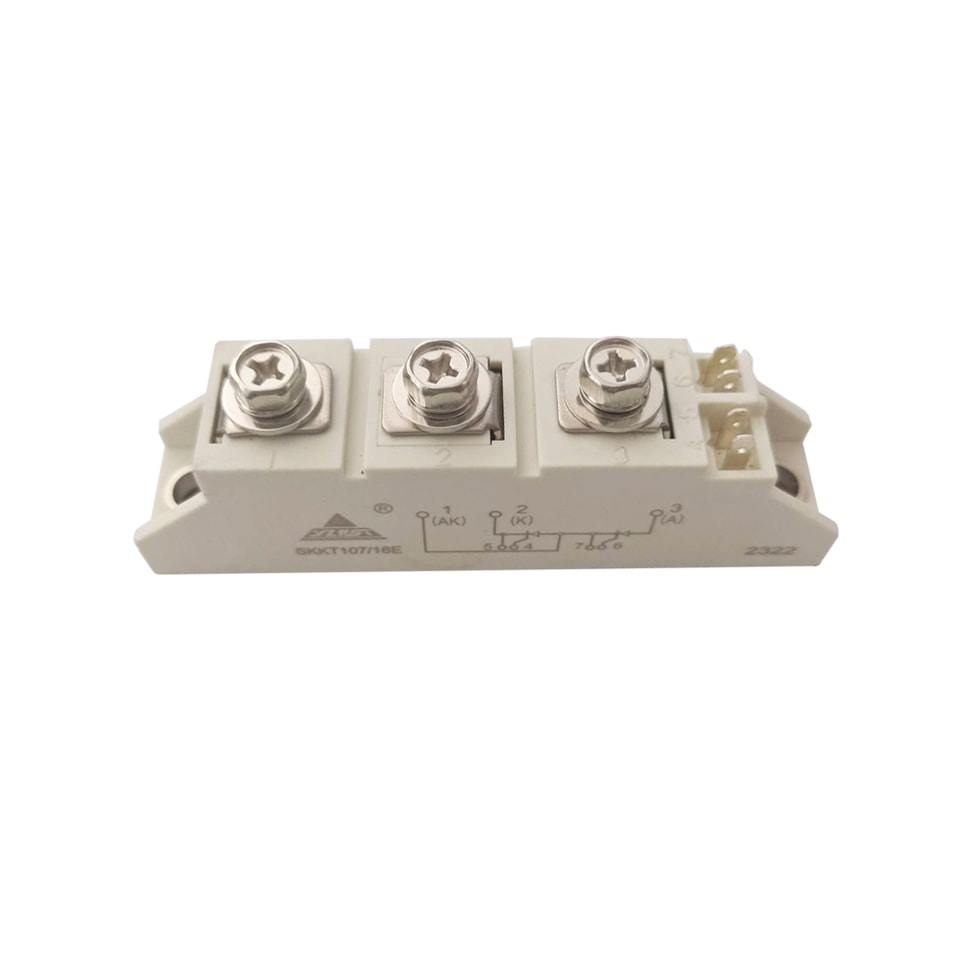

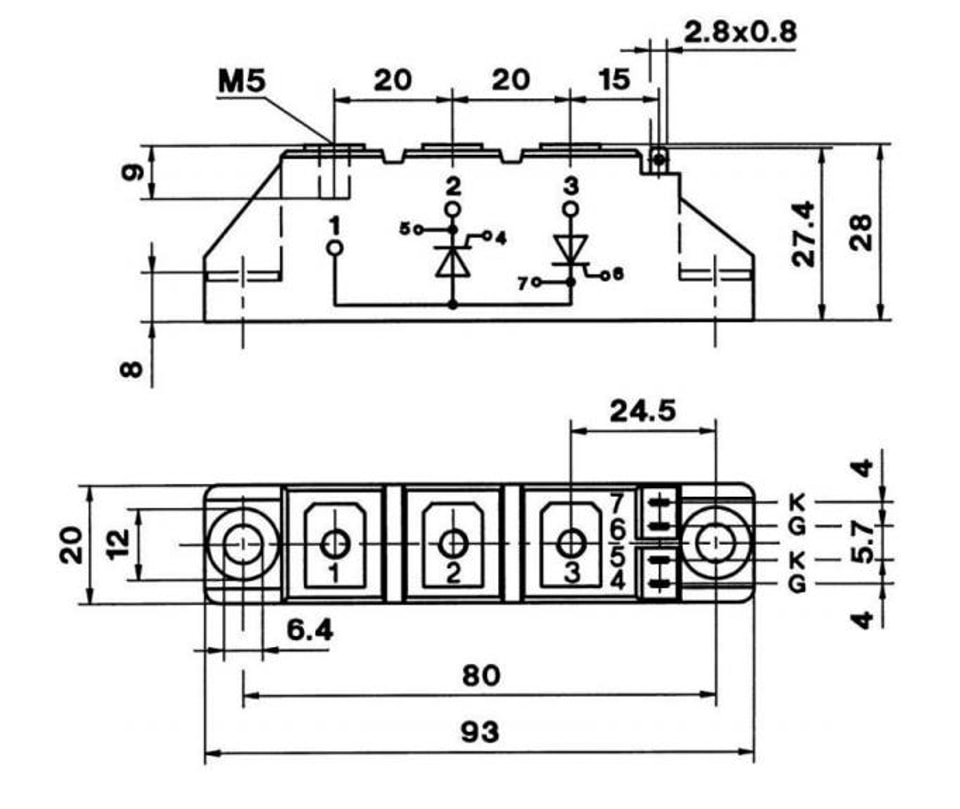

Thyristor Modules P/N:YZPST-SKKT107/16E

Thyristor with amplifying gate 1600V Thyristor Module 119A

Features
Heat transfer through aluminium nitride ceramic isolated metal baseplate
Precious metal pressure contacts for high reliability
Thyristor with amplifying gate
Typical Applications
DC motor control
AC motor starters
Temperature control

Professional light dimming

V_DRM	V_RRM	V_RSM
1600V	1600V	1700V

Symbol	Conditions	Values	Units
IT(AV)	sin. 180; TC=85°C	119	A
		119
IRMS		190
ITSM	Tvj=25°C; 10ms	2250	A
I2t	Tvj=25°C; 8.3…10ms	25.3	KA2s
VT	Tvj=25°C; IT=300A	max. 1.75	V
IDD	Tvj=125°C; VRD=VRRM; VDD=VDRM	max. 20	mA
IRD	Tvj=125°C; VRD=VRRM; VDD=VDRM	max. 20	mA
tgd	Tvj=25°C; IG=1A; diG/dt=1A/μs; VD=2/3VDRM	1	μs
tgr	Tvj=25°C; IG=1A; diG/dt=1A/μs; VD=2/3VDRM	2	μs
(di/dt)cr	Tvj=125°C	max. 140	A/μs
(dv/dt)cr	Tvj=125°C	max. 1000	V/μs
tq	Tvj=125°C	200	μs
IH	Tvj=25°C; typ. /max.	250	mA
IL	Tvj=25°C; RG=33Ω; typ. /max.	600	mA
VGT	Tvj=25°C; d.c.	min.1.0	V
IGT	Tvj=25°C; d.c.	min. 35	mA
VGD	Tvj=125°C; d.c.	max. 0.25	V
IGD	Tvj=125°C; d.c.	max.4	mA
Rth(j-c)	per thyristor /per module	0.19	K/W
Rth(c-s)	per thyristor /per module	0.1	K/W
Tvj		-40…+130	°C
Tstg		-40…+130	°C
Visol	a.c. 50Hz; r.m.s.; 1s/1min.	3600/3000	V
