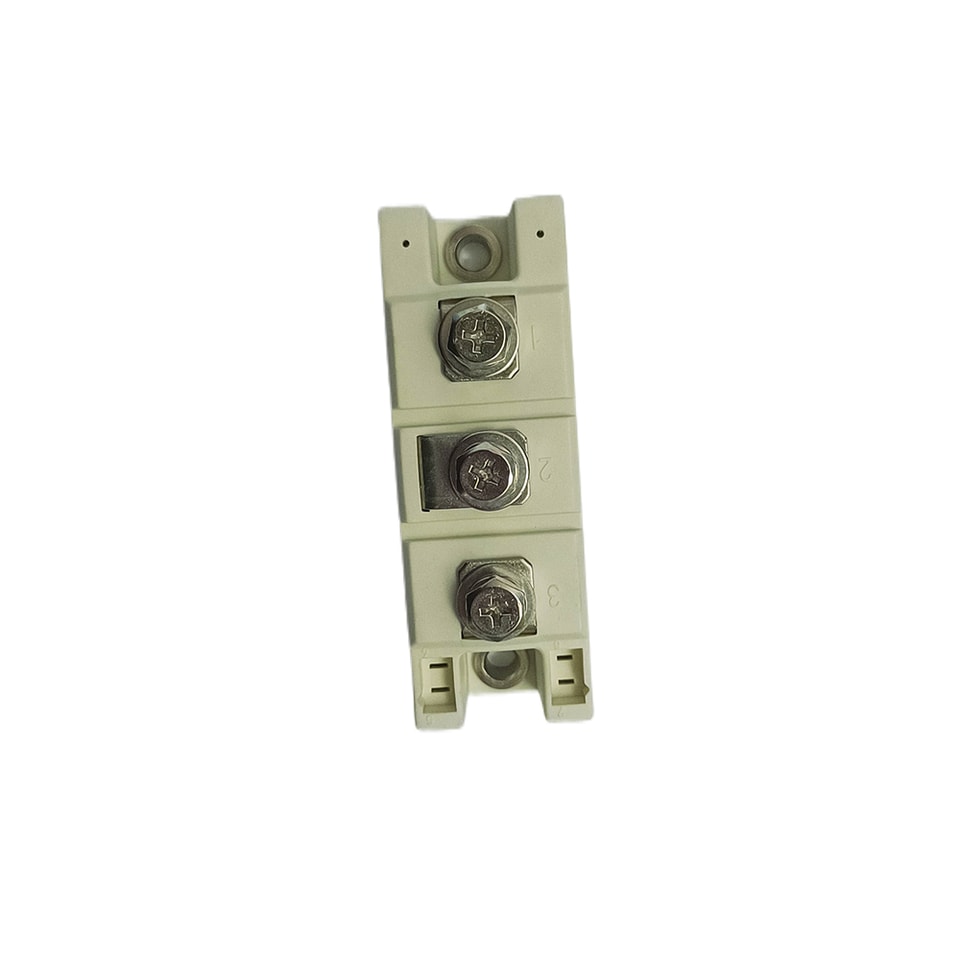

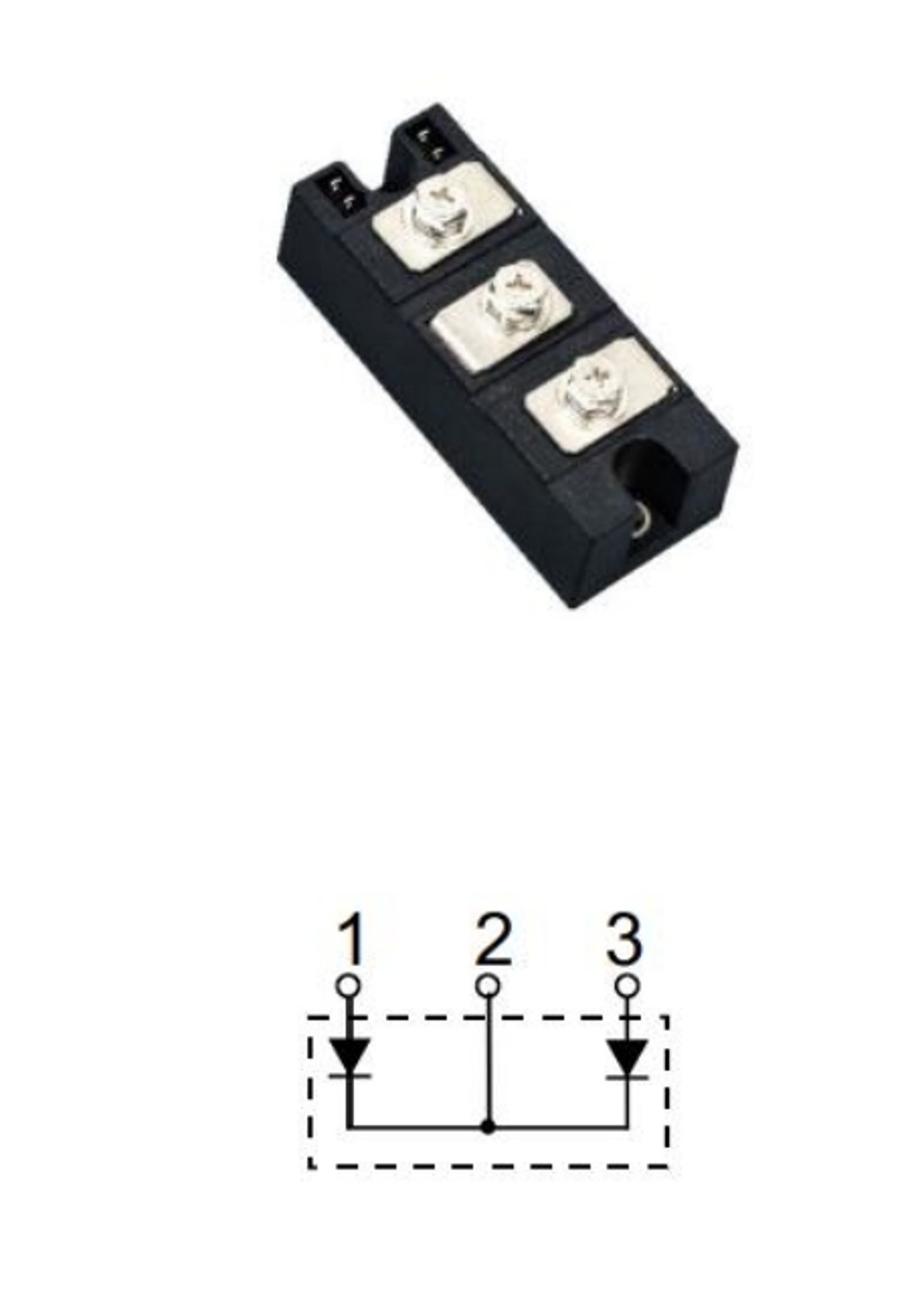

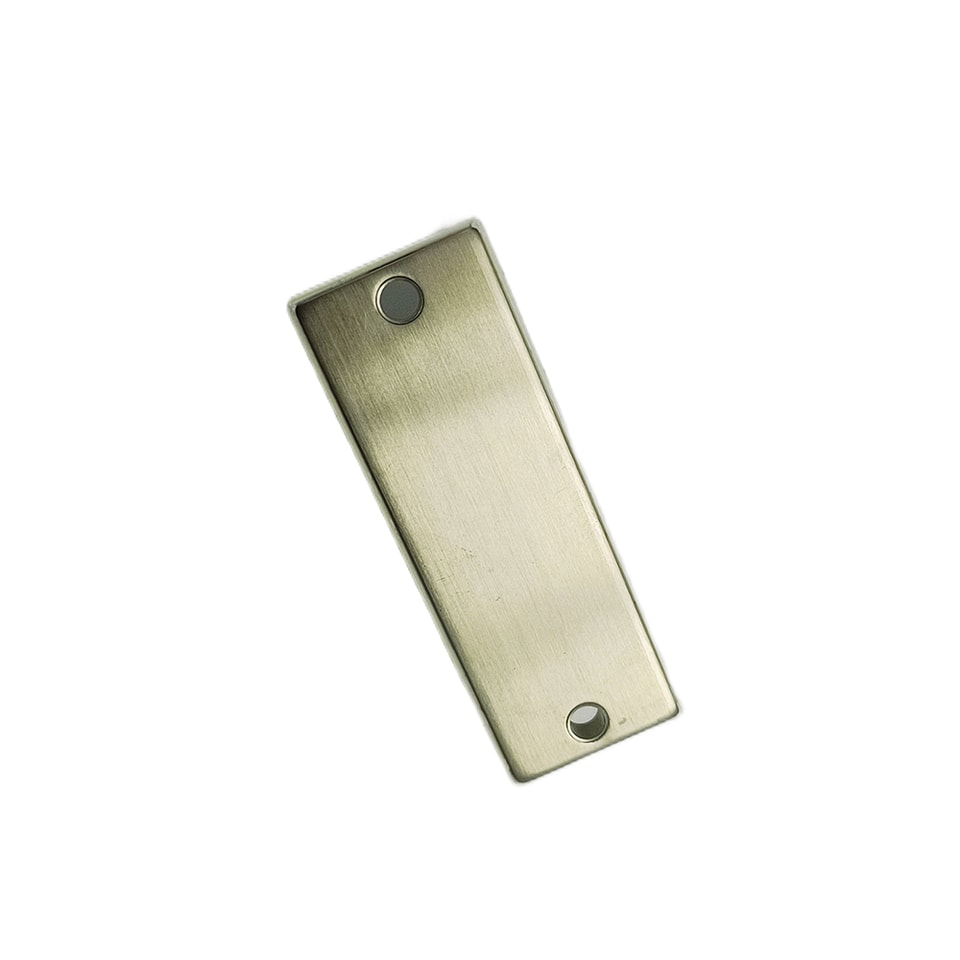

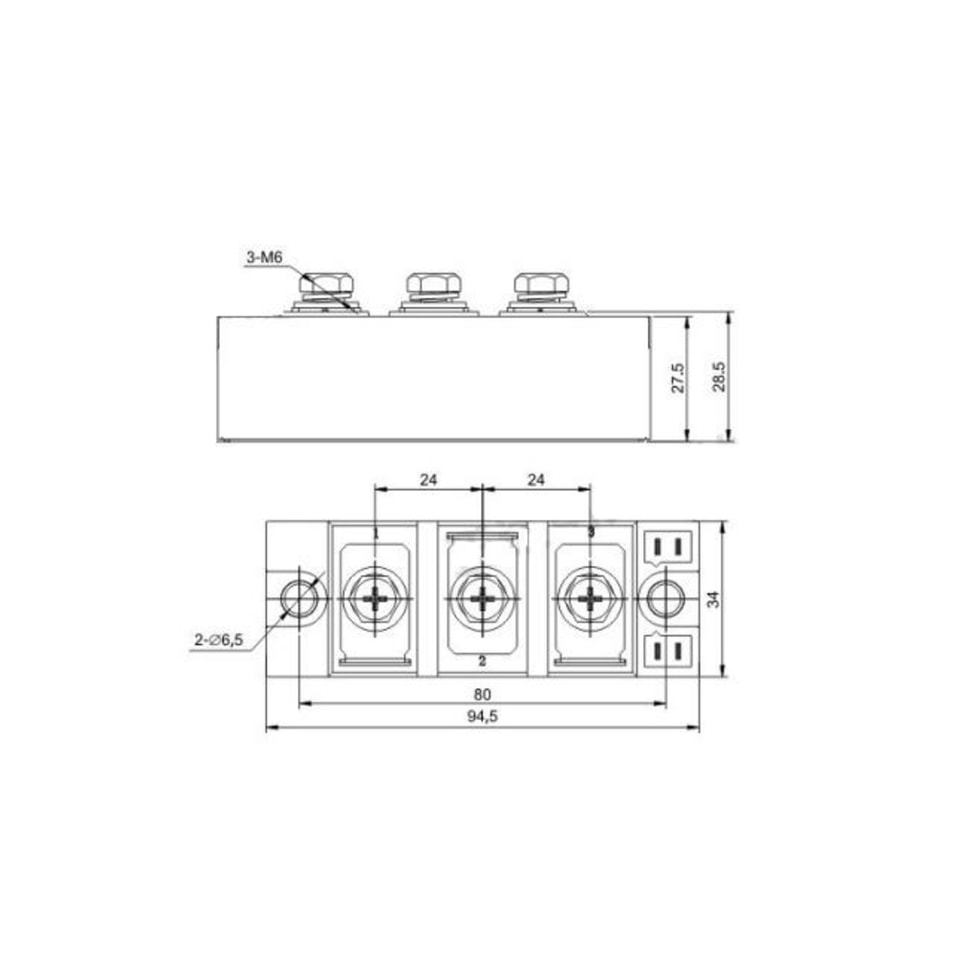

P/N: YZPST-SDKF2X300-06B2 600V 300A FRED Module
PRODUCT FEATURES
Ultrafast Reverse Recovery Time
Soft Reverse Recovery Characteristics
Low Reverse Recovery Loss
Low Forward Voltage
High Surge Current Capability
Low Leakage Current
APPLICATIONS
Inversion Welder
Uninterruptible Power Supply
Plating Power Supply
Ultrasonic Cleaner and Welder
Converter & Chopper
PFC
ABSOLUTE MAXIMUM RATINGS( T C =25 ° C unless otherwise specified)
Symbol | Parameter/Test Conditions | Values | Unit | |
VR | Maximum D.C. Reverse Voltage | 600 | V | |
VRRM | Maximum Repetitive Reverse Voltage | |||
IF(AV) | Average Forward Current | TC=75℃, Per Diode | 300 |
A |
TC=75℃, Per Module | 2X300 | |||
IF(RMS) | RMS Forward Current | TC=75°C, Per Diode | 430 | |
IFSM | Non Repetitive Surge Forward Current | TJ=45℃,t=10/8.3ms,Sine,50/60Hz | 2400/2640 | |
TJ= 150℃ ,t=10/8.3ms,Sine,50/60Hz | 2160/2380 | |||
I2t | For Fusing | TJ=45℃,t=10/8.3ms,Sine,50/60Hz | 28800/29300 | A2S |
TJ= 150℃ ,t=10/8.3ms,Sine,50/60Hz | 23300/23800 | |||
Ptot | Power Dissipation,TC=25℃, | 875 | W | |
TJ | Junction Temperature | -40 to +150 | ℃ | |
TSTG | Storage Temperature Range | -40 to +125 | ℃ | |
Visol | Isolation Breakdown Voltage | AC, 50Hz(R.M.S), t=1minute/ 1s | 3000/3600 | V |
Md | Module to Sink | Recommended（M6） | 4.7 | Nm |
Module Electrodes | Recommended（M6） | 4.7 | Nm | |
RthJC | Junction to Case Thermal Resistance(Per Diode ) | 0.143 | ℃ /W | |
Weight |
| 170 | g | |
ELECTRICAL CHARACTERISTICS (T C =25 ° C unless otherwise specified)
| Symbol | Parameter/Test Conditions | Min. | Typ. | Max. | Unit | ||
| IR | Maximum Reverse Leakage Current | VR = 600V, TJ = 25℃ | 12 | mA | |||
| VR = 480V, TJ = 25/ 125℃ | 3/80 | ||||||
| VF | Forward Voltage | IF=150A,TJ=25/ 125℃ | 1.27/ 1.05 | V | |||
| IF=260A,TJ=25/ 125℃ | 1.36/ 1.19 | ||||||
| VTO | For power-loss calculations only | 0.85 | V | ||||
| trr | Reverse Recovery Time(IF = 300A, d IF/dt = -400A/ μs, VR = 300V,TJ = 100℃) | 250 | 300 | ns | |||
| rT | 1.34 | m Ω | |||||
| IRRM | Maximum Reverse Recovery Current | IF=300A, VR =300V, d IF/dt =- 400A/ μs | TJ = 25℃ | 44 | |||
| TJ = 100℃ | 66 | A | |||||
