TECHNICAL PRODUCT DATA

YZPST-2MBI150XAA-120-50（YZPST-150HF120TK-G1）

Home > Products > YZPST-2MBI150XAA-120-50（YZPST-150HF120TK-G1）

PRODUCT VISUAL01 / GALLERY

POWER COMPONENT

YZPST-2MBI150XAA-120-50（YZPST-150HF120TK-G1）

Product summary and primary technical information will be loaded from the product database.

✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry

EmailTechnical sales

PhoneContact team

REQUEST A TECHNICAL QUOTE ↗

Tip: include the part number, target voltage/current and application environment.

DOCUMENT CENTER

Downloads & technical files

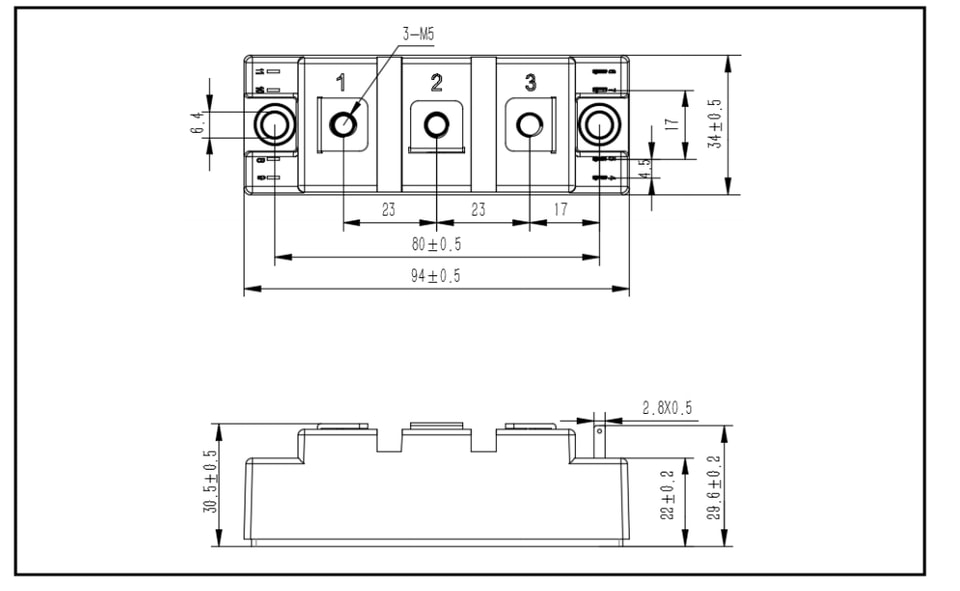

YZPST-150HF120TK-G1--2MBI150XAA-120-50 34mm 150A 1200V IGBT module---T516.pdfDOWNLOAD ↘

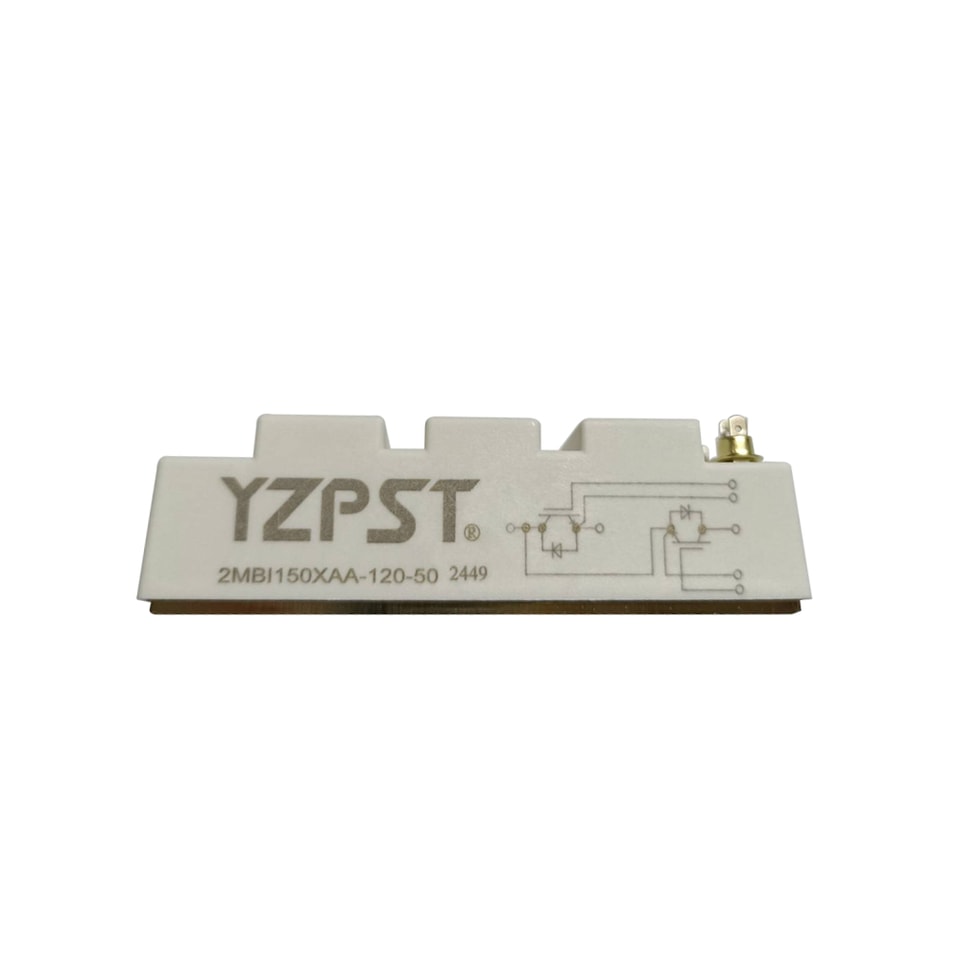

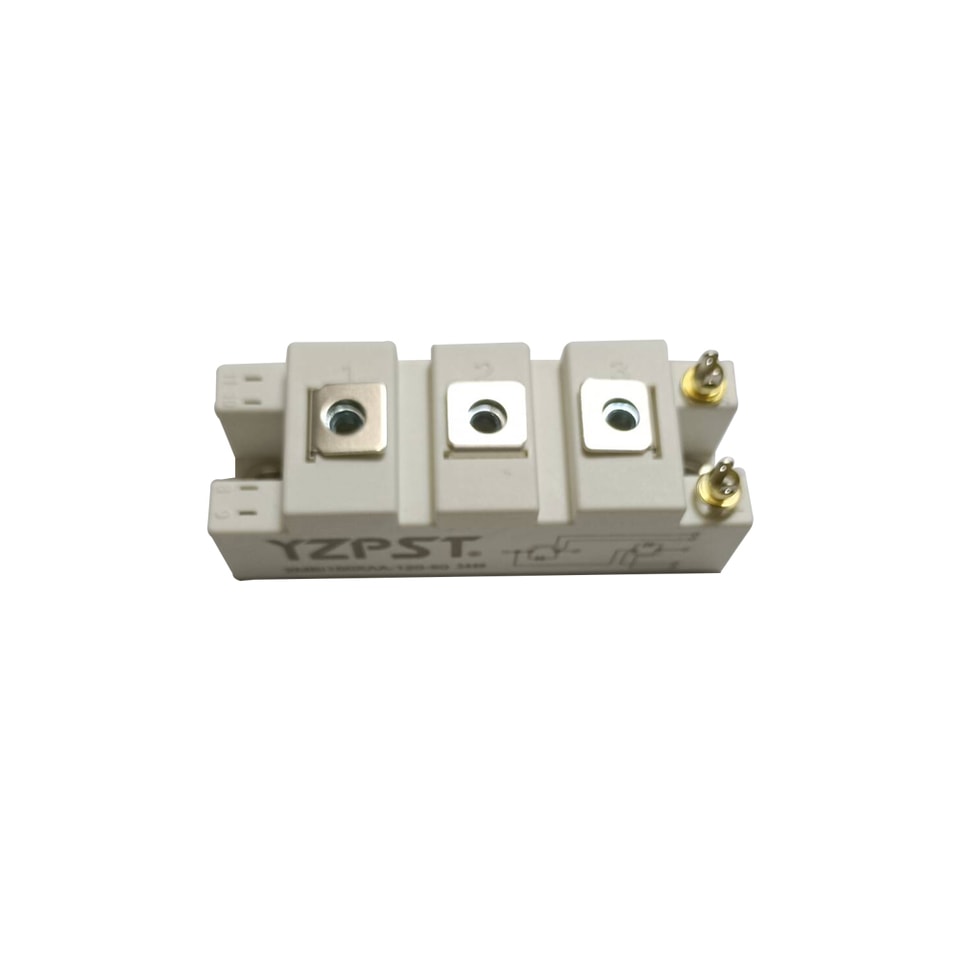

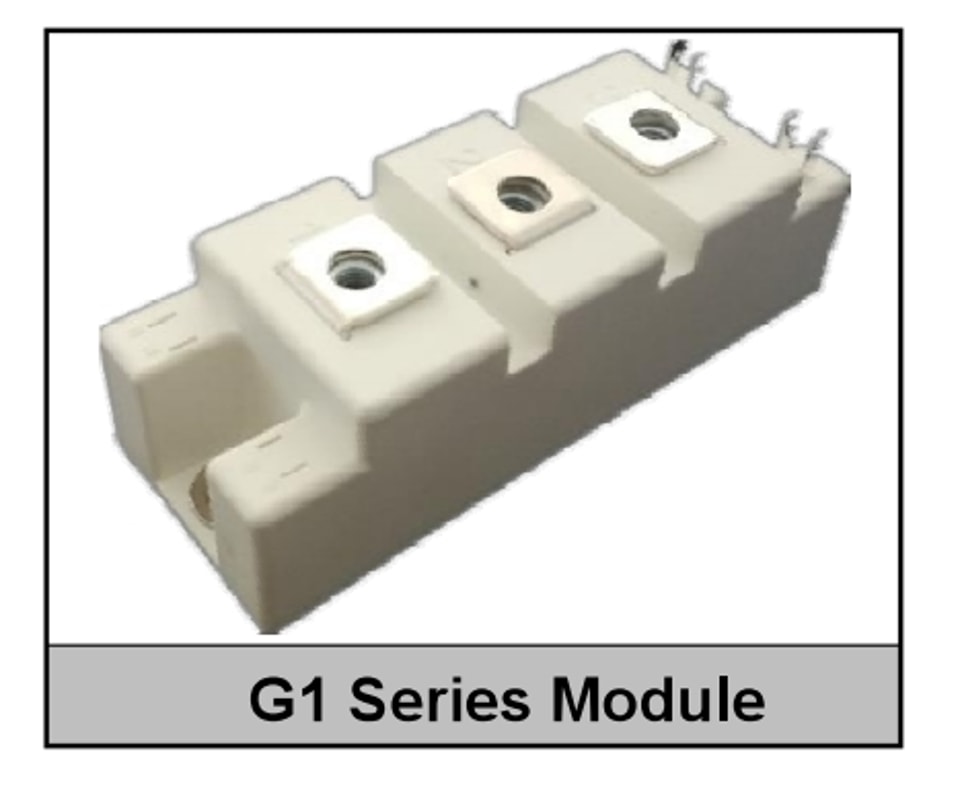

YZPST-2MBI150XAA-120-50（YZPST-150HF120TK-G1）

150A 1200V IGBT Module

FEATURES

High short circuit capability, self limiting short circuit current

lGBT CHIP(Trench+ Field stop technology)

VCE(sat) with positive temperature coefficient

Fast switching , Low switching losses

Free wheeling diodes with fast and soft reverse recovery

APPLICATIONS

High frequency switching application

welding converters

Motion/servo control

UPS Systems

ABSOLUTE MAXIMUM RATINGS Tc=25ec unless otherwise specified

Symbol	Parameter	Test Conditions	Values	Unit
IGBT
VCES	Collector - Emitter Voltage	TVj=25°C	1250	V
VGES	Gate - Emitter Voltage		±30	V
IC	DC Collector Current	TC=25°C	230	A
IC	DC Collector Current	TC=80°C	150	A
ICM	Repetitive Peak Collector Current	tp=1ms	200	A
Ptot	Power Dissipation Per IGBT		694	W
Diode
VRRM	Repetitive Reverse Voltage	TVj=25°C	1250	V
IF(AV)	Average Forward Current	TC=25°C	150	A
IF(AV)	Average Forward Current	TC=80°C	100	A
IFRM	Repetitive Peak Forward Current	tp=1ms	200	A
