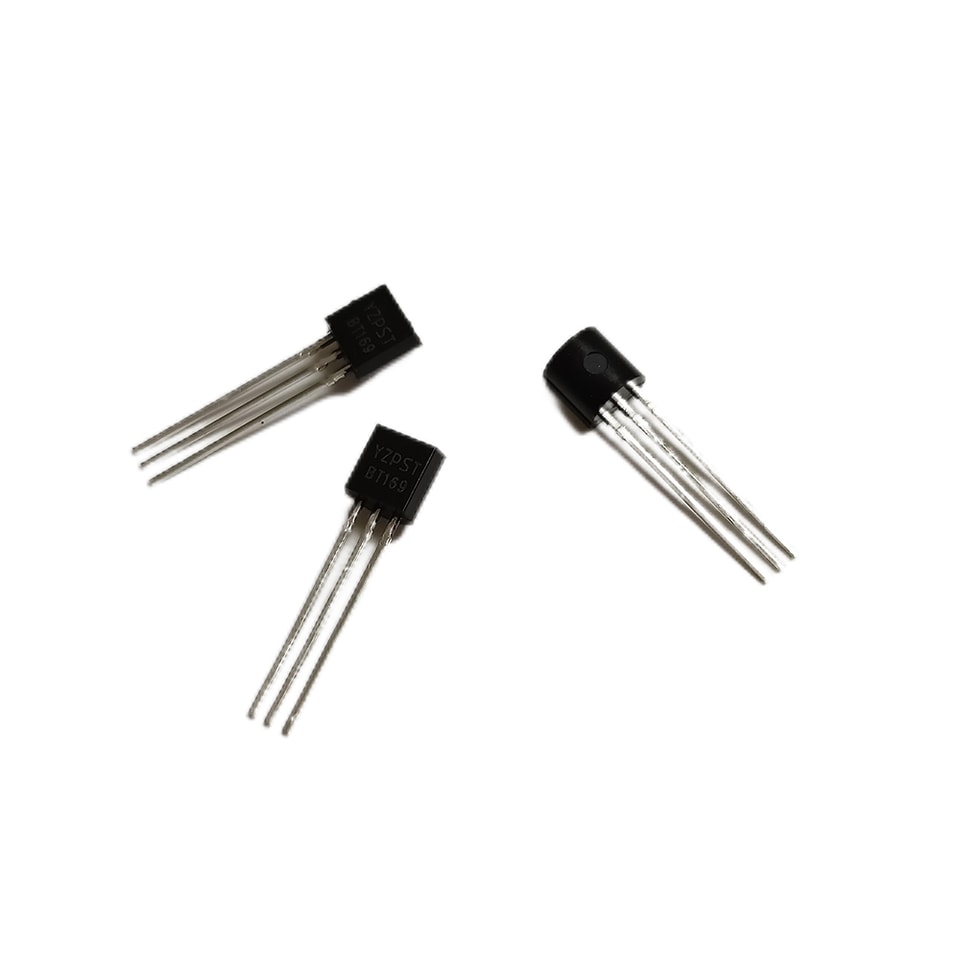

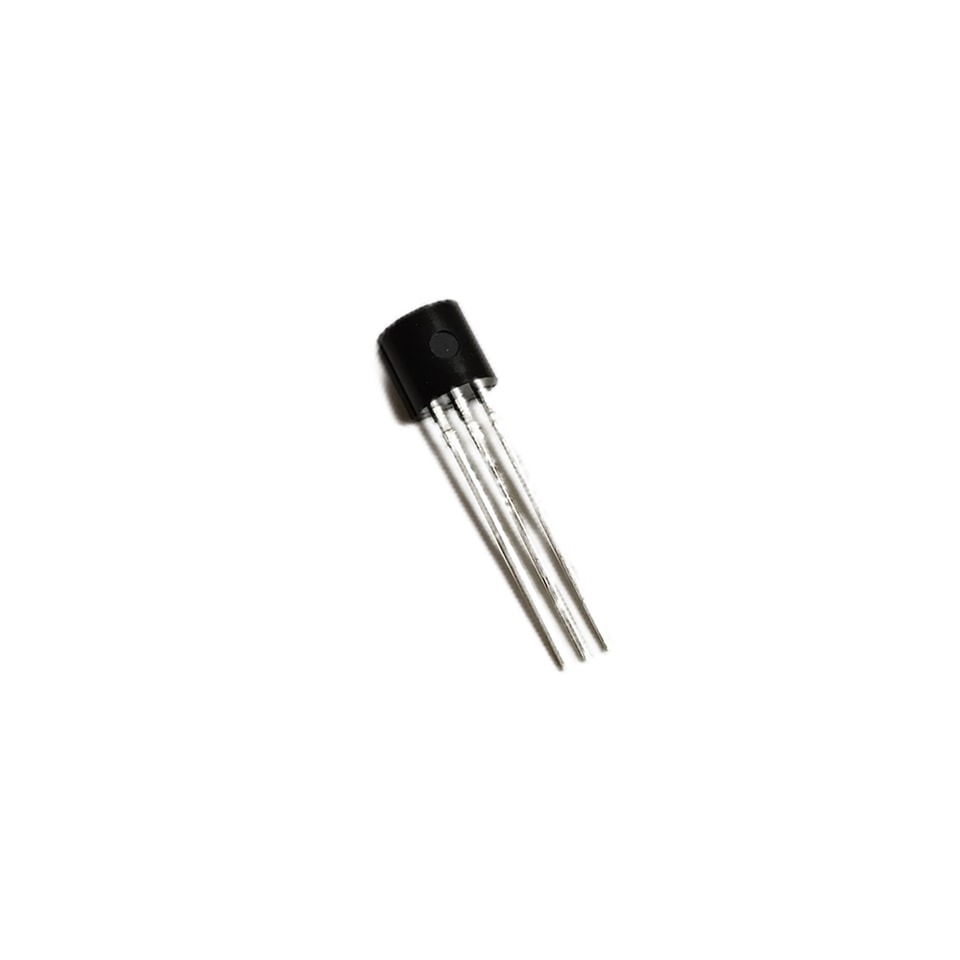

YZPST-BT169 SCR
DESCRIPTION:
The B T 1 6 9 ScR series provide high dv/dt rate
with strong resistance to electromagnetic interface.
They are especially recommended for use on residual current circuit breaker, straight hair, igniter etc.
MAIN FEATURES:
symboI | vaIue | unit |
lT(RMS) | 0.8 | A |
VDRM/VRRM | 400/600/800 | V |
VTM | <1.5 | V |
ABSOLUTE MAXIMUM RATINGS:
Parameter | SymboI | vaIue | Unit |
Storage junction temperature range | Tstg | -40~150 | ℃ |
operating junction temperature range | Tj | -40~110 | ℃ |
Repetitive peak off-state voltage (Tj=25℃) | VDRM | 400/600/800 | V |
Repetitive peak reverse voltage (Tj=25℃) | VRRM | 400/600/800 | V |
RMS on-state current (Tc=80℃) | lT(RMS) | 0.8 | A |
Non repetitive surge peak on-state current (full cycle, F=50Hz) | lTSM | 10 | A |
l2t value for fusing (tp=10ms) | l2t | 0.5 | A2s |
critical rate of rise of on-state current (lG=2xlGT) | dl/dt | 50 | A/μs |
Peak gate current | lGM | 0.2 | A |
Average gate power dissipation | PG(AV) | 0.1 | W |
Peak gate power | PGM | 0.5 | W |
ELECTRICAL CHARACTERISTICS (Tj=25K Unless otherwise specified)
| SymboI | vaIue | ||||
| Test Condition | MlN | TYPE | MAX | unit | |
| lGT | - | 20 | 200 | μA | |
| VGT | VD=12V, RL=33Ω | - | 0.5 | 1 | V |
| VD=VDRM Tj=110K | |||||
| VGD | RL=3.3KΩ | 0.2 | - | - | V |
| lH | lT=50mA | - | - | 2 | mA |
| lL | lG=1.2lGT | - | - | 3 | mA |
| VD=0.66XVDRM Tj=110K | |||||
| dV/dt | G RGK=1KΩ | 20 | - | - | V/μs |
STATIC CHARACTERISTICS
| SymboI | Test Condition | vaIue | unit | ||
| VTM | lTM=2A tp=380μs | Tj=25℃ | MAX | 1.5 | V |
| lDRM | VDRM= VRRM | Tj=25℃ | 5 | μA | |
| lRRM | RGK=1KΩ | Tj=110℃ | MAX | 100 | μA |

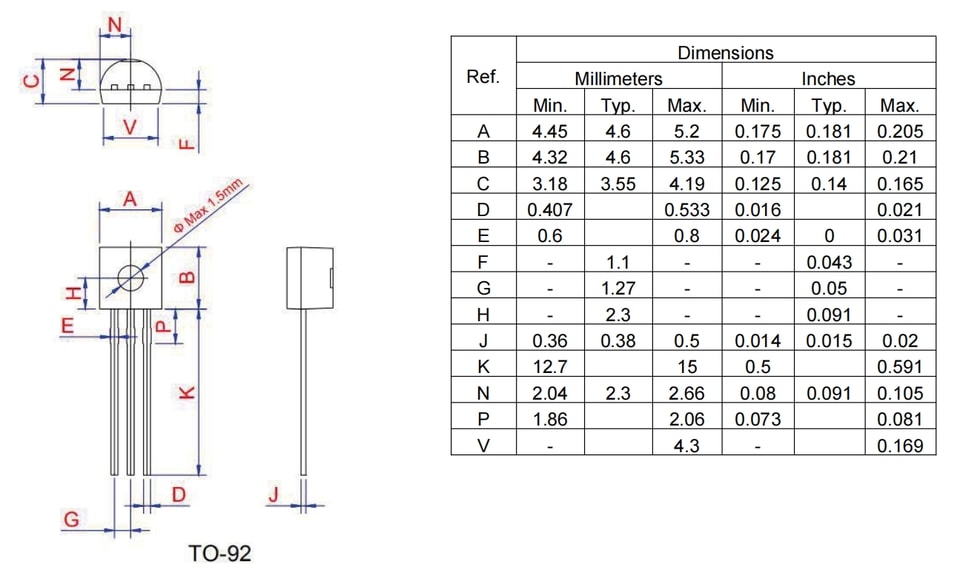

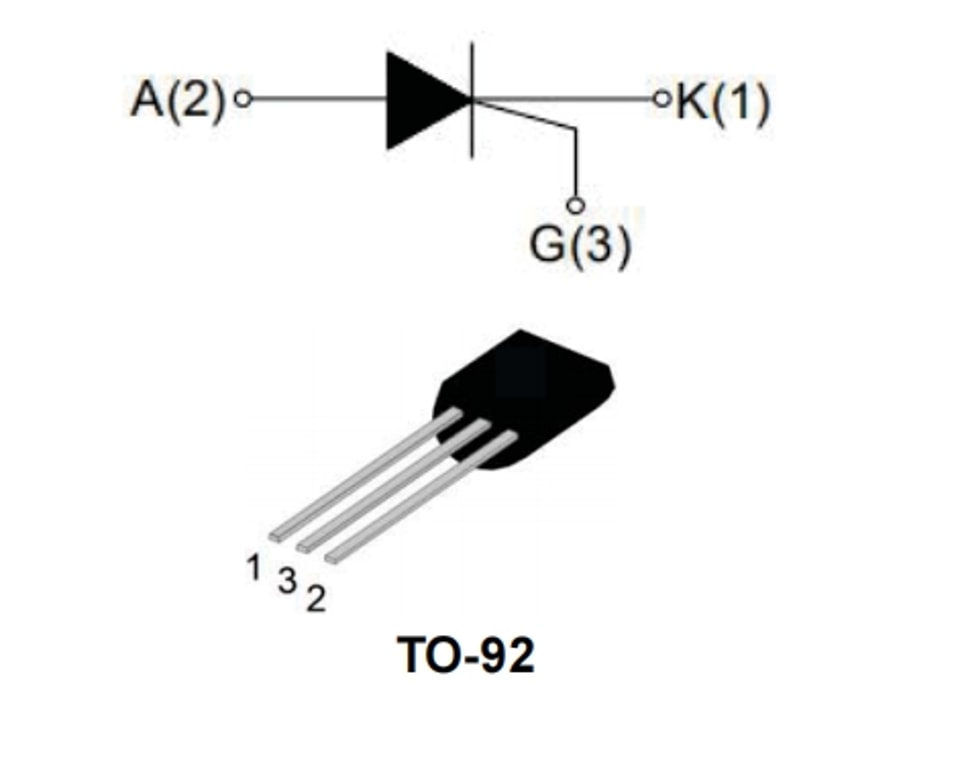

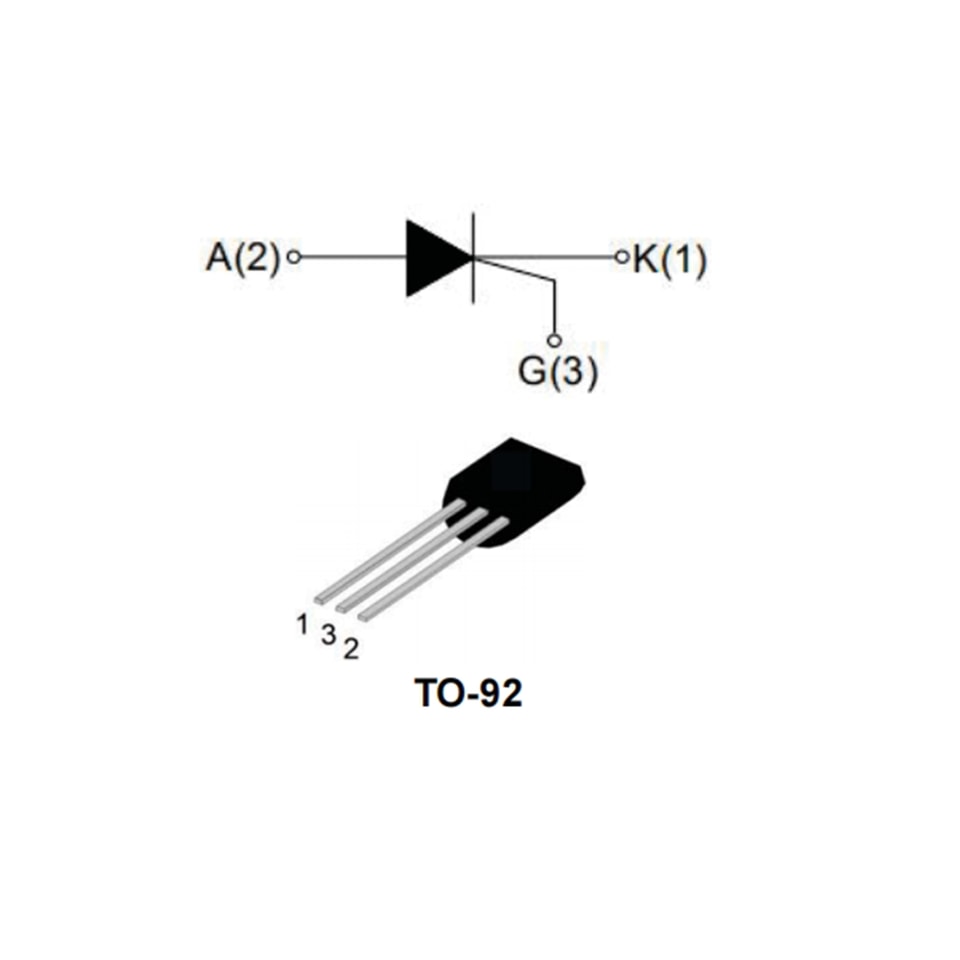

PACKAGE MECHANICAL DATA
.jpg)
.jpg)
