Thyristor modules

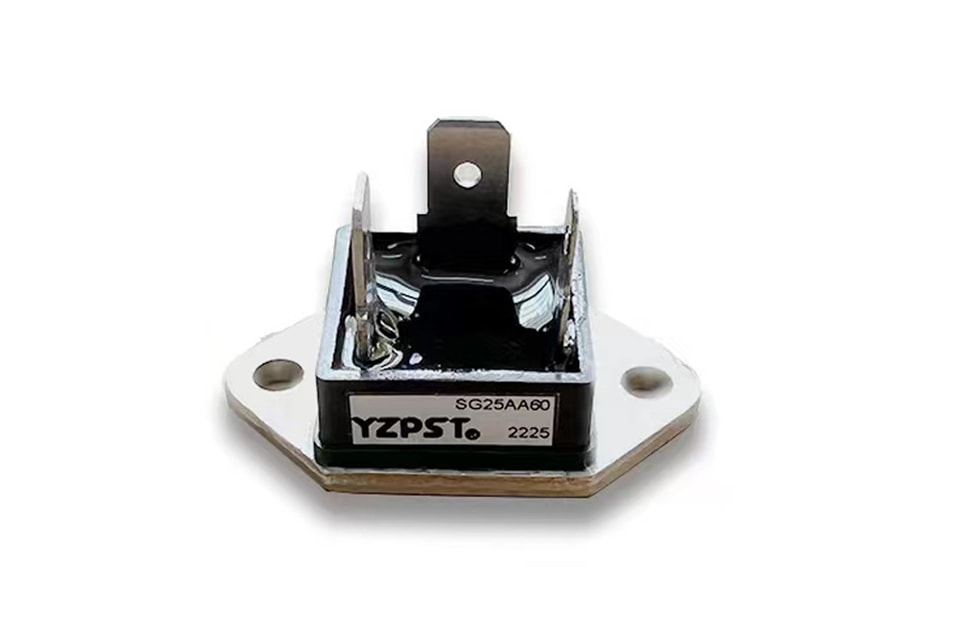

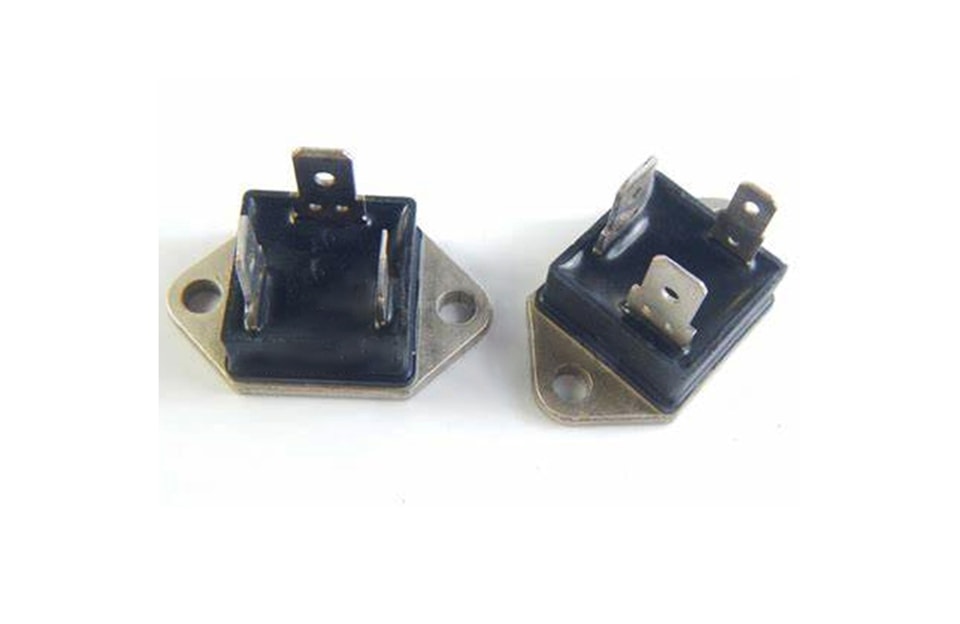

YZPST- SG25AA60

Features
Heat transfer through aluminium nitride ceramic isolated metal baseplate
Precious metal pressure contacts for high reliability
Thyristor with amplifying gate

Typical Applications

· DC motor control

· Temperature control

· Professional light dimming

Maximum Ratings

Symbol	Condition	Ratings	Unit
IT(AV)	Single phase ，half wave ，sin 180° conduction ;TC=70°C	25	A
ITRMS	Single phase ，half wave ，sin 180° conduction	39	A
ITSM	Tj= Tj MAX	0.45	kA
I2t	Tj= Tj MAX	1.04	kA2S
VDRM/VRRM	Tj= Tj MAX	600	V
di/dt	non-repetitive	100	A/us
Viso	A.C. 1minute/1S	2000	V
Tj		-40 ~ + 125	°C
Tstg		-40 ~ + 125	°C
W	About	23	g

Electrical Characteristics

Symbol	Condition	Ratings	Unit
IDRM /IRRM	AtVDRM ，Single phase ，half wave ，Tj= Tj MAX	5	mA
VTM	On-State Current 78A ，Tj=25°C	1.40	V
VT(TO)	Tj= Tj MAX	-	V
T	Tj= Tj MAX	-	mΩ
RK1G1		-	Ω
RK2G2		-	Ω
tgd	Tj=25°C;VD=0.4VDRM ; ITM=ITAV	-	us
tq	dvD/dt=50V/us; Tj= Tj MAX; ITM=ITAV	-	us
IGT/VGT	Tj=25°C ，IT=1A ，VD=6V	40 / 3.0	mA/V
VGD	VD=67%VDRM	0.2	V
DV/DT	VD=67%VDRM	100	V/us
IH	Tj=25°C	30	mA
IL	Tj=25°C	-	mA
Rth(j-c)	Thermal resistance Junction to case; per module	1.6	°C /W
Rth(c-h)	Thermal resistance case to heatsink; per module	-	K/W
