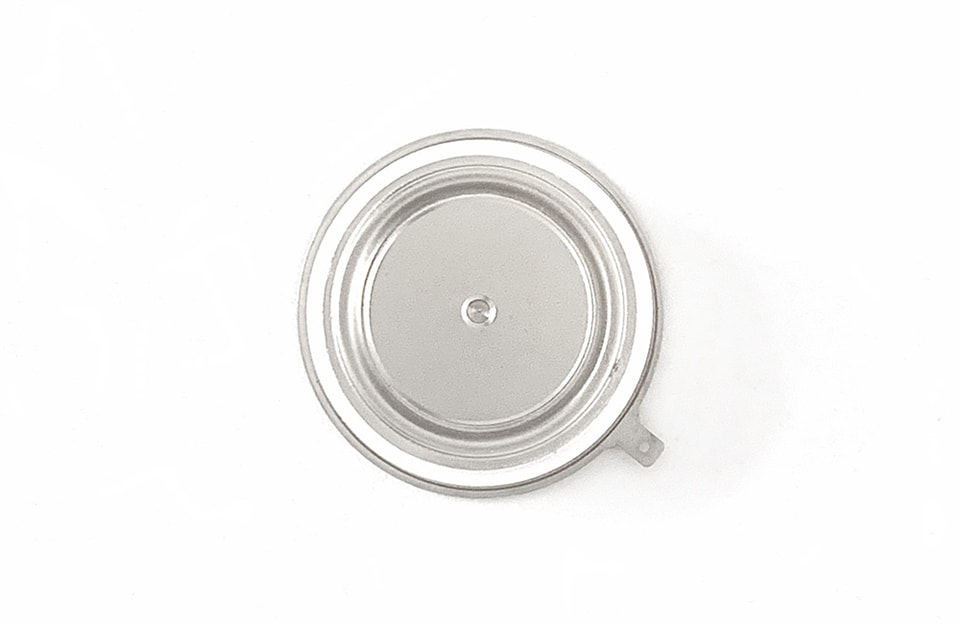

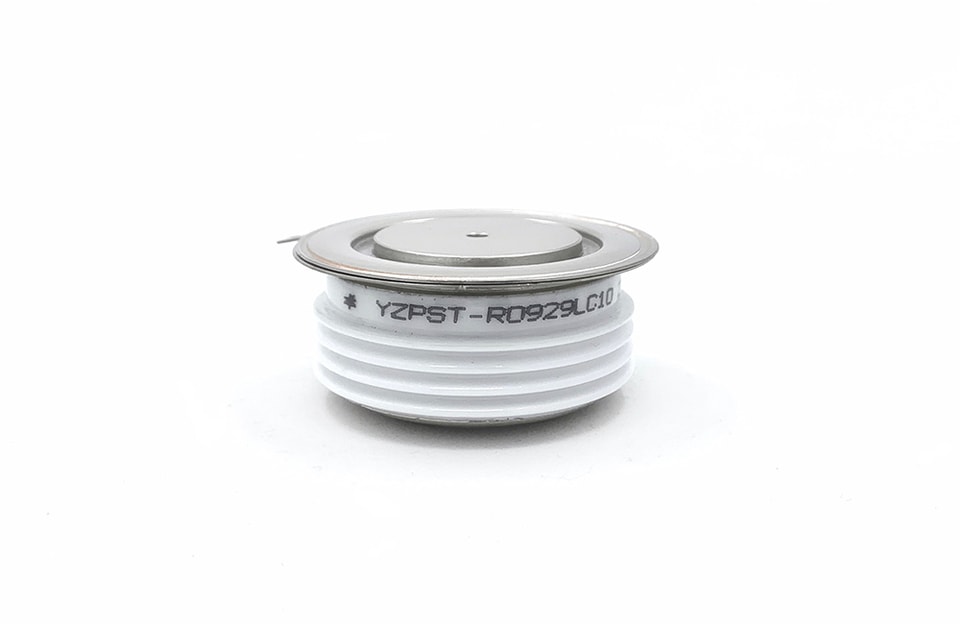

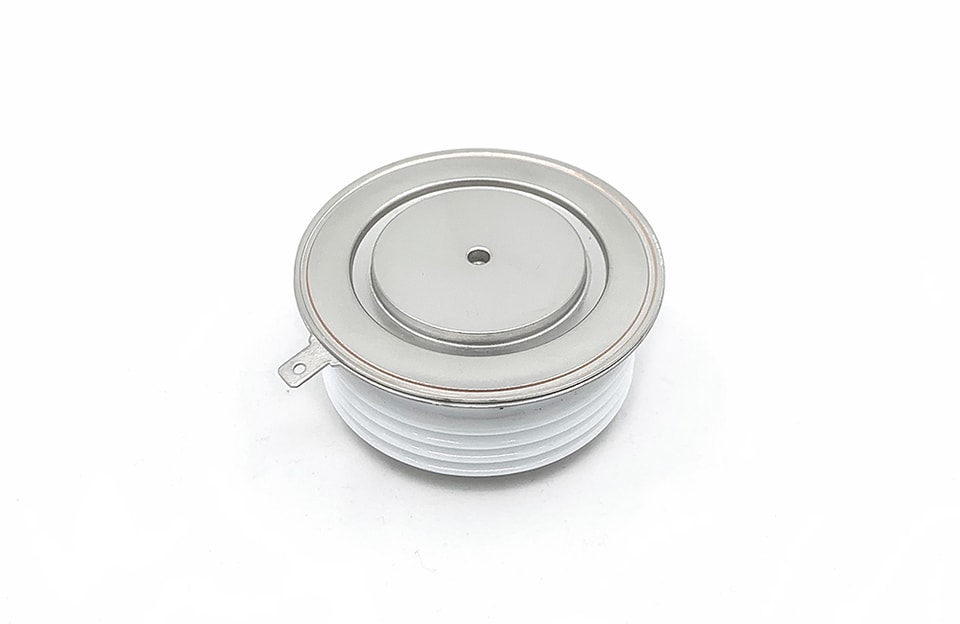

YZPST-R0929LC10 (TQ_10US)

✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry

EmailTechnical sales

PhoneContact team

REQUEST A TECHNICAL QUOTE ↗

Tip: include the part number, target voltage/current and application environment.

DOCUMENT CENTER

Downloads & technical files

YZPST-R0929LC10 TQ 10US.pdfDOWNLOAD ↘YANGZHOU POSITIONING TECH CO Power thyristor and diode parts 20200518.pdfDOWNLOAD ↘

http://www.youtube.com/channel/UCZ3mV8GmGNcX4WcYEoWX-_g/featured

Features:

All Diffused Structure
Interdigitated Amplifying Gate Configuration
Guaranteed Maximum Turn-Off Time
High dV/dt Capability
Pressure Assembled Device

ELECTRICAL CHARACTERISTICS AND RATINGS

Blocking - Off State

VRRM (1)	VDRM (1)	VRSM (1)
1000	1100	1200

VRRM = Repetitive peak reverse voltage
VDRM = Repetitive peak off state voltage
VRSM = Non repetitive peak reverse voltage

Repetitive peak reverse leakage and off state leakage

IRRM / IDRM

15 mA

70 mA (3)

Critical rate of voltage rise

dV/dt (4)

200 V/msec

Notes:
All ratings are specified for Tj=25 oC unless otherwise stated.
(1) All voltage ratings are specified for an applied 50Hz/60zHz sinusoidal waveform over the temperature range -40 to +125 oC.
(2) 10 msec. max. pulse width
(3) Maximum value for Tj = 125 oC.
(4) Minimum value for linear and exponential waveshape to 80% rated VDRM. Gate open. Tj = 125 oC.
(5) Non-repetitive value.
(6) The value of di/dt is established in accordance with EIA/NIMA Standard RS-397, Section 5-2-2-6. The value defined would be in addition to that obtained from a ubber circuit,comprising a 0.2 F capacitor and 20 ohmsresistance in parallel with the thristor under test.

For more information about High Frequency Thyristor please download the PDF file above named " YANGZHOU POSITIONING TECH CO Power thyristor and diode parts "

http://www.youtube.com/channel/UCZ3mV8GmGNcX4WcYEoWX-_g/featured

Conducting - on state

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Max. average value of on-state current	IT(AV)M		929		A	Sinewave,180o conduction,Tc=55oC
RMS value of on-state current	IT(RMS)m		1893		A	Nominal value
Peak one cPSTCle surge (non repetitive) current	ITSM		- 9.0		kA kA	8.3 msec (60Hz), sinusoidal wave- shape, 180o conduction, Tj = 125 oC 10.0 msec (50Hz), sinusoidal wave- shape, 180o conduction, Tj = 125 oC
I square t	I2t		405x103		A2s	8.3 msec
Latching current	IL		-		mA	VD = 24 V; RL= 12 ohms
Holding current	IH		1000		mA	VD = 24 V; I = 2.5 A
Peak on-state voltage	VTM		2.04		V	ITM = 1400 A
Critical rate of rise of on-state current (5, 6)	di/dt		1500		A/ms	Switching from VDRM £ 1000 V, non-repetitive
Critical rate of rise of on-state current (6)	di/dt		1000		A/ms	Switching from VDRM £ 1000 V

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Peak gate power dissipation	PGM		30		W
Average gate power dissipation	PG(AV)		2		W
Peak gate current	IGM		-		A
Gate current required to trigger all units	IGT		300		mA	VD = 10 V;IT=3A;Tj = +25 oC
Gate voltage required to trigger all units	VGT		3.0		V	VD = 10 V;IT=3A;Tj = +25 oC
Peak negative voltage	VRGM		5		V

Dynamic

Parameter	Symbol	Min.	Max.	Typ.	Units
Delay time	tgd		1.0	-	ms	VD=67% VDRM, IT=2000A, di/dt=60A/us, IFG=2A, tr=0.5us, Tj=25C
Turn-on time	tgt		2.0	-
Turn-off time (with VR = -5 V)	tq	-	10	-	ms	ITM=1000A, tp=1000us, di/dt=60A/us, Vr=50V, Vdr=33%VDRM, dVdr/dt=200V/us
Reverse recovery current	Irm		-		A	ITM=4000A, tp=2000us, di/dt=60A/us

THERMAL AND MECHANICAL CHARACTERISTICS AND RATINGS

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Operating temperature	Tj	-40	+125		oC
Storage temperature	Tstg	-40	+150		oC
Thermal resistance - junction to case	RQ (j-c)		- -		K/kW	Double sided cooled Single sided cooled
Thermal resistamce - case to sink	RQ (c-s)		- -		K/kW	Double sided cooled * Single sided cooled *
Thermal resistance - junction to case	RQ (j-s)		32 64		K/kW	Double sided cooled Single sided cooled
Mounting force	F	10	20	-	kN
Weight	W			-	Kg	about

* Mounting surfaces smooth, flat and greased

Note : for case outline and dimensions, see case outline drawing in page 3 of this Technical Data.

Sym	A	B	C	D	H
mm	59	34	53	3.5×3	26±1
