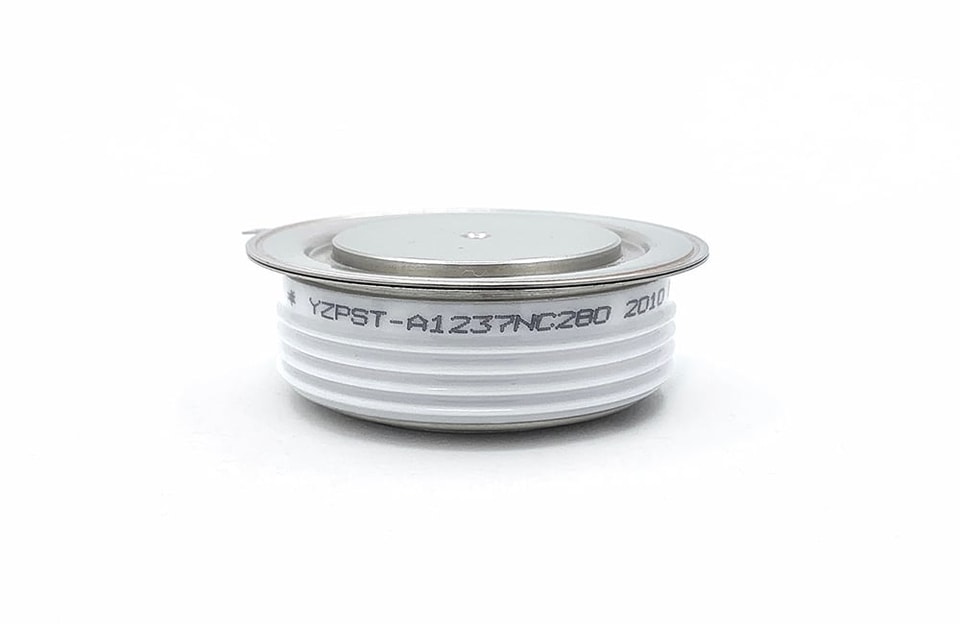

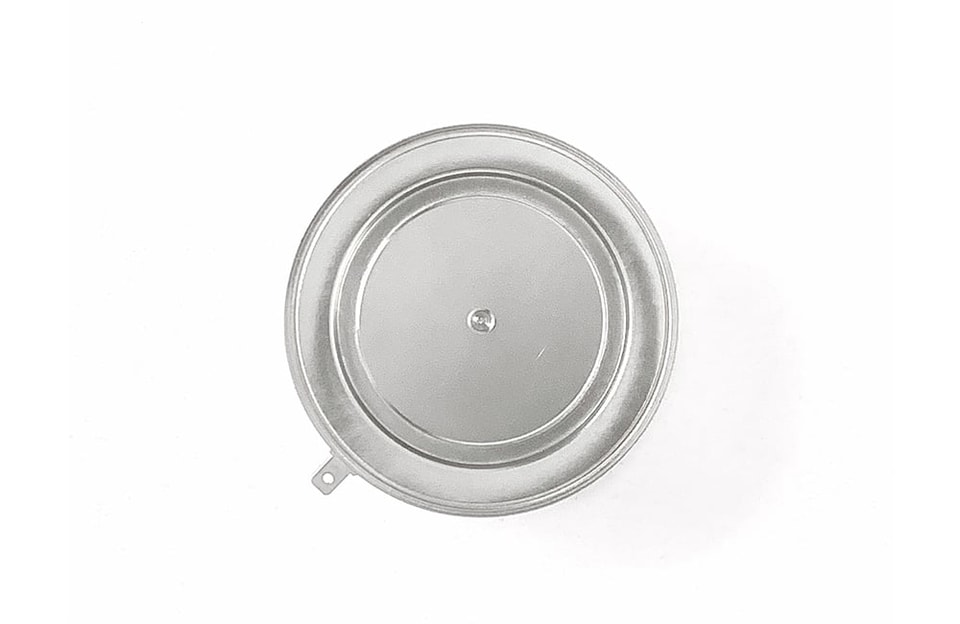

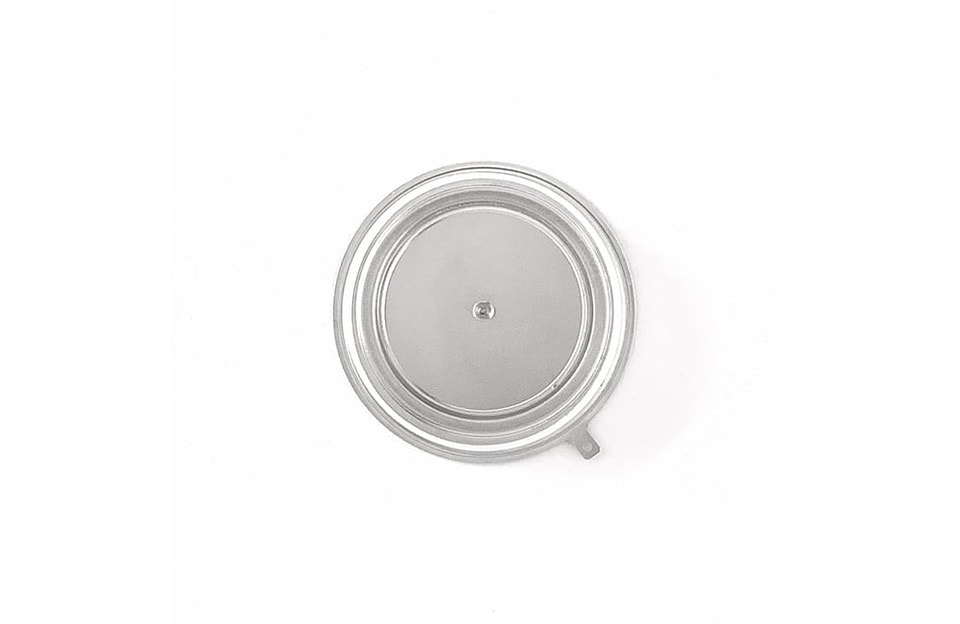

YZPST-A1237NC280

✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry

EmailTechnical sales

PhoneContact team

REQUEST A TECHNICAL QUOTE ↗

Tip: include the part number, target voltage/current and application environment.

DOCUMENT CENTER

Downloads & technical files

YZPST-A1237NC280.pdfDOWNLOAD ↘YANGZHOU POSITIONING TECH CO Power thyristor and diode parts 20200518.pdfDOWNLOAD ↘

http://www.youtube.com/channel/UCZ3mV8GmGNcX4WcYEoWX-_g/featured

Blocking - Off State

VDRM (1)	VDSM (1)	VRRM (1)	VRSM(1)
2800	2800	30	30

VRRM = Repetitive peak reverse voltage
VDRM = Repetitive peak off state voltage
VRSM = Non repetitive peak reverse voltage

Repetitive peak reverse leakage and off state leakage

IRRM / IDRM

10 mA

60 mA (3)

Critical rate of voltage rise

dV/dt (4)

3000 V/msec

Notes:
All ratings are specified for Tj=25 oC unless
otherwise stated.
(1) All voltage ratings are specified for an applied 50Hz/60zHz sinusoidal waveform over the temperature range -40 to +125 oC.
(2) 10 msec. max. pulse width
(3) Maximum value for Tj = 125 oC.
(4) Minimum value for linear and exponential waveshape to 80% rated VDRM. Gate open. Tj = 125 oC.
(5) Non-repetitive value.
(6) The value of di/dt is established in accordance with EIA/NIMA Standard RS-397, Section 5-2-2-6. The value defined would be in addi-tion to that obtained from a snubber circuit,comprising a 0.2 F capacitor and 20 ohms resistance in parallel with the thristor under test.

For more information about Asymmetric Thyristor please download the PDF file above named " YANGZHOU POSITIONING TECH CO Power thyristor and diode parts "

http://www.youtube.com/channel/UCZ3mV8GmGNcX4WcYEoWX-_g/featured

Gating

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Peak gate power dissipation	PGM		30		W
Average gate power dissipation	PG(AV)		10		W
Peak gate current	IGM		-		A
Gate current required to trigger all units	IGT		- 400 -		mA mA mA	VD = 10 V;RL = 3 ohms;Tj = -40 oC VD = 10 V;RL = 3 ohms;Tj = +25 oC VD = 10 V;RL = 3 ohms;Tj = +125oC
Gate voltage required to trigger all units	VGT		- 3.0 -		V V V	VD = 10 V;RL = 3 ohms;Tj = -40 oC VD = 10 V;RL = 3 ohms;Tj = 0-125oC VD = Rated VDRM; RL = 1000 ohms; Tj = + 125 oC
Peak negative voltage	VRGM		10		V

Dynamic

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Delay time	td		-	1	ms	ITM = 50 A; VD = Rated VDRM Gate pulse: VG = 20 V; RG = 20 ohms; tr = 0.1 ms; tp = 20 ms
Turn-off time (with VR = -50 V)	tq		-	20	ms	ITM = 1000 A; di/dt = 25 A/ms; VR ³ -50 V; Re-applied dV/dt = 20 V/ms linear to 80% VDRM; VG = 0; Tj = 125 oC; Duty cycle ³ 0.01%
Reverse recovery charge	Qrr		-	-	mC	ITM = 1000 A; di/dt = 25 A/ms; VR ³ -50 V

* For guaranteed max. value, contact factory.

THERMAL AND MECHANICAL CHARACTERISTICS AND RATINGS

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Operating temperature	Tj	-40	+125		oC
Storage temperature	Tstg	-40	+150		oC
Thermal resistance - junction to case	RQ (j-c)		- -		K/KW	Double sided cooled Single sided cooled
Thermal resistamce - case to heatsink	RQ (c-s)		- -		K/KW	Double sided cooled * Single sided cooled *
Thermal resistamce - junction to heatsink	RQ (j-s)		24 48		K/KW	Double sided cooled * Single sided cooled *
Mounting force	P	19	26		kN
Weight	W			510	g	About

* Mounting surfaces smooth, flat and greased

CASE OUTLINE AND DIMENSIONS

Sym	A	B	C	D	H
mm	75	47	66	3.5×3	26±1
