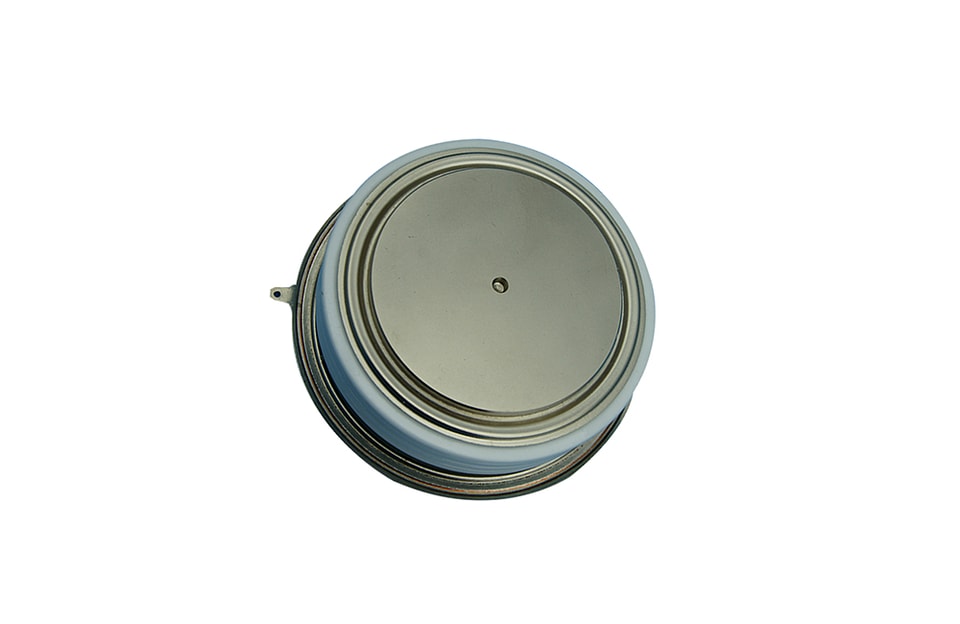

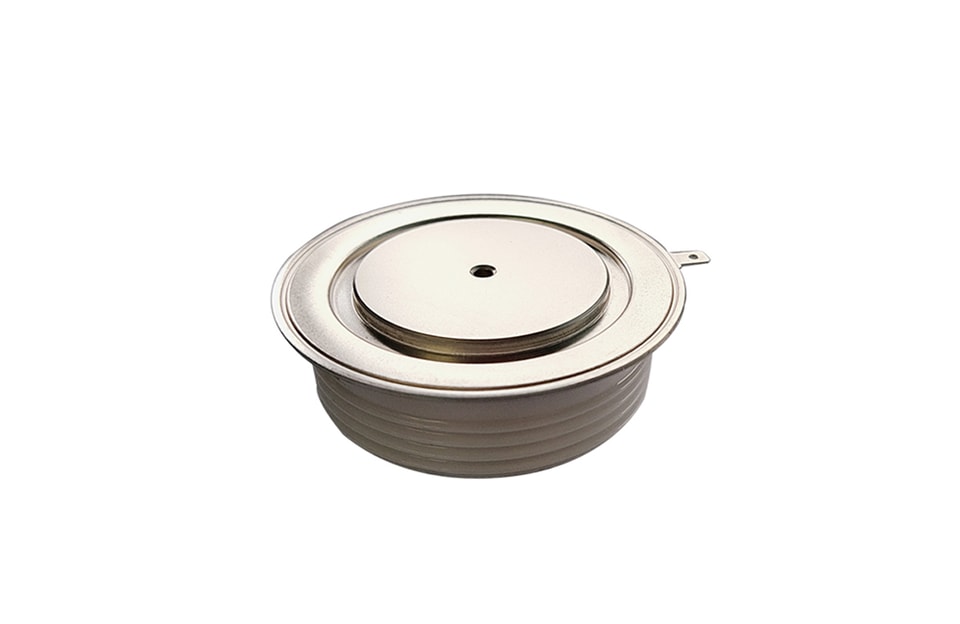

3300V Bi-Directional Control Thyristor SKP24F33Q

Parameter

Symbol

Unit

SKP24F33Q

SKP24F30Q

SKP24F28Q

SKP24F26Q

Conditions

Non-repetitive peak off-state

and reverse voltage

VDSM、VRSM

V

3400

3100

2900

2700

f = 5 Hz, tp = 10ms

repetitive peak off-state and

reverse voltage

VDRM、VRRM

V

3300

3000

2800

2600

f = 50 Hz, tp = 10ms

Non-repetitive peak off-state

and reverse current

IDSM、IRSM

mA

400

VDSM、VRSM ,Tj = 125°C

repetitive peak off-state and

reverse current

IDRM、IRRM

mA

400

VDRM、VRRM, Tj  = 125°C

Critical rate of rise of

off-state voltage

dv/dtcrit

V/µs

1000

Exp.to 0.67VDRM, Tj =

125°C

Parameter

Symbol

Unit

Max

Conditions

Average on-state current

ITAVM

A

2437

Half sine wave, TC = 70°C

RMS on-state current

ITRMS

A

3818

Peak non-repetitive current

ITSM

KA

43

tp=10ms, Tj =125°C, Half sine wave, VD = VR = 0V after surge

Limiting load integral

I²t

kA²s

9622

Peak on-state voltage

VT

V

1.45

IT=3000A ,Tj =125°C

Threshold voltage

VT0

V

0.85

IT=1500-4500A, ,Tj =125°C

Slope resistance

ｒT

mΩ

0.2

Holding current

IH

mA

150

Tj=25°C

mA

130

Tj=125°C

Latching current

IL

mA

1000

Tj=25°C

mA

900

Tj=125°C

Parameter

Symbol

Unit

Max

Conditions

Critical rate of rise of

on-state current

di/dtcrit

A/µs

200

VD ≤ 0.67 VDRM , Tj =125°C, f=50Hz

ITRM≤2400A, IFG=2.0 A ,tr = 0.5 µs ,

Circuit-commutated turn-off

time

tq

µs

700

VD   ≤ 0.67 VDRM

dvD/dt = -30 V/µs

ITRM =2000A, Tj = 125°C VR = 200 V,

diT/dt = -10 A/µs

Reverse

recovery charge

Min

Qrr

µAs

6000

Max

µAs

8000
