YZPST-MTC92-18E
Product summary and primary technical information will be loaded from the product database.
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files

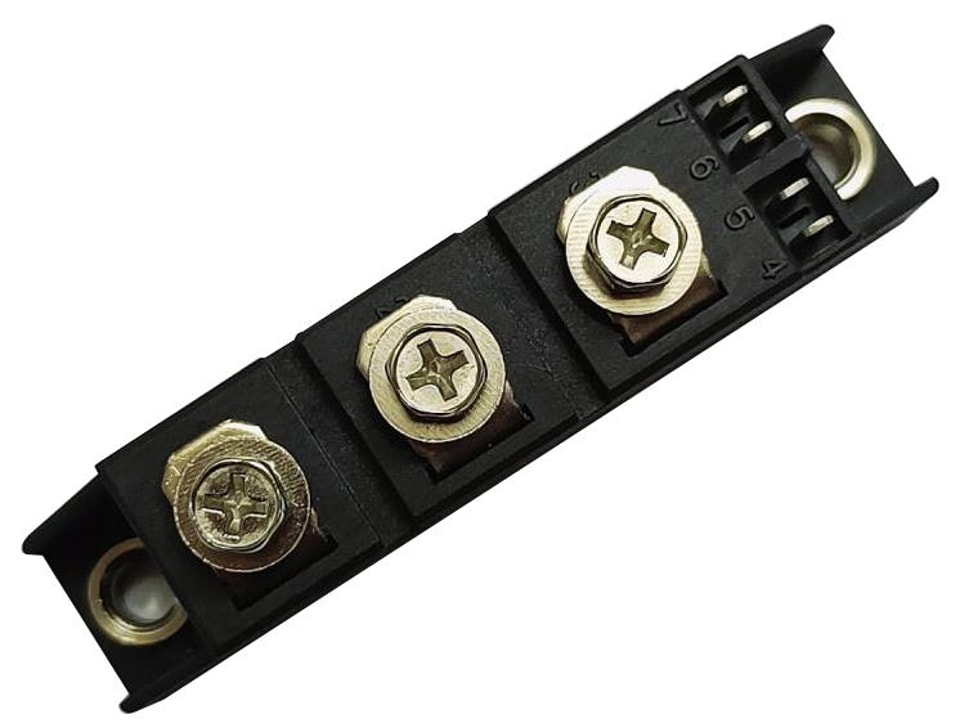

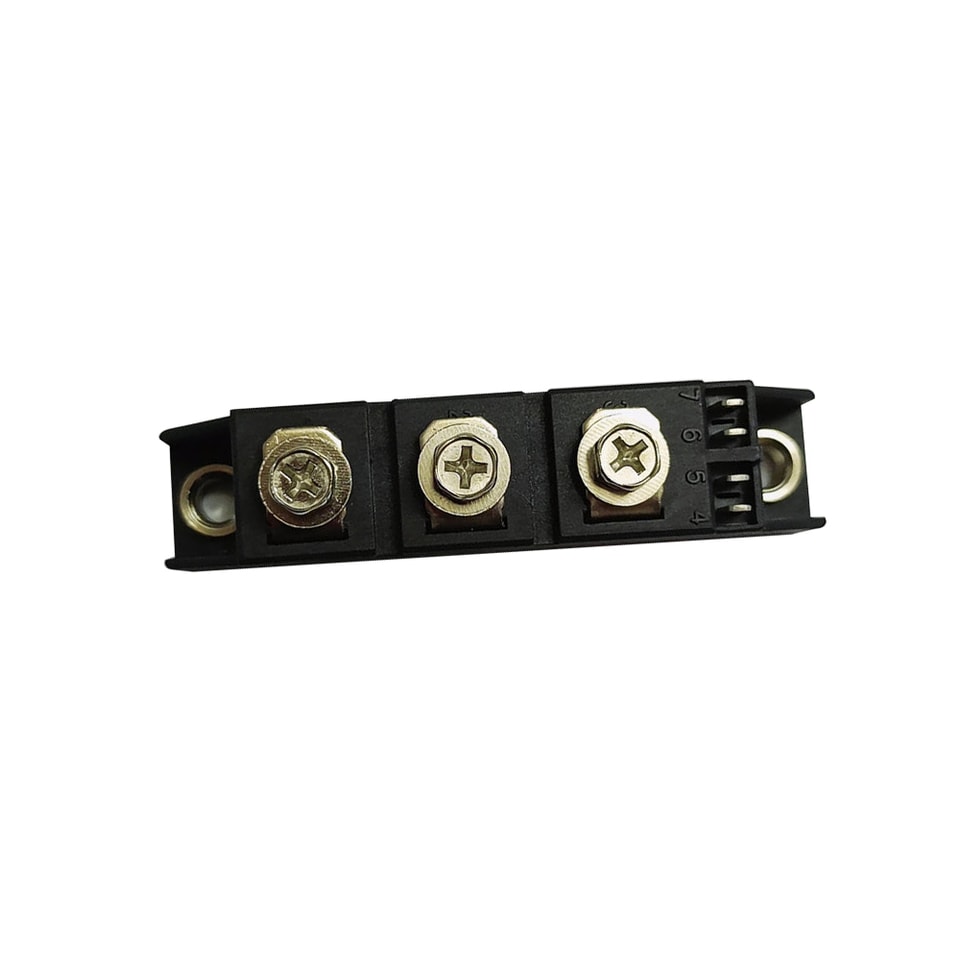

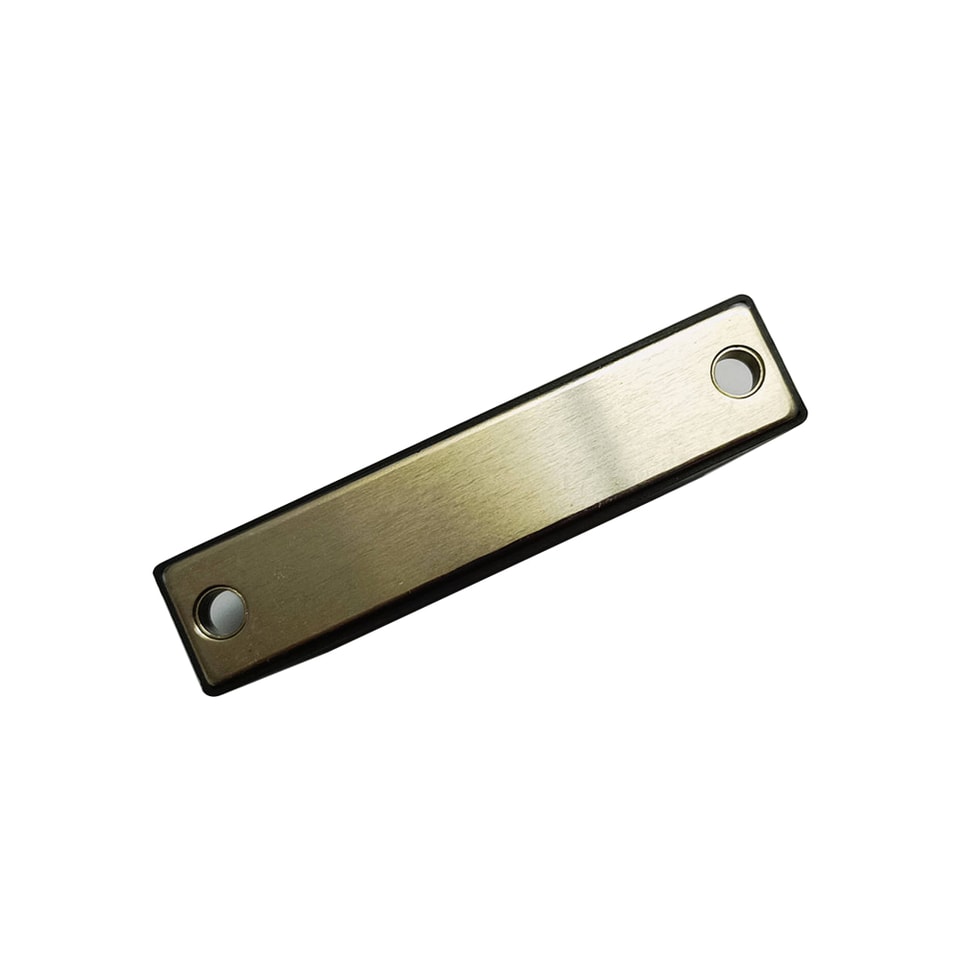

Dual Thyristor Modules
TYPE: YZPST-MTC92-18E
Features
·Industrial standard package
·Electrically insulated base plate
·Heat transfer through aluminium oxide ceramic insulated metal base plate
·Chip soldered on direct copper bonded AL2O3 ceramic
·Thyristor chip with center gate
Typical Applications
·DC motor control
·AC motor soft starters
·Temperature control
·Professional light dimming

| VDRM/VRRM | 1800/1800 | V | |
| VRSM | 1900 | V |
Maximum Ratings
| Symbol | Condition | Ratings | Unit |
| IT(AV) | sin. 180; Tc =85°C, | 95 | A |
| ITSM | Tvj =25°C; 10 ms | 2000 | A |
| I2t | Tvj =25°C; 8,3…10 ms | 20 | kA2S |
| (di/dt)cr | 140 | A/us | |
| Viso | A.C. 1s / 1min. | 3600/3000 | V |
| Tj | -40 ~ + 125 | °C | |
| Tstg | -40 ~ + 125 | °C | |
| W | - | g |
Electrical Characteristics
| Symbol | Condition | Ratings | Unit |
| IDRM /IRRM | AtVDRM, Tj=125°C | 15 | mA |
| VT | On-State Current 300A, Tj=25°C | 1.63 | V |
| VT(TO) | Tj=125°C | 0.9 | V |
| tgd | Tj=25°C | 1 | us |
| tq | Tj=125°C | 100 | us |
| IGT/VGT | Tj=25°C | 150 / 3 | mA/V |
| VGD | Tj=125°C | 0.25 | V |
| (dv/dt)cr | Tj=125°C | 1000 | V/us |
| IH | Tj=25°C, typ. / max. | 140/240 | mA |
| IL | Tj=25°C, typ. / max. | 260/550 | mA |
| Rth(j-c) | Per Module | 0.14 | K/W |

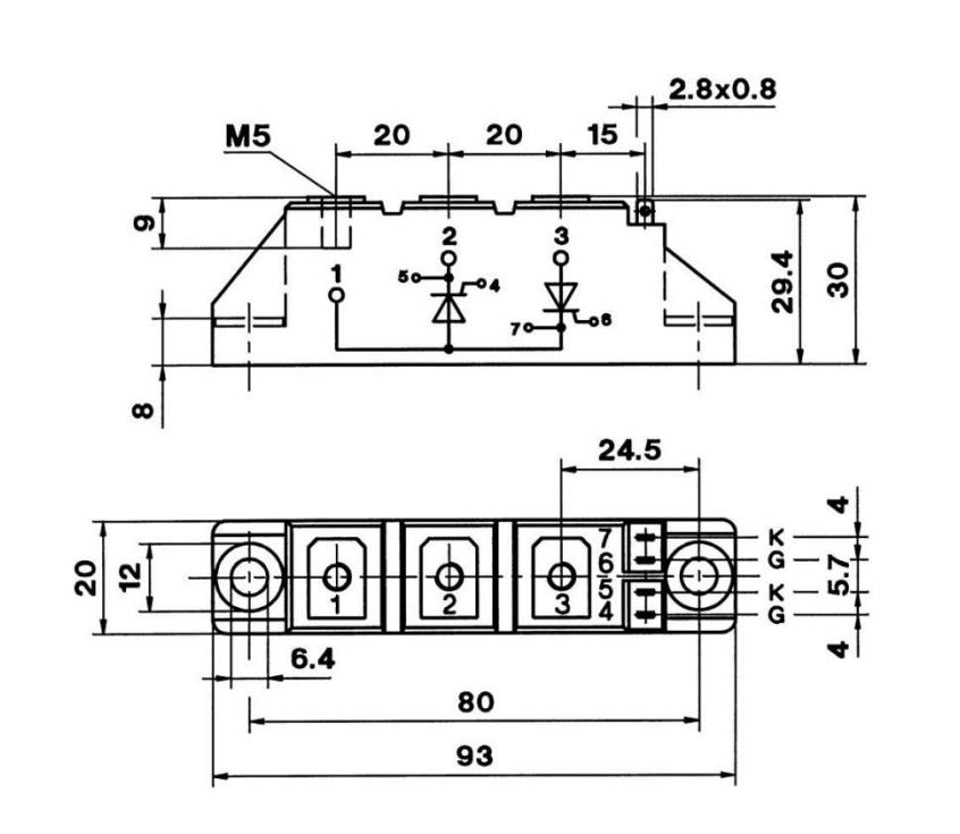

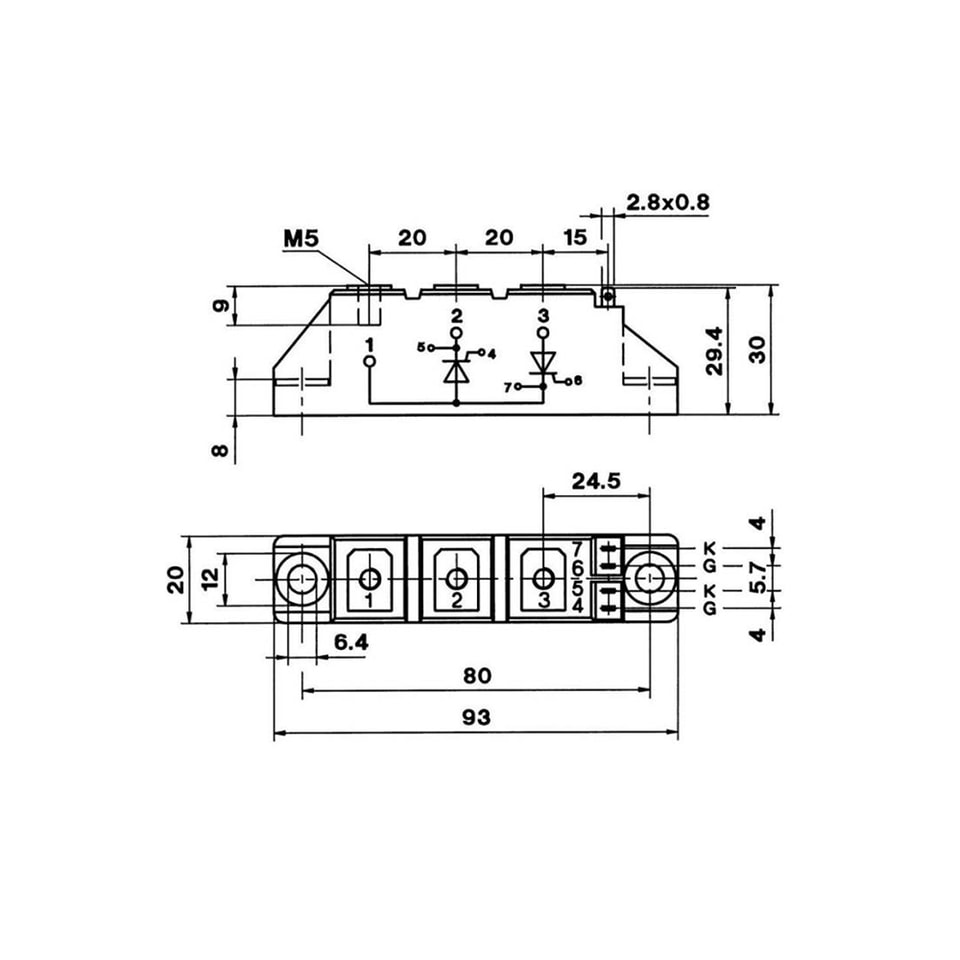

Outline Drawing

From a part number to a complete power requirement.
Send us the part number, electrical target and application context.
