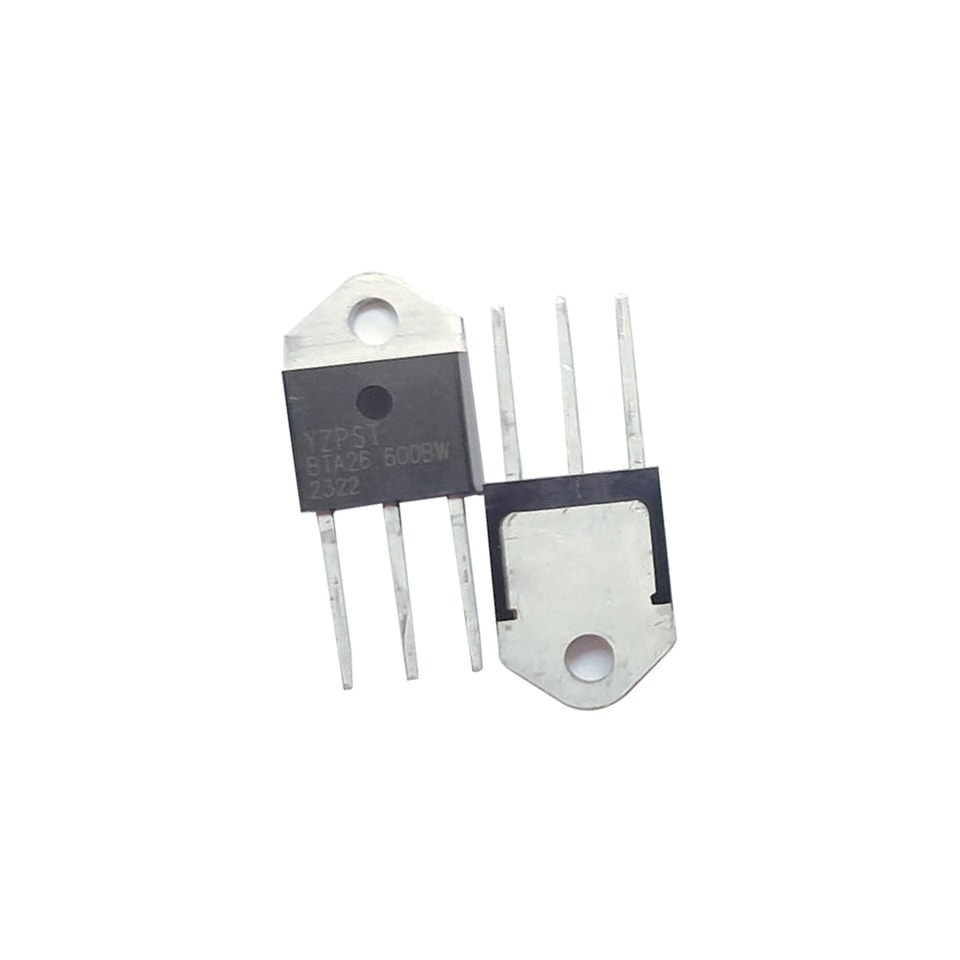

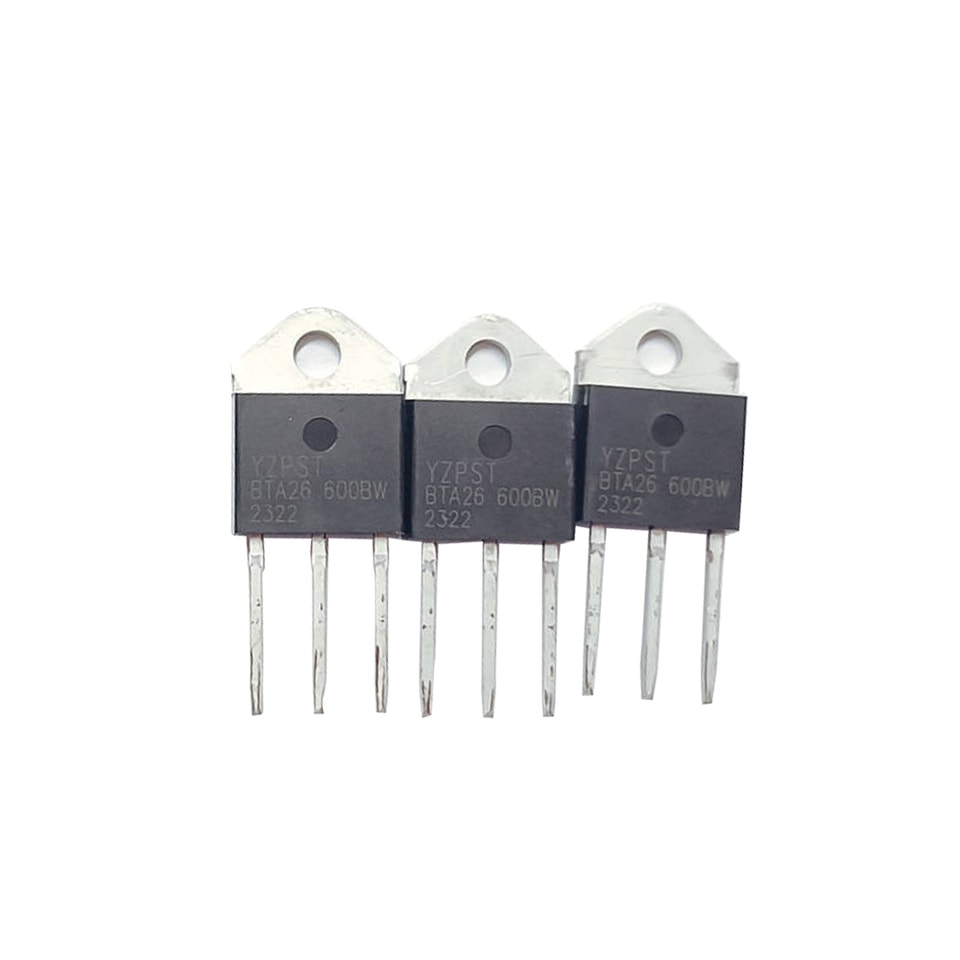

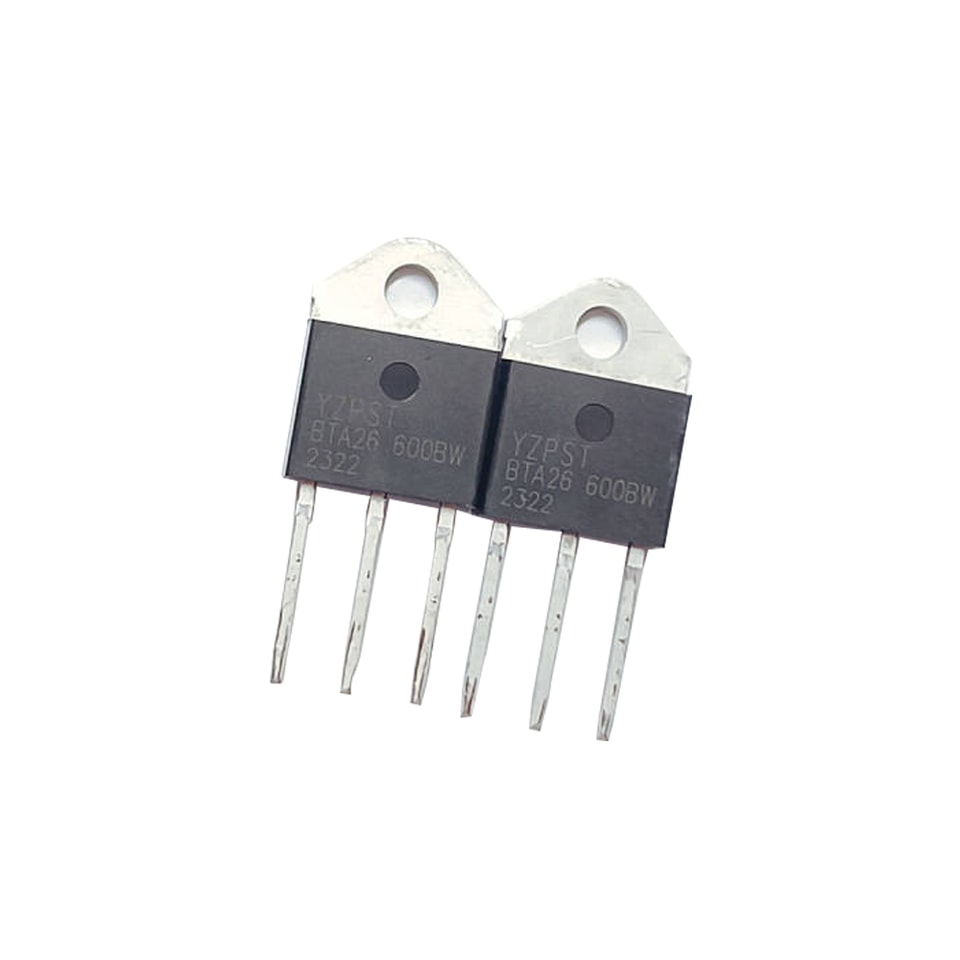

BTA26/BTB26Series 26A Triacs
High dv/dt rate BTA26-600BW TO-3PA 600V Triac
DESCRIPTION:
With high ability to withstand the shock loading of Large current, BTA26/BTB26 series triacs provide high dv/dt rate with strong resistance to electromagnetic interface. With high commutation performances, 3 quadrants products especially recommended for use on inductive load. From all three terminals to external heatsink, BTA26 provides a rated insulation voltage of 2500 VRMS complying with UL standards
MAIN FEATURES:
symbol | value | unit |
IT(RMS) | 26 | A |
VDRM/VRRM | 600/800/1200/1600 | V |
VTM | ≤1.5 | V |
ABSOLUTE MAXIMUM RATINGS:
Parameter | Symbol | Value | Unit |
Storage junction temperature range | Tstg | -40~150 | ℃ |
Operating junction temperature range | Tj | -40~125 | ℃ |
Repetitive peak off-state voltage (Tj=25℃) | VDRM | 600/800/1200/1600 | V |
Repetitive peak reverse voltage (Tj=25℃) | VRRM | 600/800/1200/1600 | V |
RMS on-state current | IT(RMS) | 26 | A |
Non repetitive surge peak on-state current (full cycle, F=50Hz) |
ITSM |
260 |
A |
I2t value for fusing (tp=10ms) | I2t | 350 | A2s |
Critical rate of rise of on-state current(IG=2 × IGT) | dI/dt | 50 | A/ μs |
Peak gate current | IGM | 4 | A |
Average gate power dissipation | PG(AV) | 1 | W |
Peak gate power | PGM | 10 | W |
ELECTRICAL CHARACTERISTICS (Tj=25℃ unless otherwise specified)
3 Quadrants：
| Parameter | Value | |||||
| Test Condition | Quadrant | CW | BW | Unit | ||
| IGT | VD=12V, | 35 | 50 | mA | ||
| VGT | RL=33Ω | Ⅰ- Ⅱ-Ⅲ | MAX | 1.3 | V | |
| VGD | VD=VDRM | Ⅰ- Ⅱ-Ⅲ | MIN | 0.2 | V | |
| IH | IT=100mA | MAX | 60 | 80 | mA | |
| Ⅰ-Ⅲ | 70 | 90 | ||||
| IL | IG=1.2IGT | Ⅱ | MAX | 80 | 100 | mA |
| VD=2/3VDRM Tj=125℃ Gate open | ||||||
| dV/dt | MIN | 1000 | 1500 | V/ µs | ||
4 Quadrants：
| Parameter | Value | |||||
| Test Condition | Quadrant | C | B | Unit | ||
| Ⅰ- Ⅱ-Ⅲ | 25 | 50 | mA | |||
| IGT | VD=12V, | Ⅳ | 50 | 70 | mA | |
| VGT | RL=33Ω | ALL | MAX | 1.5 | V | |
| VGD | VD=VDRM | ALL | MIN | 0.2 | V | |
| IH | IT=100mA | MAX | 60 | 75 | mA | |
| Ⅰ-Ⅲ- Ⅳ | 70 | 80 | ||||
| IL | IG=1.2IGT | Ⅱ | MAX | 90 | 100 | mA |
| VD=2/3VDRM Tj=125℃ Gate open | ||||||
| dV/dt | MIN | 200 | 500 | V/ µs | ||
STATIC CHARACTERISTICS
| Symbol | Test Condition | Value | Unit | ||
| VTM | ITM=35A tp=380μs | Tj=25℃ | MAX | 1.5 | V |
| IDRM | Tj=25℃ | 10 | µA | ||
| IRRM | VDRM= VRRM | Tj= 125℃ | MAX | 3 | mA |

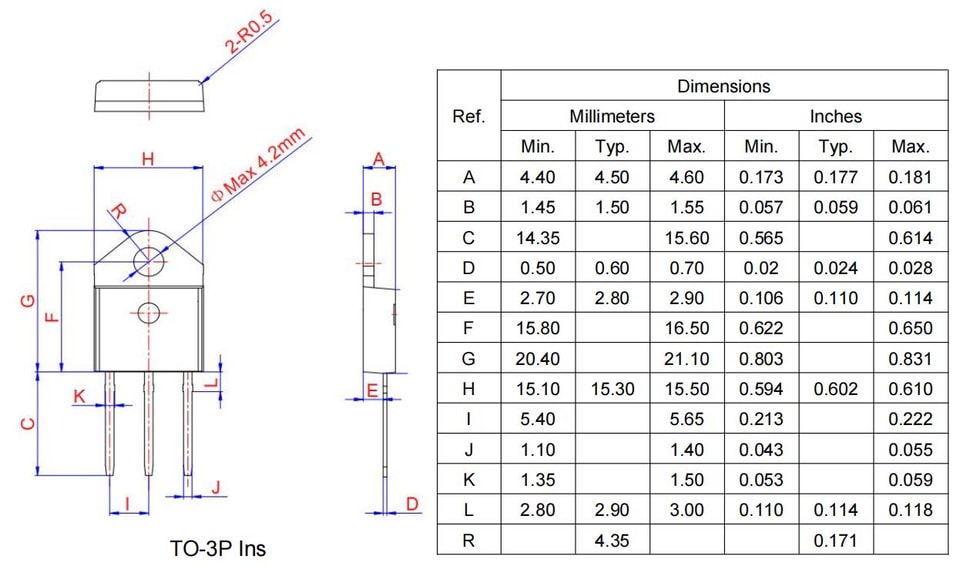

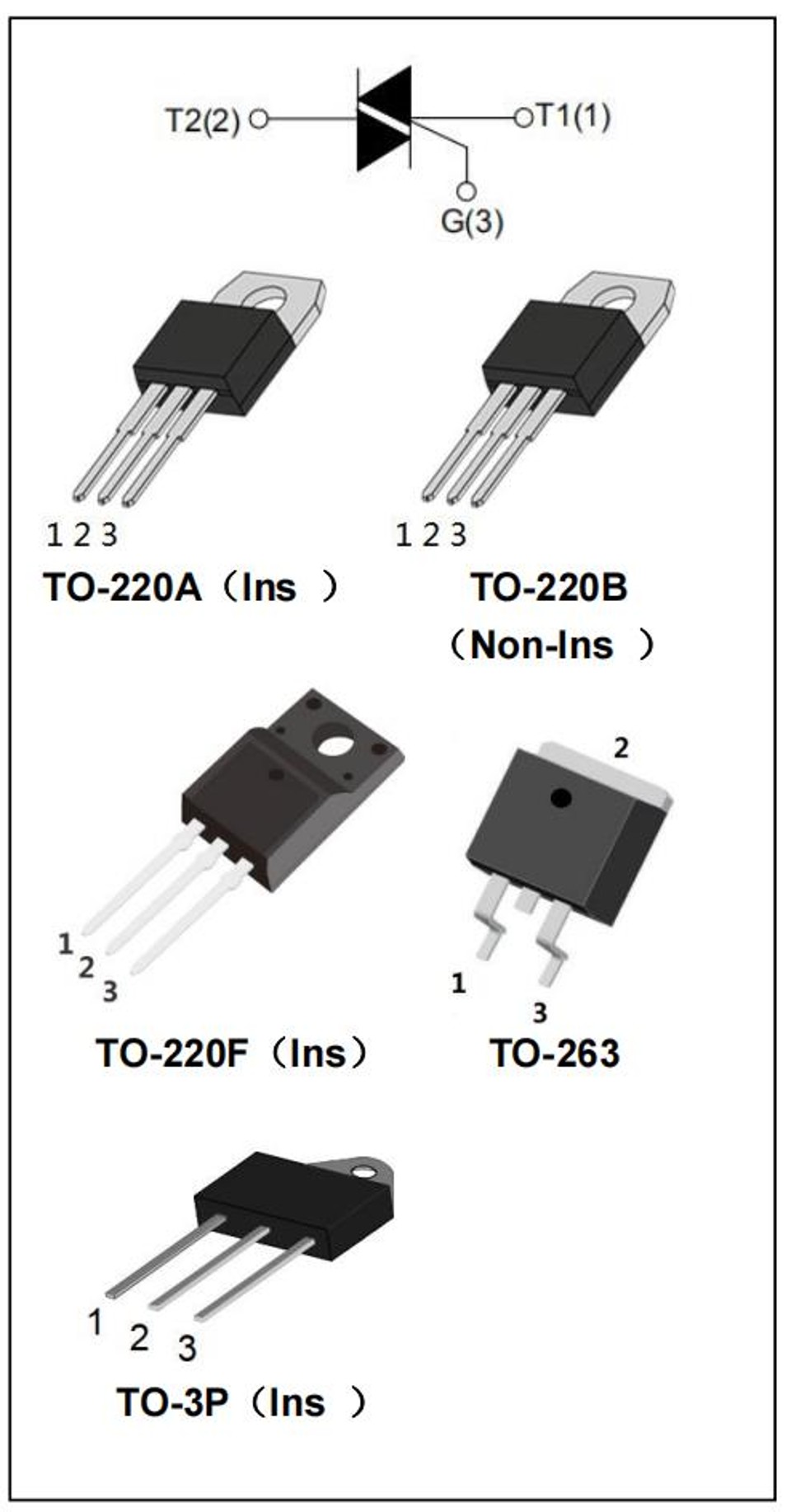

.jpg)
.jpg)
