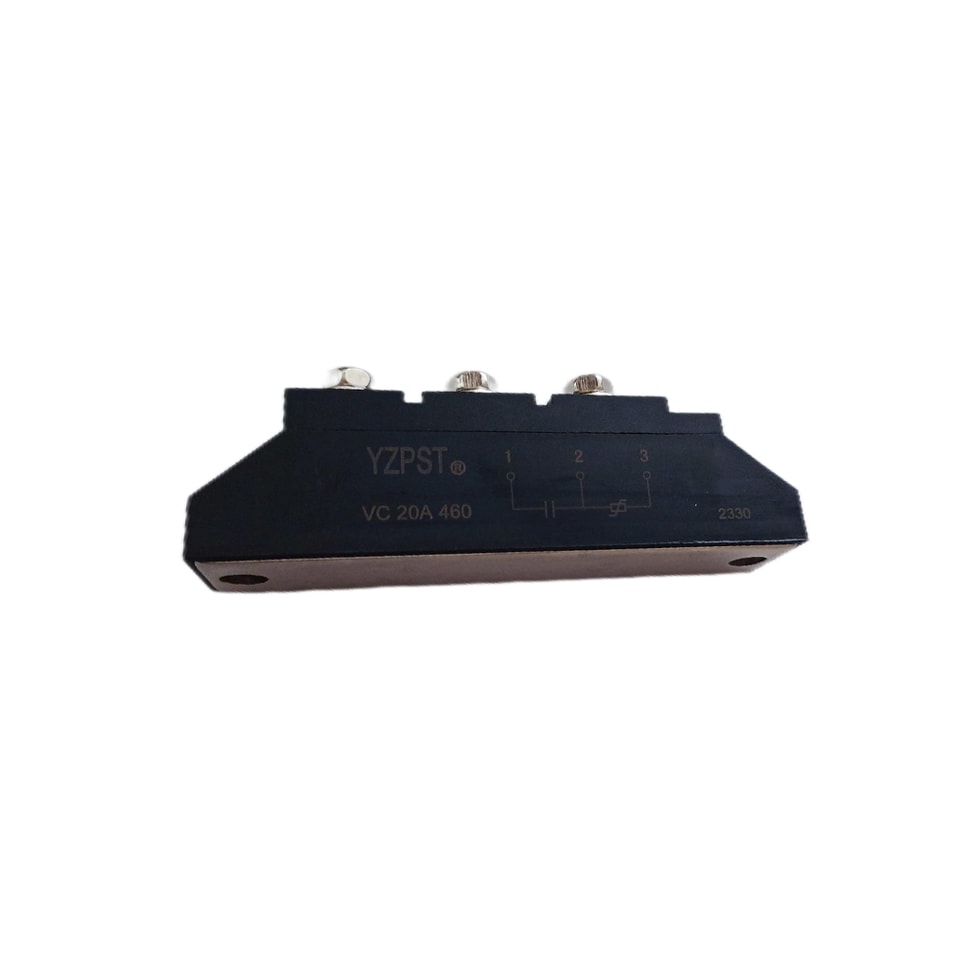

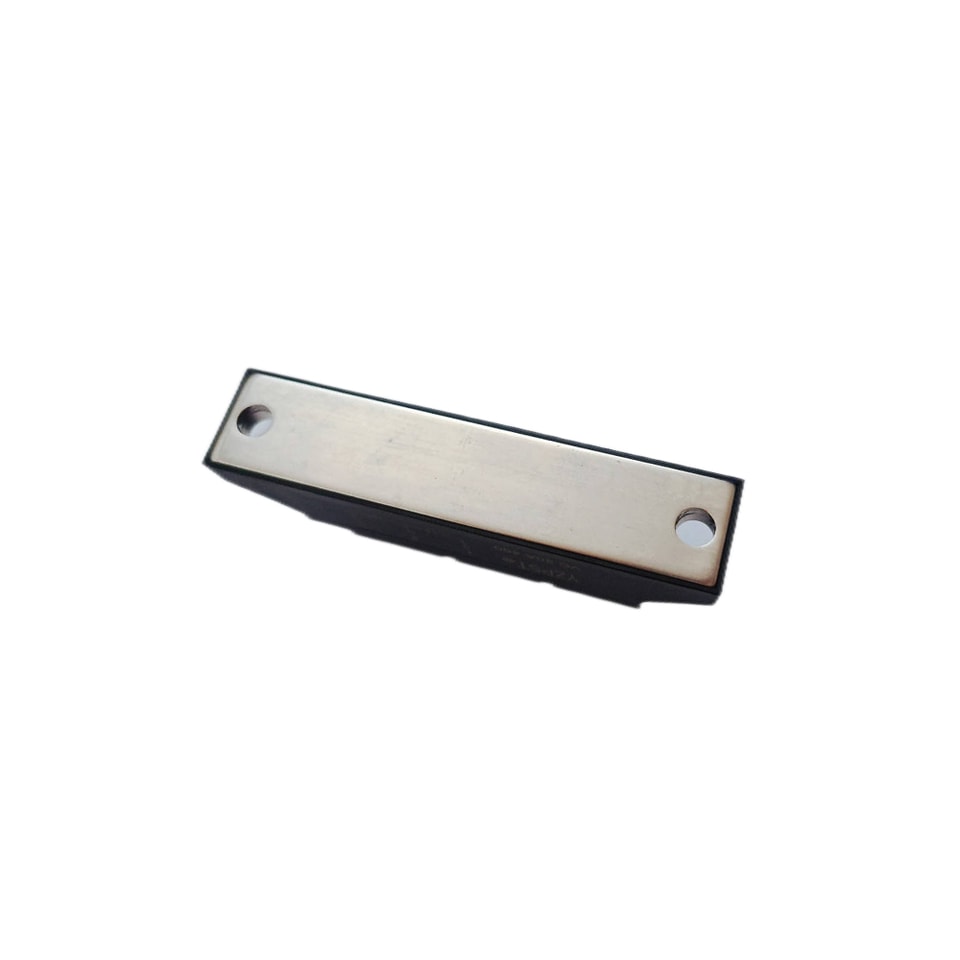

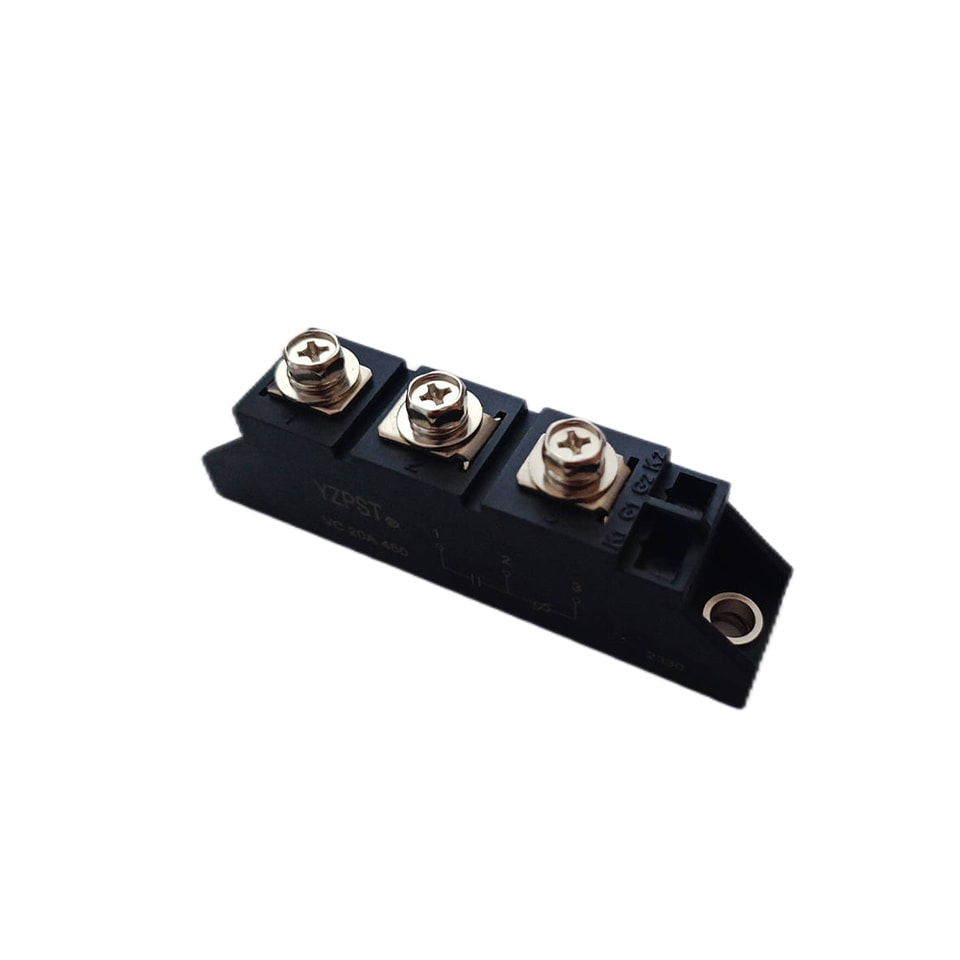

YZPST-VC20A460 460V Varistor Capacitor Modules
Product summary and primary technical information will be loaded from the product database.
✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry
EmailTechnical sales
PhoneContact team
Tip: include the part number, target voltage/current and application environment.
DOCUMENT CENTER
Downloads & technical files
Varistor Capacitor Modules
P/N:YZPST-VC20A460
Ipk = 6.5kA
VAC = 460V

Maximum Ratings
| Symbol | Item | Conditions | Ratings | Unit | ||
| VAC | RMS voltage | 460 | V | |||
| VDC | DC voltage | 615 | V | |||
| WTM | Energy | 10/1000uS | 260 | J | ||
| IPK | Peak current | 8/20uS | 6.5 | kA | ||
| V | Clamping voltage | 8/20uS | IP= 10A | 1150 | ||
| IP= 100A | 1270 | V | ||||
| IP= 1000A | 1550 | |||||
| VC | Clamping voltage | 8/20uS IP= 190A | 750 | V | ||
| TA | Operating Ambient Temperature Range | -55 to +85 | oC | |||
| TSTG | Storage Temperature Range | -55 to +125 | oC | |||

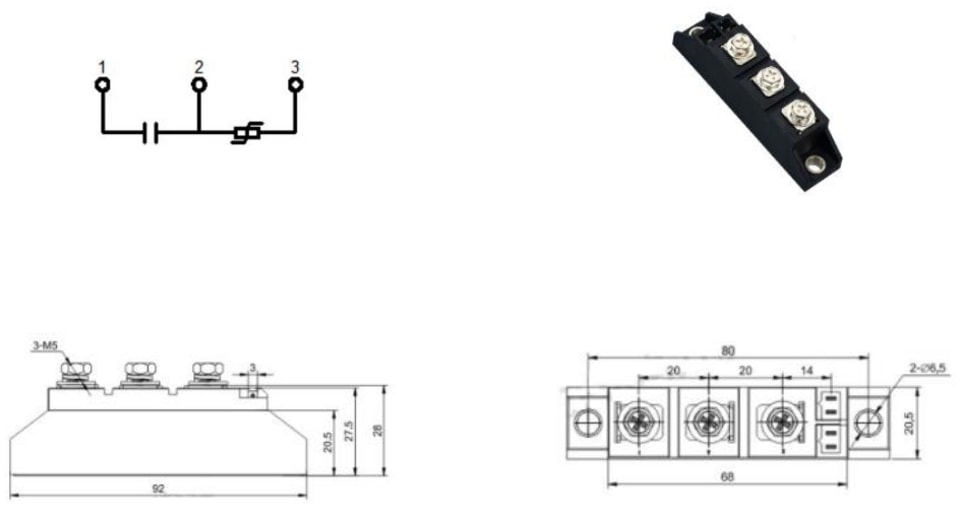

| Mounting | Mounting(M6) | Recommended Value 2.5-3.9(25-40) | 4.7(48) | N.m(kgf.cm) | ||
| Md | torque | Terminal(M5) | Recommended Value1.5-2.5(15-25) | 2.7(28) | ||
