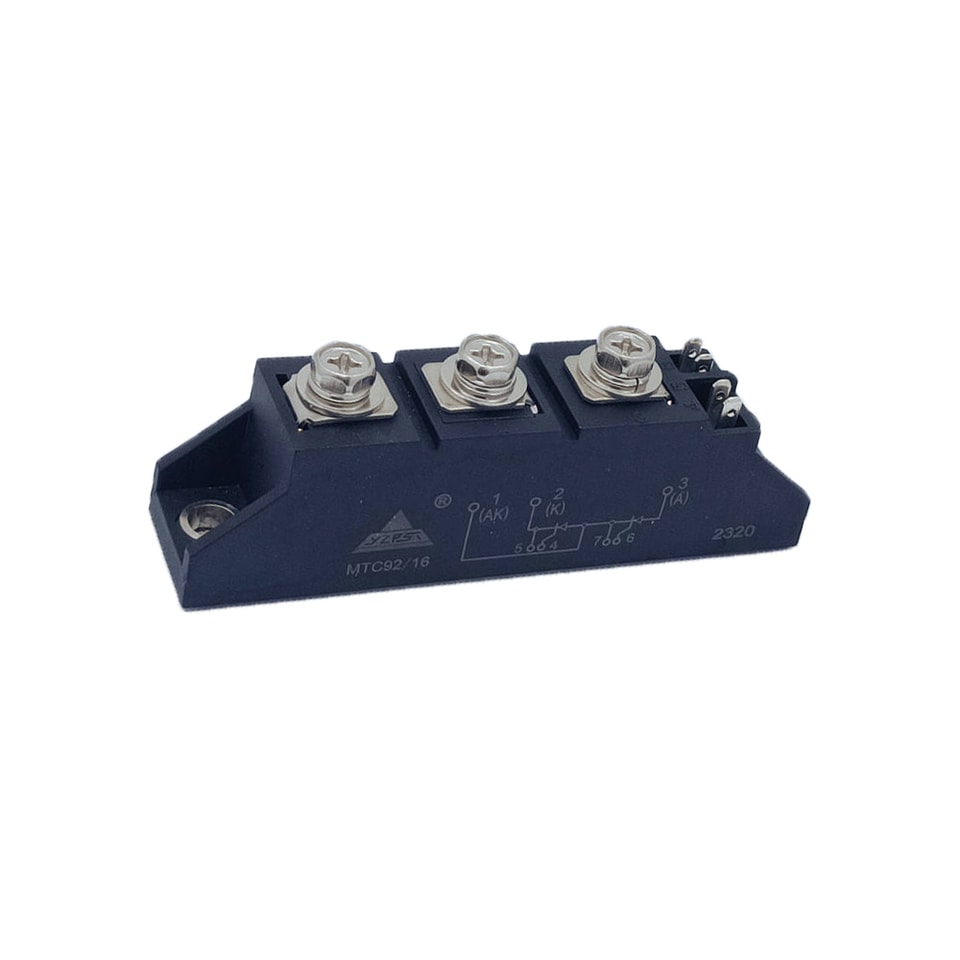

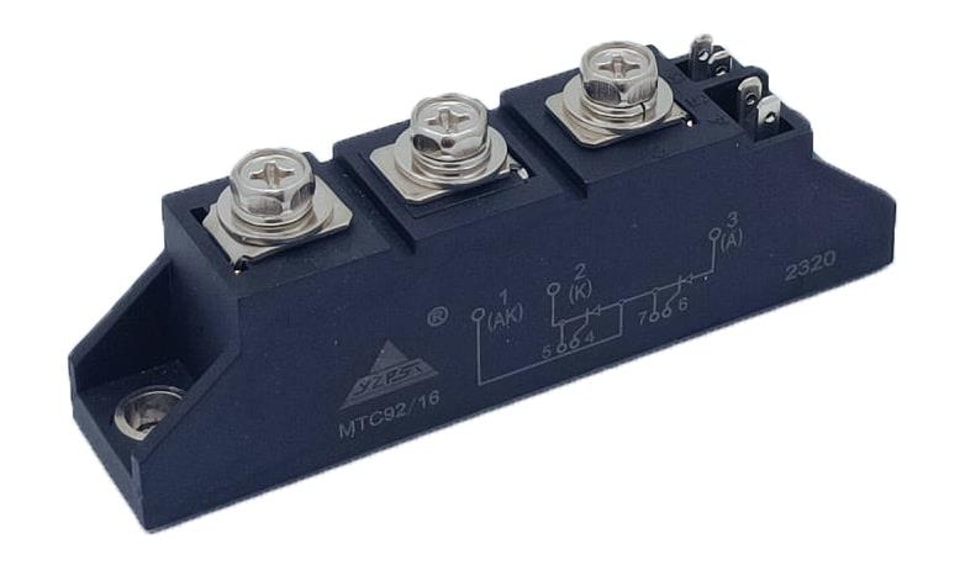

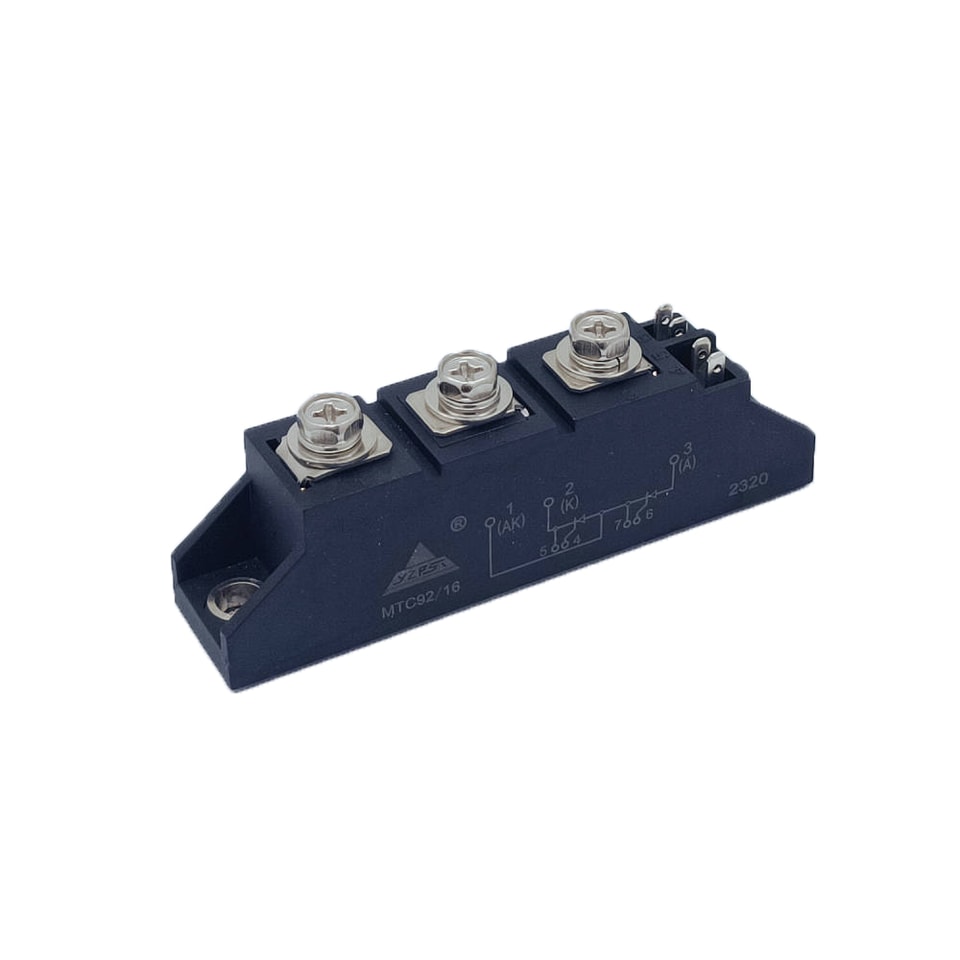

Dual Thyristor Modules
TYPE: YZPST-MTC92-16
Features
· Industrial standard package
· Electrically insulated base plate

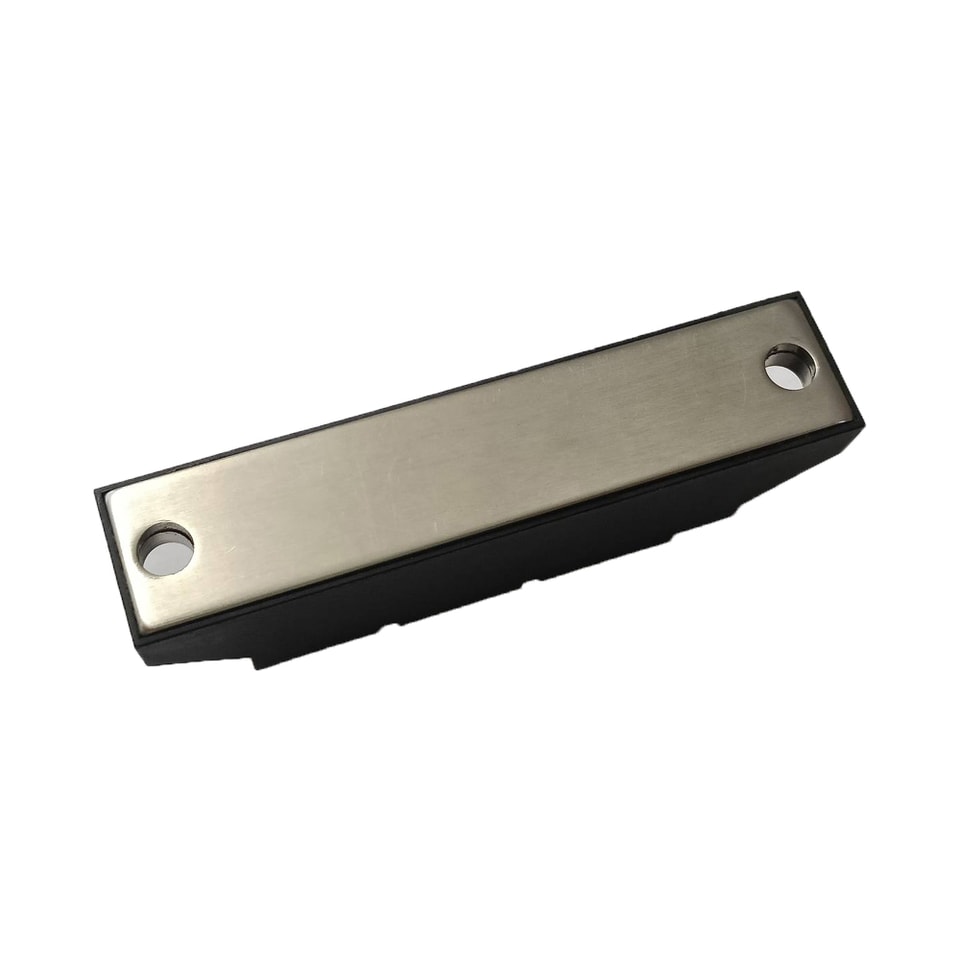

· Heat transfer through aluminium oxide ceramic insulated metal base plate
· Chip soldered on direct copper bonded AL2O3 ceramic
· Thyristor chip with center gate
Typical Applications
- DC motor control
- AC motor soft starters
- Temperature control
- Professional light dimming
VDRM/VRRM |
| 1600/1600 | V |
VRSM |
| 1700 | V |
Maximum Ratings
Symbol | Condition | Ratings | Unit |
IT(AV) | sin. 180; Tc =85°C, | 95 | A |
ITSM | Tvj =25°C; 10 ms | 2000 | A |
I2t | Tvj =25°C; 8,3…10 ms | 20 | kA2S |
(di/dt)cr |
| 140 | A/us |
Viso | A.C. 1s / 1min. | 3600/3000 | V |
Tj |
| -40 ~ + 125 | °C |
Tstg |
| -40 ~ + 125 | °C |
W |
| - | g |
Electrical Characteristics
Symbol | Condition | Ratings | Unit |
IDRM /IRRM | AtVDRM, Tj=125°C | 15 | mA |
VT | On-State Current 300A, Tj=25°C | 1.63 | V |
VT(TO) | Tj=125°C | 0.9 | V |
tgd | Tj=25°C | 1 | us |
tq | Tj=125°C | 100 | us |
IGT/VGT | Tj=25°C | 150 / 3 | mA/V |
VGD | Tj=125°C | 0.25 | V |
(dv/dt)cr | Tj=125°C | 1000 | V/us |
IH | Tj=25°C, typ. / max. | 140/240 | mA |
IL | Tj=25°C, typ. / max. | 260/550 | mA |
Rth(j-c) | Per Module | 0.14 | K/W |

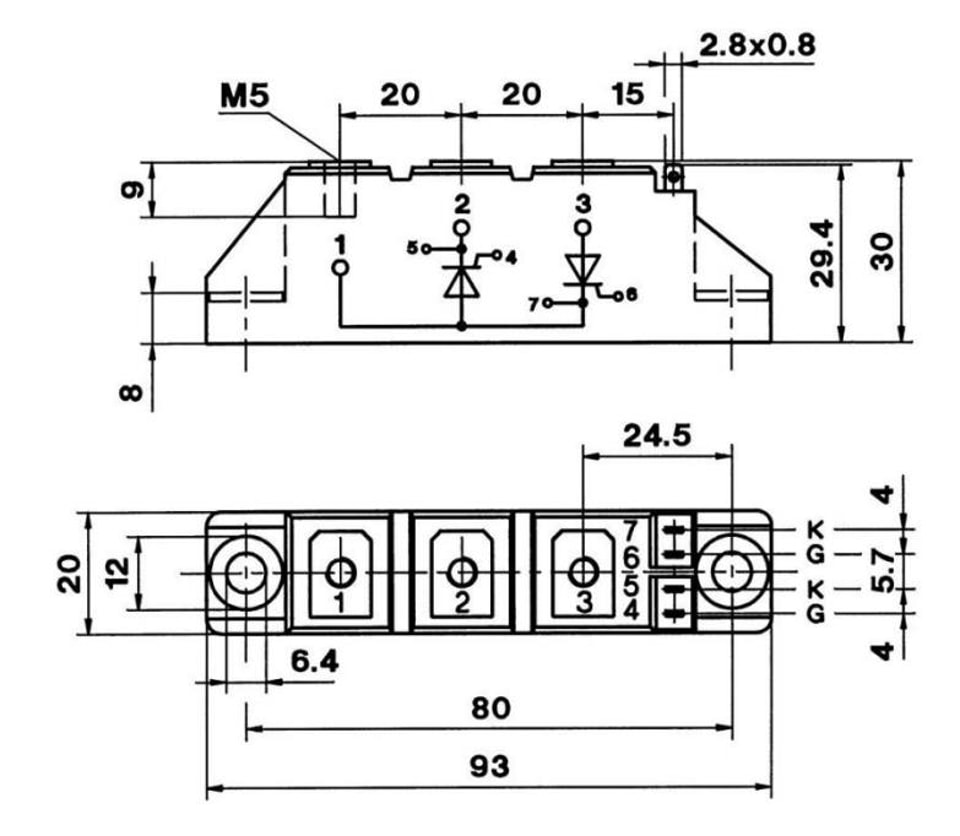

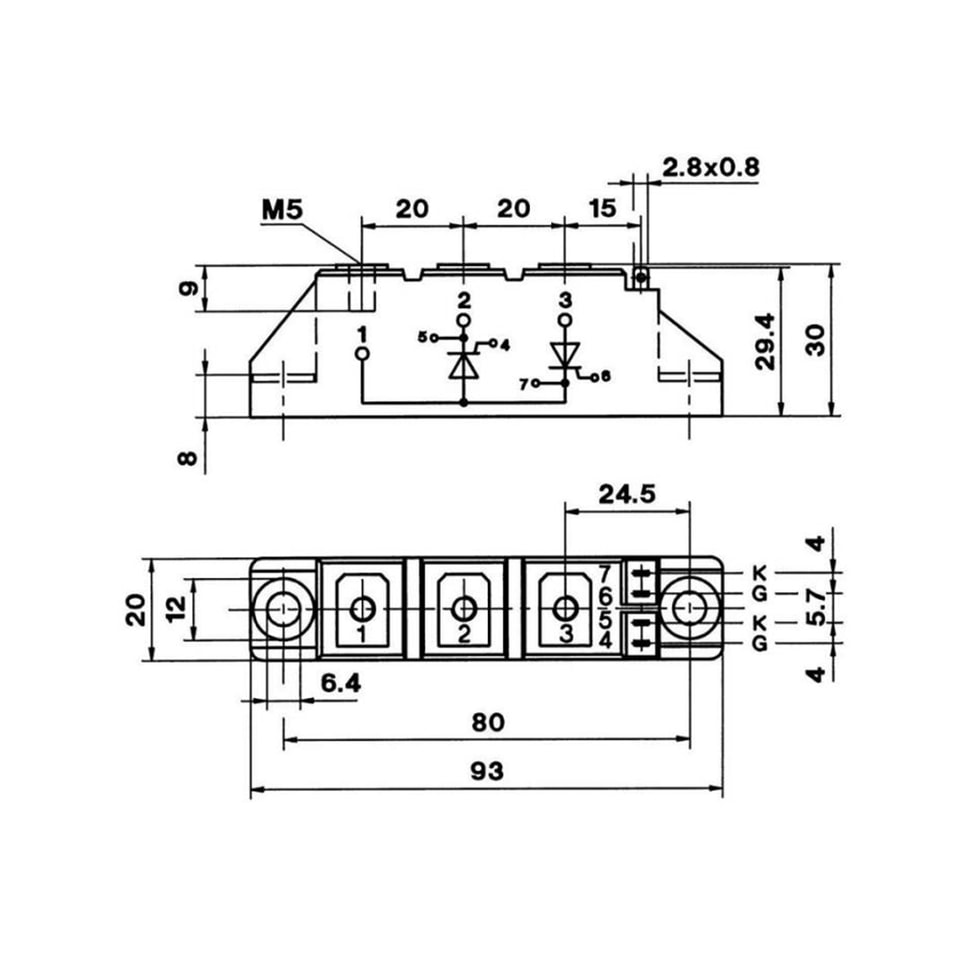

Outline Drawing
.jpg)
.jpg)
