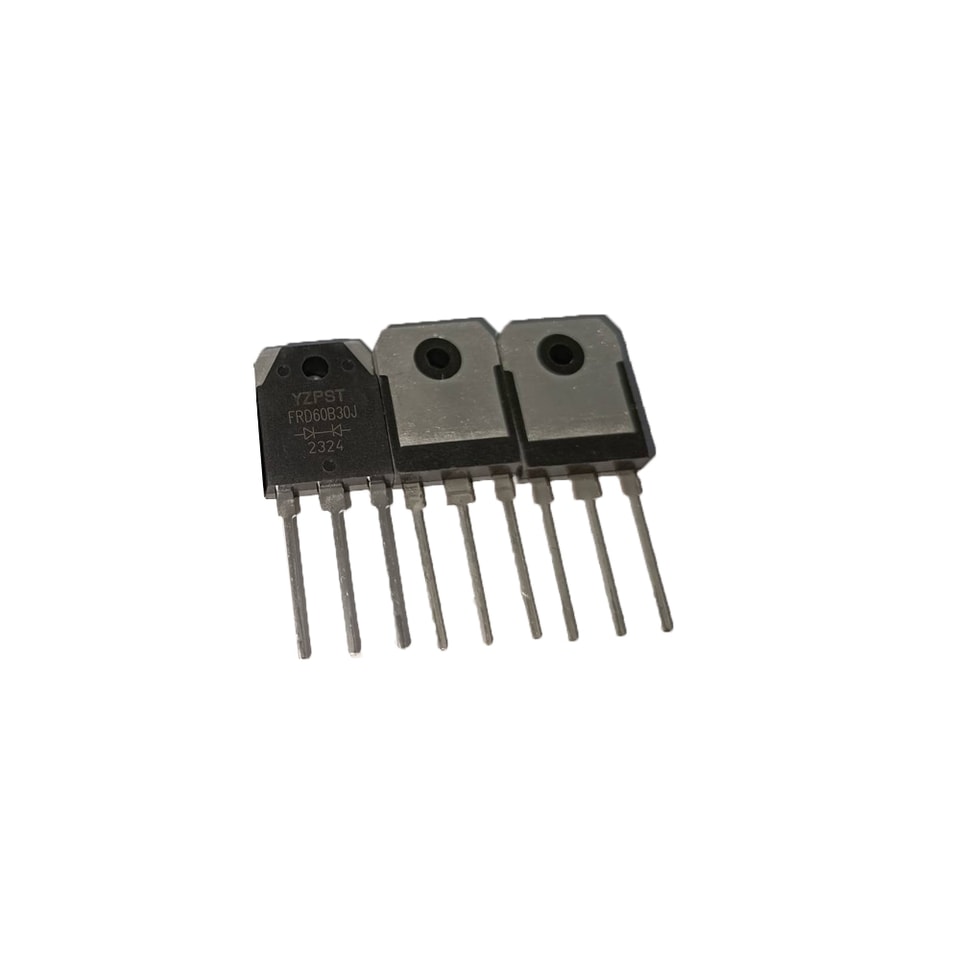

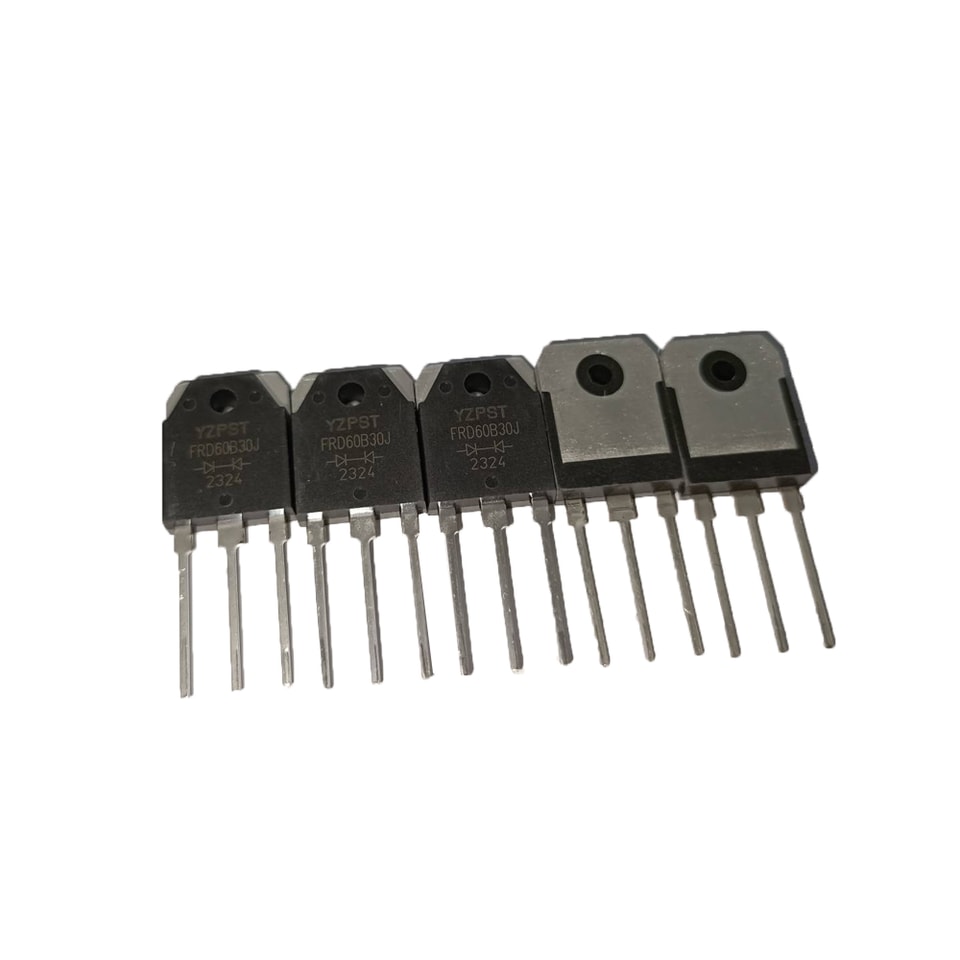

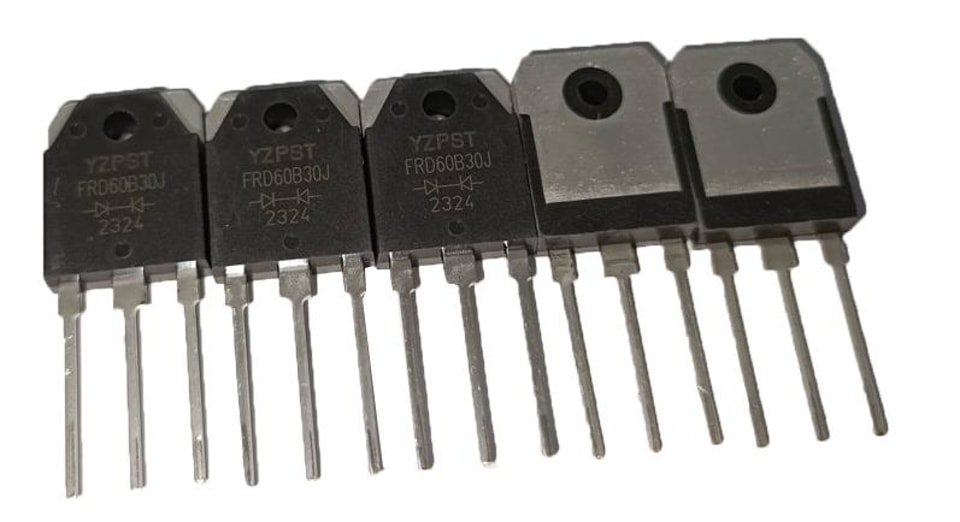

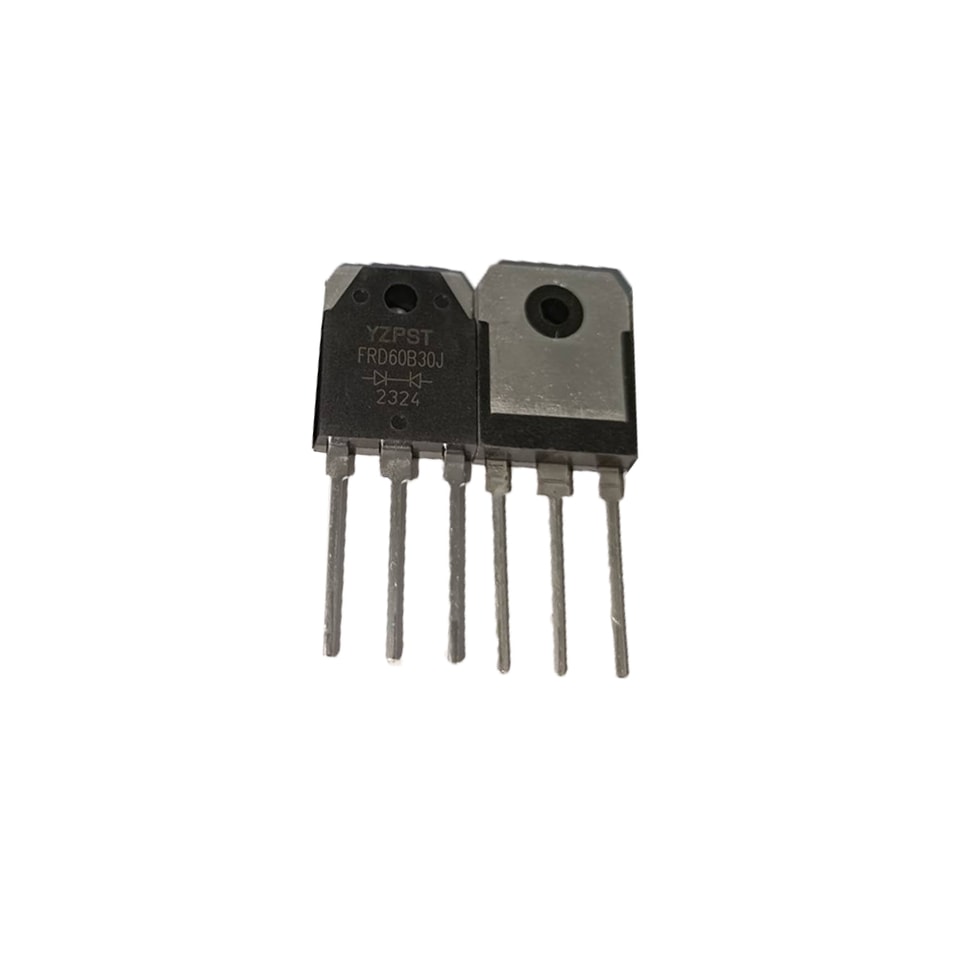

ULTRAFAST SOFT RECOVERY RECTIFIER DIODE FRD60B30
P/N:YZPST-FRD60B30
DESRCRIPTION:
The FRD60B30 is a ultrafast soft recovery rectifier diode.
It has the characteristics of low forward voltage ，low leakage current，
low power loss ，higher reliability systems ， RoHS standard.
ABSOLUTE MAX I MUM RATINGS Ratings (at 25℃ ambient temperature unless otherwise specified.)
| Symbol | Parameter | Value | Unit |
| VR | Maximum D.C. Reverse Voltage | ||
| VRRM | Maximum Peak Repetitive Reverse Voltage | ||
| VRWM | Working Peak Reverse Voltage | 300 | V |
| IF(AV) | Continuous forward current ， TC= 110℃ | 60 | |
| IFSM | Single pulse forward current ，TC=25℃ | 600 | A |
| TJ,TSTG | Operating and Storage Temperature Range | -55 to +175 | °C |
ELECTRICAL CHARACTERISTICS (at 25℃ ambient temperature unless otherwise specified)
| Symbol | Parameter | Test Condition | Value | Unit | ||
| MIN | TYPE | MAX | ||||
| VBR | Reverse breakdown voltage | IR= 100µA | 300 | |||
| I F =30A | 0.97 | 1.2 | ||||
| VF | Forward voltage | I F =30A, Tj = 125℃ | 0.87 | 1.1 | V | |
| VR =300V | 20 | |||||
| IR | Reverse leakage current | Tj = 150℃, VR =300V | 200 | uA | ||
| I F =0.5A, I R = 1A, | 40 | |||||
| trr | Reverse recovery time | I RR =0.25A | ns | |||
| I F = 1A,VR =30V, di/dt =200A/us | 25 | 35 | ||||

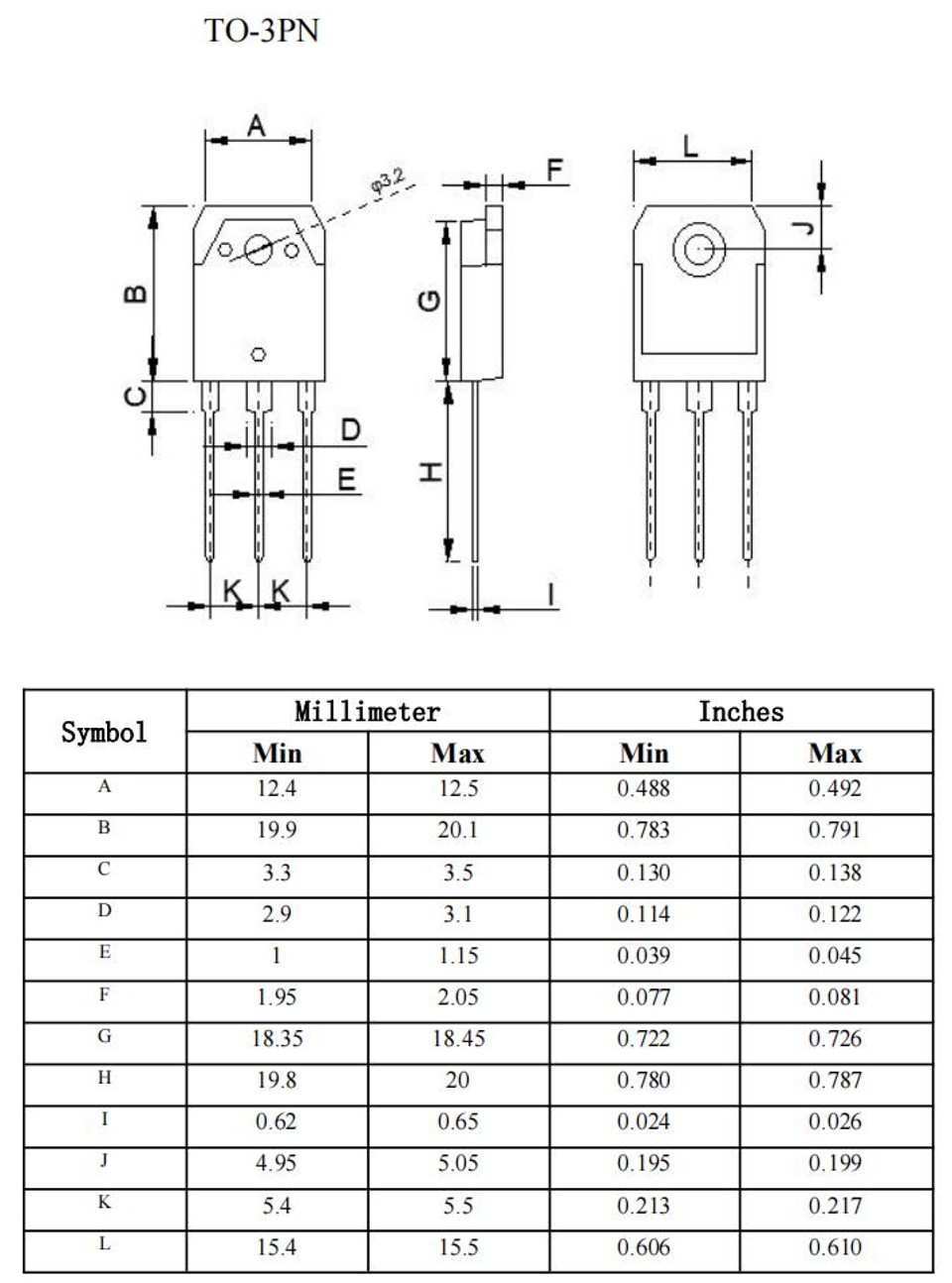

PACKAGE MECHANICAL DATA
