ULTRAFAST SOFT RECOVERY RECTIFIER DIODE FRD60B20

P/N:YZPST-FRD60B20

● DESRCRIPTION:

The FRD60B20 is a ultrafast soft recovery rectifier diode. It has the characteristics of low forward voltage ，low leakage current ，low power loss，higher reliability systems， RoHS standard.

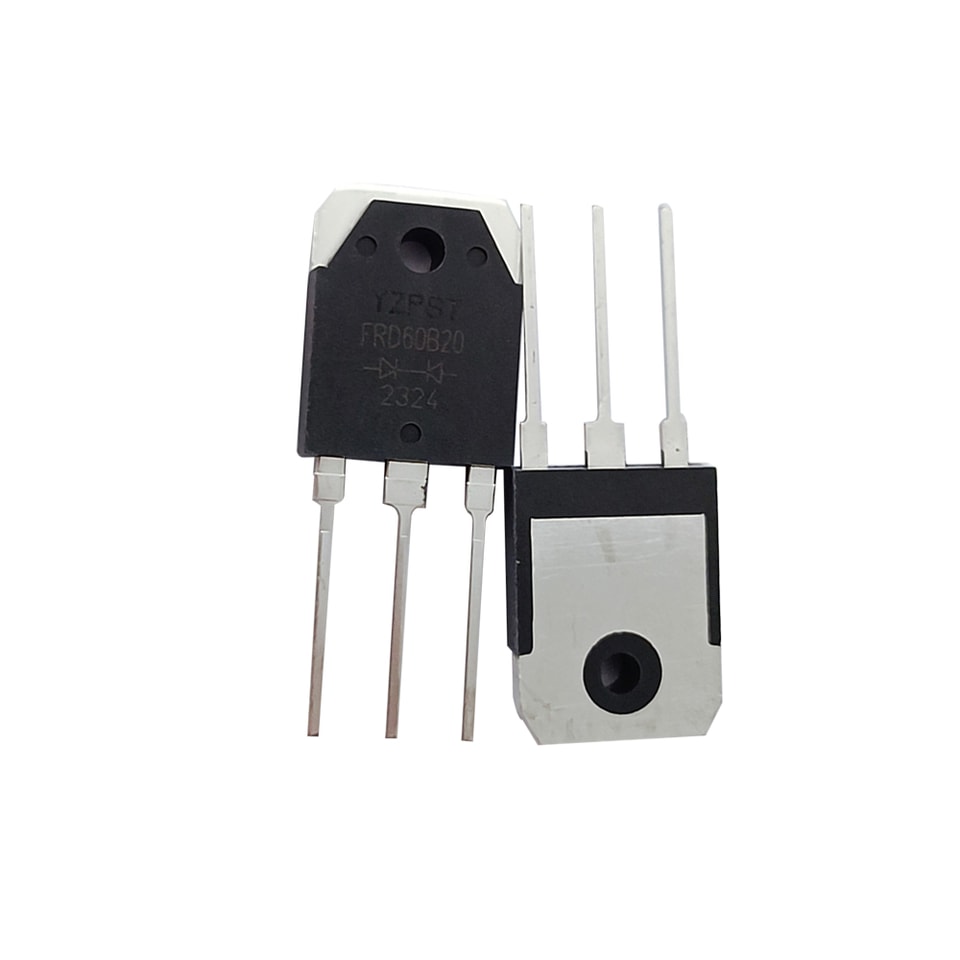

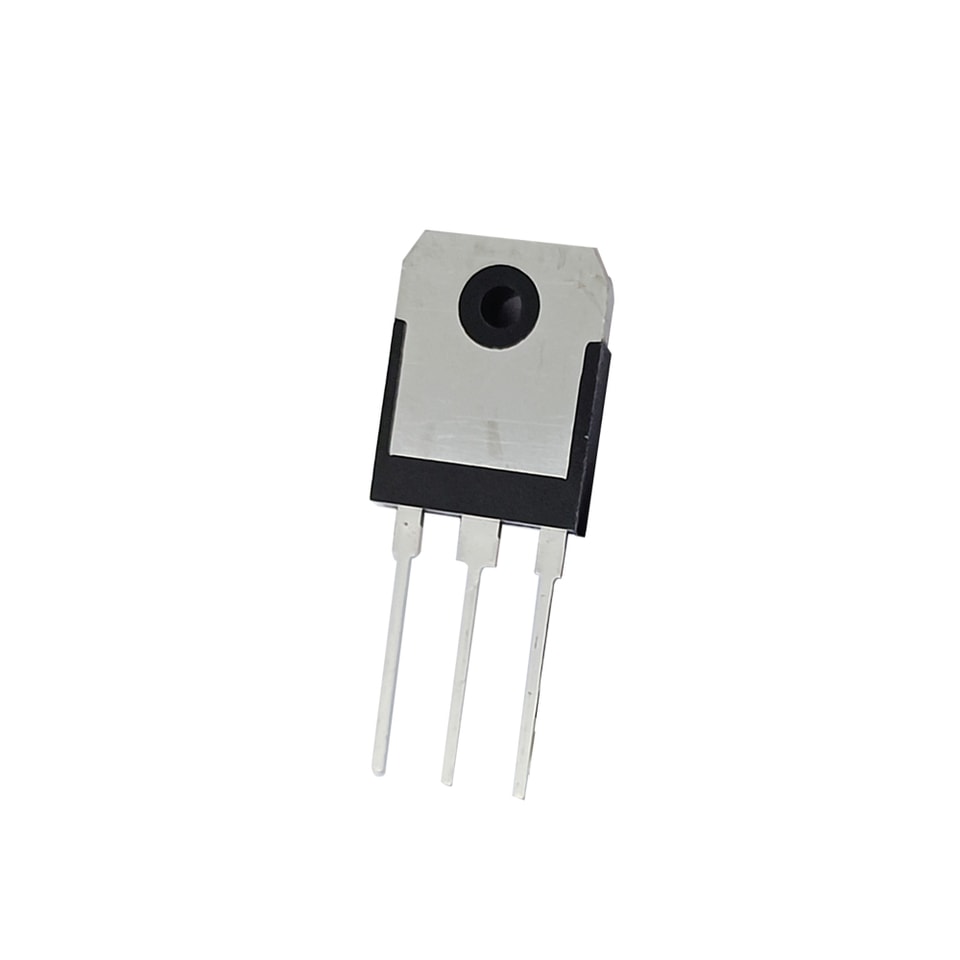

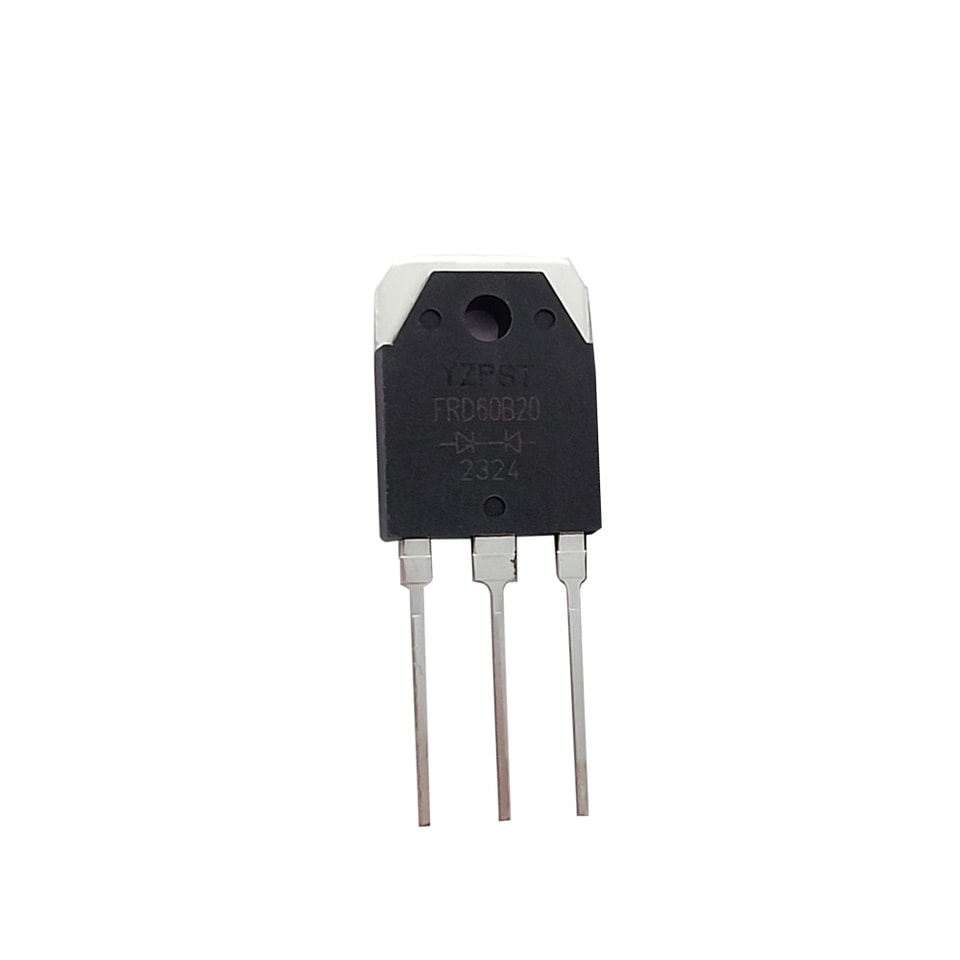

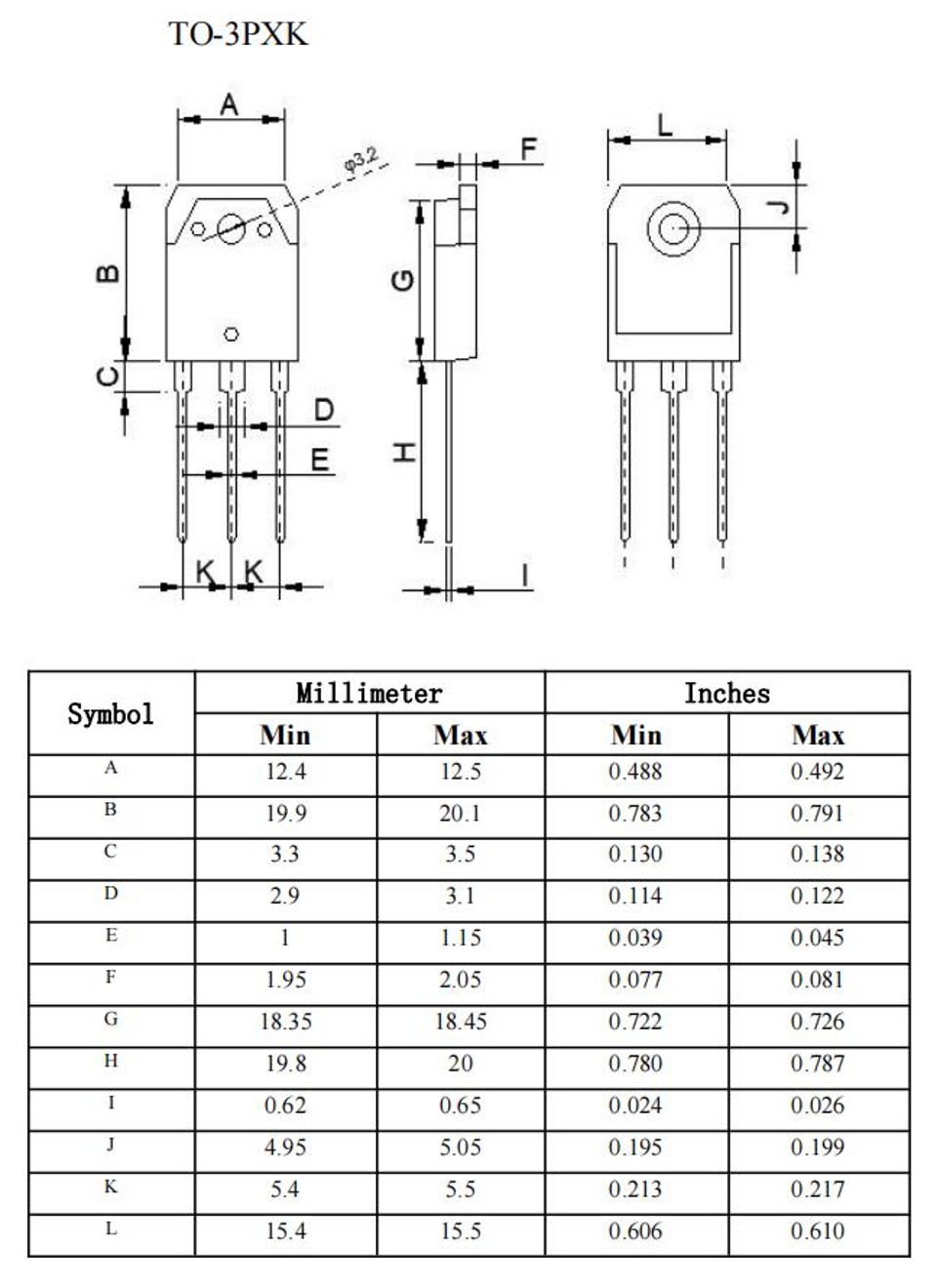

TO-3PN ultrafast soft recovery rectifier diode FRD60B20

ABSOLUTE MAX I MUM RATINGS Ratings (at 25℃ ambient temperature unless otherwise specified.)

Symbol	Parameter	Value	Unit
VR	Maximum D.C. Reverse Voltage
VR	Maximum D.C. Reverse Voltage
VRRM	Maximum Peak Repetitive Reverse Voltage
VRWM	Working Peak Reverse Voltage	200	V
IF(AV)	Continuous forward current ，TC= 110℃	60
IFSM	Single pulse forward current ，TC=25℃	600	A
TJ,TSTG	Operating and Storage Temperature Range	-55 to +175	°C

ELECTRICAL CHARACTERISTICS (at 25℃ ambient temperature unless otherwise specified)

Symbol	Parameter	Test Condition	Value			Unit
Symbol	Parameter	Test Condition	MIN	TYPE	MAX	Unit
VBR	Reverse breakdown voltage	IR= 100µA	200
		I F =30A		0.96	1.15
VF	Forward voltage	I F =30A, Tj = 125℃		0.86	1	V
		VR =200V			20
IR	Reverse leakage current	Tj = 150℃, VR =200V			200	uA
		I F =0.5A, I R = 1A,			35
trr	Reverse recovery time	I RR =0.25A			35	ns
		I F = 1A,VR =30V, di/dt =200A/us		23	35
