Rectifier Diode Modules
TYPE:MDC100A/1200V

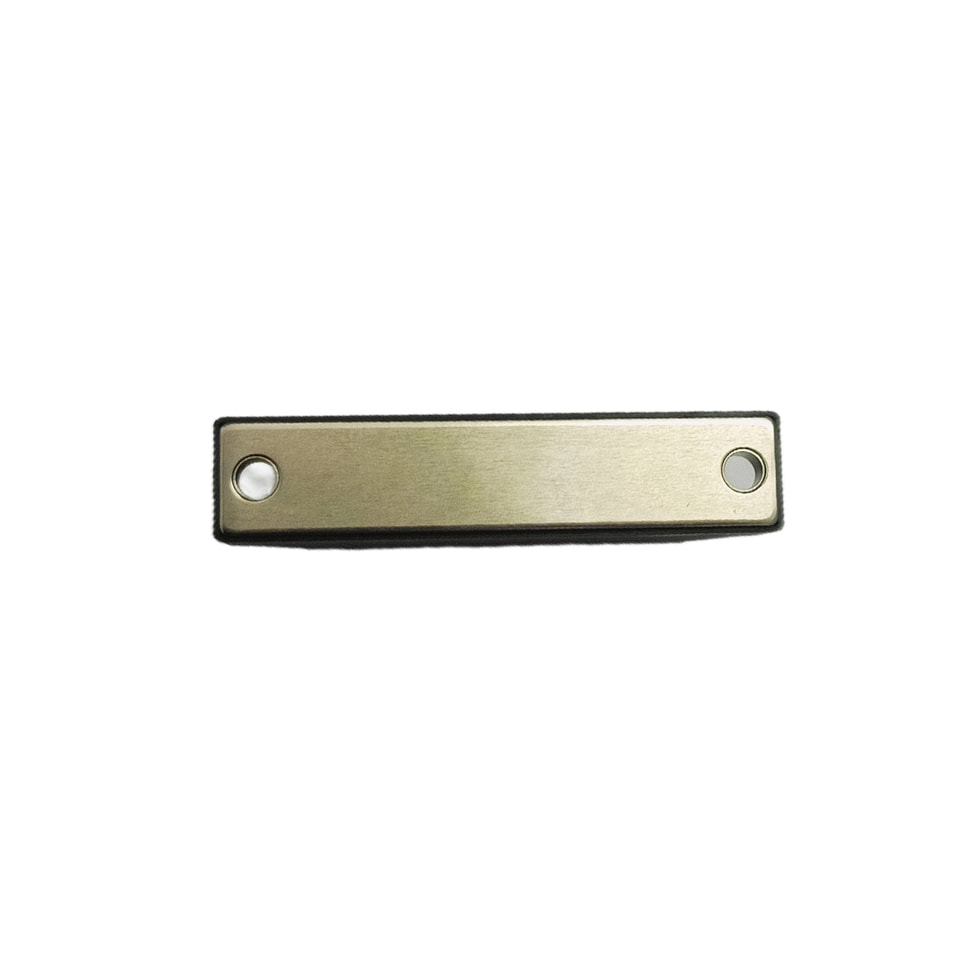

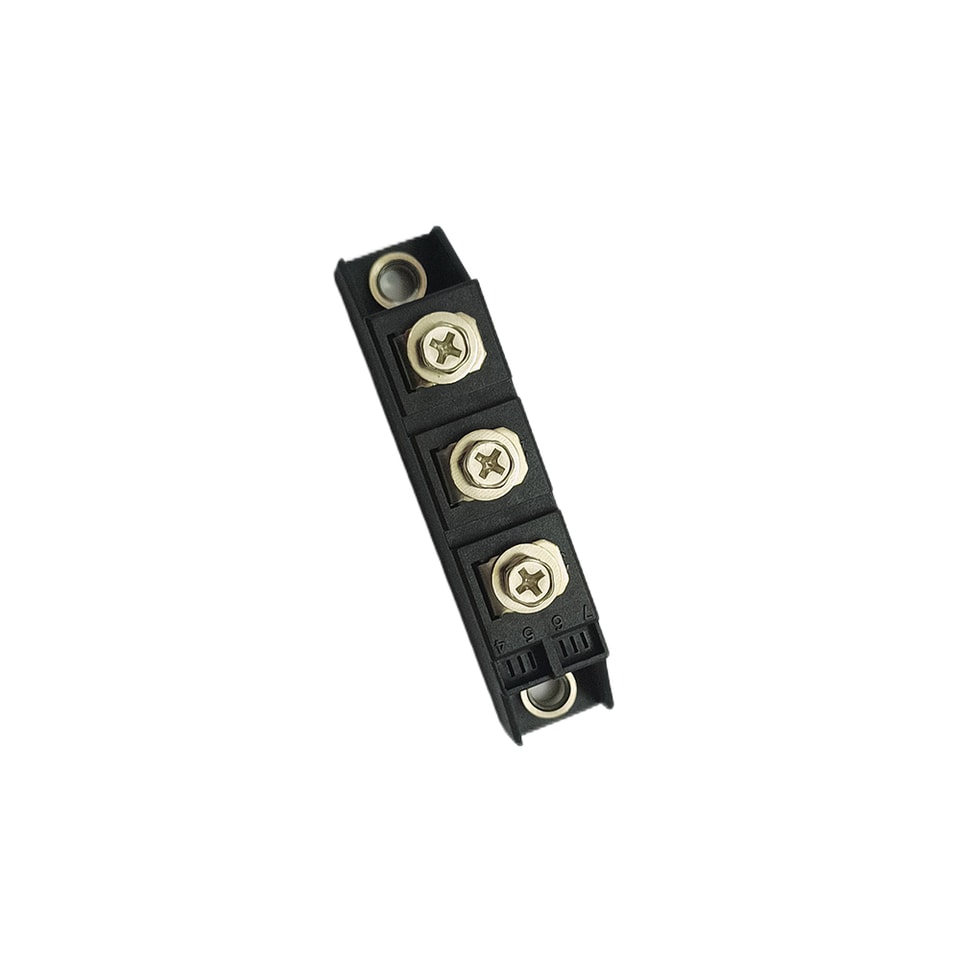

Features
Heat Transfer Through Aluminium Oxide Ceramic Isolated Metal Baseplate
Hard Soldered Joints For High Reliability
UL Recognized
Typical Applications
Rectifier for drives applications
Rectifiers for UBS
Battery chargers
BLOCKING
| Symbol | Condition | Ratings | Unit |
| VRRM VRSM | 1200 | V | |
| 1300 | |||
| IRRM | 15 | mA | |
| VINS | 50Hz, circuit to base, all terminal shorted | 3600 | V |
CONDUCTING
| Symbol | Condition | Ratings | Unit |
| IF(AV) | TC=85°C; 180° sine | 100 | A |
| IF(RMS) | TC=85°C; 180° sine | 175 | A |
| IFSM | Tj= Tj Max.; t = 10 ms (50 Hz); sine | 2000 | A |
| I2t | Tj= Tj Max.; t = 10 ms (50 Hz); sine | 20 | kA2S |
| VF(TO) | (I > π x IF(AV)),Tj= Tj Max. | 0.85 | V |
| rF | (I > π x IF(AV)),Tj= Tj Max. | 1.3 | mΩ |
| VFM | On-State Current 300A，Tj=25°C | 1.35 | V |
Electrical Characteristics
| Symbol | Condition | Ratings | Unit |
| Rth(j-c) | Per Module | 0.175 | K/W |
| Rth(c-h) | Per Module | 0.1 | K/W |
| Tj | -40 ~ + 125 | °C | |
| Tstg | -40 ~ + 125 | °C | |
| M | mounting torque | 5 | Nm |
| terminal torque | 3 | Nm | |
| W | - | g |

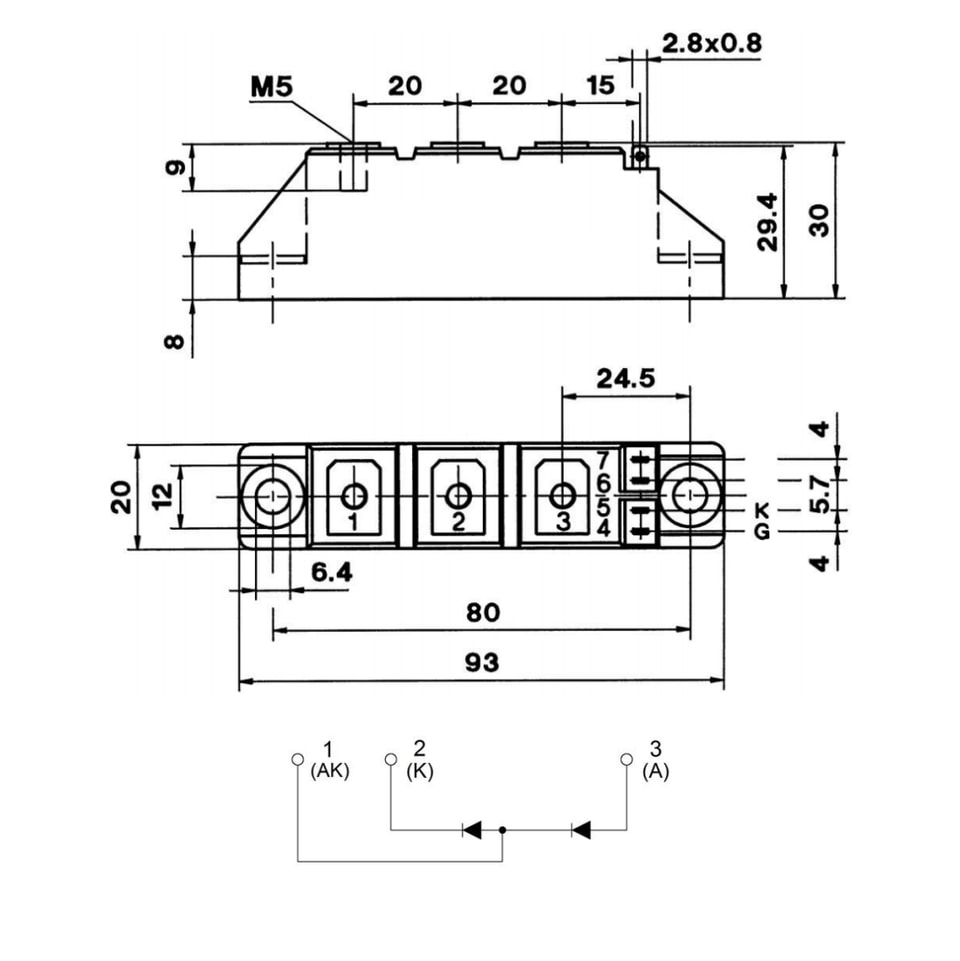

Outline Drawing
