POWER COMPONENT
YZPST-RSM05P75KN
Product summary and primary technical information will be loaded from the product database.
✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry
EmailTechnical sales
PhoneContact team
Tip: include the part number, target voltage/current and application environment.
DOCUMENT CENTER
Downloads & technical files
http://www.youtube.com/channel/UCZ3mV8GmGNcX4WcYEoWX-_g/featured

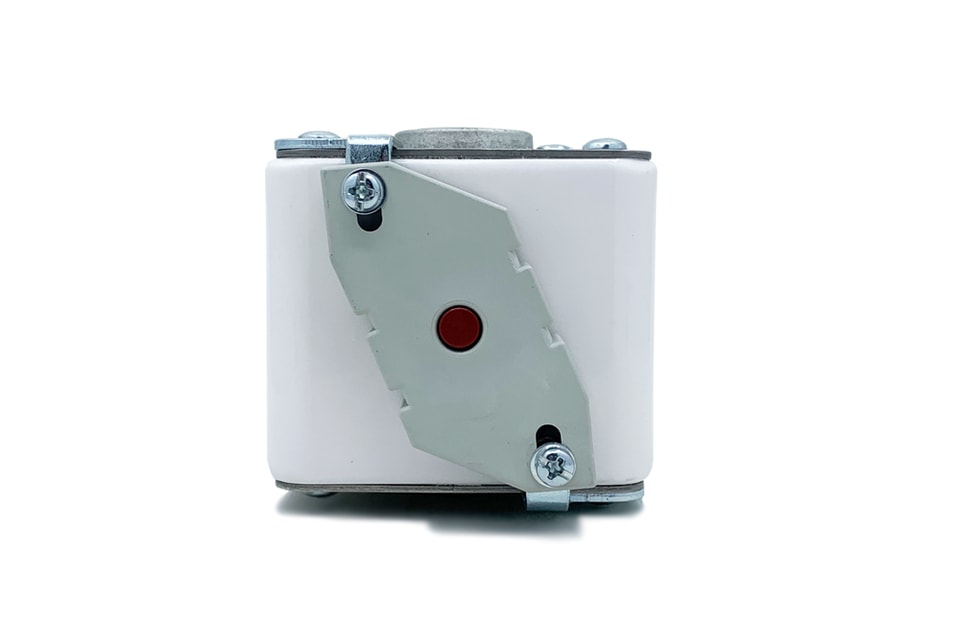

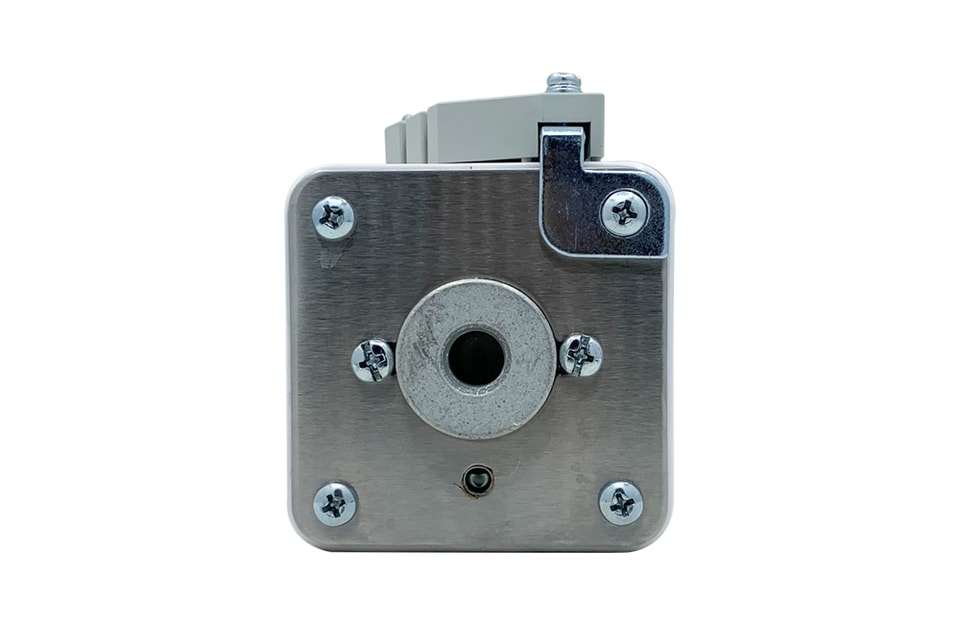

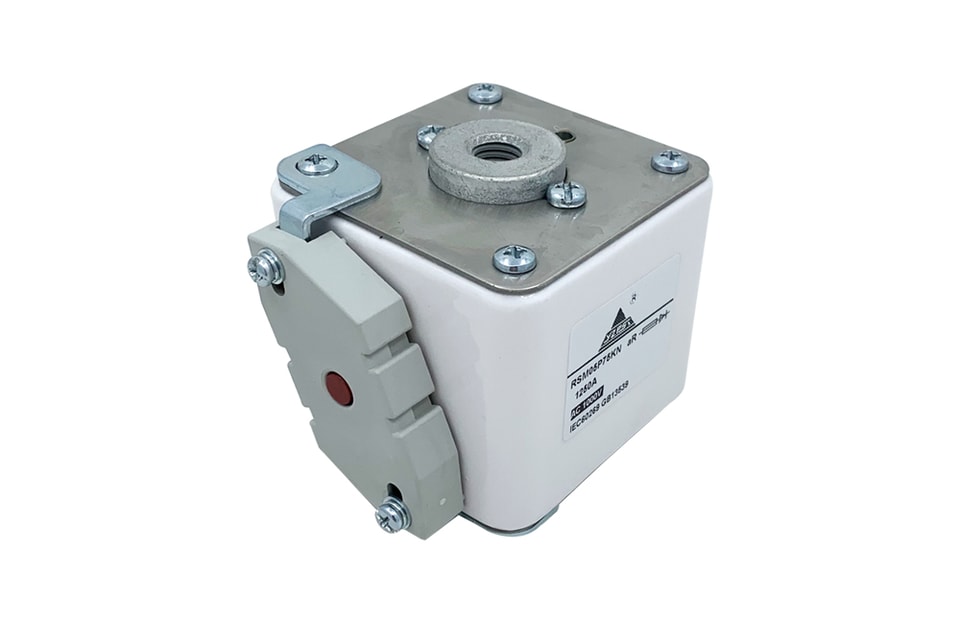

P type series with filler square plate type fast fuse
Rated voltage: AC1250V/1300V DC750V(800V)
Function level: aR/ gR
Breaking capacity: AC≥100KA; DC≥30KA
Conform to standards and specifications: IEC/ U. L./ GB/T13539

| Product number | Current (A) | before arc I2t |
Fuse I2t (1000V) | Rated power (W) |
| RSM05P75KN、RSM05P80KN、RSM05P90KN | 315 | 9600 | 57700 | 85 |
| 350 | 13800 | 81200 | 90 | |
| 400 | 19900 | 120000 | 95 | |
| 450 | 31300 | 184400 | 100 | |
| 500 | 39500 | 234800 | 105 | |
| 550 | 55300 | 324600 | 110 | |
| 630 | 84000 | 494700 | 115 | |
| 700 | 115600 | 704500 | 120 | |
| 800 | 205700 | 994600 | 125 | |
| 900 | 305800 | 1500000 | 130 | |
| 1000 | 451000 | 2149300 | 135 | |
| 1100 | 575800 | 2799200 | 140 | |
| 1250 | 811000 | 3949200 | 145 |
For more information about Fast Fuse please download the PDF file above named " 1250V-RSM01-05PKN PST "
