YZPST-S4050
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files

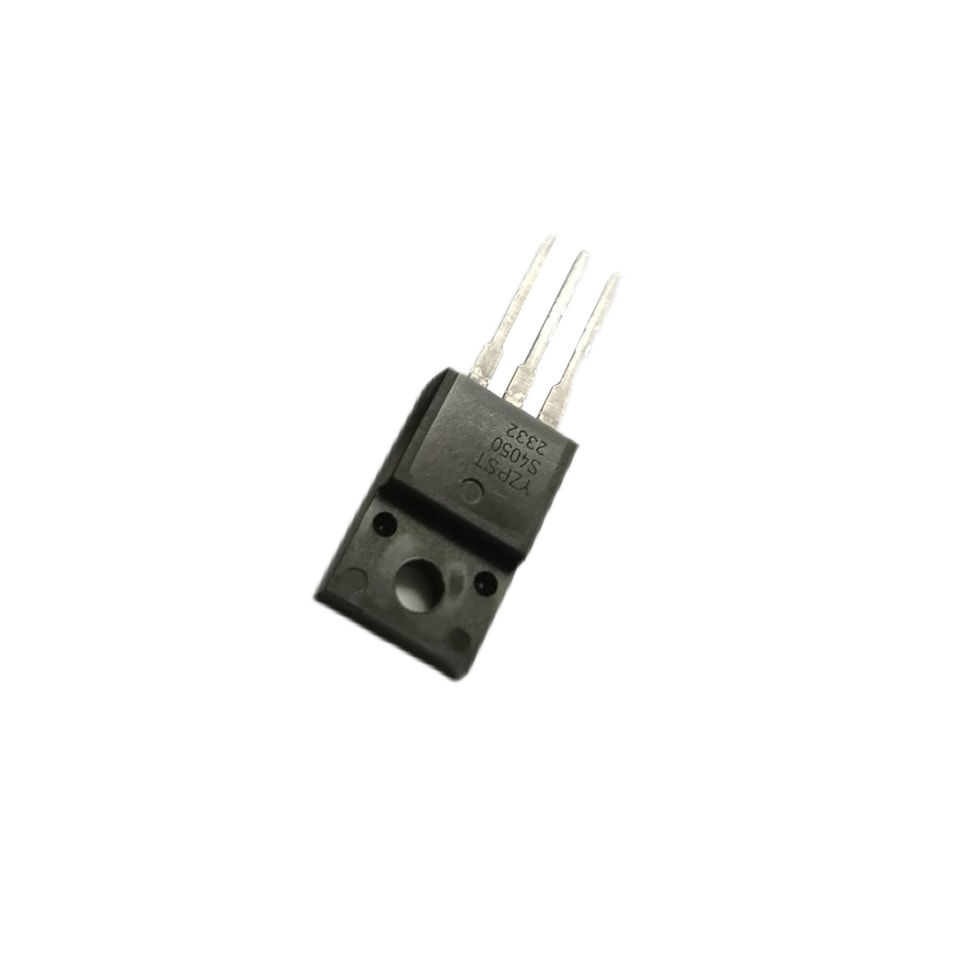

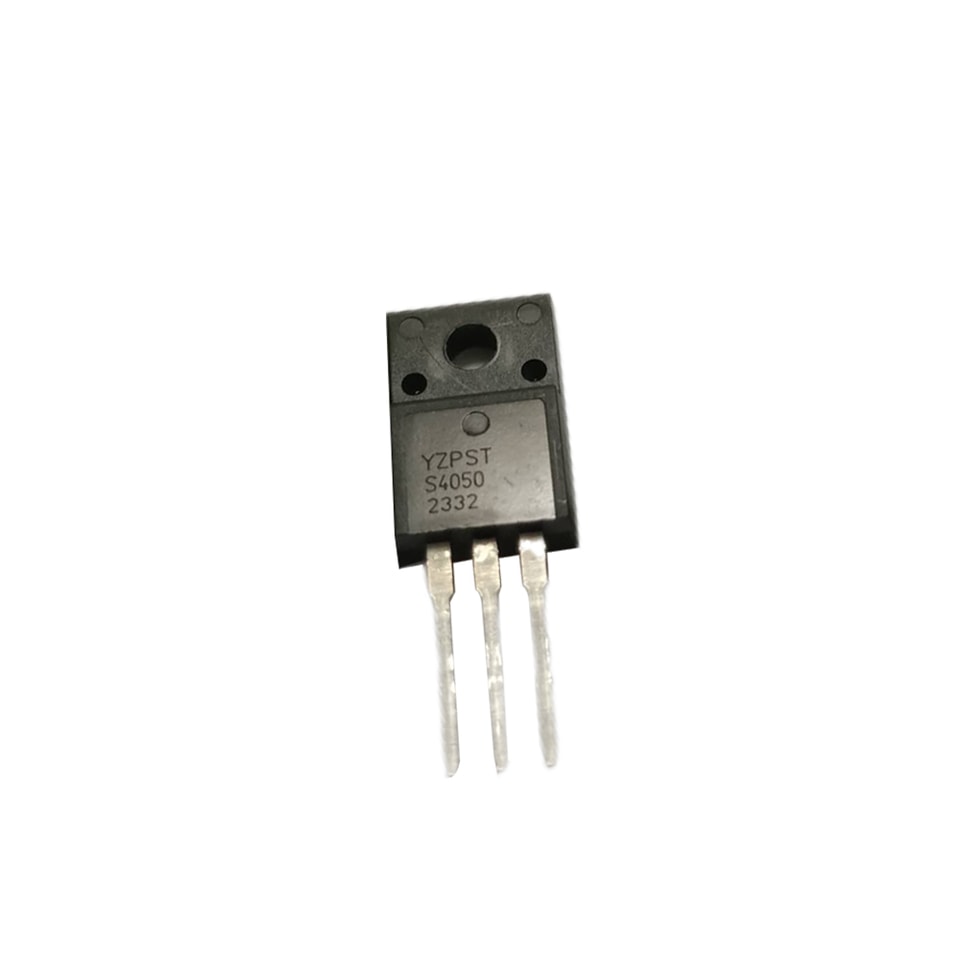

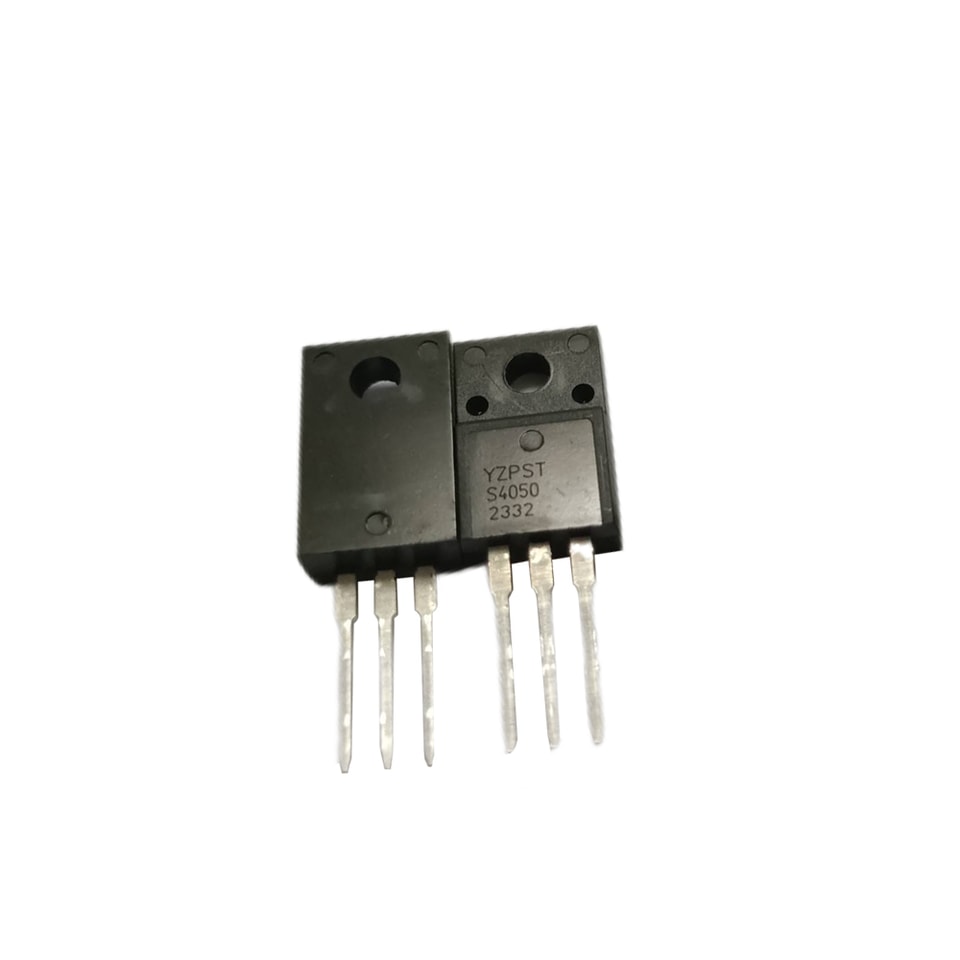

P/N: YZPST-S4050 40A SCRs

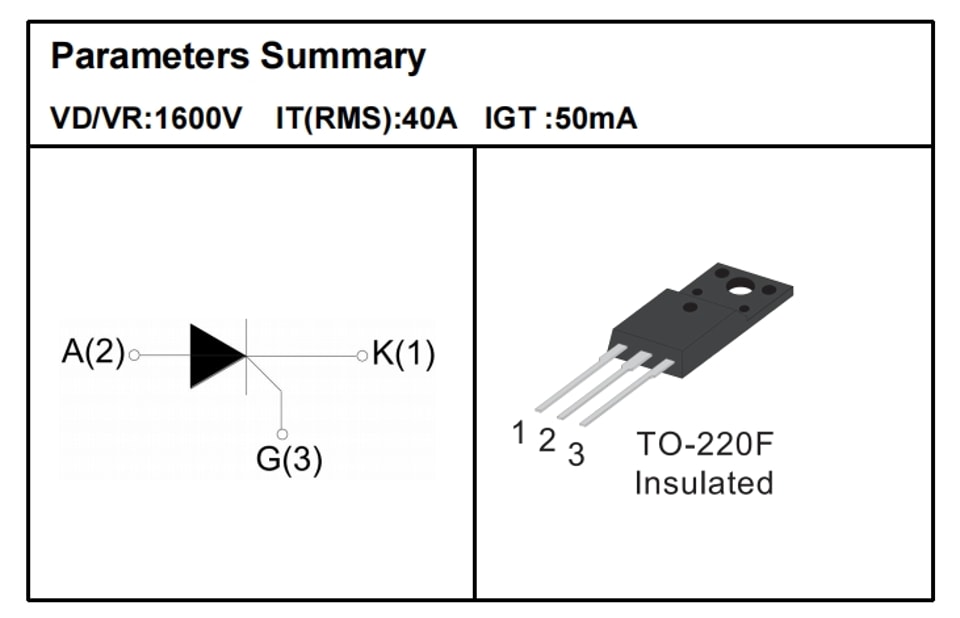

FEATURES
High thermal cycling performance
lHigh voltage capacity
Very high current surge capability
APPLICATIONS
Line rectifying 50/60 Hz
lSoftstart AC motor control
DC Motor control
Power converter
AC power control
Lighting and temperature control
ABSOLUTE MAXIMUM RATINGS | |||
Parameter | Symbol | Value | Unit |
Storage junction temperature range | Tstg | -40 ~ 150 | ℃ |
Operating junction temperature range | Tj | -40~ 125 | ℃ |
Repetitive peak off-state voltage | VDRM | 1600 | V |
Repetitive peak reverse voltage | VRRM | 1600 | V |
Non repetitive surge peak Off-state voltage | VDSM | VDRM +100 | V |
Non repetitive peak reverse voltage | VRSM | VRRM +100 | V |
Non repetitive surge peak on-state current | ITSM | 420 | A |
RMS on-state current (180° conduction angle) | IT(RMS) | 40 | A |
Average on-state current (180° conduction angle) | IT(AV) | 25 | A |
I2t value for fusing (tp= 10ms) | I2t | 880 | A2 S |
Critical rate of rise of on-state current (I =2×IGT, tr ≤ 100 ns) | di/dt | 150 | A/μS |
Peak gate current | IGM | 4 | A |
Peak gate power | PGM | 5 | W |
| Thermal Resistances | ||||
| Symbol | Parameter | Value | Unit | |
| TO-220A | 1.2 | |||
| Rth(j-c) | Junction to case (DC) | TO-220C | 0.8 | ℃/W |
| TO-220F | 0.85 | |||
ELECTRICAL CHARACTERISTICS (T=25℃unless otherwise specified) | ||||
Symbol | Test Condition |
| Value | Unit |
IGT | V = 12V R = 140Ω | MAX. | 50 | mA |
VGT | MAX. | 1.5 | V | |
VGD | VD=VDRM Tj= 125℃ | MIN. | 0.2 | V |
IL | IG= 1.2IGT | MAX. | 200 | mA |
IH | IT=50mA | MAX. | 100 | mA |
dV/dt | VD=2/3VDRM Gate Open Tj=125℃ | MIN. | 1000 | V/μs |

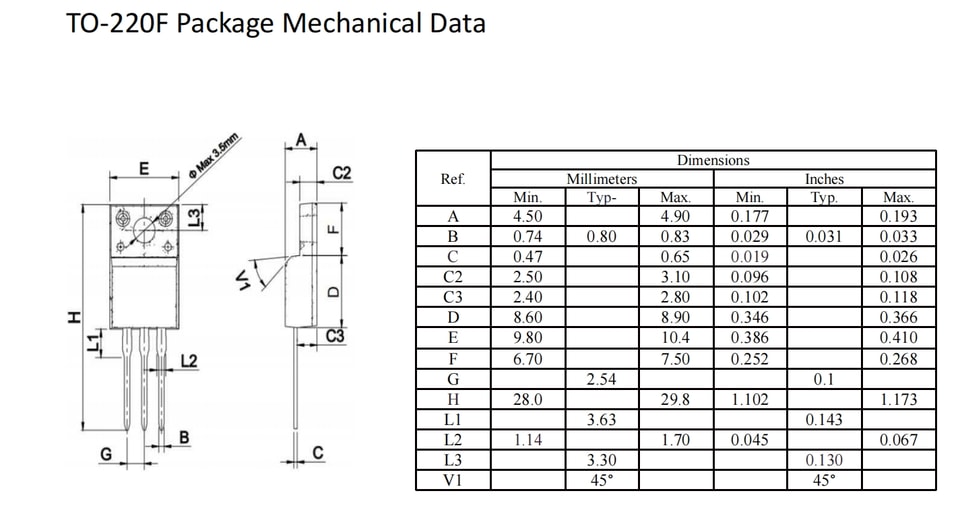

TO-220F Package Mechanical Data
