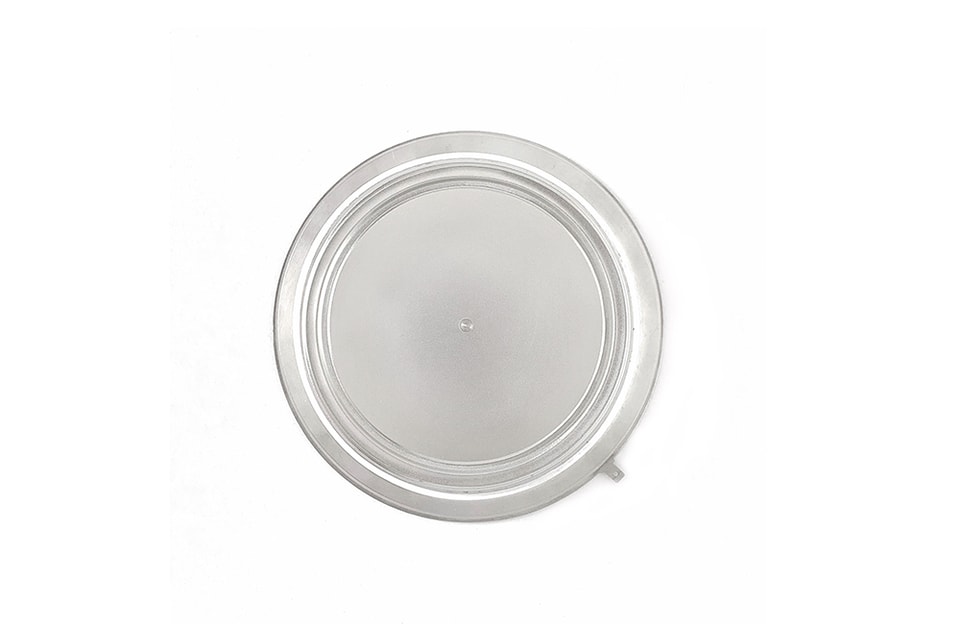

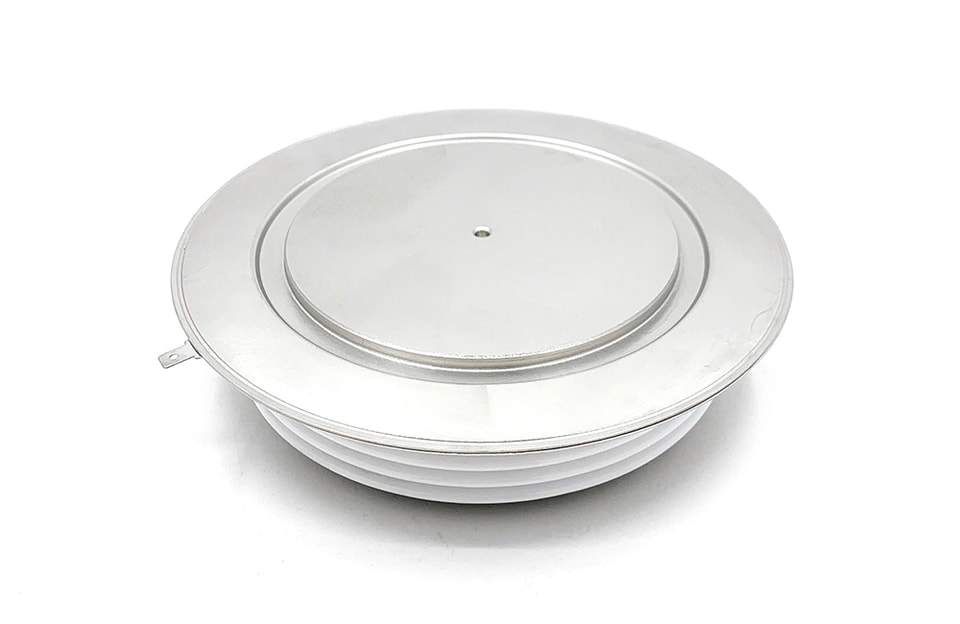

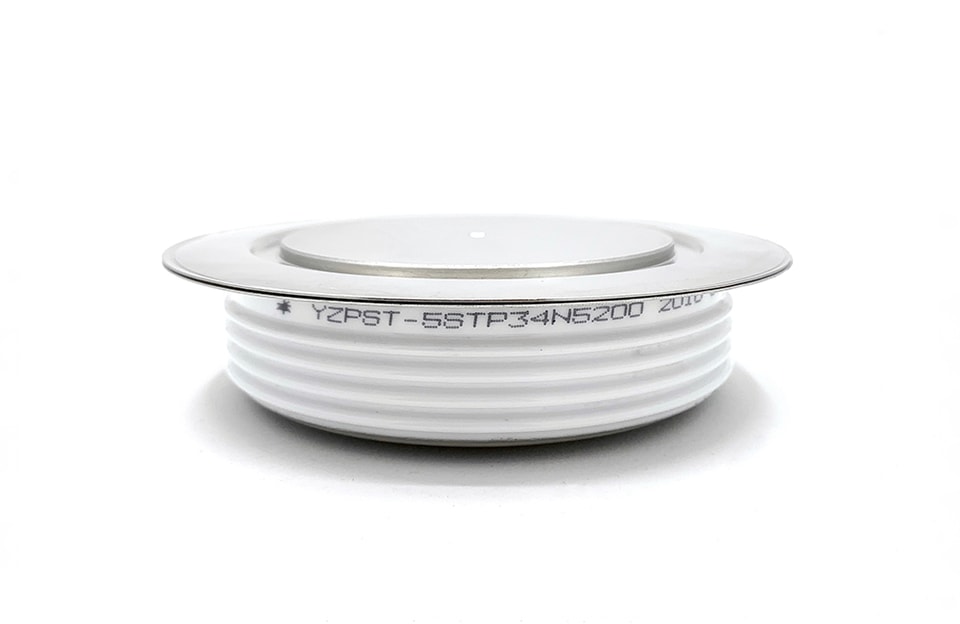

YZPST-5STP34N5200

✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry

EmailTechnical sales

PhoneContact team

REQUEST A TECHNICAL QUOTE ↗

Tip: include the part number, target voltage/current and application environment.

DOCUMENT CENTER

Downloads & technical files

YZPST-5STP34N5200.pdfDOWNLOAD ↘YANGZHOU POSITIONING TECH CO Power thyristor and diode parts 20200518.pdfDOWNLOAD ↘

http://www.youtube.com/channel/UCZ3mV8GmGNcX4WcYEoWX-_g/featured

Features:

All Diffused Structure
Center Amplifying Gate Configuration
Guaranteed Maximum Turn-Off Time
High dV/dt Capability
Pressure Assembled Device

Blocking - Off State

VRRM (1)	VDRM (1)	VRSM (1)
5200	5200	5300

VRRM = Repetitive peak reverse voltage
VDRM = Repetitive peak off state voltage
VRSM = Non repetitive peak reverse voltage

Repetitive peak reverse leakage and off state leakage

IRRM / IDRM

30mA

95 mA (3)

Critical rate of voltage rise

dV/dt (4)

2000 V/msec

Notes:
All ratings are specified for Tj=25 oC unless
otherwise stated.
(1) All voltage ratings are specified for an applied 50Hz/60zHz sinusoidal waveform over the temperature range -40 to +125 oC.
(2) 10 msec. max. pulse width
(3) Maximum value for Tj = 125 oC.
(4) Minimum value for linear and exponential waveshape to 80% rated VDRM. Gate open. Tj = 125 oC.
(5) Non-repetitive value.
(6) The value of di/dt is established in accordance with EIA/NIMA Standard RS-397, Section 5-2-2-6. The value defined would be in addi-tion to that obtained from a snubber circuit,comprising a 0.2 F capacitor and 20 ohms resistance in parallel with the thristor under test.

For more information about Phase Control Thyristor please download the PDF file above named " YANGZHOU POSITIONING TECH CO Power thyristor and diode parts "

http://www.youtube.com/channel/UCZ3mV8GmGNcX4WcYEoWX-_g/featured

Conducting - on state

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Max. Average value of on-state current	IT(AV)M		3600		A	Sinewave,180o conduction TC = 70 oC
RMS value of on-state current	ITRMS		5850		A	Nominal value
Peak one cpstcle surge (non repetitive) current	ITSM		63		kA	10.0 msec (50Hz), sinusoidal wave- shape, 180o conduction, Tj = 125 oC
I square t	I2t		19.8×103		kA2s
Latching current	IL		500		mA	VD = 24 V; RL= 12 ohms
Holding current	IH		125		mA	VD = 24 V; I = 2.5 A
Peak on-state voltage	VTM		1.54		V	ITM =3000 A; Tvj=125℃
Threshold voltage	VTO		1.03		V	Tvj=125℃
Slope resistance	Rt		0.16		mΩ	Tvj=125℃
Critical rate of rise of on-state current (5, 6)	di/dt		1000		A/ms	Switching from VDRM £ 1500 V, non-repetitive
Critical rate of rise of on-state current (6)	di/dt		200		A/ms	Switching from VDRM £ 1500 V

ELECTRICAL CHARACTERISTICS AND RATINGS (cont’d)

Gating

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Peak gate power dissipation	PGM		-		W	tp = 40 us
Average gate power dissipation	PG(AV)		7		W
Peak gate current	IGM		10		A
Gate current required to trigger all units	IGT		- 400 -		mA mA mA	VD = 6 V;RL = 3 ohms;Tj = -40 oC VD = 6 V;RL = 3 ohms;Tj = +25 oC VD = 6 V;RL = 3 ohms;Tj = +125oC
Gate voltage required to trigger all units	VGT		- 2.6 -		V V V	VD = 6 V;RL = 3 ohms;Tj = -40 oC VD = 6 V;RL = 3 ohms;Tj = 0-125oC VD = Rated VDRM; RL = 1000 ohms; Tj = + 125 oC
Peak negative voltage	VGRM		10		V

Dynamic

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Delay time	td		-		ms	ITM = 50 A; VD = Rated VDRM Gate pulse: VG = 20 V; RG = 20 ohms; tr = 0.1 ms; tp = 20 ms
Turn-off time (with VR = -50 V)	tq		700		ms	ITM = 2000 A; di/dt = 1.5 A/ms; VR ³200 V; Re-applied dV/dt = 20 V/ms linear to 67% VDRM; VG = 0; Tj = 125 oC; Duty cpstcle ³ 0.01%
Reverse recovery charge	Qrr		5200		mAs	ITM = 2000 A; di/dt = 1.5 A/ms; VR ³200 V

* For guaranteed max. value, contact factory.

THERMAL AND MECHANICAL CHARACTERISTICS AND RATINGS

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Operating temperature	Tj	-40	+125		oC
Storage temperature	Tstg	-40	+140		oC
Thermal resistance - junction to case	RQ (j-c)		5.7 11.4		K/kW	Double sided cooled Single sided cooled
Thermal resistamce - case to sink	RQ (c-s)		1 2		K/kW	Double sided cooled * Single sided cooled *
Thermal resistance - junction to heatsink	RQ (j-s)		- -		K/kW	Double sided cooled * Single sided cooled *
Mounting force	P	81	108	-	kN
Weight	W	-	-	2.9	Kg

* Mounting surfaces smooth, flat and greased

Note : for case outline and dimensions, see case outline drawing in last page of this Technical Data

CASE OUTLINE AND DIMENSIONS

Sym	A	B	C	D	H
mm	150	100	108	3.5×3	35±1

YZPST can provide Following Equivalent List of Phase Control Thyristors (Capsule Types)

Type	IT(AV)	VDRM/VRR M	ITSM @TVJM &10ms	IDRM/IR RM (max)	VTM(max)		Tvj	Rthjc	F±10%
	IT(AV)	VDRM/VRR M	ITSM @TVJM &10ms	Tj=125°C	ITM	VTM	Tvj	Rthjc	F±10%
	A	V	KA	mA	A	V	°C	K/W	KN
C380	250	400-1600	3.5	20	1500	2.8	125	0.11	5
C430	680	400-1600	8	20	3000	2.4	125	0.06	10
C431	600	1200-1800	5.9	30	3000	2.6	125	0.06	10
C440	900	400-1600	12	35	3000	1.65	125	0.04	15
C441	750	1400-2200	10	35	3000	2	125	0.04	15
C450	1640	400-1600	26	45	3000	1.4	125	0.02	25
C451	1500	1400-2200	20.8	45	3000	1.7	125	0.02	25
C701	1250	1200-2100	16.6	65	3000	1.7	125	0.02	25
C702	100	2400-3200	20.5	150	3000	1.85	125	0.02	25
SDT122	950	3500-4000	14.7	75	1000	1.6	125	0.02	25
C781	2500	1200-2100	41.5	150	2000	1.2	125	0.01	36
C782	2300	2200-2600	32	150	2000	1.35	125	0.01	36
C784	1650	3600-4500	24	200	2000	1.85	125	0.01	36
C789	1200	5500-6000	20	200	2000	2.3	115	0.01	36

YZPST can provide Following List of Thyristor

INDUCTOR FURNACE SPECIAL DEVICE FAMILY
C430PB	C440L	C451L	C701L	C781L	C448PD
C458PD	C712L	C770L	A696L	A740L	D860
R0910LS260	N280CH14	N490CH20	R0878LS21E	R216CH16	R1275NS20
R2619ZC21	R2714ZC20J	SM18CXC924	SW40CXC820	SW14PHN(R)380	R600CH21
SM16PHN(R)100	R395CH21	C648PB	R200CH20	C702-42	CXC924
PHASE CONTROL THYRISTOR FAMILY
N200CHX	N330CH	N350CH	N370CH	N320CH	N360CH
N490CHX	N540CH	N560CH	N600CH	N640CH	N760CH
N880CHX	N980CH	N880CH	N0910NC	N0882	N630CH
5STP04D5200	5STP25L5200	5STP33L2800	5STP08G6500	5STP12K6500
AT603	AT604	AT804	AT803	AT807	AT480
AT1003	AT1004	AT1005	AT607	AT620	AT636
AT671	AT726	AT708	AT738	AT866	AT870
AT880	AT708LT	AT720LT	AT866LT	AT720HT	AT866HT
DCR504	DCR604	DCR804	DCR1004	DCR1278	DCR1476
DCR1474	DCR803	DCR1003	DCR840	C390	T720
T7SO	T820	T9G0	TA20	TB20	TD20
H505CH	H507CH	H1450CH	H1590CH	H2000CH	H3200CH
SHXXC450	SHXXC540	SHXXC760	SHXXC1850	SHXXC2230	SHXXC2770
BHtT72	BHtT78	BHtU66	BHt U67	BHtU77	BHtV72
SKT441	SKT551	SKT760	SKT1000	SKT1200	SKT1800
T233	T243	T253	N500CH	N1661NC	N1718NS
N1132NC	N0734YS	N0032	N1718	N1114	N1467
N500CH	T458N	T708N	T1218N	T1869N	T2709N
ST230	ST280	ST380	ST780	ST1280	T4301N
TV989	BHTP45	T345	T625	TC233	TC143
INVERTER THYRISTOR FAMILY
R185CHX	R216CHX	R180CHX	R190CHX	R200CHX	R219CHX
R220CHX	R270CHX	R305CHX	R325CHX	R350CHX	R395CHX
R600CHX	R800CHX	R1200CHX	R200CH	R600CH	R325CH
R0577YS	R0633YS	R0577YS	R0878LS	R0929LS	R0990LS
R1178NS	R1275NS	R1279NS	R1280NS	R1446NS	R1448NS
R2475ZD	R2619ZC	R2620ZC	R2714ZD	R3047TC
k ATF585	ATF587	ATF860	ATF857	ATF401	ATF413
ATF414	ATF827	ATF427	ATF828	ATF820	ATF420
ATF514	ATF527	ATF1040	ATF530	ATF543	ATF614
ATF615	ATF633	ATF743	DCR1259	T318F	T340F
T72H	T7S7	T7SH	T82F	T82F	T9GH
R0633	R0830	R0946	R1007LS	R400CH
T408F	T599F	T1052S	TB333	TB553	TB273
DIODE FAMILY
AR371	AR912	AR1101	AR1104	AR1107	AR480
AR509LT	AR2004LT	AR2004	AR609LT	AR3001	AR3004
AR670	AR680	AR649	AR690	AR709	AR770
AR771	AR772	AR747LT	AR609	AR507LT	R0577
R722	R7S2	R9G2	SM18CXC924	R7SS/R7SF	R82S/R82F
R9GS/R9GF	R9GS	R9GF	RA2F	R822	R1446
BHdK28	BHdP60	BHdP62	BHdR60	BHdR62	BHdT60
XSDD303	A880/SDD217	A801/SDD211	A800/SDD208A	A782/SDD119	A780/SDD108
A750/SDD113	A740/SDD105	A643/SDD64	A641/SDD51	W2624	W1748
M0859LC	M1022LC	M1494NC	D233	D243	D253
R7S0	R820	R9G0	RA20	RB20	W2052
SD823	SD1053	SD1553	DS502	DS804	DS1104
DS1107	ARF422	DSF912	ARF526	AUS605
MODULE FAMICY
SKKT92	SKKT162	SKKT250	SKKT310	SKKT500	SKKT800
IRKT91	IRKT161	IRKT251	IRKT310	IRKT500	IRKT1000
MCC95	MCC130	MCC250	MCC310	MCC500	MCC800
HTT/HTD 90N	HTT/HTD 132N	HTT/HTD 162	HTT/HTD 250N	HTT500	HTT800
HDD 55N	HDD 90N	HDD 105N	HDD 132N	HDD 170N	HDD 250N
SKKD91	SKKD161	SKKD250	SKKD320	SKKD500	SKKT91
MTD91	MTD250	MTD500	MTD1000	ADD700	MEK300
MDD91	MDD250	MDD310	MDD800	SKKE600	SKET380
SXHN55	SXHBN200	SXHN 250	SXHFN400	SXHN550	SXHN860
MDS30	MDS75	MDS150	MDS300	DS250	DS400
DS500	SKBPC35	SKBPC25	KBPC25	KBPC35	SKET740
SKET400	DSA450	MEK300
STUD DEVICE FAMILY
C150	C180	C110	C147	P200	P214
ST110	ST180	ST330	ST303	ST173	P0311
SD150	SD300	25F	R5C	P0431	P270
SKN150	SKN240	SKN300	SKN400	T607	T707
40HF	70HF	85HF	45L16	45LR16	300U(R)120
300U(R)40	300U(R)60	25R1A	70R1A	110R1A	300R1A
D40	D70	D130	D240	D410	D860
R600	R601	R700	R701	A197	T210N 4
T70	T85	T100	T125	T250	T500
T700	T160N	T221N	T130N	T86N	R72S/R72F
R502/R503	R602/R603	R622	R702/R703	R50S/R50R	R60S/R60
H65TB	H125TB	H250TB	H300TB	H400 TB	H500 TB
BHdL38	BHdN12	BHtM45	BHtN46	BHtP46	BHtR68H
SKR45	SKR71	SKR100	SKR130	SKR240	SKR320
SKN45	SKN71	SKN100	SKN240	SKN320	SKT40
SKT55	SKT100	SKT130	SKT160	SKT250	SKT300

For more information about Phase Control Thyristor please download the PDF file above named " YANGZHOU POSITIONING TECH CO Power thyristor and diode parts "
