PRODUCT VISUAL01 / GALLERY
POWER COMPONENT
YZPST-3KVDC-6uF
✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry
EmailTechnical sales
PhoneContact team
Tip: include the part number, target voltage/current and application environment.
DOCUMENT CENTER
Downloads & technical files

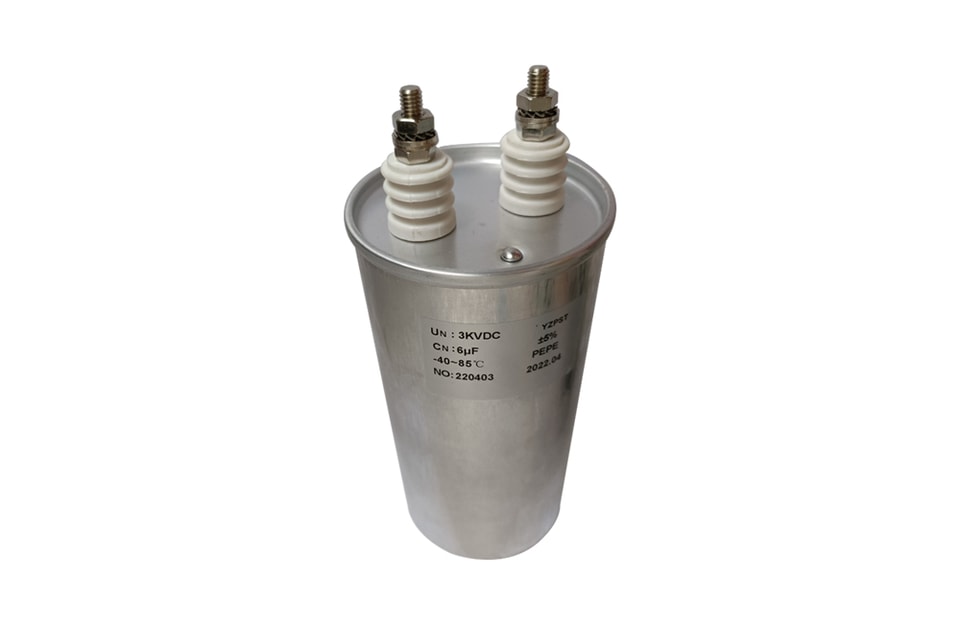

Damping and absorption capacitor
YZPST-3KVDC-6uF
| Standard | IEC 61071-2017 |
| Rated Voltage | 3kVDC |
| Rated capacity | 6µF |
| Capacity Tolerance within | ±5% |
| Ambient temperature： | |
| Min.running temp. Tmin | -40℃ |
| Min.running temp. Tmax | +85℃ |
| Relative humidity | ≤95% |
| Altitude | ≤1000m |
| Storage temperature | -25～60℃ |
Damping and absorption capacitor
For more information about YZPST-3KVDC-6uF please download the PDF file above named "YZPST-3KVDC-6uF "
No additional product content is available.
