POWER COMPONENT

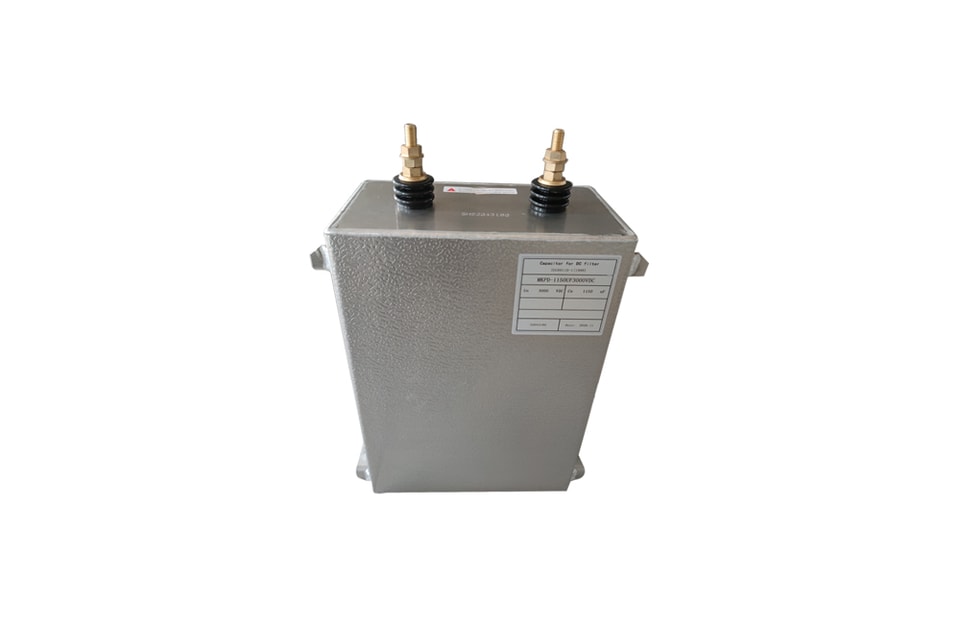

3KV DC-link capacitor DCMJ3.0-1150
✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry
EmailTechnical sales
PhoneContact team
Tip: include the part number, target voltage/current and application environment.
DOCUMENT CENTER
Downloads & technical files
http://www.youtube.com/channel/UCZ3mV8GmGNcX4WcYEoWX-_g/featured
CAPACITANCE:1150uf±10%
MAX CHARGING VOLTAGE:3KV
RATED ENERGY@3KV:5.17KJ
MAX HOLD TIME AT FULL VOLTAGE:10S
NOMINAL REVERSE VOLTAGE:30%
MAXIMUM I²t:3.5*10³ A²s
MAXIMUM REPETITON RATE:1 shot/4sec
MAXIMUM PEAK DISCHARGE CURRENT:800A
NOMINAL RMS CURRENT:30A
OPERATING TEMPERATURE:-25 +60℃
STORAGE CONDITIONS:-55 +80℃
TANGENT OF LOSS ANGLE:<15 Χ10³@f=100Hz
SERIAL RESISTANCE:0.85
INDUCTANCE:<200nH
WEIGHT:36kg
No additional product content is available.
