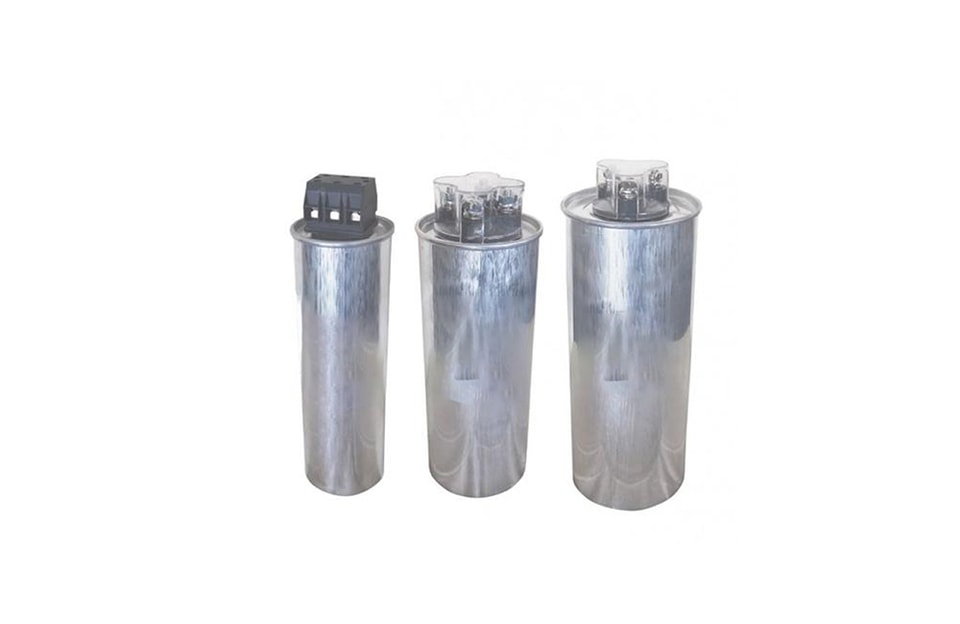

PFC cylinder aluminum can with terminal bolts Low voltage shunt power capacitor

Product summary and primary technical information will be loaded from the product database.

✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry

EmailTechnical sales

PhoneContact team

REQUEST A TECHNICAL QUOTE ↗

Tip: include the part number, target voltage/current and application environment.

DOCUMENT CENTER

Downloads & technical files

Product DocumentDOWNLOAD ↘

Low voltage shunt power capacitor PFC cylinder aluminum can with terminal bolts

Features

Used in AC low voltage filter circuits
Over-pressure safety protection device
Self-healing property
Wave cutting technology for high in-rush current
Low Loss factor and long lifetime

Applications

Power factor correction
Auto-compsation capacitor bank
Can formed filter circuit with inductance

Specifications

Reference Standard	IEC 60831, optional IEC 61071
Climatic Category	40/85/56
Operating Temperature	-25 55
Storage Temperature	-40 85
Voltage Range	230Vac 525Vac, can up to 2000Vac
Capacitance Range	See attached
Capacitance Tolerance	±5%;±10%
Test Voltage Between T-T	2.15U_n (10s,20±5 )
Test Voltage Between T-C	Un+1KVac which is higher (10s,20±5 )
T 0	1 (20±5 )
Max. Permitted Voltage	1.1 U_n (30% of on-load duration) 1.15U_n (30min per day) 1.2 U_n (5min per day) 1.3U_n (1min per day) 1.5U_n (30ms every time, 1000times during the lifetime)
Max. Permitted Current	1.3I_n
Max. Altitude during operation	2000m
Max. Torque of terminals	M6:5Nm; M8:6Nm; M10:8Nm
Max. Torque of installation	M12:10Nm; M16:12Nm

Type	Voltage (V)	50Hz		60Hz		Capacitance ( )	Dimension D*H (mm)
Type	Voltage (V)	Output (kVar)	Current (A)	Output (kVar)	Current (A)	Capacitance ( )	Dimension D*H (mm)
Rated Voltage 250VAC, 50/60Hz
BCMJ0.25-5-3YN	250	5	20	6	24	254.8	106*110
BCMJ0.25-10-3YN	250	10	40	12	48	509.6	106*150
BCMJ0.25-15-3YN	250	15	60	18	72	764.3	106*235
BCMJ0.25-20-3YN	250	20	80	24	96	1019.1	106*280
BCMJ0.25-25-3YN	250	25	100	30	120	1273.9	116*280
BCMJ0.25-30-3YN	250	30	120	36	144	1528.7	126*280
Rated Voltage 280VAC, 50/60Hz
BCMJ0.28-5-3YN	280	5	17.9	6	21.5	203.1	106*125
BCMJ0.28-10-3YN	280	10	35.7	12	42.8	406.2	116*150
BCMJ0.28-15-3YN	280	15	53.6	18	60.8	609.3	106*235
BCMJ0.28-20-3YN	280	20	71.4	24	85.6	812.4	116*280
BCMJ0.28-25-3YN	280	25	89.3	30	107.2	1015.5	126*280
BCMJ0.28-30-3YN	280	30	107.1	36	128.5	1218.6	136*280
