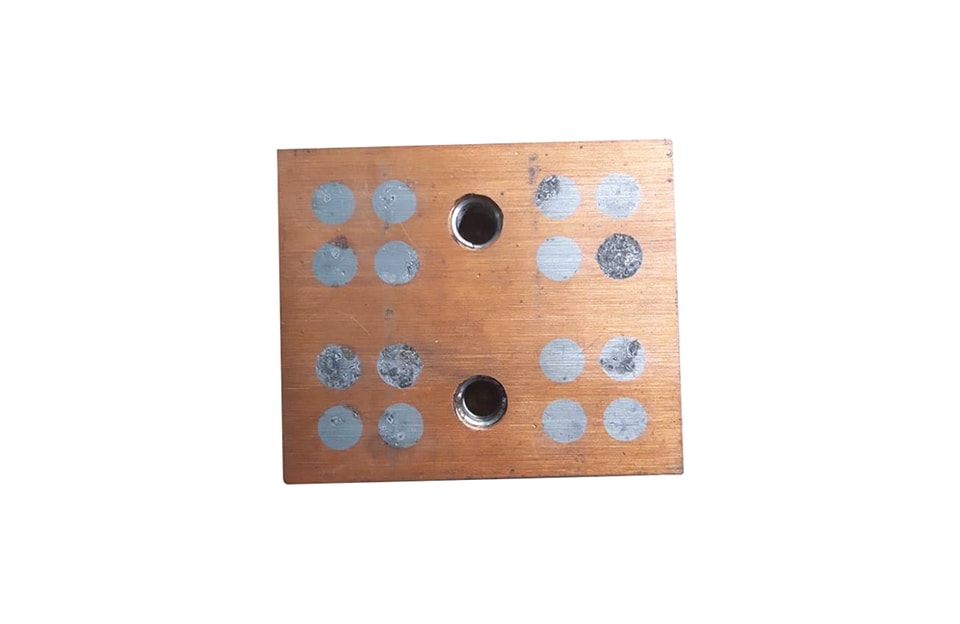

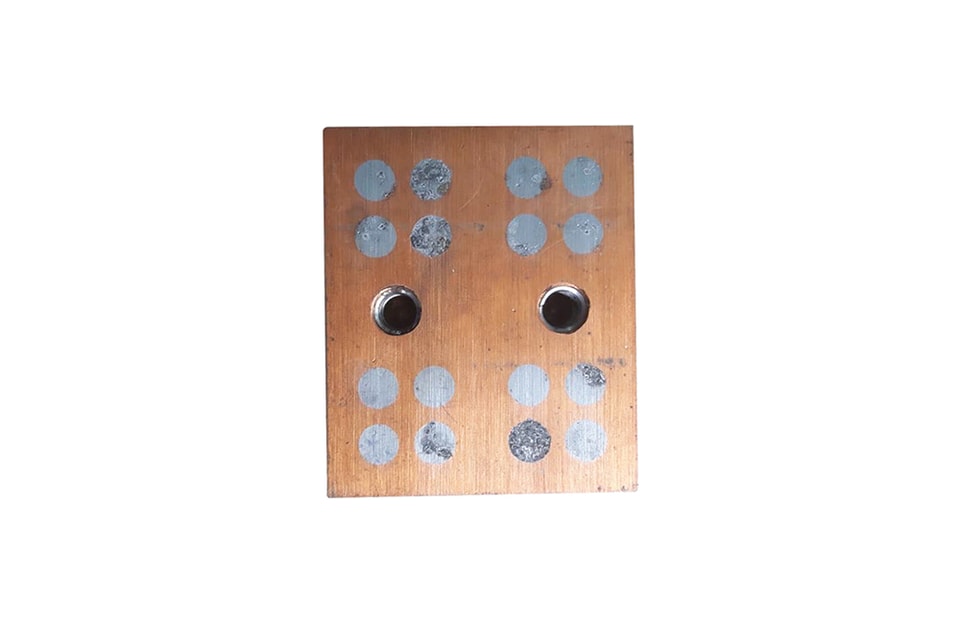

YZPST-C41 Water Cooled Resonant Capacitor
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
Characteristics
●Conduction water-cooled
● Polypropylene dielectric
● Low dissipation factor(tgδ),low ESL and low ESR
● High voltage, high frequency and high dv/dt
● High current resistance, excellent heat dissipation
|
| |
● Reference standards | GB/T 3984-2004 IEC 60110.1 | |
● Operating temperature range | -40℃～+85℃ | |
● Capacitance range | 0.1μF～85μF | |
● Rated capacitance | 100kVar-1500 kVar | |
● Rated voltage | 400VAC-1100VAC | |
● Tolerance | ±5% ±10% | |
● Test voltage between terminals | 1.5UNAC 10s | |
3.5UNDC 10s at 25℃±5℃ | ||
● Dissipation factor | tgδ≤5×10-4 at 25℃±5℃，1kHz | |
● Insulation resistance | R•C≥3000s，at 100VDC，25℃±5℃，60s | |
● Life expectancy | 100000h at UN and 70℃，30000h at Urms | |
