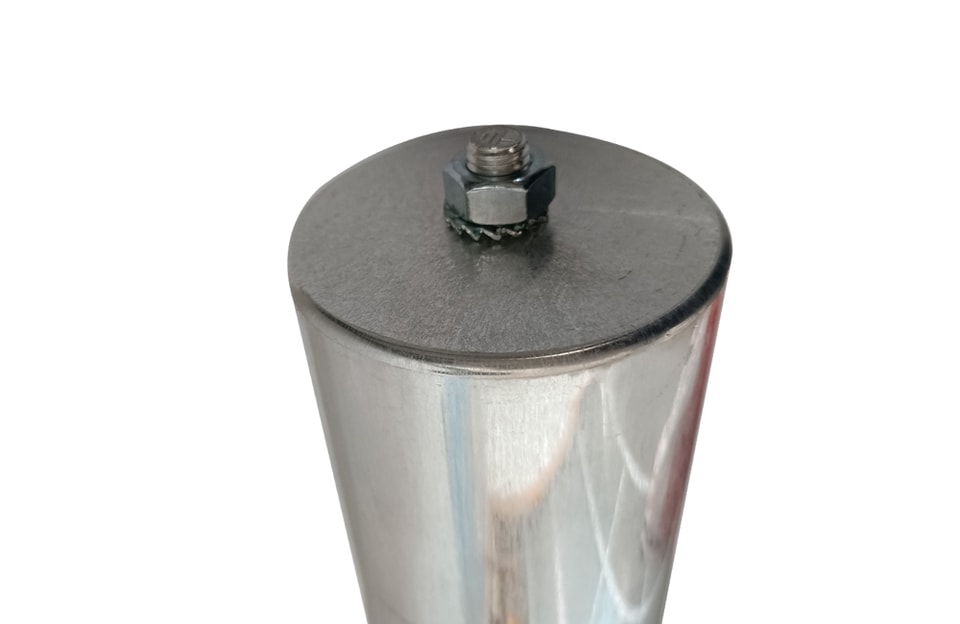

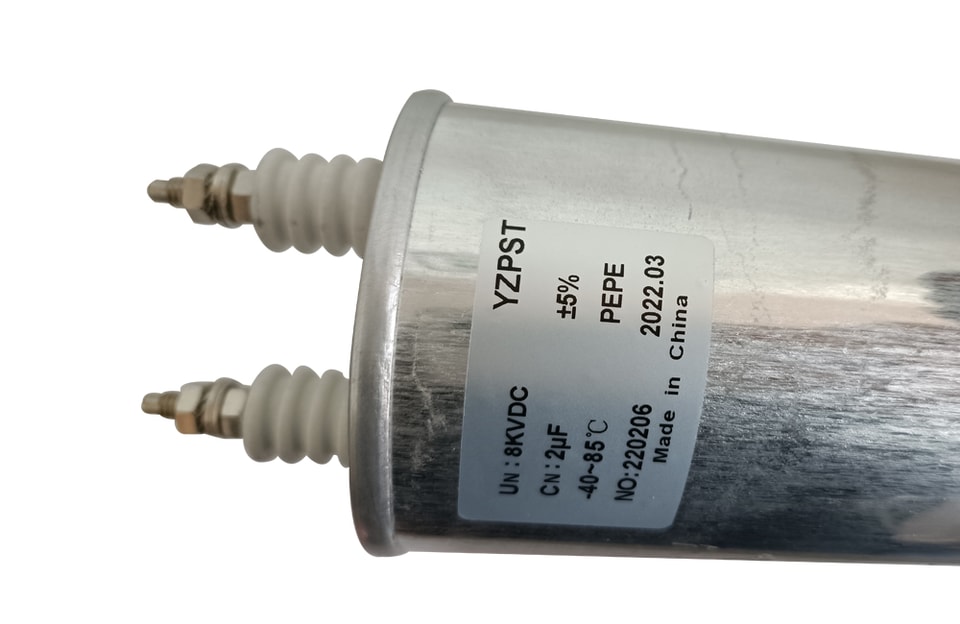

YZPST-2.0uF8000VDC High Voltage Discharge Capacitor

✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry

Tip: include the part number, target voltage/current and application environment.

DOCUMENT CENTER

Type:YZPST-2.0 µ F8000VDC

High Voltage Discharge Capacitor technical index

Standard	JB/T 8168-1999
Rated Voltage	8000VDC
Rated capacity	2µF
Capacity Tolerance within	±5%
Ambient temperature:
Min.running temp. Tmin	-40℃
Max.running temp.Tmax	+85℃
Relative humidity	≤95%
Altitude	≤1000m
Storage temperature	-25~60℃
Test Item:
AC Testing Voltage VTT	DC 1.2×UN ,1min
Voltage between terminal and
housing VTC	2×Ui +1000V, 10s(Ui = UN / 2 )
Insulation resistance
Rins
Discharge time τ ( Rins ×C )	1F : 3000M 1F : 3000s
Loss angle tan δ (1kHz)	≤0.0009
Sealing test	75℃ ±5℃ at constant temperature,4 hours
Discharge test between	without leakage
terminals	1.1 UN voltage , 10mins bear 5 times DC charging and discharging in polarity, Without breakdown and capacitance loss.
