Triacs sensitive gate

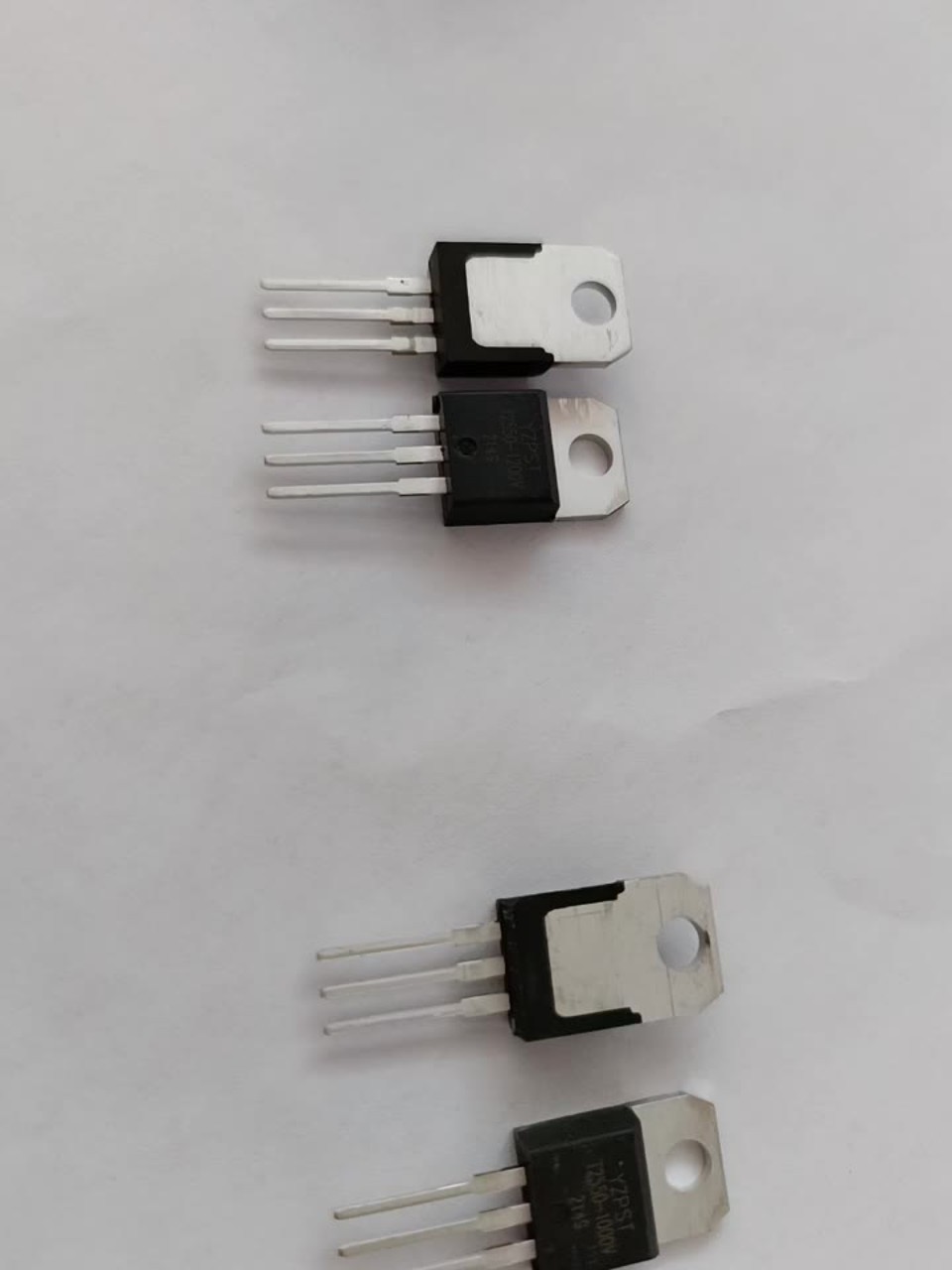

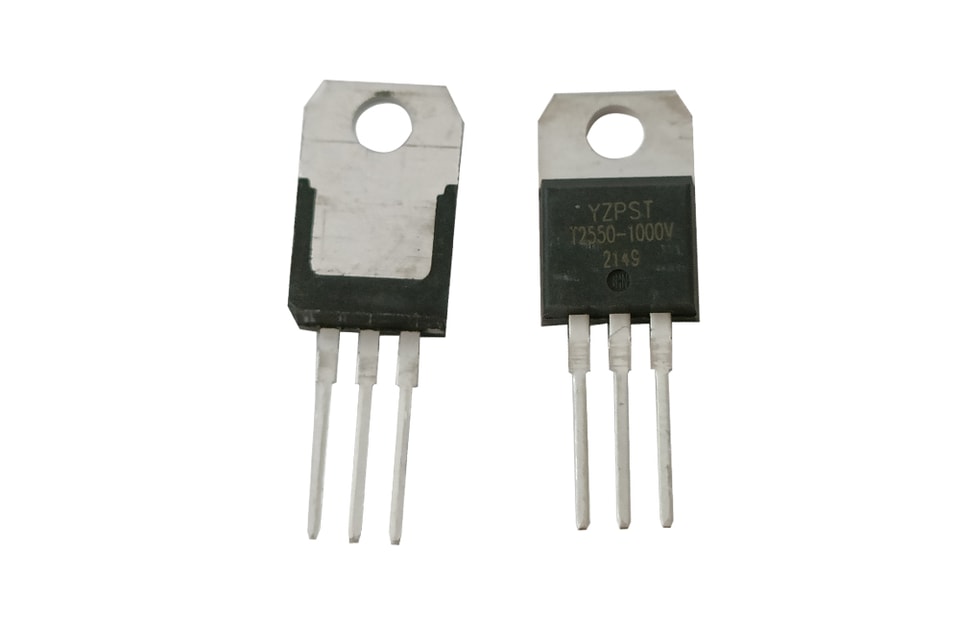

YZPST-T2550H-600T
GENERAL DESCRIPTION
Passivated, sensitive gate triacs in a plastic envelope, intended for use in general purpose bidirectional switching and phase control applications, where high sensitivity is required in all four quadrants.
ABSOLUTE MAXIMUM RATINGS ( Ta = 25℃ )
Parameter | Symbol | Typ | Unit |
Repetitive peak off-state voltages | VDRM VRRM | 600 | V |
RMS on-state current | IT(RMS) | 25 | A |
Non-repetitive peak on-state current | ITSM | 210 | A |
Max.Operating Junction temperature | Tj | ‐40‐‐+125 | ℃ |
Storage Temperature | Tstg | ‐40‐‐+150 | ℃ |
ELECTRICAL CHARACTERISTICS ( Ta = 25℃ )
Parameter | Symbol | Test Conditions | Min | Typ | Max | Unit | |
Repetitive peak off-state voltages | VDRM VRRM |
| 600 | — | — | V | |
RMS on-state current | IT(RMS) | Full sine wave : Tmb≤120℃ | — | 25 | — | A | |
On-state voltage | VT | IT=25A | — | 1.2 | 1.5 | V | |
Holding current | IH | VD = 12 V; IGT = 0.1 A | — | — | 50 | mA | |
Gate trigger current | T2+G+ |
IGT |
VD = 12 V; IGT = 0.1 A | — | 14 | 50 |
mA |
T2+G- | — | 28 | 50 | ||||
T2-G- | — | 25 | 50 | ||||
Latching current | T2+G+ |
IL |
VD = 12 V; IGT = 0.1 A | — | — | 90 |
mA |
T2+G- | — | — | 90 | ||||
T2-G- | — | — | 90 | ||||
Gate trigger voltage | VGT | VD = 12 V; IT = 0.1 A | — | — | 1.3 | V | |
For more information about YZPST-T2550H-600T please download the PDF file above named "YZPST-T2550H-600T "
