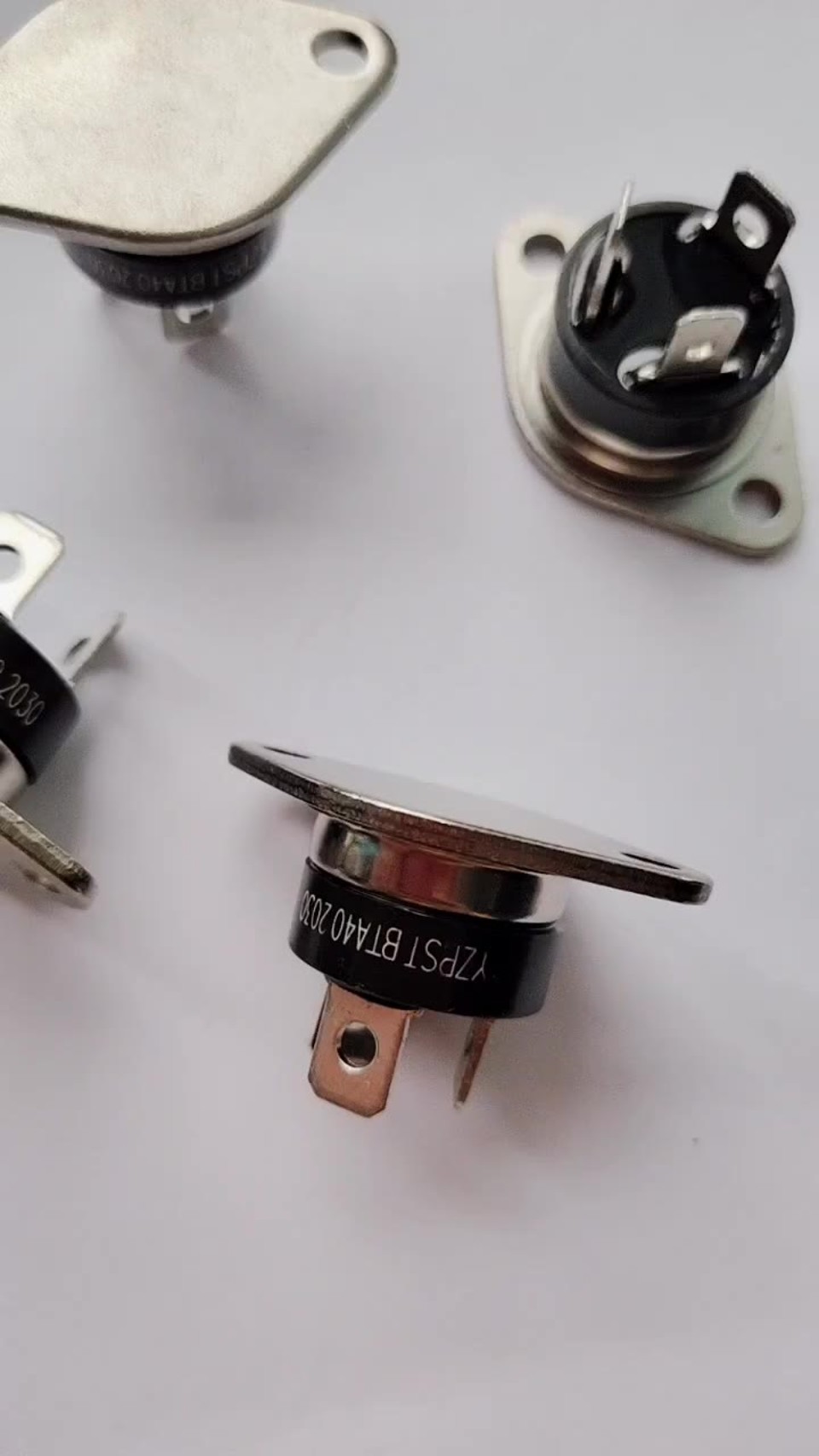

YZPST-BTA40
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
High commutation capability
Low thermal resistance with clip bonding

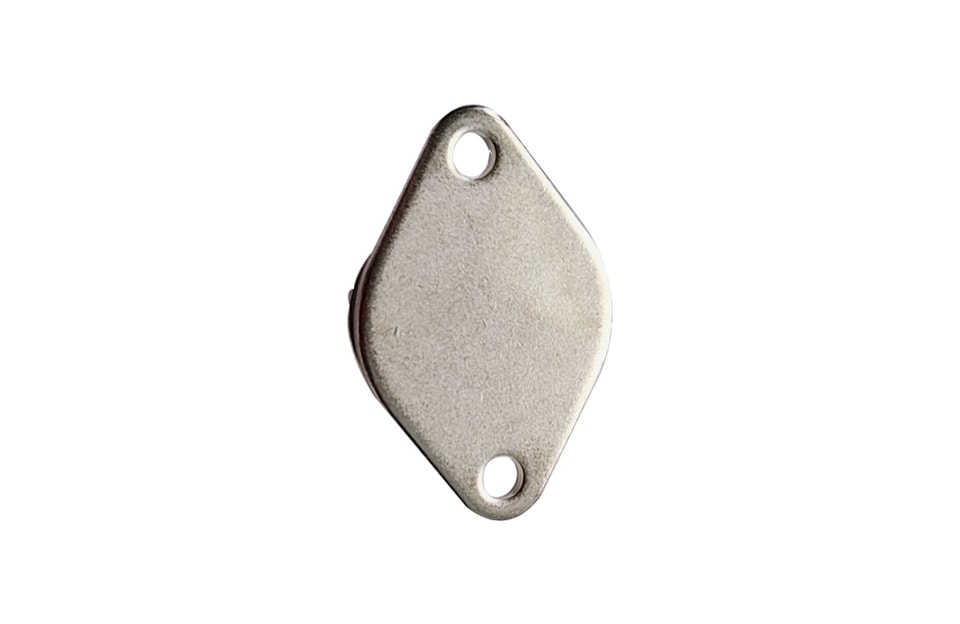

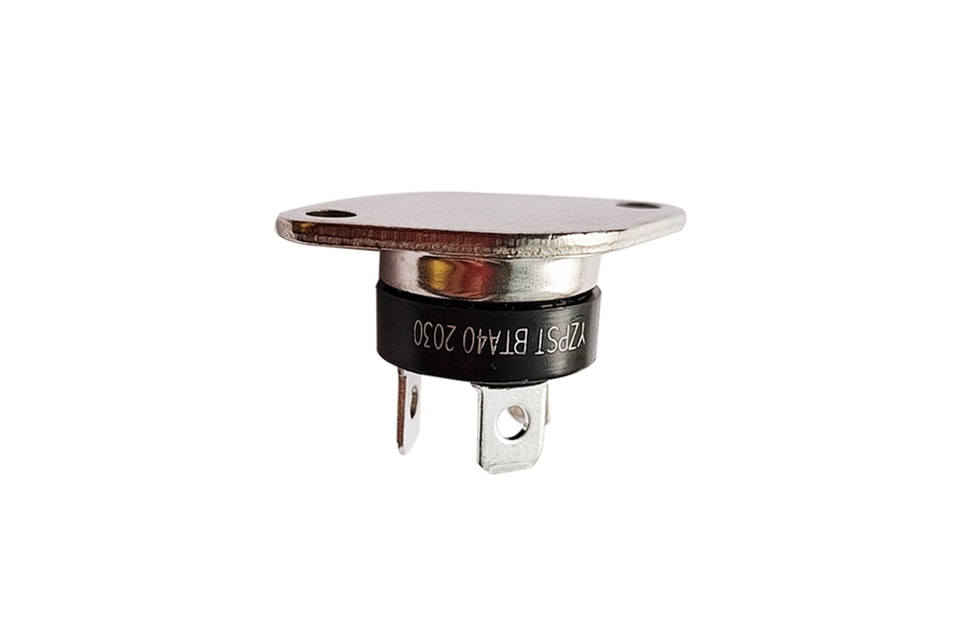

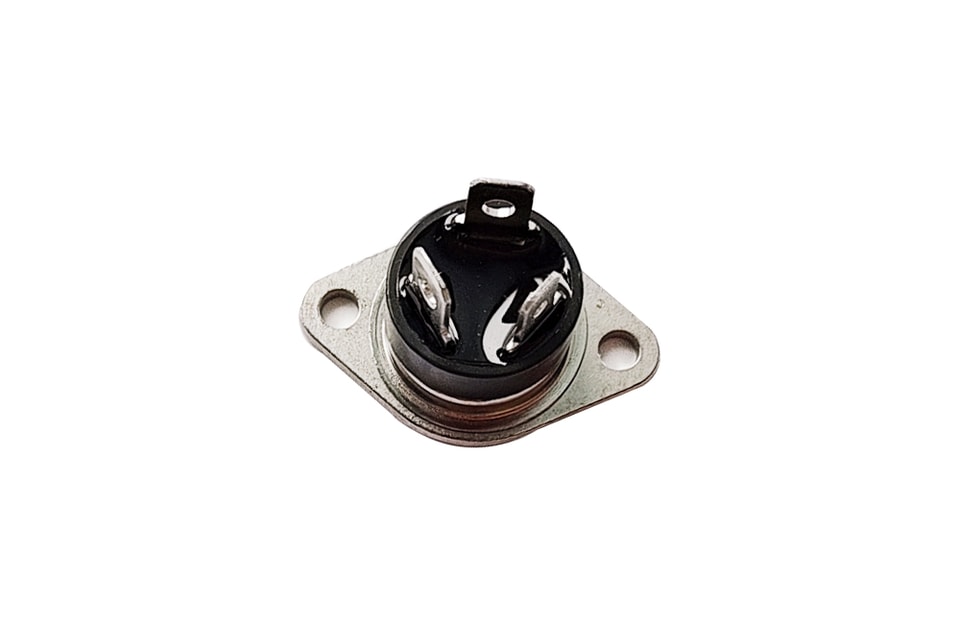

Insulated package RD91 high power:
-Low thermal resistance with clip bonding
-Insulated voltage: 2500 VRMS
| Symbol | Value | Unit |
IT(RMS) | 40 | A |
| VDRM /VRRM | 1000 | V |
VTM | 1.55 | V |
ABSOLUTE MAXIMUM RATINGS
Parameter | Symbol | Value | Unit | |
Storage junction temperature range | Tstg | -40-150 | °C | |
Operating junction temperature range | Tj | -40-125 | °C | |
Repetitive peak off-state voltage (Tj=25°C) | Vdrm | 1000 | V | |
Repetitive peak reverse voltage (Tj=25°C) | Vrrm | 1000 | V | |
Non repetitive surge peak Off-state voltage | Vdsm | Vdrm+100 | V | |
Non repetitive peak reverse voltage | Vrsm | Vrrm+100 | V | |
RMS on-state current | RD91 (T =80°C) | It(rms) | 40 | A |
Non repetitive surge peak on-state current (full cycle, F=50Hz) | Itsm | 400 | A | |
l2t value for fusing (tp=10ms) | l2t | 880 | A2s | |
Critical rate of rise of on-state current (Ig=2x|gt) | dl/dt | 50 | A/ps | |
Peak gate current | Igm | 4 | A | |
Average gate power dissipation | Pg(av) | 1 | W | |
