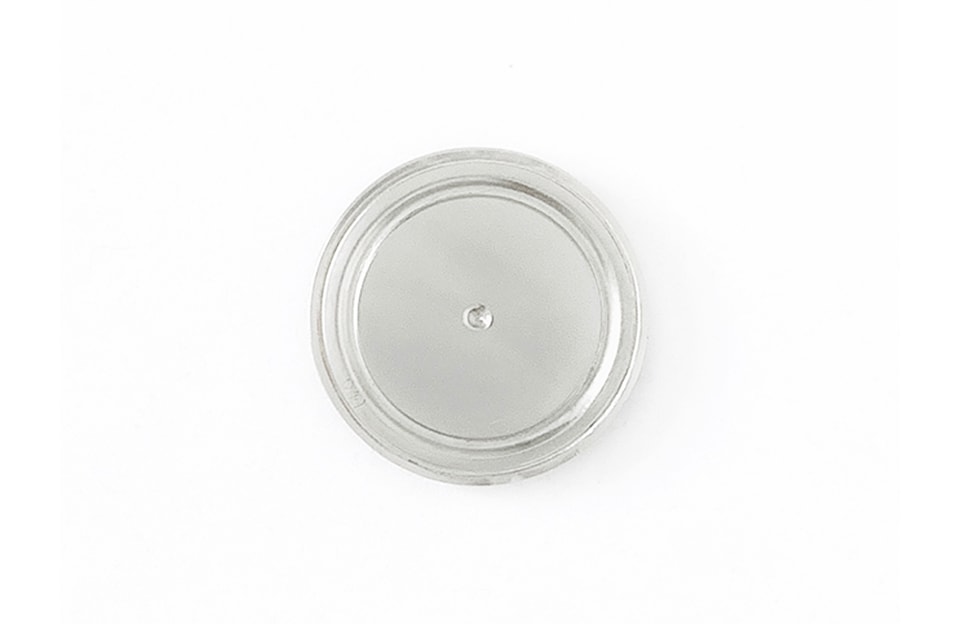

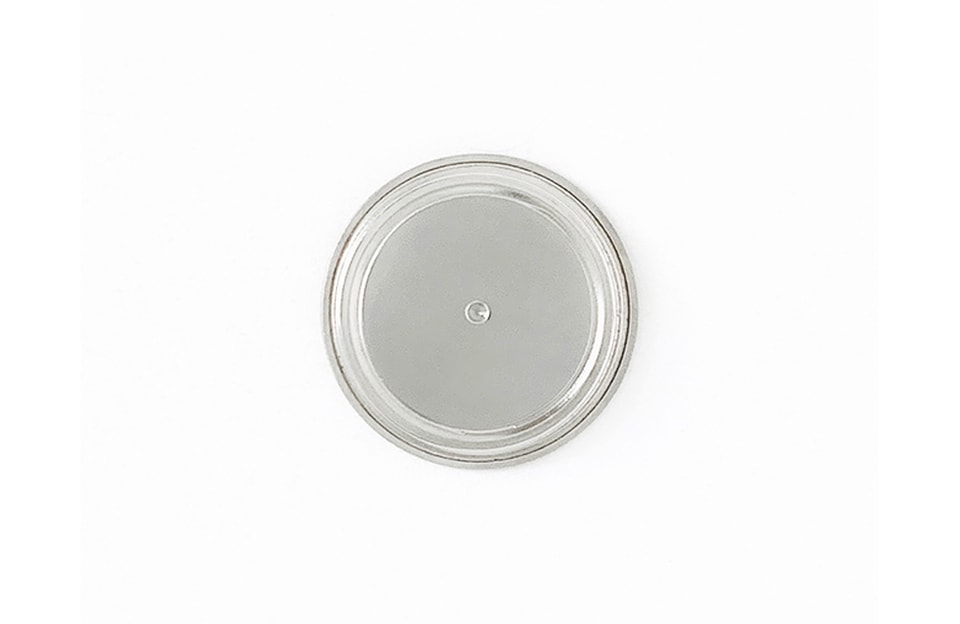

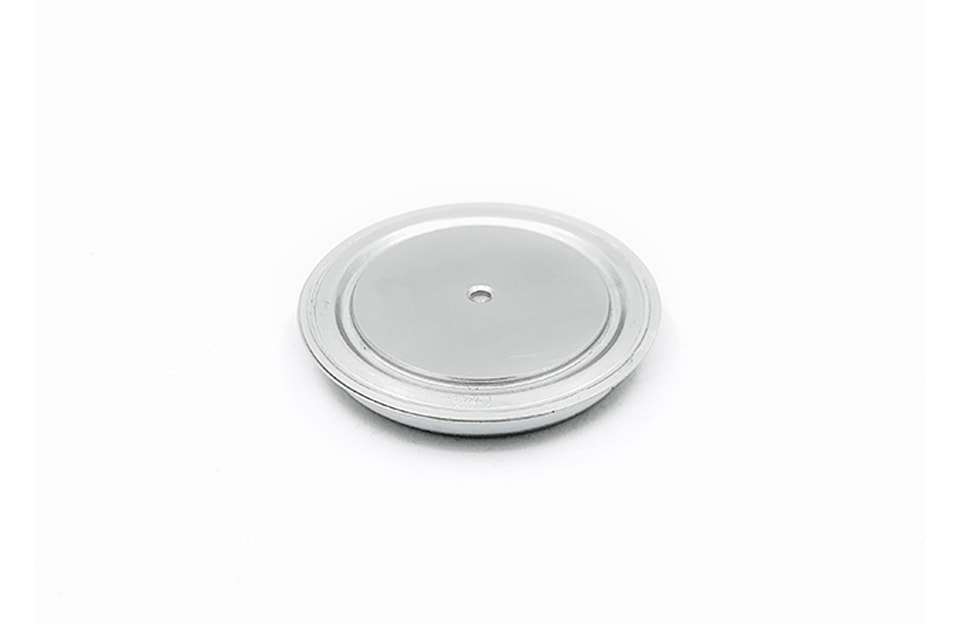

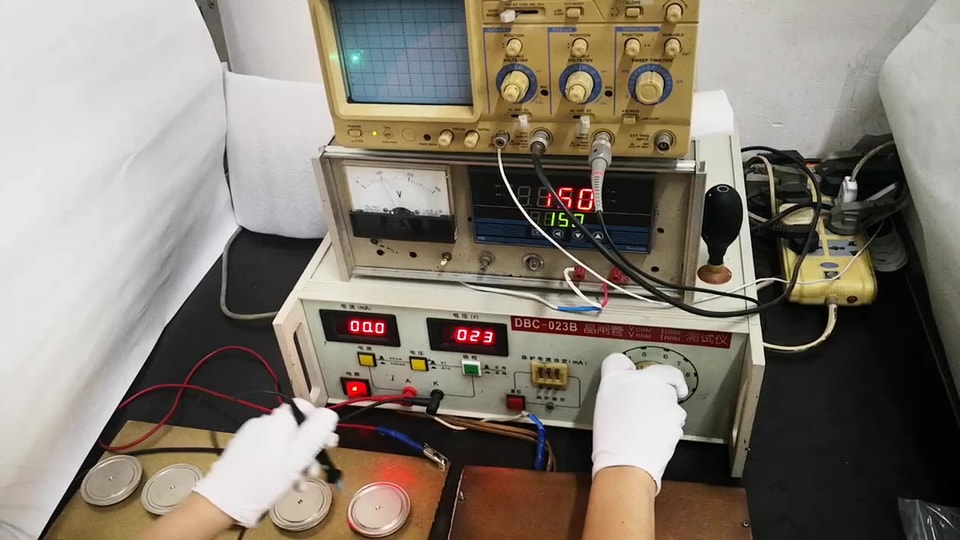

YZPST-ZP508LTS06 (8mm)
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
Features:
. All Diffused Structure
. High Surge rating
. Blocking capabilty up to 600 volts
. Rugged Ceramic Hermetic Package
. Pressure Assembled Device
Device Type | VRRM (1) | VRSM (1) |
ZP508LTS06
| 600 | 650 |
VRSM = Non repetitive peak reverse voltage (2)
Repetitive peak reverse leakage | IRRM | 75 mA (3) |
All ratings are specified for Tj=25 oC unless otherwise stated.
(1) All voltage ratings are specified for an applied 50Hz/60zHz sinusoidal waveform over the temperature range -40 to +190 oC.
(2) 10 msec. max. pulse width
(3) Maximum value for Tj = 190oC.
(4) See parameter definition below :
Parameter | Symbol | Min. | Max. | Typ. | Units | Conditions |
Average value of on-state current | IF(AV) | 6000 | A | Sinewave,180o conduction,Tsink=55 oC | ||
Peak one cycle surge
(non repetitive) current
| IFSM |
55000
| A | 10.0 msec,VR<60%VRRM Tvjmax | ||
Peak on-state voltage | VFM | 1.10 | V | IFM = 4500A; Tj = 190 oC | ||
Forward conduction thresheld voltage | Vo | 0.826 | V | Tj = 190 oC | ||
Forward conduction slope resistance | r | 0.052 | mΩ | Tj = 190 oC |
* For guaranteed maximum values, contact factory
Parameter | Min. | Max. | Typ. | Units | Conditions | ||
Operating temperature | Tj | -40 | +190 | oC | |||
Storage temperature | Tstg | -40 | +190 | oC | |||
Thermal resistance - junction to sink | RQ (j-hs) | 0.015 | oC/W | Double side cooled | |||
Mounting force | P | 19 | 26 | kN | |||
Weight | W | 140 | g | ||||
* Mounting surfaces smooth, flat and greased
YZPST can provide Following Equivalent List of Welding Diodes (Capsule Types)
| Type | IF(AV) @TC= 85°C | VRRM | IRRM (max )7 &Tj= | V(TO) Tjmax | RT Tjmax | Tjmax | Rthjc | F±10% |
| Tjmax | ||||||||
| A | V | mA | V | mQ | °C | K/W | KN | |
| 6000N40 | 7100 | 200-600 | 50 | 0.7 | 0.029 | 170 | 0.01 | 28 |
