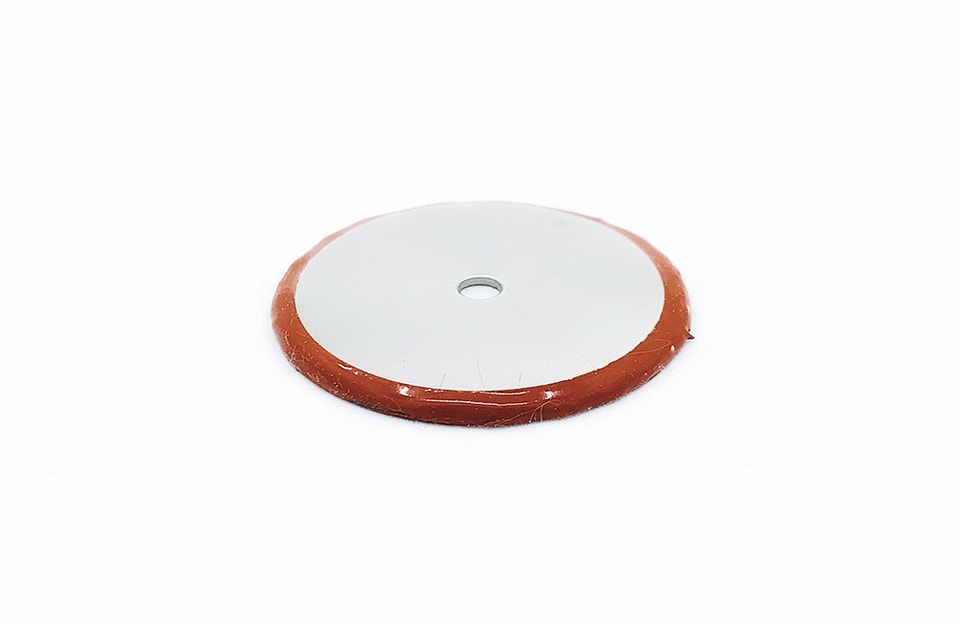

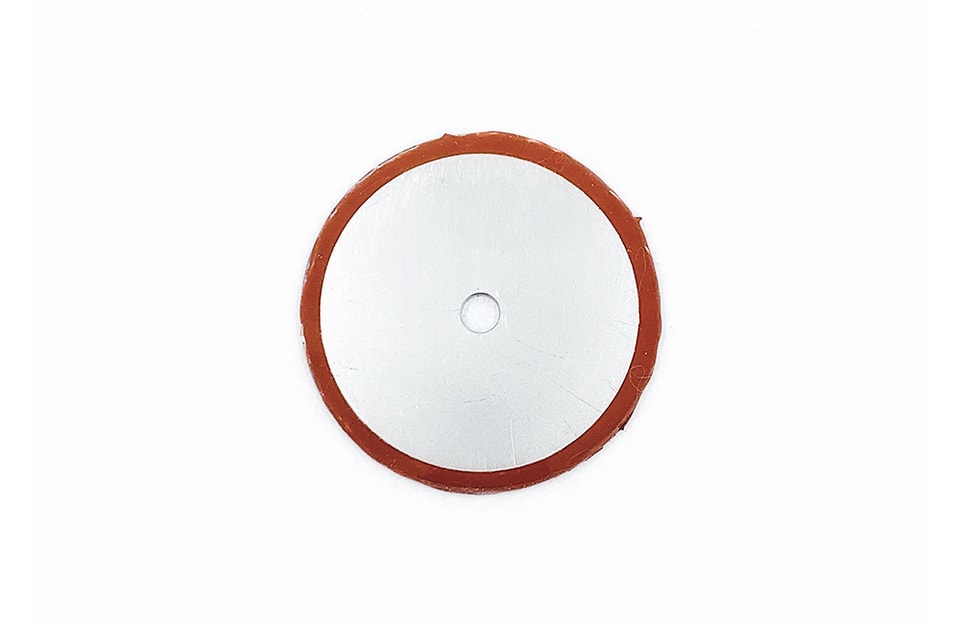

YZPST-65N06 (5mm)

VOLTAGE RATINGS

MAXIMUM

LIMITS

UNITS

V_RRM

Repetitive peak reverse voltage, T_j=170℃

600

V

V_RSM

Non-repetitive peak reverse voltage, T_j=170℃

650

V

OTHER RATINGS

MAXIMUM

LIMITS

UNITS

I_F(AVM)

Maximum average forward current, T_j=85℃

16000

A

I_F(RMS)

Nominal RMS forward current, T_j=85℃

23247

A

I_FSM

Peak non-repetitive surge t_p=10ms, T_j=170℃

90

kA

I²t

I²t capacity for fusing t_p=10ms, T_j=170℃

3.8E+07

A²s

T_jop

Operating temperature range

-40 to +170

℃

T_stg

Storage temperature range

-40 to +170

℃

PARAMETER

MIN.

TYP.

MAX.

TEST CONDITIONS

UNITS

V_FM

Maximum peak forward, T_j=170℃

-

-

0.91

I_FM=6000A

V

V_(T0)

Threshold voltage T_j=170℃

-

-

0.72

V

r_T

Slope resistance T_j=170℃

-

-

0.017

mΩ

I_RRM

Peak reverse current

-

-

50

Rated V_RRM, T_j=170℃

mA

10

Rated V_RRM, T_j=25℃

Q_rr

Recovered charge

-

-

600

I_F=1000A, di/dt=-30A/μs V_r=100V

μC

I_rm

Reverse recovery current

-

-

-

V_r=50V, 50% Chord.

A

t_rr

Reverse recovery time, 50% Chord

-

-

-

I_FM=400A

diR/dt = 25 A/μs

μs

R_thJK

Thermal resistance, junction to case

-

-

3.8

Double side cooled

K/KW

-

Single side cooled

F

Mounting force

35

70

kN

W_t

Weight

-

170

-

g
