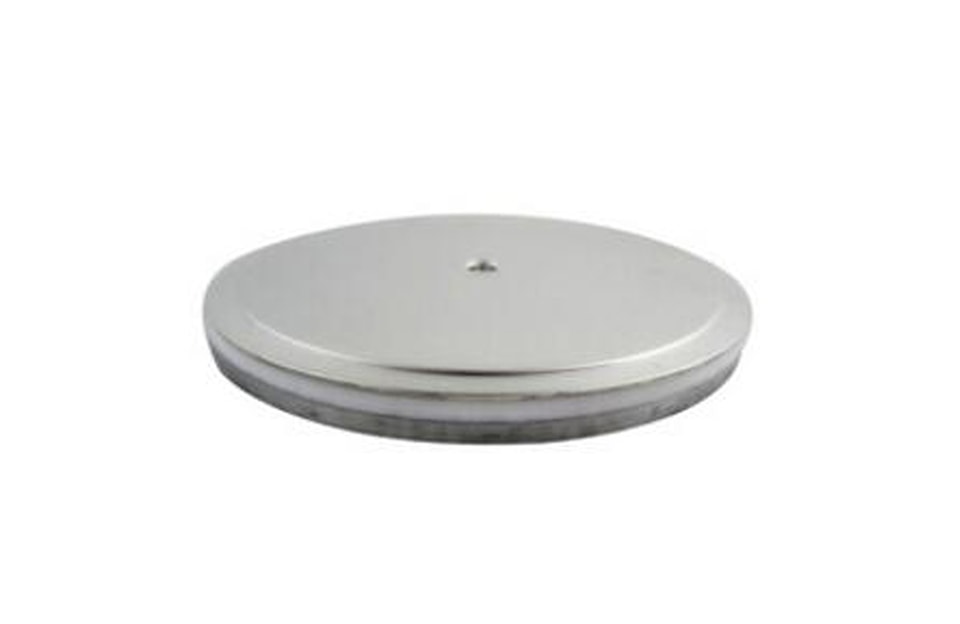

YZPST-ZP11000A200-400V
✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry
EmailTechnical sales
PhoneContact team
Tip: include the part number, target voltage/current and application environment.
DOCUMENT CENTER
Downloads & technical files
http://www.youtube.com/channel/UCZ3mV8GmGNcX4WcYEoWX-_g/featured
Features：
● High density current
● High surge current
● Both side cooling
Typical applications：
Welding machine
Electric chemistry
Datasheet ：
Sym. | Condition | Value | Units |
VRRM | VRSM= VRRM+50V | 200-400 | V |
IRRM | 25℃, VRM=VRRM | 5(max) | mA |
IRRM | 175℃, VRM=VRRM | 30(max) | mA |
IF(AV) | 180°,half sine wave，50Hz | 11000 | A |
VFM | 25℃, IFM=6000A,F=20kN | 1.12 | V |
Tjm |
| 175 | ℃ |
Tstg |
| -40～175 | ℃ |
F |
| 35-40 | KN |
Outline：
YZPST can provide Following Equivalent List of Welding Diodes (Capsule Types)
| Type | IF(AV) @TC= 85°C | VRRM | IRRM (max )7 &Tj= | V(TO) Tjmax | RT Tjmax | Tjmax | Rthjc | F±10% |
| Tjmax | ||||||||
| A | V | mA | V | mQ | °C | K/W | KN | |
| 6000N40 | 7100 | 200-600 | 50 | 0.7 | 0.029 | 170 | 0.01 | 28 |
For more information about Welding Diode please download the PDF file above named " YANGZHOU POSITIONING TECH CO Power thyristor and diode parts "
