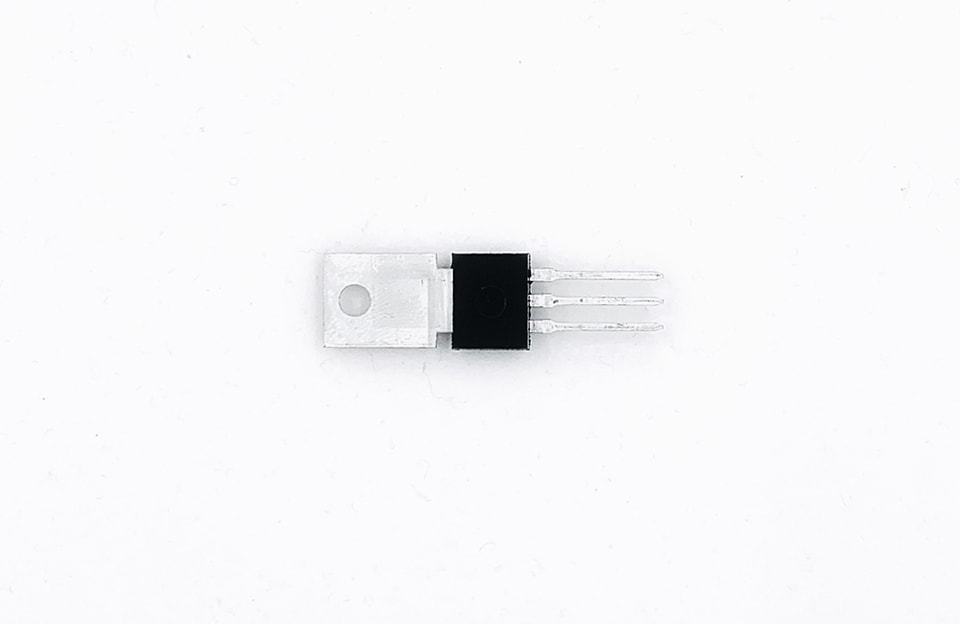

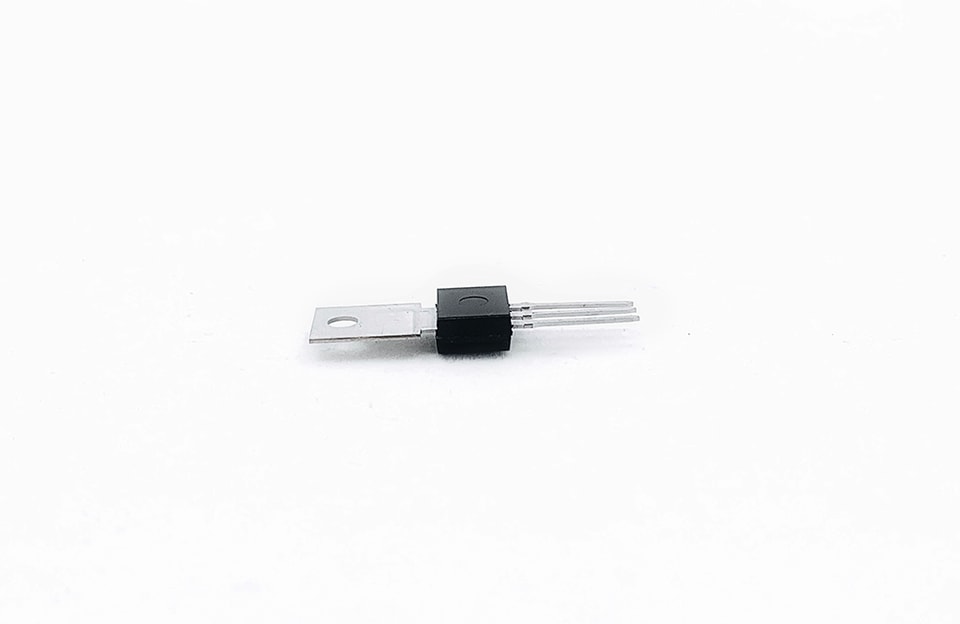

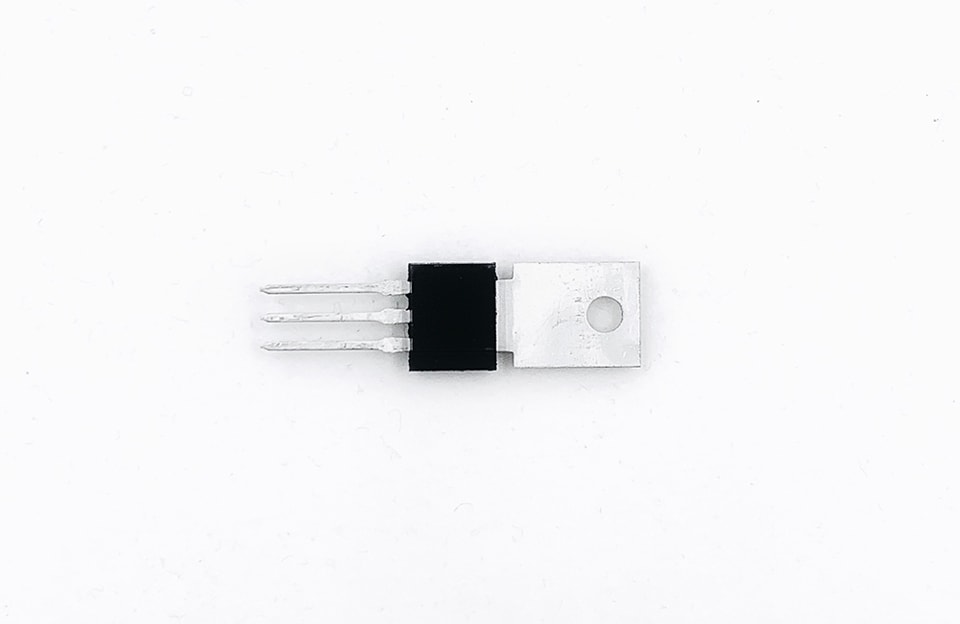

YZPST-X0405(With Heatsink)
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
Thanks to highly sensitive triggering levels, the X0405 SCR series is suitable for all applications where the available gate current is limited, such as ground fault circuit interruptors, over voltage crowbar protection in low power supplies, capacitive ignition circuits.
Symbol | Value | Unit |
IT(RMS) | 4.0 | A |
VDRM VRRM | 600 | V |
IGT | 200 | µA |
Parameter | Symbol | Value | Unit |
Storage junctiontemperature range | Tstg | -40 ~150 | ℃ |
Operating junction temperature range | Tj | -40~125 | ℃ |
Repetitive peak off-state voltage (T =25℃) | VDRM | 600 | V |
Repetitive peak reverse voltage (T =25℃) | VRRM | 600 | V |
Non repetitive surge peak Off-state voltage | VDSM | VDRM +100 | V |
Non repetitive peak reverse voltage | VRSM | VRRM +100 | V |
RMS on-state current (T =60℃) | IT(RMS) | 4.0 | A |
Non repetitive surge peak on-state current
(180° conduction angle, F=50Hz)
| ITSM | 30 | A |
Average on-state current (180° conduction angle) | IT(AV) | 2.5 | A |
I2t value for fusing (tp=10ms) | I2t | 4.5 | A2S |
Critical rate of rise of on-state current
(I =2×IGT, tr ≤ 100 ns)
| dI/dt | 50 | A/μS |
Peak gate current | IGM | 1.2 | A |
Average gate power dissipation | PG(AV) | 0.2 | W |
Symbol | Test Condition | Value | Unit | |
IGT | V =12V R =140Ω | MAX. | 200 | µA |
VGT | MAX. | 0.8 | V | |
VGD | VD=VDRM Tj=125℃ R=1KΩ | MIN. | 0.1 | V |
IL | IG=1.2IGT | MAX. | 6 | mA |
IH | IT=50mA | MAX. | 5 | mA |
dV/dt | VD=2/3VDRM Gate Open Tj=125℃ | MIN. | 15 | V/μs |
STATIC CHARACTERISTICS
Symbol
| Parameter | Value(MAX.) | Unit | |
VTM | ITM =8.0A tp=380μs | Tj =25℃ | 1.8 | V |
IDRM | VD=VDRM VR=VRRM | Tj =25℃ | 5 | μA |
IRRM | Tj =125℃ | 1 | mA | |
Thermal Resistances
| Symbol | Parameter | Value(MAX.) | Unit |
Rth(j-a) | junction to ambient | 60 | ℃/W |
Rth(j-t) | Junction to tab (DC) | 20 |
Ordering information scheme
