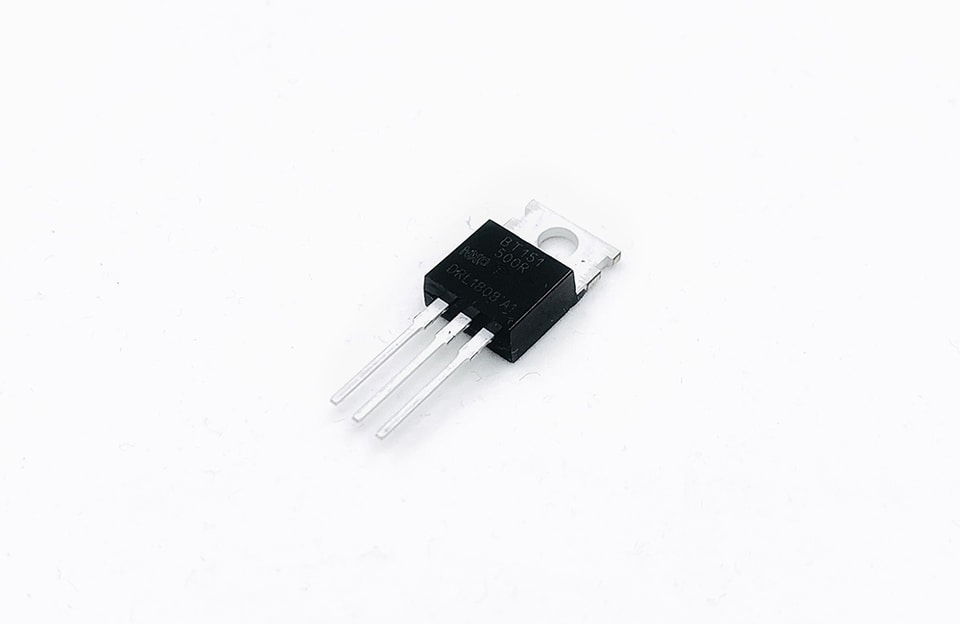

YZPST-BT151
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
Main Feature (Tj=25℃)
Symbol | Value | Unit |
IT(AV) | 7.5 | A |
VDRM / VRRM | ≥ 600 | V |
IGT | 1 to 20 | mA |
Symbol | Parameter | Value | Unit |
IT(RMS) | RMS on-state current (180°conduction angle) | 12 | A |
IT(AV) | AV on-state current (180°conduction angle) | 7.5 | A |
ITSM |
Non repetitive surge peak on-state
Current (tp=10ms)
| 100 | A |
I2t | (tp=10ms) | 50 | A2S |
IGM | Peak gate current(tp=20us) | 2 | A |
PGM | Peak gate power | 5 | W |
PG(AV) | Average gate power | 0.5 | W |
Tstg
Tj
|
Storage temperature
Operating junction temperature
|
-40--+150
-40--+125
| ℃ |
Symbol | Parameter | Value | Unit |
Rth (j-c) | Junction to case | 1.3 | K/W |
Rth (j-a) | Junction to ambient | 60 | K/W |
Symbol | Test Conditions | Value | Unit | |||
Min | Type | Max | ||||
IGT | VD=6V, RL=100Ω | 1 | 5 | 20 | uA | |
VGT | VD=12V, RL=100Ω | ----- | 0.7 | 0.8 | V | |
VGD | VD=VDRM, RL=3.3KΩ Tj=110℃ | 0.2 | ----- | ----- | V | |
IH | IT=100mA Gate Open | ----- | 9 | 20 | mA | |
dV/dt | VD=67%VDRM, GateOpen, Tj=125℃ | 50 | 125 | ----- | v/μs | |
VTM | IT=16A,tp=380μs | ----- | ----- | 1.7 | V | |
IDRM
IRRM
|
VD=VDRM
VR=VRRM
| Tj=25℃ | ----- | ----- | 20 | uA |
Tj=110℃ | ----- | ----- | 300 | uA | ||

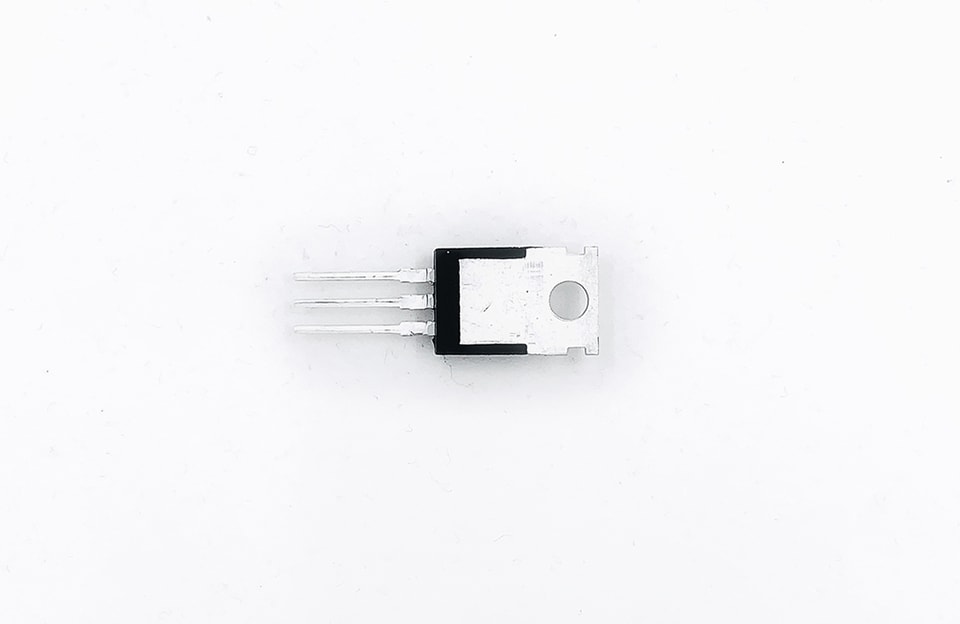

- Measure of package (TO-220E)
- Electrocircuit
- Electrocircuit
