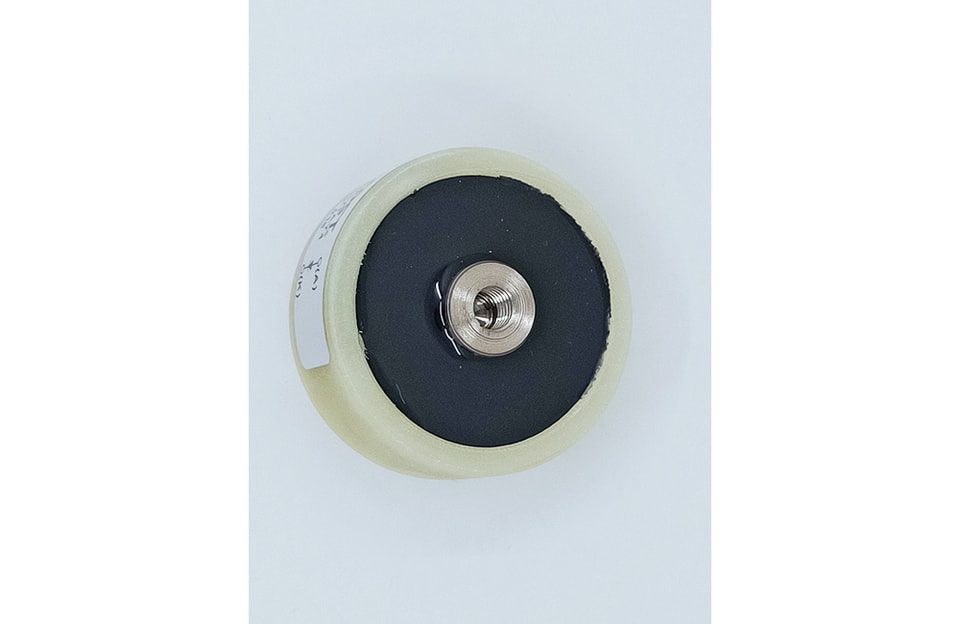

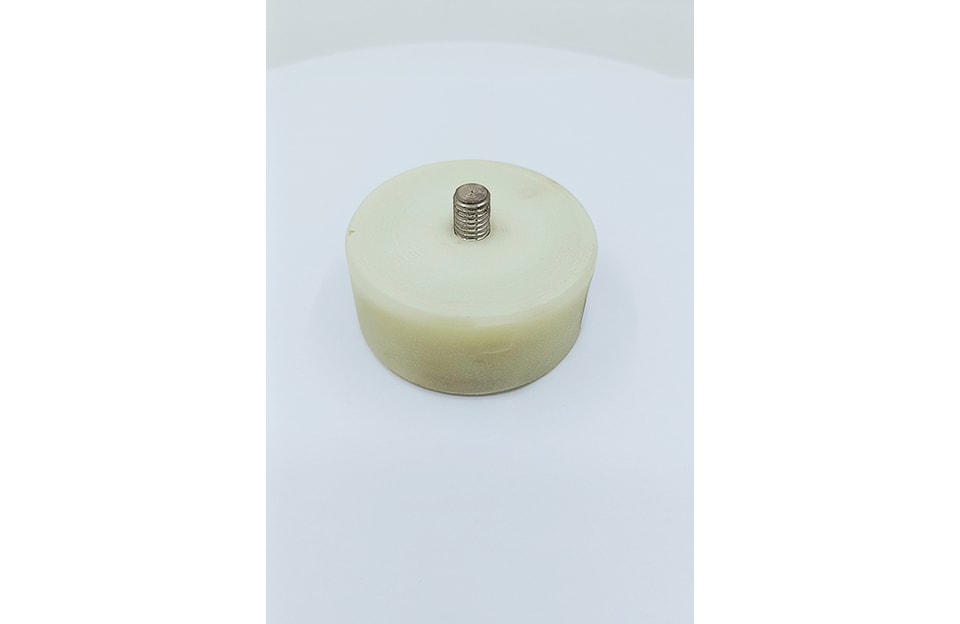

YZPST-UGE0421AY4

STANDARD RECOVERY DIODE APPLICATIONS

Features:
Wide current range
High surge current capabilities
Stud cathode and stud anode version
Typical Applications:
Converters
Power supplies
Machine tool controls
Battery charges
Forward Conduction

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Repetitive peak reverse voltage	VRRM	3200			V
Non repetitive peak reverse voltage	VRSM	3300			V
Max. average forward current	IF(AV)M		10.9		A	Sinewave,180^o conduction,T_c=45^oC
Max. RMS forward current	IF(RMS)		40		A	Nominal value
Max. peak, one-cycle forward, non-repetitive surge current	IFSM		250		A	10.0 msec (50Hz), sinusoidal wave- shape, 180^o conduction, T_j = 150 ^oC
Maximum I²t for fusing	I²t		-		A²s
Max. forward voltage drop	VFM		2.72		V	I_TM = 55A; T_vj=25℃
Threshold voltage	VF0		1.7		V

Thermal and Mechanical Specifications

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Operating temperature	T_j	-40	+150		oC
Storage temperature	Tstg	-40	+150		oC
Thermal resistance - junction to case	RQ (j-c)		-		K/W
Thermal resistamce - case to heatsink	RQ (c-s)		-		K/W
Mounting force	P	-	8		Nm	± 10%
Weight	W	-	-	115	g
Case style				-		See Outline Table
