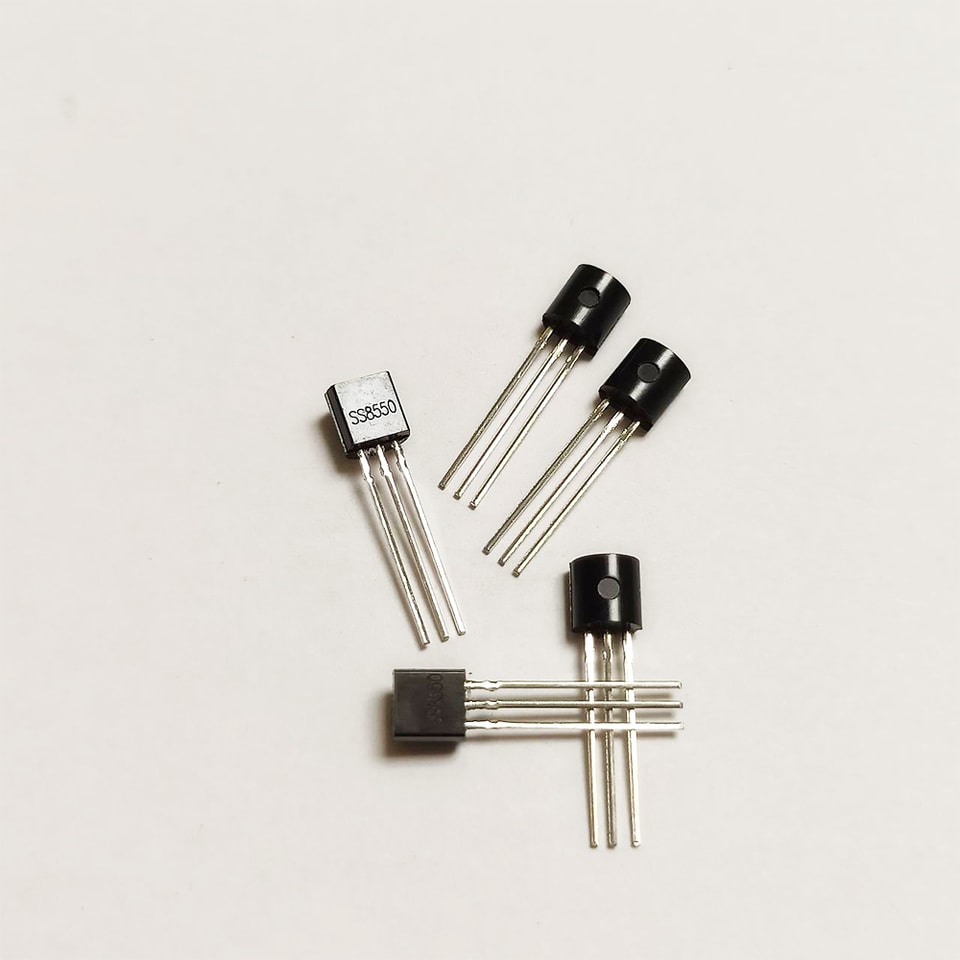

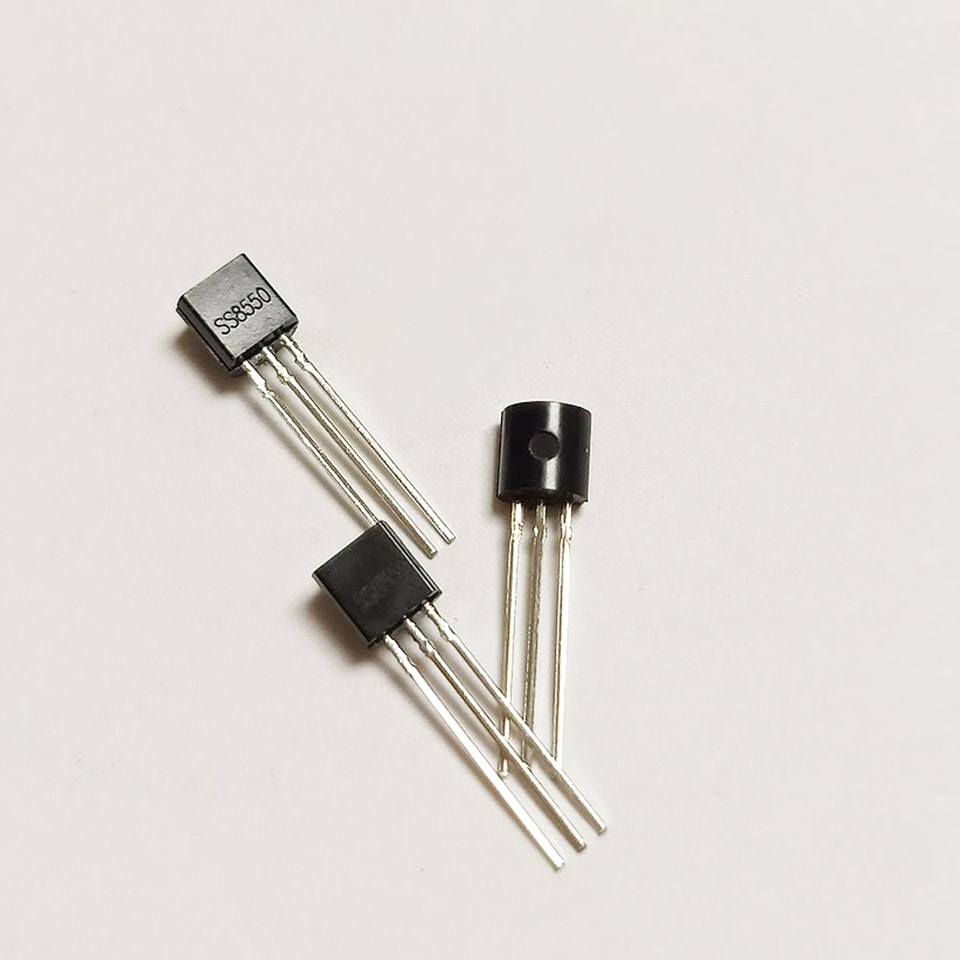

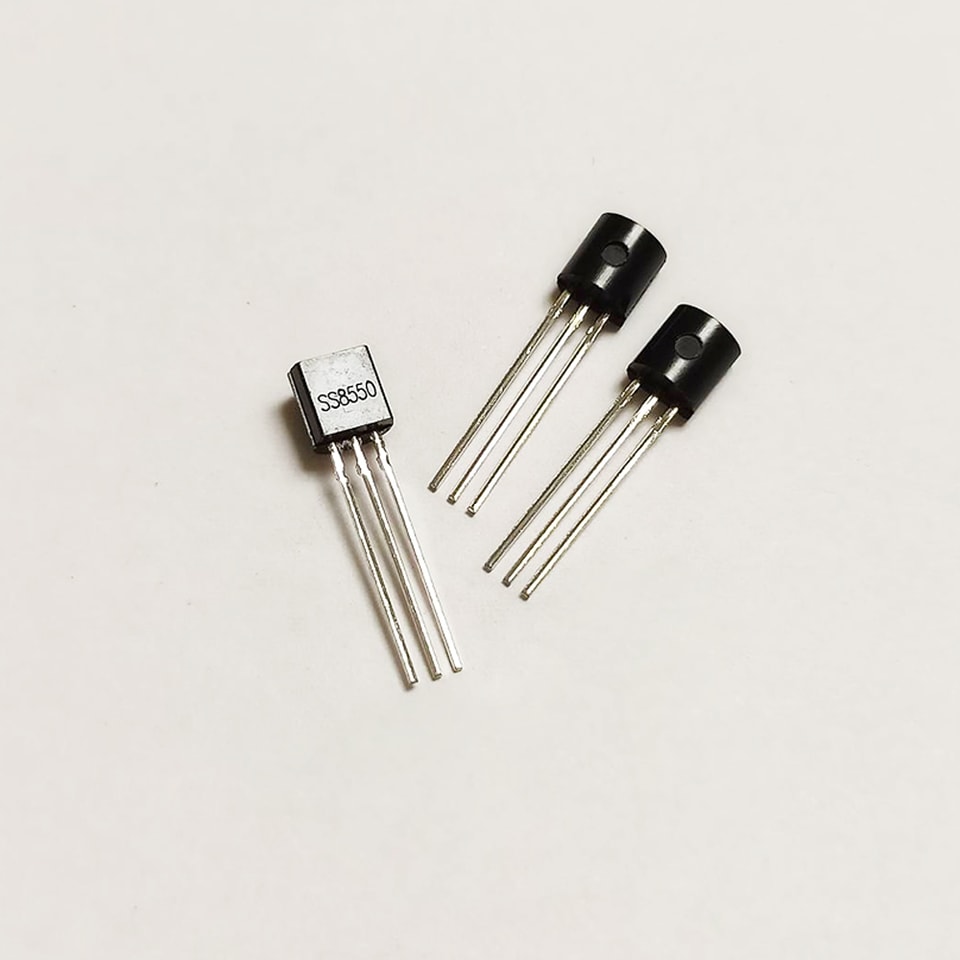

YZPST-SS8550
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files

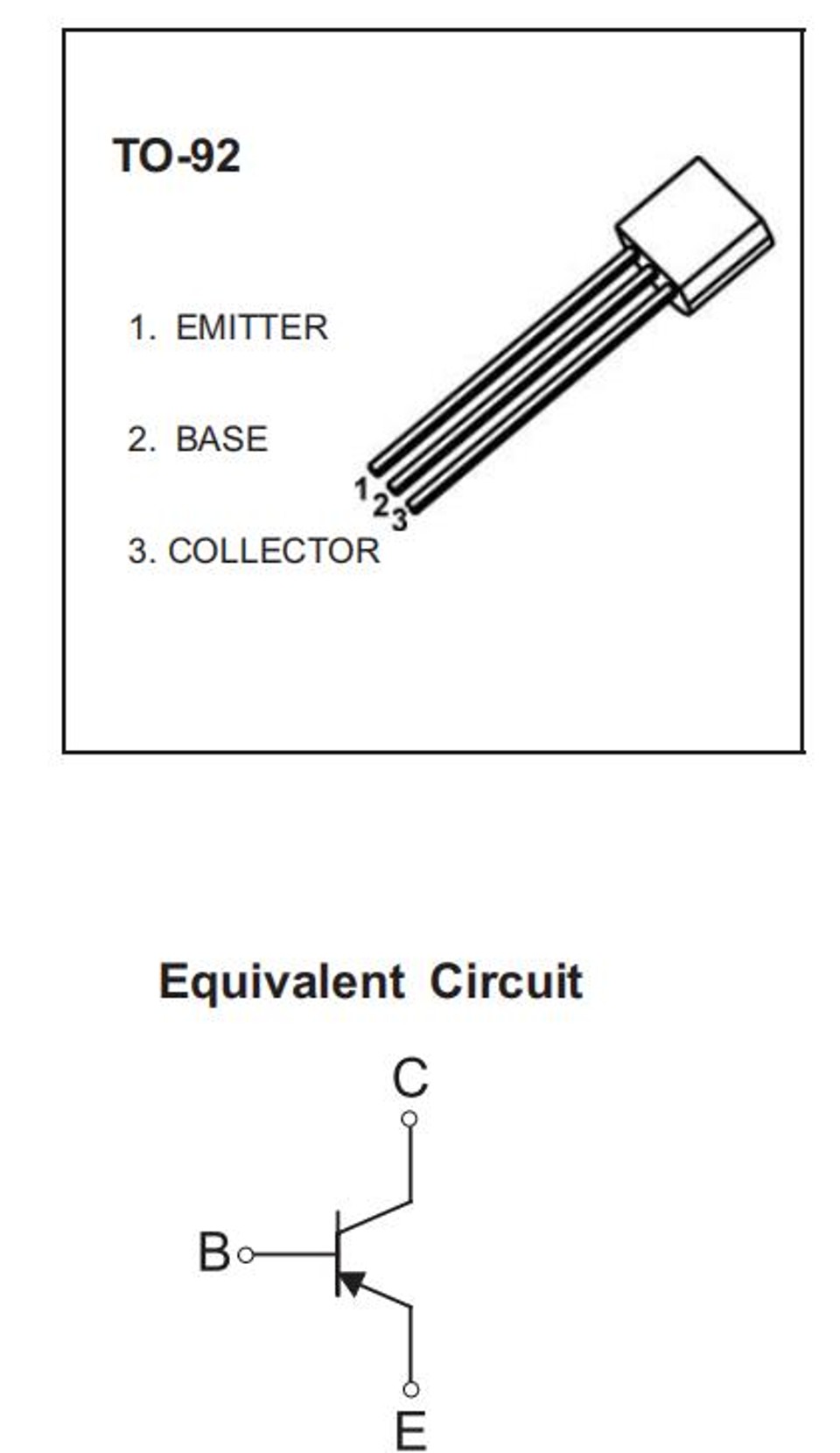

TO-92 Plastic-Encapsulate Transistors
YZPST-SS8550 TRANSISTOR (PNP)
FEATUREs
Power dissipation
PC :1W (Ta=25 ℃)
ORDERINGINFORMATION
PartNumber | Package | PackingMethod | PackQuantity |
SS8550 | TO-92 | Bulk | 1000pcs/Bag |
SS8550-TA | T0-92 | Tape | 2000pcs/Box |
MAX1MUMRAT1NGs(Ta=25℃ unlessotherwise noted)
symbol | Parameter | Value | Unit |
VCBO | Collector-Base Voltage | -40 | V |
VCEO | Collector-Emitter Voltage | -25 | V |
VEBO | Emitter-Base Voltage | -5 | V |
IC | Collector Current -Continuous | - 1.5 | A |
PD | Collector Power Dissipation | 1000 | mW |
R θ JA | Thermal Resistance f rom Junction to Ambient | 125 | ℃ / W |
TJ,Tstg | Operation Junction and Storage Temperature Range | -55 -＋150 | ℃ |
Ta=25 ℃ unless otherwise specified
| Parameter | symbol | Test | Min | Typ | Max | Unit |
| conditions | ||||||
| Collector.base | V(BR)CBO | IC=- 100uA, IE=0 | -40 | V | ||
| breakdown | ||||||
| voltage | ||||||
| Collector.emitter | V(BR)CEO | IC=-0. 1mA, IB=0 | -25 | V | ||
| breakdown voltage | ||||||
| Emitter.base | V(BR)EBO | IE=- 100uA, IC=0 | -5 | V | ||
| breakdown | ||||||
| voltage | ||||||
| Collector | ICBO | VCB=-40V, IE=0 | -0. 1 | uA | ||
| cut.off | ||||||
| current | ||||||
| Emitter | ICEO | VCE=-20V, IE=0 | -0. 1 | uA | ||
| cut.off | ||||||
| current | ||||||
| Emitter | IEBO | VEB=-5V, IC=0 | -0. 1 | uA | ||
| cut.off | ||||||
| current | ||||||
| DC | hFE(1) | VCE=- 1V, IC=- 100mA | 85 | 400 | ||
| current | ||||||
| gain | hFE(2) | VCE=- 1V, IC=-800mA | 40 | |||
| Collector.emitter | VCE(sat) | IC=-800mA, IB=-80mA | -0.5 | V | ||
| saturation | ||||||
| voltage | ||||||
| Base.emitter | VBE(sat) | IC=-800mA, IB=-80mA | -1.2 | V | ||
| saturation voltage | ||||||
| Base.emitter | VBE(on) | VCE=- 1V, IC=- 10mA | -1 | V | ||
| voltage | ||||||
| out | Cob | VCB=- 10V, IE=0mA,f=1MHZ | 20 | pF | ||
| capacitance | ||||||
| Transition | fT | VCE=- 10V, IC=-50mA,f=30MHZ | 100 | MHz | ||
| frequency |

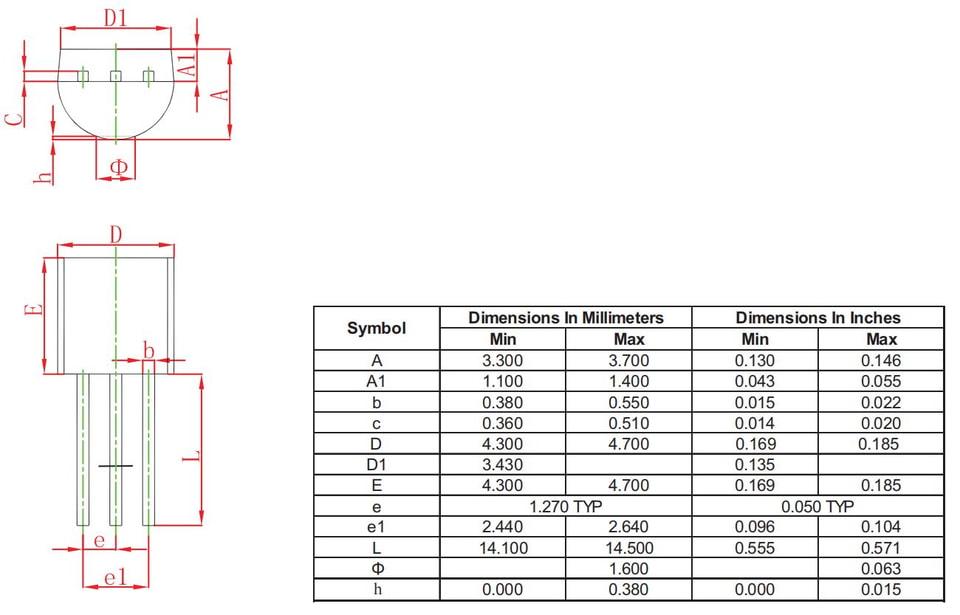

To.92 PackageoutlineDimensions
.jpg)
