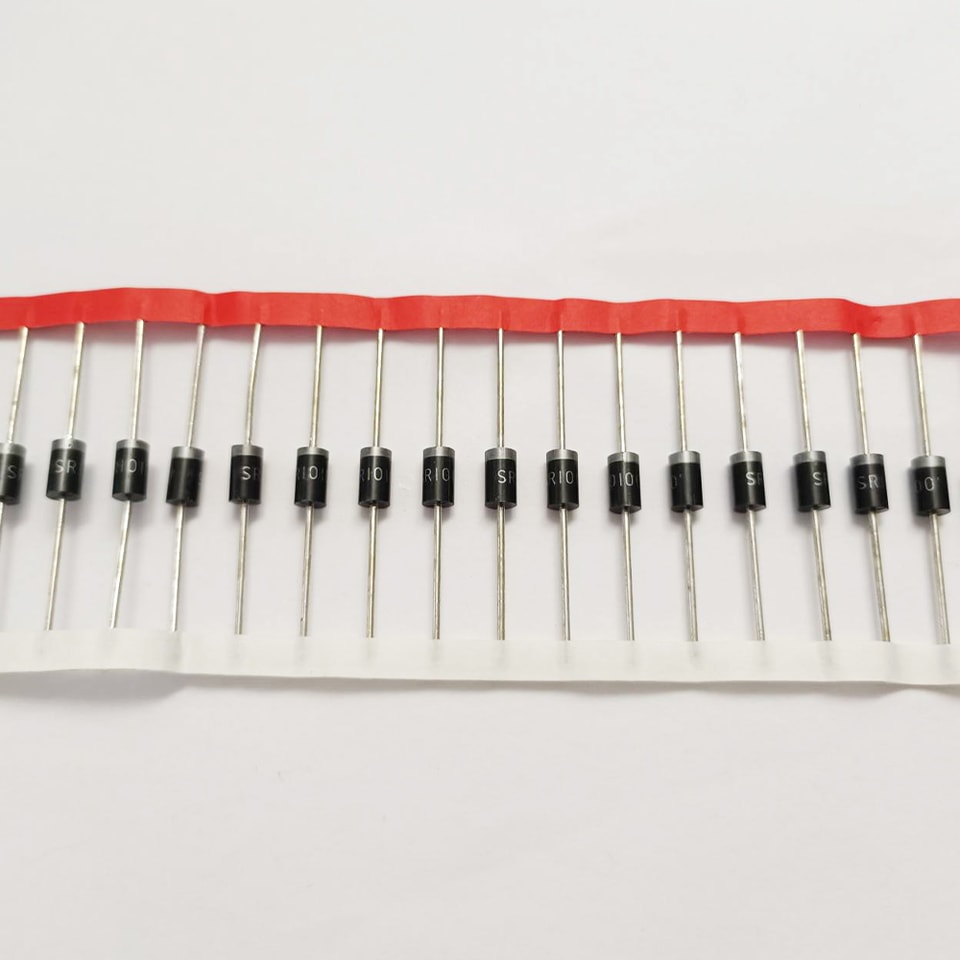

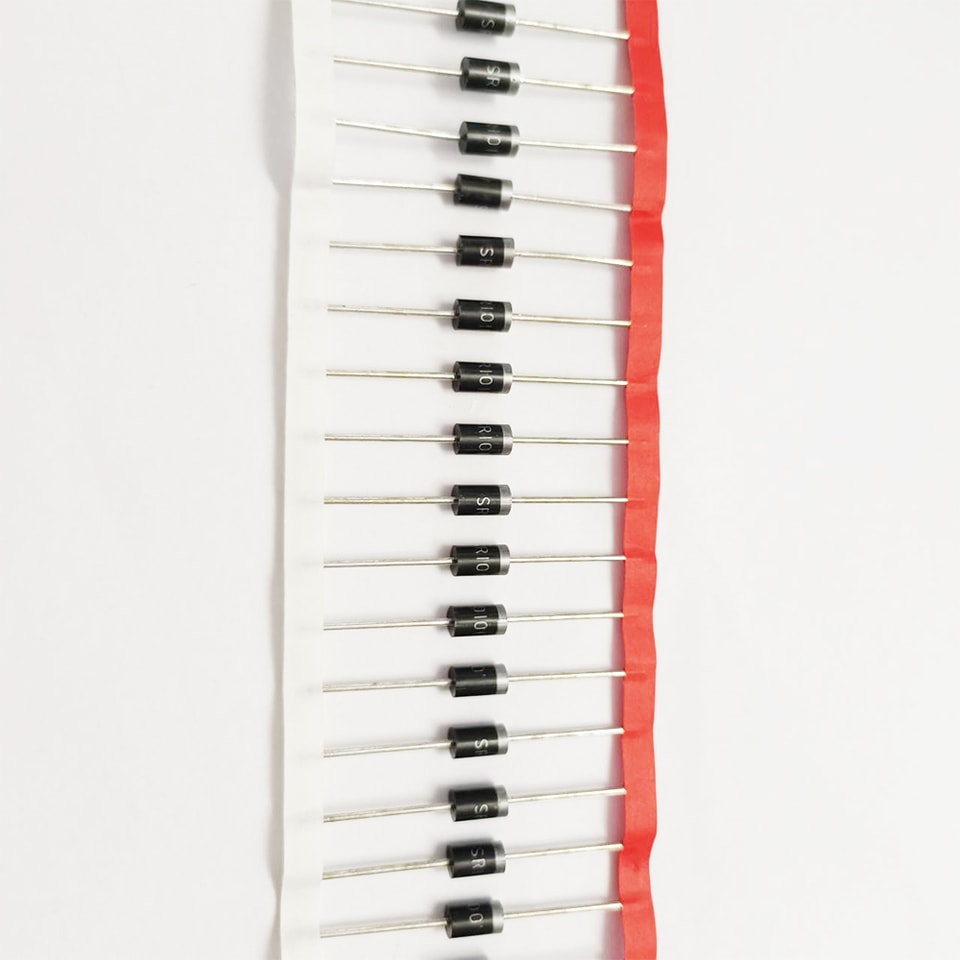

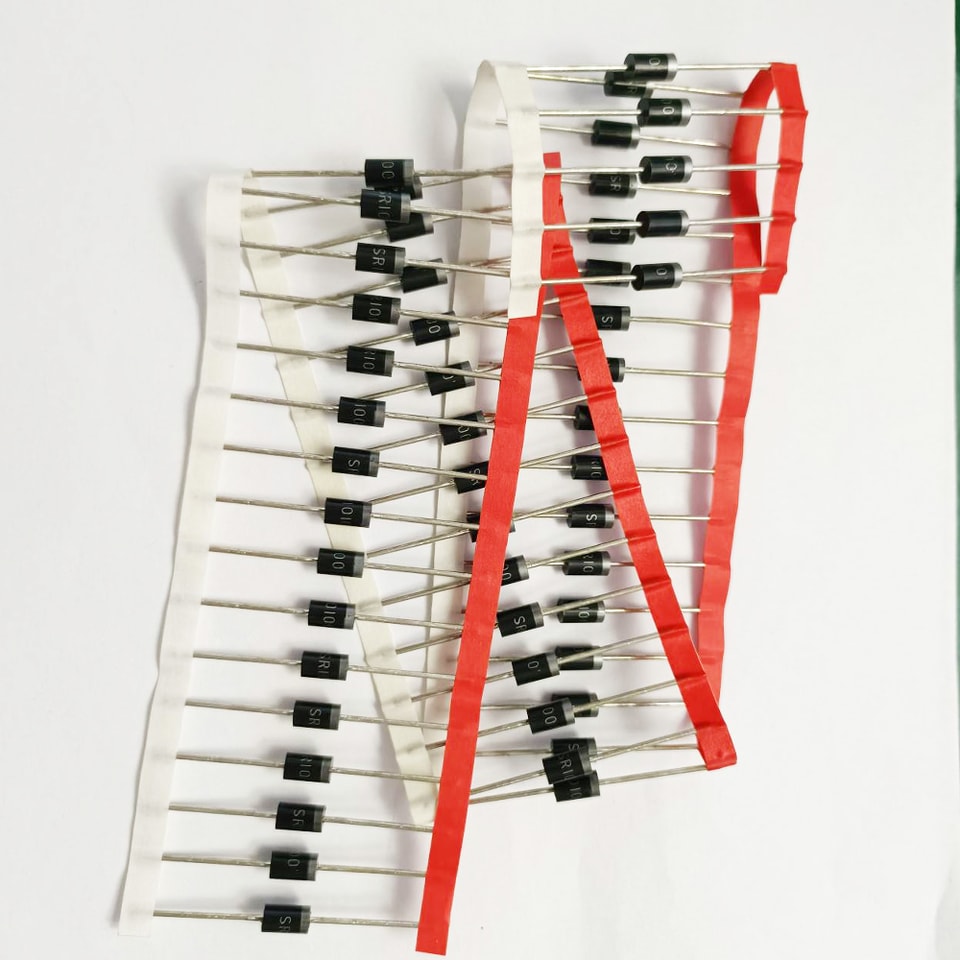

Plastic Schottky Barrier Rectifier Diode

YZPST-SR10100

Features
Metal silicon rectifie,majority carrier conduction ·Guard ring for transient protection
Low pwer loss,high effciency
High current capability low VF
High surge capacity
Plastic package has UL flammability classification 94 V-0
Mechanical Data

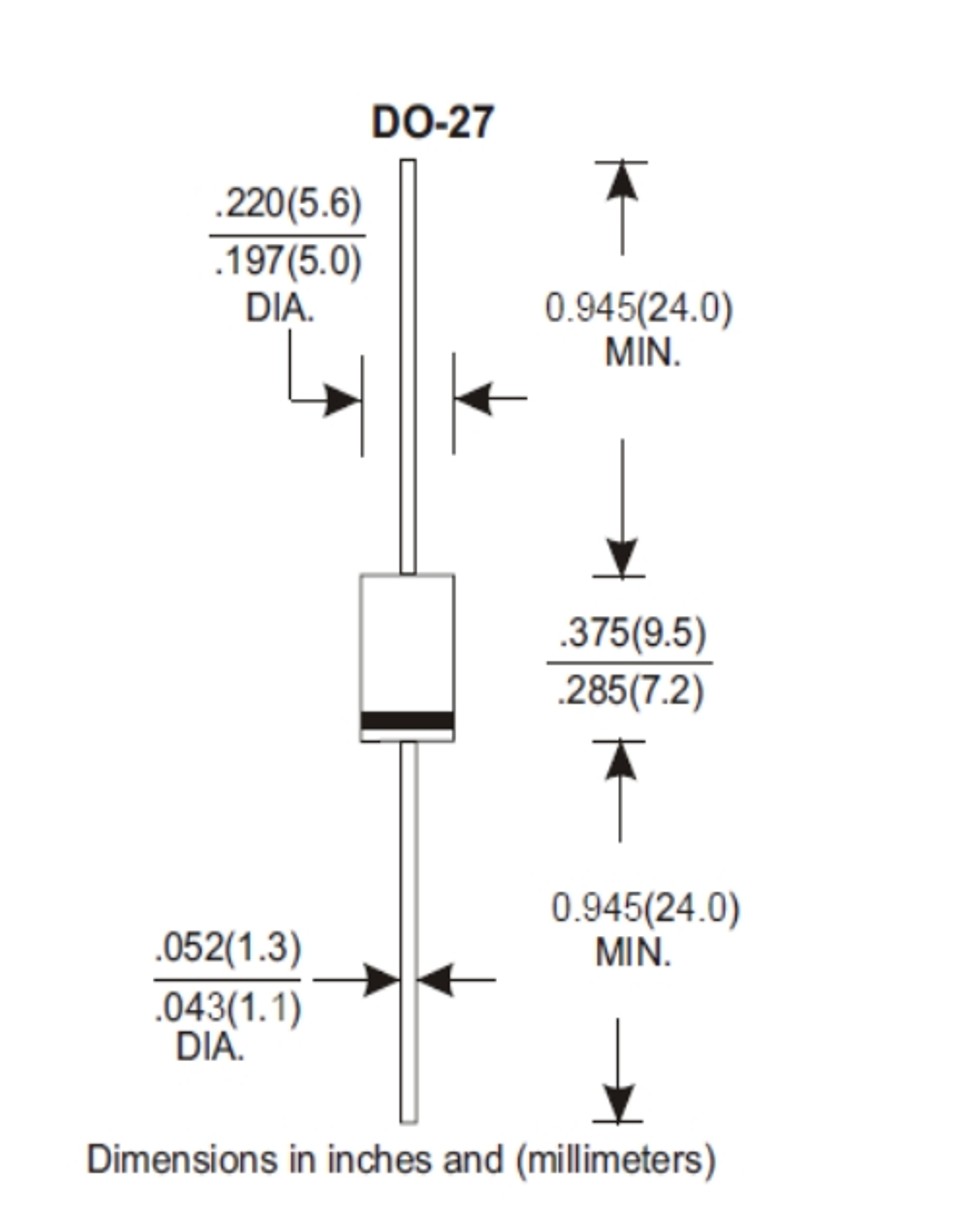

Cases:JEDEC R-6 molded plastic
Polarity:Color band cenotes cathode
Weight:0.07ounces 2.1 grams
Mounting position:Any

Maximum Ratings & Electrical Characteristics

Ratings at 25℃ ambient temperature unless otherwise specified.

Single phase,half wave,60Hz,resistiver or inductive load.

For capactitive load, derate current by 20%

		Symbols	SR10100	Unit
Maximum repetitive peak reverse voltage		VRRM	100	V
Maximum RMS voltage		VR(RMS)	70	V
Maximum DC blocking voltage		VDC	100	V
		IF(AV)	10	A
Maximum Average Forward Rectified Current
Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load		IFSM	150	A
@IF =10A
Maximum forward voltage		VF	0.85	V
Maximum reverse current	@TA = 25℃ @TA = 100℃	IR	0.5	mA
			50
Typical thermal resistance		RθJA	3	℃//W
Storage temperature range		TSTG	-205	℃
Junction temperature range at reduced reverse voltage in DC forward mode		Tj	-205	℃
