YZPST-CLA100E16
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files

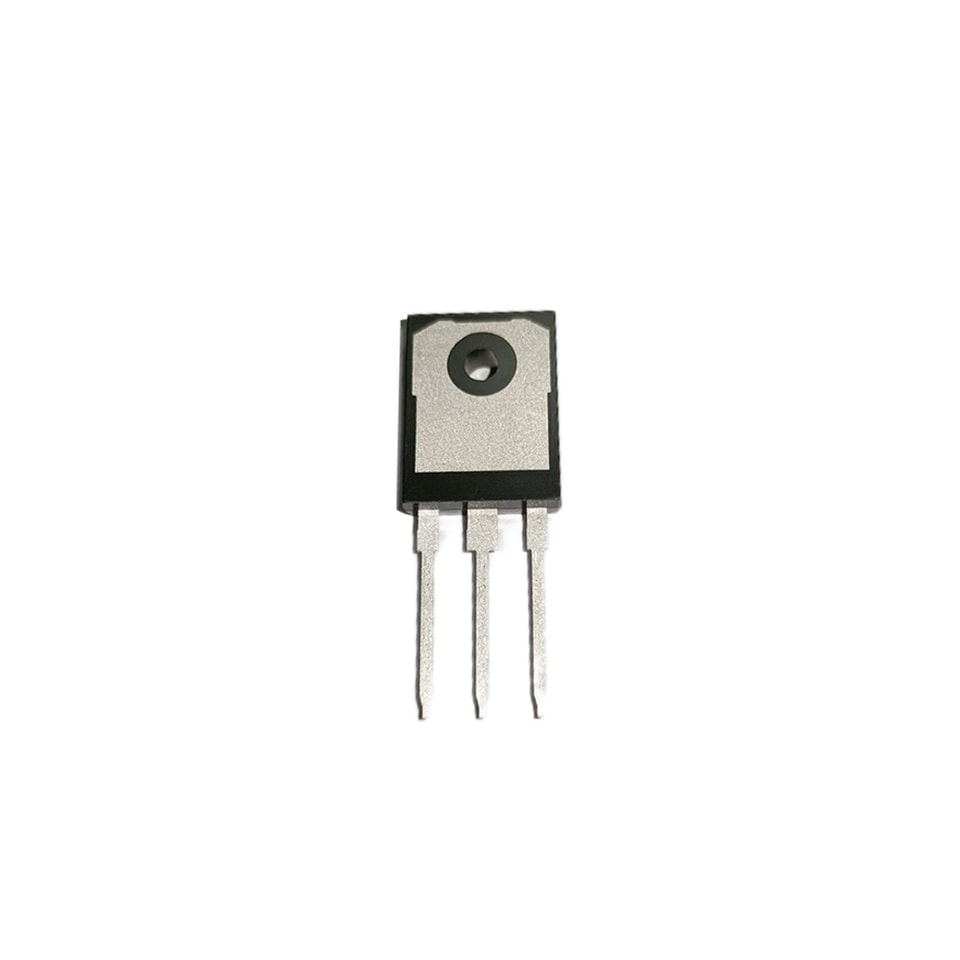

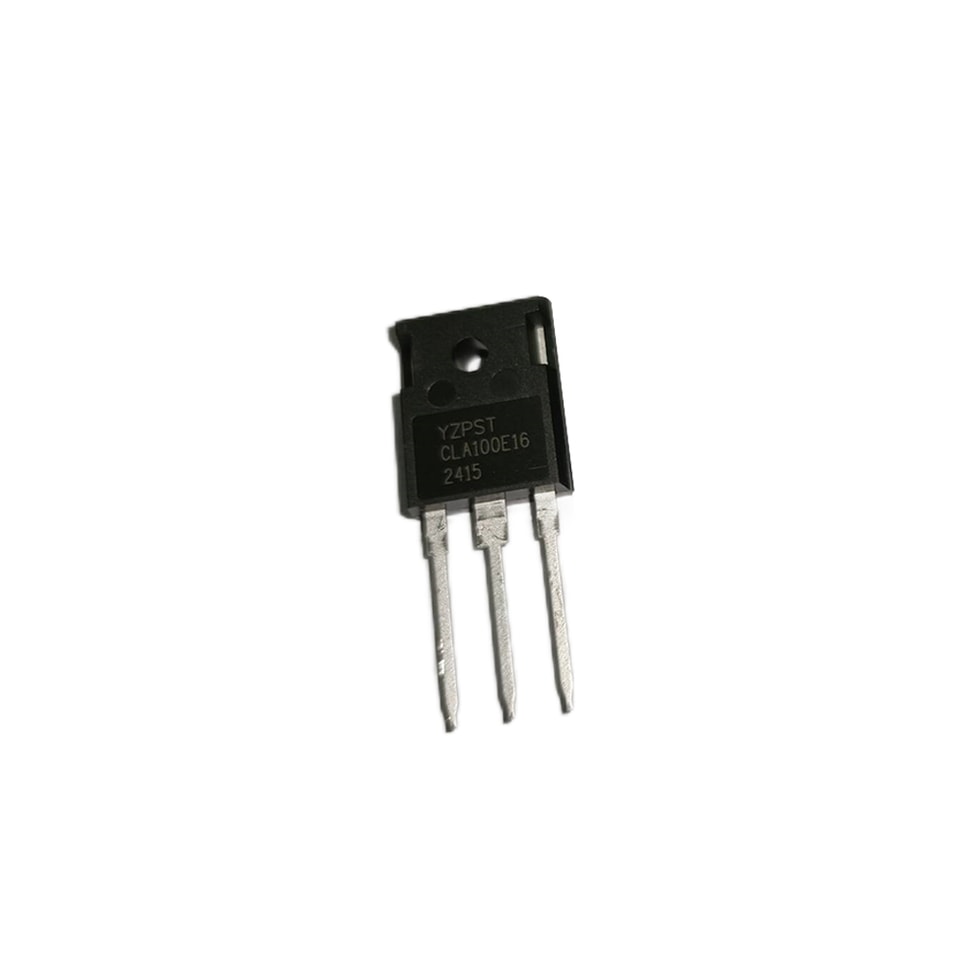

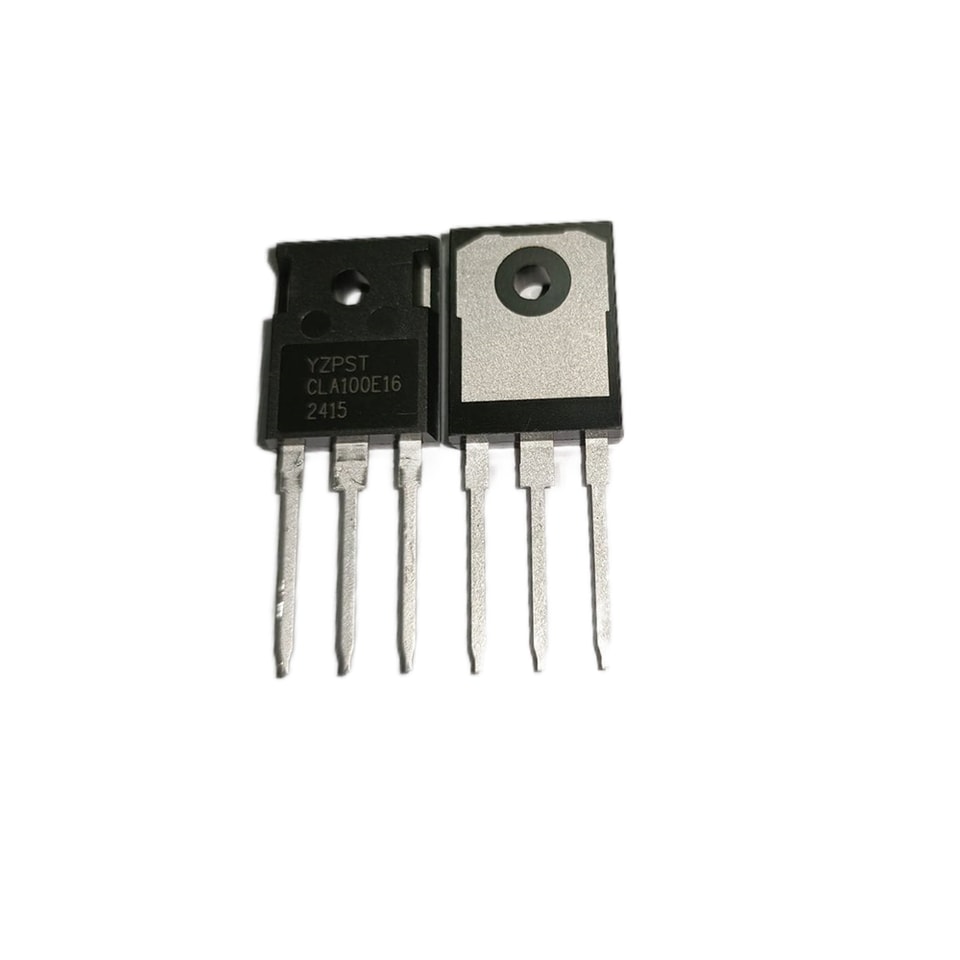

P/N:YZPST-CLA100E16 SCRs
FEATURES
High thermal cycling performance
High voltage capacity
Very high current surge capability lAPPLICATIONS
Line rectifying 50/60 Hz
Softstart AC motor control
DC Motor control
Power converter
AC power control
Lighting and temperature control
ABSOLUTE MAXIMUM RATINGS | |||
Parameter | Symbol | Value | Unit |
Storage junction temperature range | Tstg | -40 ~ 150 | ℃ |
Operating junction temperature range | Tj | -40~ 125 | ℃ |
Repetitive peak off-state voltage (T =25℃) | VDRM | 1200/1600 | V |
Repetitive peak reverse voltage (T =25℃) | VRRM | 1200/1600 | V |
Non repetitive surge peak Off-state voltage | VDSM | VDRM +100 | V |
Non repetitive peak reverse voltage | VRSM | VRRM +100 | V |
RMS on-state current (T = 100℃) | IT(RMS) | 160 | A |
Non repetitive surge peak on-state current | ITSM | 1150 | A |
Average on-state current (180° conduction angle) | IT(AV) | 100 | A |
I2t value for fusing (tp= 10ms) | I2t | 6600 | A2 S |
Critical rate of rise of on-state curren t(I =2×IGT, tr ≤ 100 ns) | di/dt | 150 | A/μS |
Peak gate current | IGM | 5 | A |
Average gate power dissipation | PG(AV) | 1 | W |
ELECTRICAL CHARACTERISTICS (T=25℃unless otherwise specified) | ||||
Symbol | Test Condition |
| Value | Unit |
IGT | V = 12V R = 140Ω | MAX. | 40 | mA |
VGT | MAX. | 1.5 | V | |
VGD | VD=VDRM Tj=125℃ R=1KΩ | MIN. | 0.2 | V |
IL | IG= 1.2IGT Tj=25℃ | MAX. | 250 | mA |
IH | VD=12V Tj=25℃ | MAX. | 200 | mA |
dV/dt | VD=2/3VDRM Gate Open Tj=125℃ | MIN. | 1000 | V/μs |

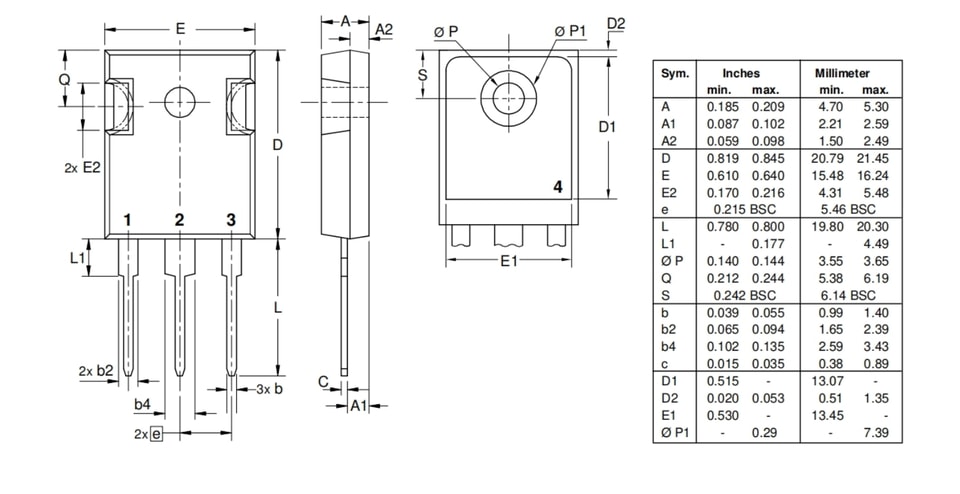

TO-247 Package Mechanical Data
.jpg)
.jpg)
