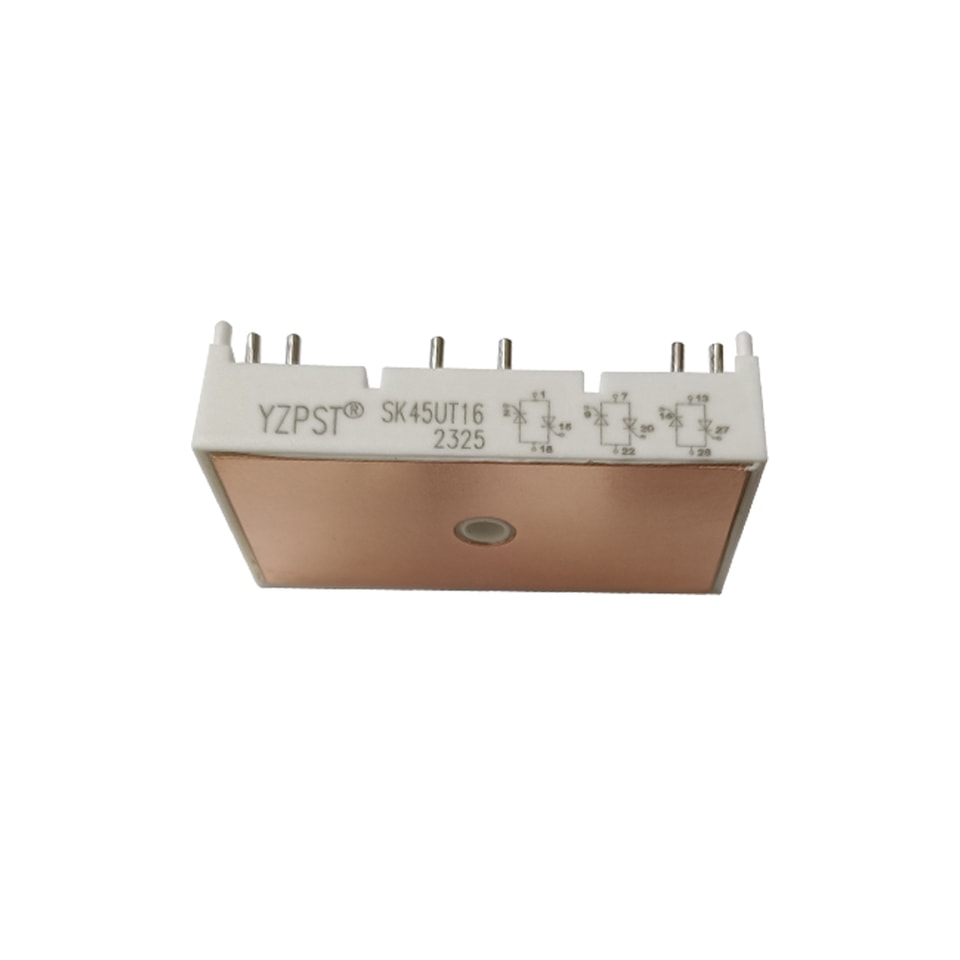

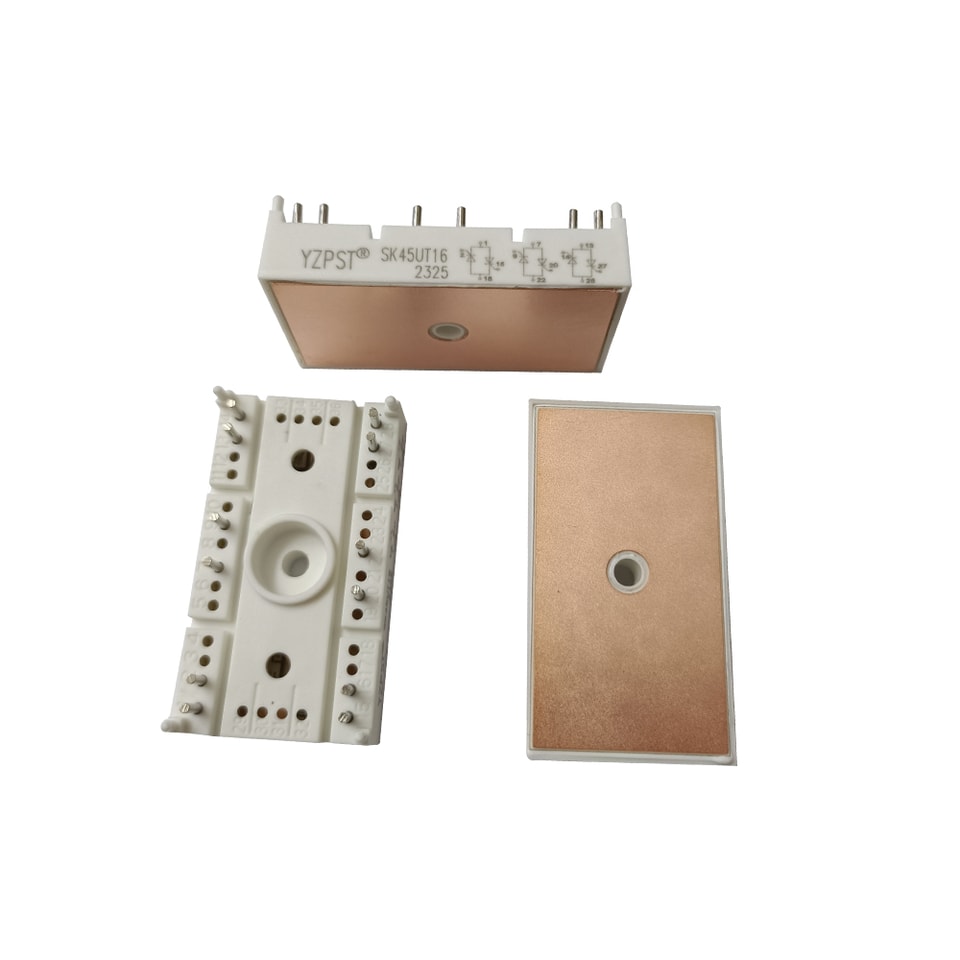

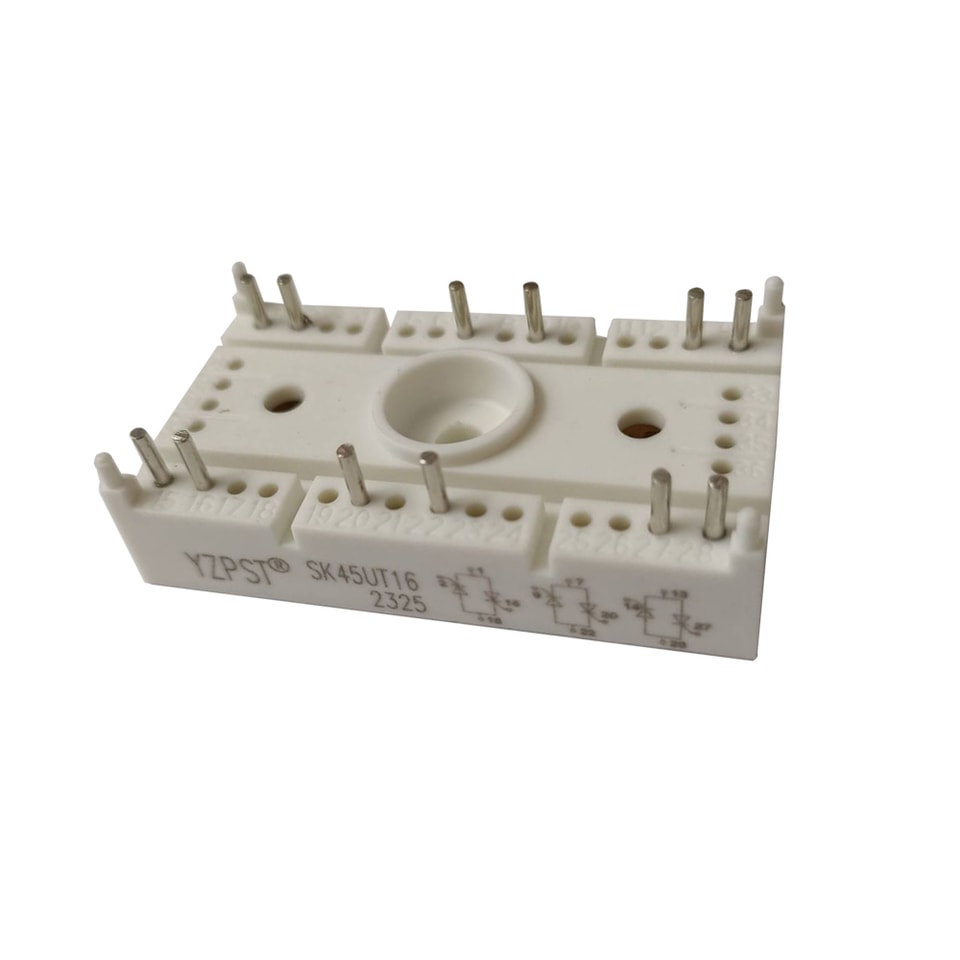

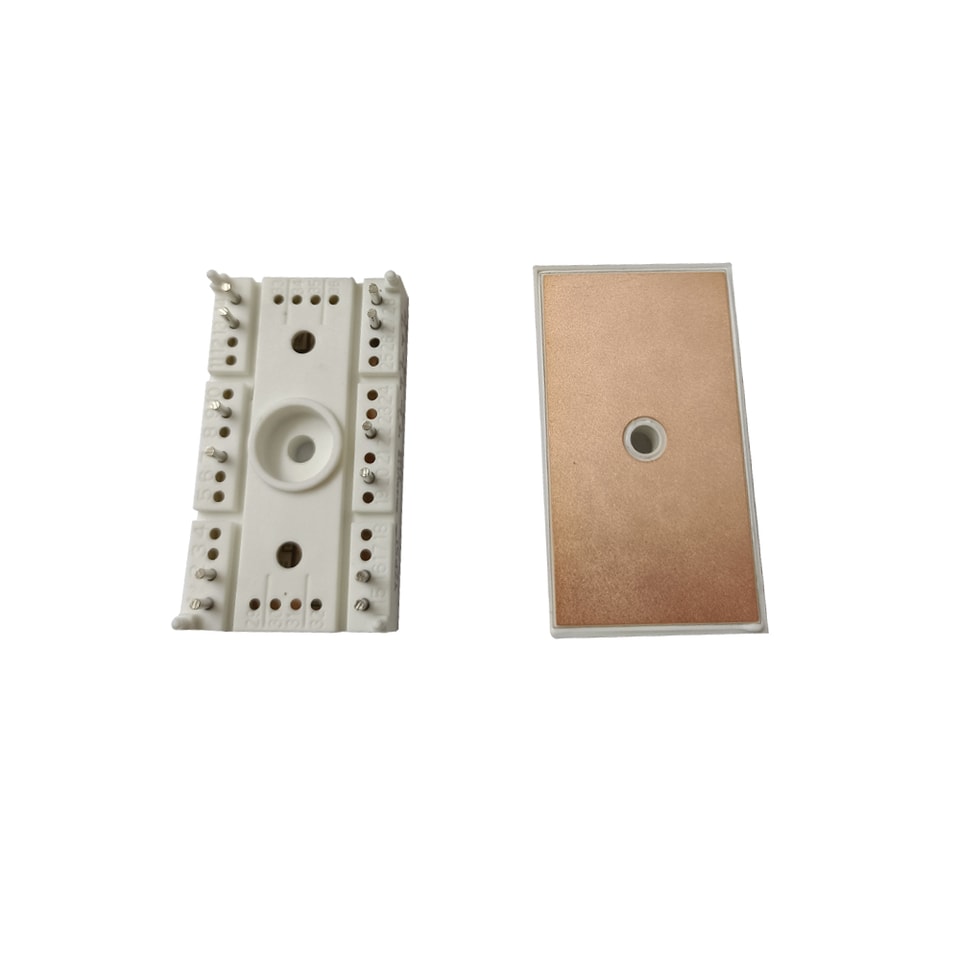

Antiparallel Thyristor Module

P/N:YZPST-SK45UT
Features
•Compact Design
•One screw mounting
•Heat transferand isolation through direct copper bonded aluminium oxide ceramic (DBC)
•Glass passived thyristor chips
•Up to 1600V reverse voltage
Typical Applications
•Soft starters
•Light control (studios, theaters...)

•Temperature control

Compact Design SK45UT Antiparallel Thyristor Module

Vrsm	Vrrw Vdrm	lRMS = 47A (full conduction)
V	V	(Ts = 85 °C)
900	800	SK 45 UT 08
1300	1200	SK45 UT12
1700	1600	SK45 UT16

Symbol	Conditions	Values	Units
Irms	W1C : sin. 180°: Ts=100oC	33	A
Irms	W1C;sin.180o;Ts = 85oC	47	A
Itsm	Tvj = 25 oC;10ms	450	A
i2t	Tvj = 125oC;10ms	380	A
	T/25 oC;8,3...10ms	1000	A2s
	Tvj = 125oC;8,3...10ms	720	A2s
Vt	T/25 °C, lT = 75A	max. 1,9	V
Vt(to)	Tvj = 125oC	max. 1	V mQ mA
rT	Tvj = 125oC	max. 10
IRD	T/125°C, VRD=VRRM	max. 10
IrD
tgd	Tvj = 25 OC, lG = 1A; diG/dt= 1 A/ps	1	MS
tgd	Vd = 0,67*Vdrm	2	MS
(dv/dt)cr	Tvj = 125oC	1000	V/ps
(di/dt)cr tq lH	Tvj = 125oC; f= 50...60 Hz	50	A/ps
II	Tvj = 125 °C; typ.	80	MS mA mA
	TVj = 25 °C; typ. / max.	80/150
	TVj = 25 °C;Rg = 33Q; typ. / max.	150/300
Vgt	歸二25 °C; d.c. 歸二25 °C; d.c.	min. 3 min. 100 max. 0,25	V mA
IGT	Tvj = 125oC;d.c.	max. 3	V mA
Vgd	Tvj = 125oC;d.c.
Igd
Khfj-s)	cont. per thyristor sin 180° per thyristor cont. perWIC sin 180° perWIC	1,2	K/W
Khfj-s)	terminals, 10s	1,24	K/W
L		0,6	K/W
Tstg		0,62	K/W
^solder		-40...+125	°C
		-40...+125	°C
		260	°C
Vis。］	a. c. 50 Hz; r.m.s.; 1s/1 min. Mounting torque to heatsink	3000/2500	V~
Ms		2,5	Nm
Mt		30	Nm m/s2
a			g
m

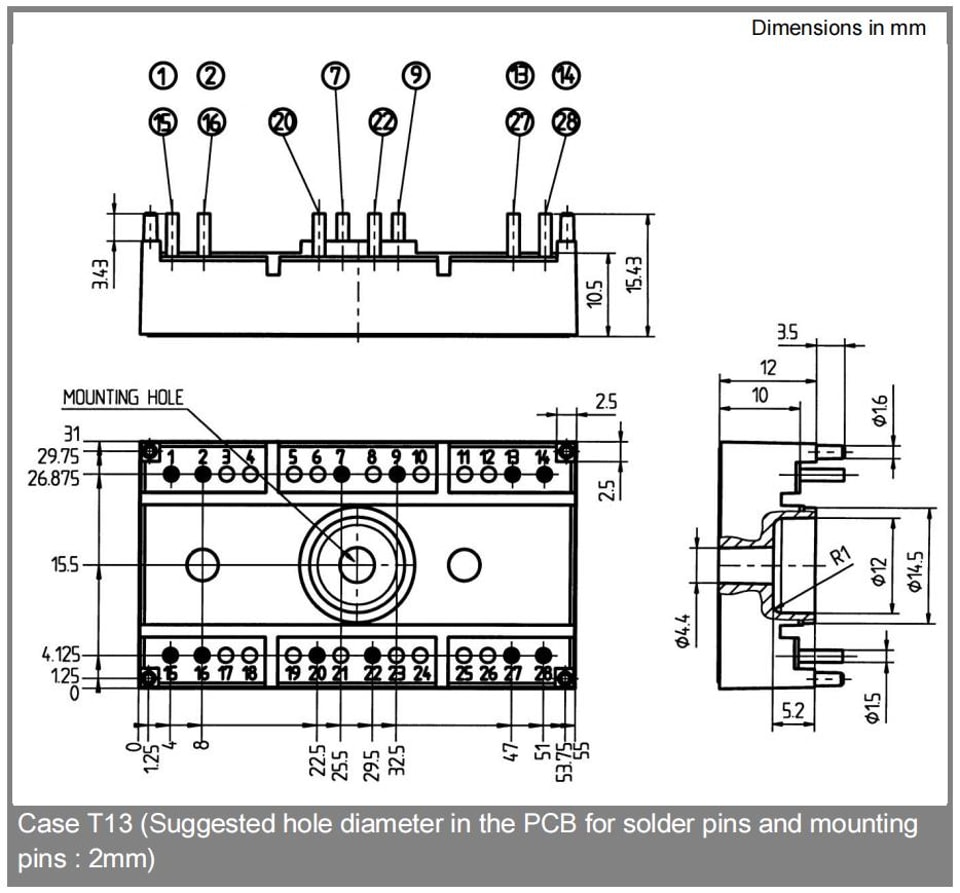

Case		T13
