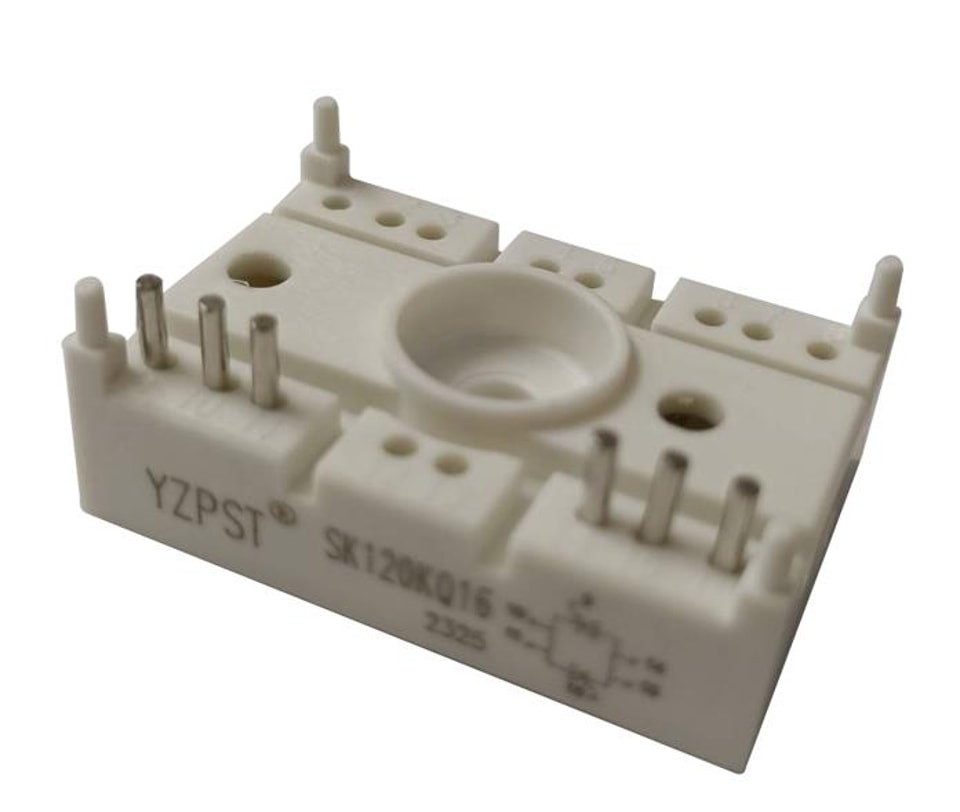

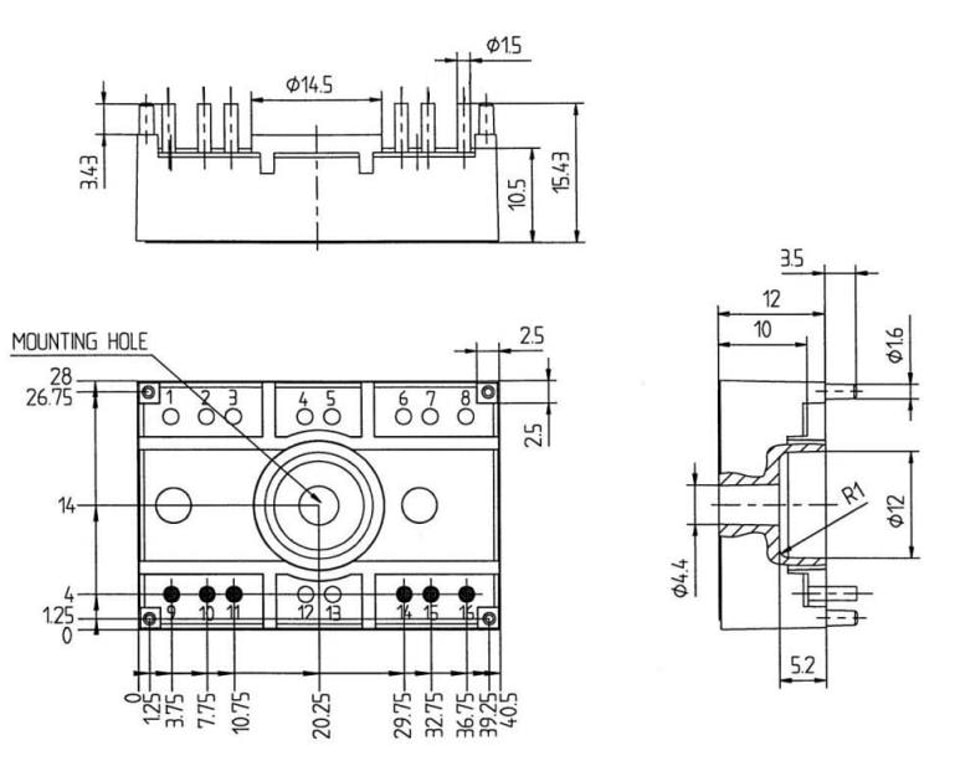

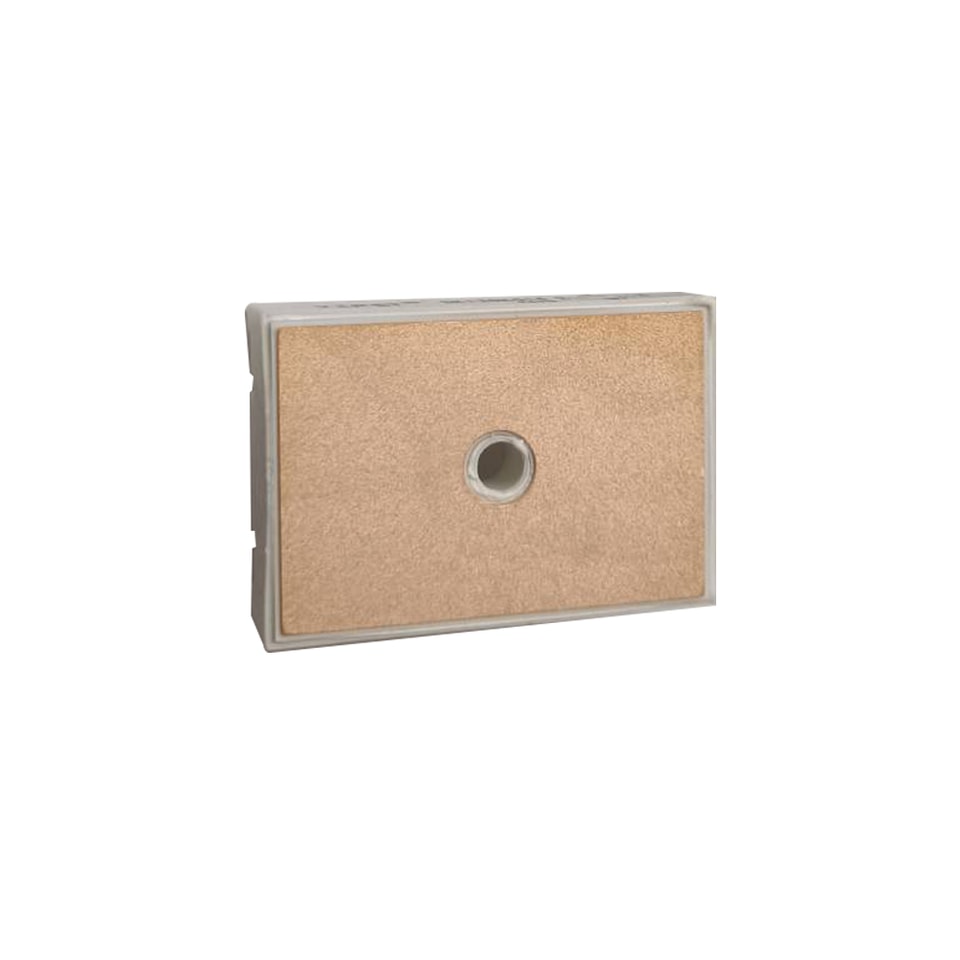

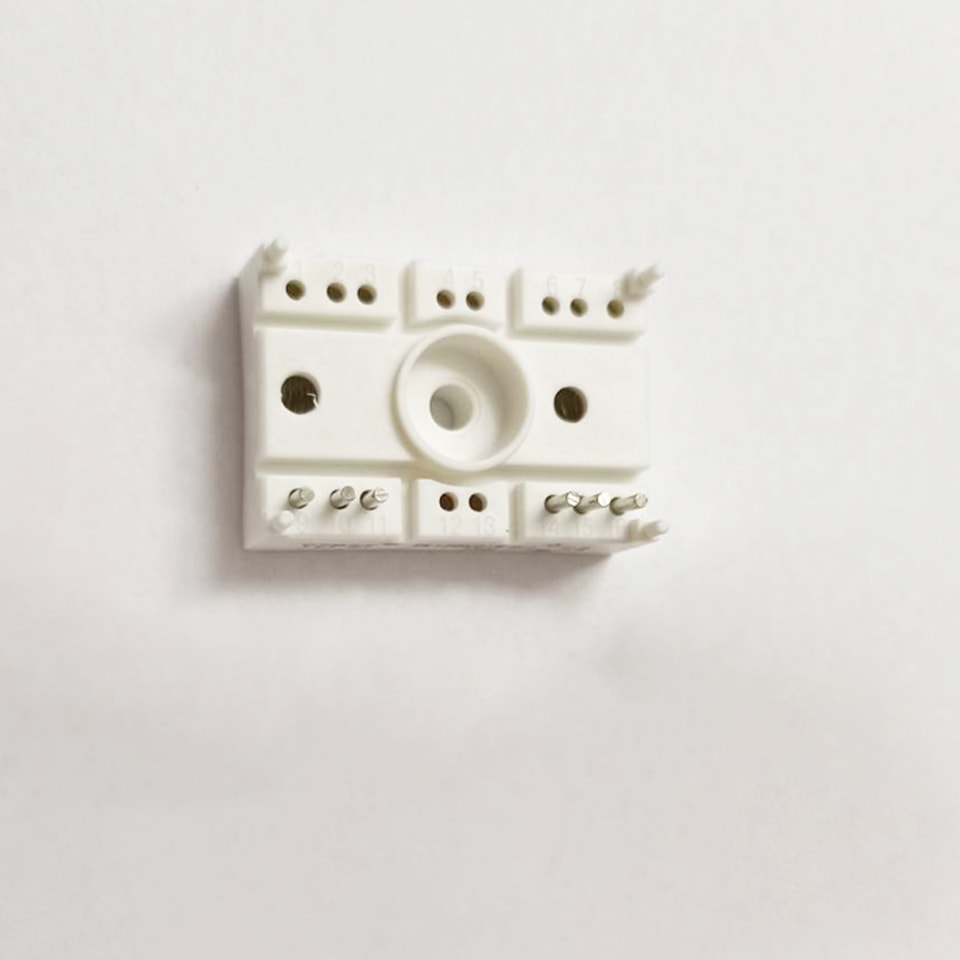

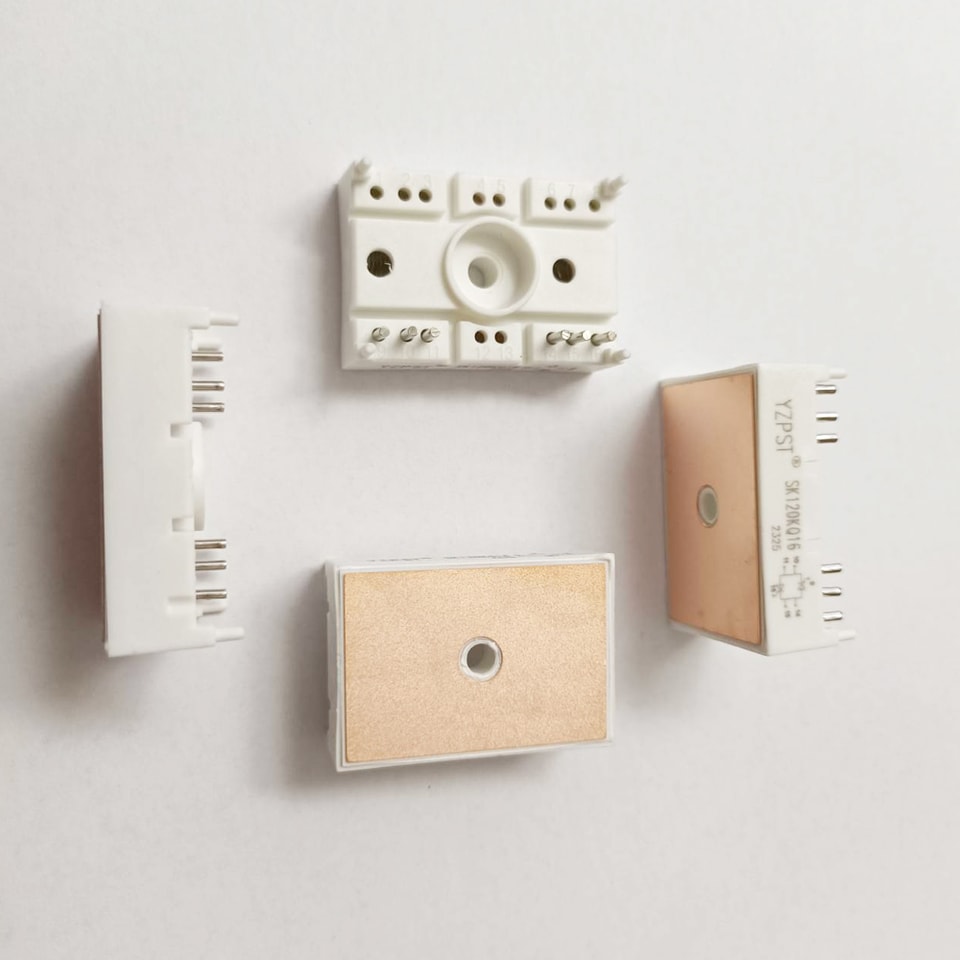

120A 1600V Thyristor Module

RoHS Compliant

YZPST-SK120KQ16

PRODUCT FEATURES
Compact Design
One screw mounting
Heat transfer and isolation through DBC
Glass passivation thyristor chips
Low Leakage Current
APPLICATIONS
Soft starters
Temperature control

Light control

ABSOLUTE MAXIMUM RATINGS(T C =25°C unless otherwise specified)

Symbol	Parameter	Test Conditions	Values	Unit
VRRM	Maximum Repetitive Reverse Voltage	Tvj=125℃	1600	V
VDRM	Maximum repetitive peak off-state voltage	Tvj=125℃	1600	V
VRSM	Non-Repetitive Reverse Voltage	Tvj=125℃	1700	V
VDSM	Non-repetitive peak off-state voltage	Tvj=125℃	1700	V
IRRM	Maximum Repetitive Reverse Current	Tvj=125℃	5	mA
IDRM	Maximum repetitive peak off-state Current	Tvj=125℃	5	mA
IT(AV)	Mean On-state Current	TC=85℃	90
IT(RMS)	RMS Current	TC=85℃, sin180。	145	A
ITSM	Non Repetitive Surge Peak On-state Current	10ms, Tj=25℃	2100
I2t	For Fusing	10ms, Tj=25℃	20000	A2S
VTM	Peak on-state voltage	ITM=300A	1.8	V
dv/dt	critical rate of rise of off-state voltage	VD =2/3VDRM Gate Open Tj=125℃	1000	V/us
IGT	gate trigger current max.		80	mA
VGT	gate trigger voltage max.		1.5	V
IH	gate trigger current		250	mA
IL	latching current		300	mA
Viso	AC 50Hz RMS 1min		2500	V
TJ	Junction Temperature		-40 to +125	℃
TSTG	Storage Temperature Range		-40 to +125	℃
RthJC	Junction to Case Thermal Resistance(Per thyristor chip )		0.35	℃ /W
Torque	mounting force, Module to Sink		2	Nm
Tsolder	Teminals,10s		260	℃
